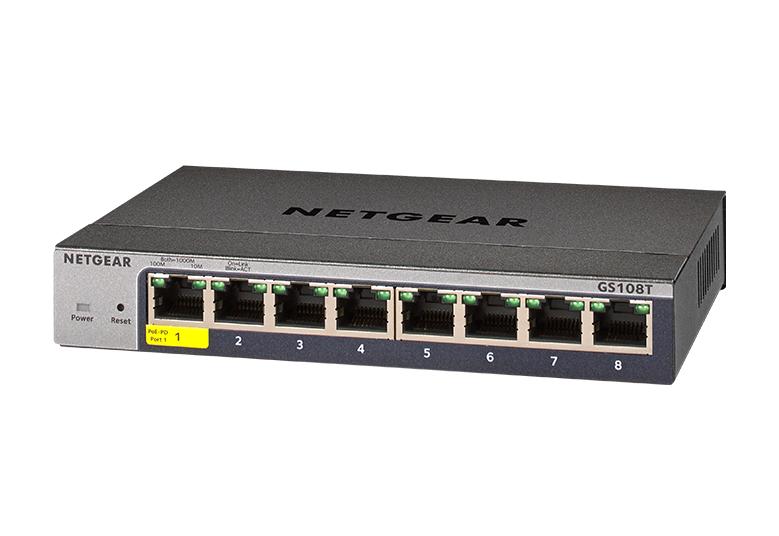

NETGEAR 8-Port Gigabit Ethernet Smart Switch with Cloud Management (GS108T-300PES)

NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

Features

MANAGEMENT

Traffic Management

• Auto Negotiation of speed and duplex modes
• IEEE 802.3x Flow Control
• Dynamic MAC address management
• IEEE 802.1Q-based VLAN
• Auto Voice VLAN
• Auto Video VLAN (selected models)
• VLAN routing (selected models)
• QoS based on WRR, strict priority, or both
• Port-based and IEEE 801.2p-based QoS
• TCP/UDP-based QoS
• DiffServ
• IPv4 and IPv6-based QoS (selected models)
• DSCP Support
• Rate Limiting (ingress, or egress)
• Link Aggregation and LACP

Switch Management

• Insight mobile app or Insight Cloud Portal

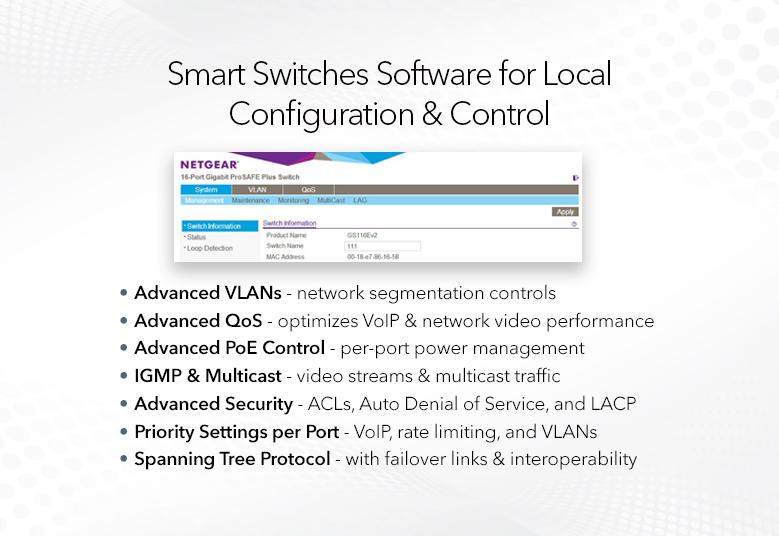

• Web browser-based management GUI
• Smart Control Center Software for multi-switch management
• IP Access List
• IPv6 Management
• Configurable Management VLAN
• SNMP v1/v2c and v3
• Standard MIBs (RFC1213, RFC1643, and RFC1493)
• RMON group 1, 2, 3, 9
• Firmware Upgrade through Smart Control Center (TFTP)
• Firmware download (to switch) and upload (to server) through TFTP/HTTP
• Configuration and Image Upload (to PC) through HTTP
• Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

• Syslog (server)
• System password protection

SECURITY AND MORE

• Security
• MAC lockdown
• MAC lockdown by number of MACs
• IEEE 802.1x port authentication
• Dynamic VLAN Assignment
• Guest VLAN
• TACACS+
• 3 HTTPS /SSL versions
• TLS session
• Trusted MAC
• IPv4, L4-based Access Control List (ACL)
• IPv6-based ACL (selected models)

Multicast Efficiency

• IGMP snooping, v1, v2 and v3
• IGMP snooping querier
• Blocking of unknown multicast traffic
• MLD snooping

Spanning Tree, Routing and Stacking

• IEEE 802.1D, IEEE 802.1w RSTP and MSTP
• Option to enable/disable BPDU flooding when STP is disabled
• Static routing with 32 static routes (Selected models)
• Hosted ARP table size of 512 (Selected models)

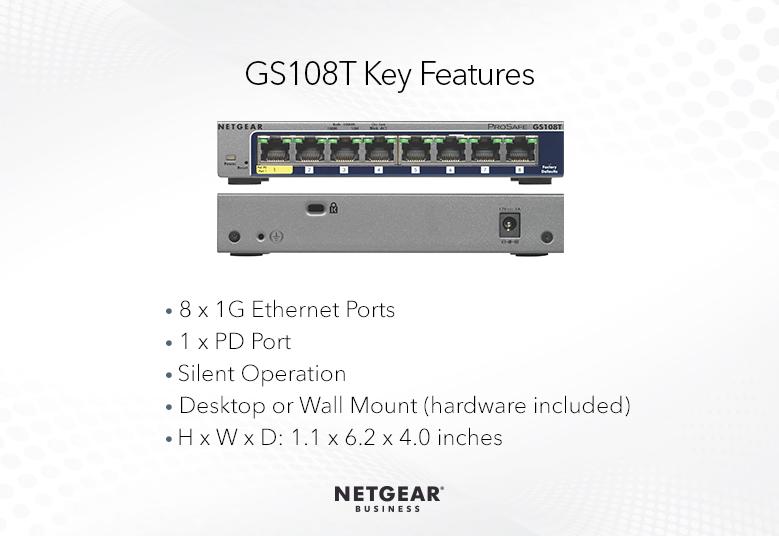

PHYSICAL SPECIFICATION

• Dimensions (W x D x H) : 158 x 101 x 27mm ( 6.2x 4.0 x 1.1in)
• Weight : 0.43kg ( 0.94lb)

TECHNICAL SPECS

• 10/100Mbps ports : 8
• Gigabit ports : 8
• SFP ports : 0
• Number of PoE ports : 0
• PoE+ (802.3at) : 0
• Total PoE Power budget (Watts) : N/A
• Max MAC entries : 8K
• Buffer size : 512KB
• VLAN (Number Supported) : 64
• VLAN routing : Yes
• Dynamic VLAN assignment : Yes
• MLD Snooping : Yes
• Static route : Yes
• Host ARP table : 512ARP
• EEE : Yes
• DoS Prevention : Yes

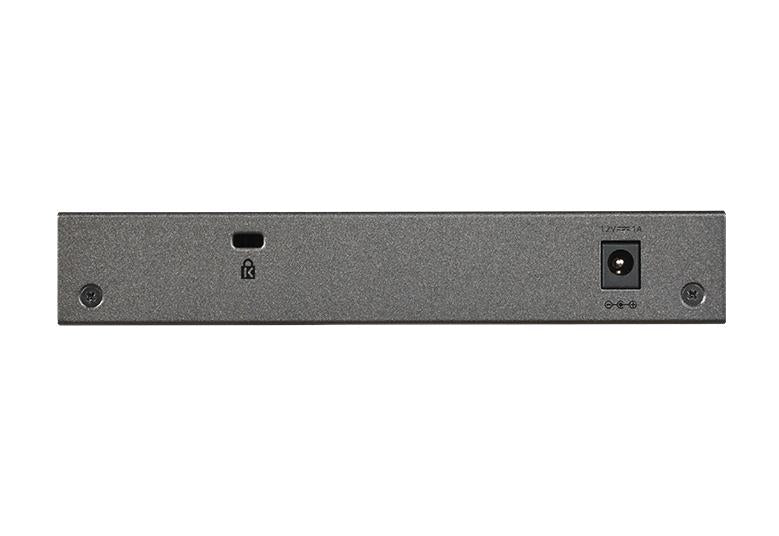

• Internal/External : External DC 12V 1.0A
• Max power (worst case, all ports used, line-rate traffic) : 5.5W
• FAN : 0
• Acoustic Noise Level @25C (dBA) : 0
• Operating Temperature : -0° to 45°C (32° to 113°F)
• MTBF : 2,388,657 hrs (272 yrs)
