Description

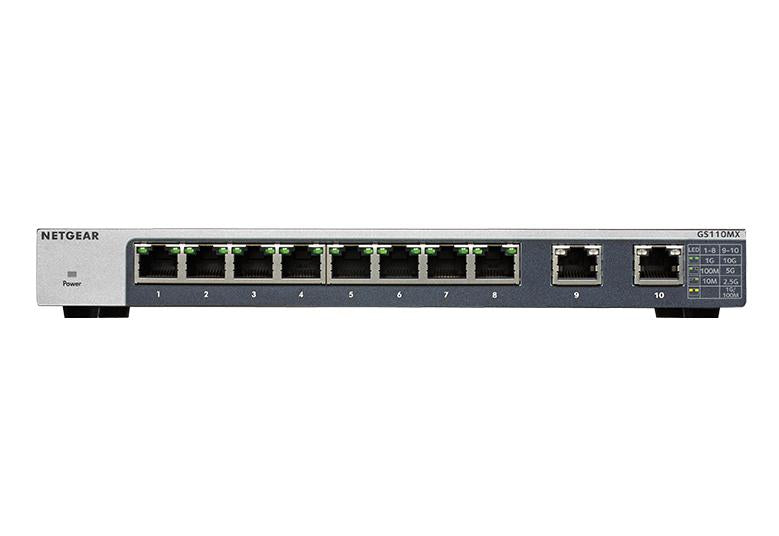

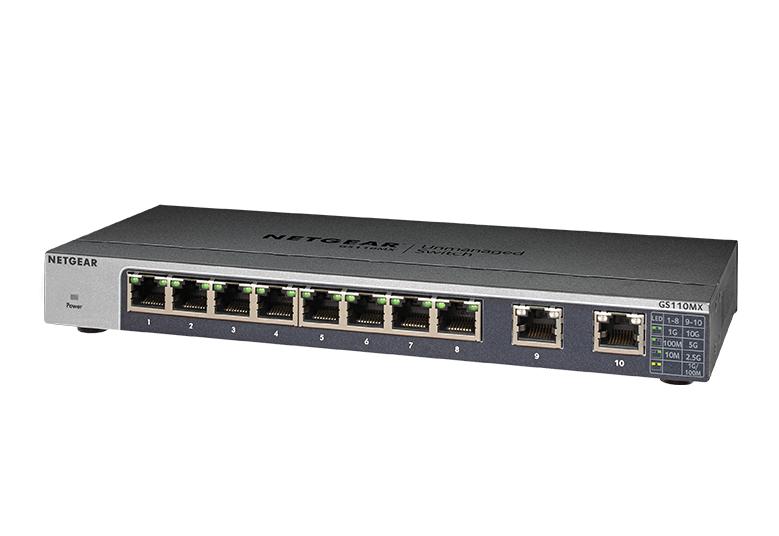

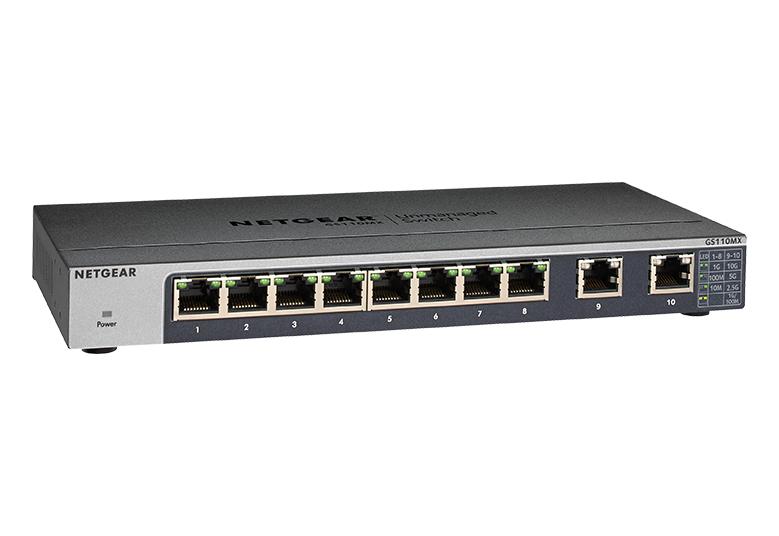

NETGEAR 8-Port Gigabit Ethernet Unmanaged Switch with 2-Port 5-Speed 10-Gigabit/Multi-Gigabit (GS110MX-100PES)
Unlock the Potential of your 10G/Multi-Gig devices

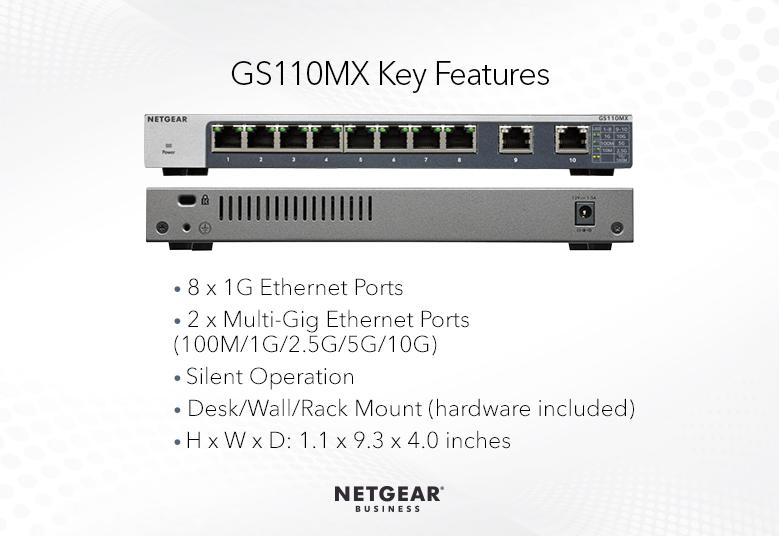

Features
10G/MULTI-GIG
8 x 1G Copper Ethernet plus 2 x 5-speed Copper Ethernet that supports Fast Ethernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit, and 10-Gigabit connectivity
Gives the exact speed required, no downgrade. Automatically detects which speed is needed by the connected device and provides the adequate speed
Can be connected with regular Cat5E Ethernet cables for speeds up to 5Gb on 5-speed port, therefore reducing wiring costs and hassle to upgrade to Cat6a or better cabling
IDEAL FOR SMB

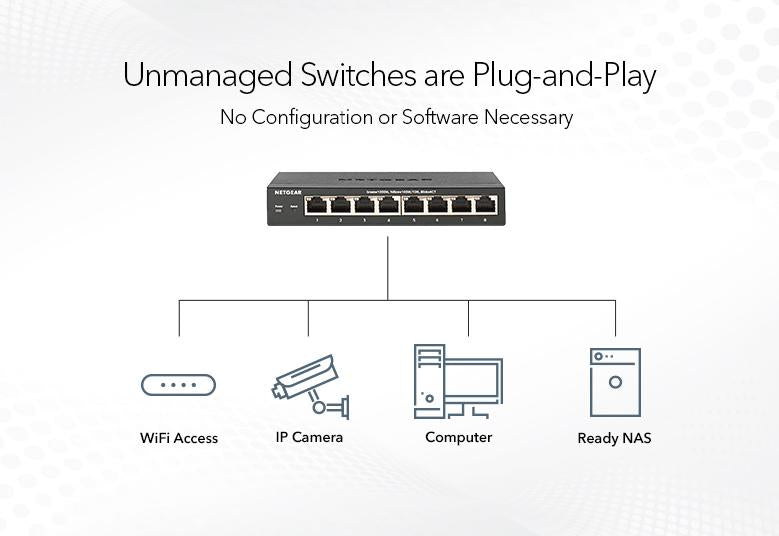

Plug-and-play, automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!

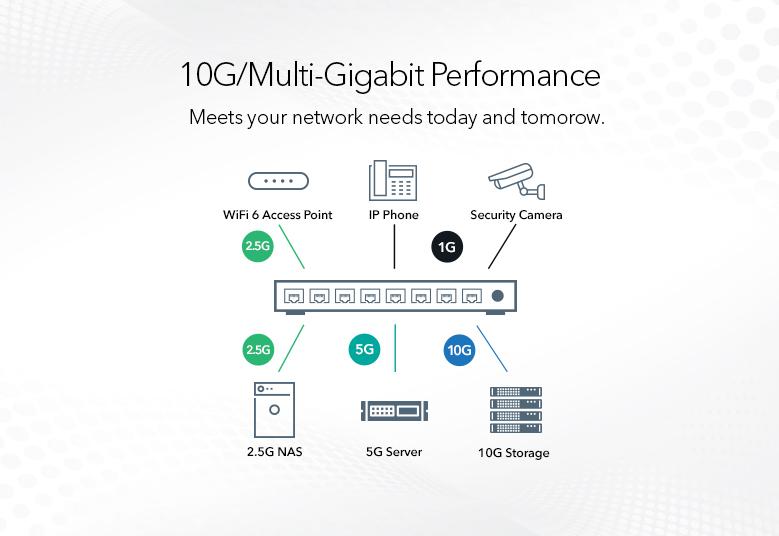

Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
Small and silent desktop, wall mount or rackmount form factor for quiet operation - Adapts to your needs and configuration in any environment
ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert Energy efficient switches that automatically adjusts power consumption according to the link status and cable length.
CABLES AND SPEED
The following describes the network cables you can use for the switch connections and the speeds that these cables can support, up to 100 meters (328 feet).
100Mbps with Category 5(Cat 5) or higher rated cables.
1Gbps, 2.5Gbps or 5 Gbps with Category 5e(Cat 5e) or higher rated cables.
10Gbps with Category 6A (Cat 6a) or higher rated cables
*Note: For speeds of 10 Gbps, if the cable length is shorter than 45 meters (148 feet), you can use a Cat 5e cable.
PHYSICAL SPECIFICATION
- Dimensions (W x D x H) : 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in)
- Weight : 0.74 kg (1.63 lbs)
TECHNICAL SPECS
- 100M/1G/2.5G/5G/10G RJ-45 copper ports : 2
- 10M/100M/1G Copper ports : 8
- Form Factor : Desktop/Wall-Mount/Rackmount
- Packet buffer memory : 128KB
- Bandwidth : 56Gbps
- MAC Address database size : 16K
- Number of priority queues : 8
- Jumbo frame support : Up to 9K packet size
- Fan(s) : 0 ( Fanless)
- IEEE 802.3az (Energy Efficient Ethernet) : Yes
- Max power consumption (Watts) : 13.2W
- LEDs : Power, Speed, Link/Activity
- Acoustic noise level @ 25° C (dBA) : 0
- Operating temperature : 0° to 40° C
- Electromagnetic compliance (A or B) : B
