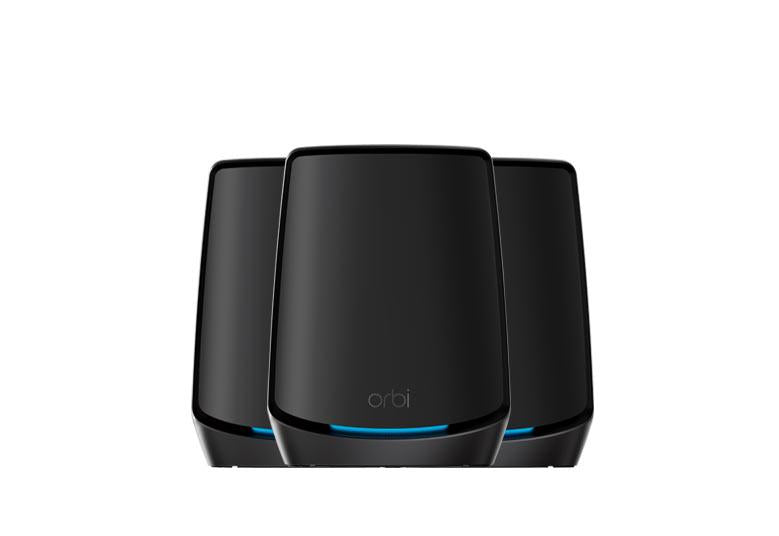

NETGEAR AX6000 Orbi 860 Series Tri-band Mesh with 2 Satellites Black, 6Gbps, 10 Gig Port, 3-Pack with 1-year NETGEAR Armor included
NETGEAR AX6000 Orbi 860 Series Tri-band Mesh with 2 Satellites Black, 6Gbps, 10 Gig Port, 3-Pack with 1-year NETGEAR Armor included
SKU: SKU: RBK863SB-100APS
Low stock: 3 left
Orbi 860 Series Tri-Band WiFi 6 Mesh System, 6Gbps, 10 Gig Port, 3-Pack, Black, with 1-year NETGEAR Armor included
- High-performance, whole-home WiFi with up to 6Gbps† WiFi speeds & coverage up to 8,000 sq. ft., including front & back yards

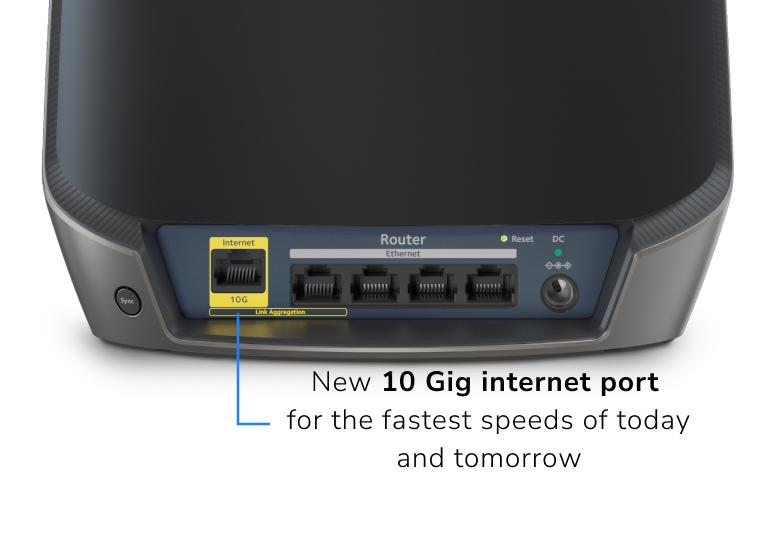

- NEW: 10 Gig internet port unleashes the fastest download speeds of today & tomorrow. Connect to the latest cable or fiber Internet service up to 10Gbps ††
- NEW: Upgraded, patented antenna design boosts WiFi coverage and performance by 20% over previous generation ‡
- Patented & industry unique Tri-Band & Dedicated Backhaul WiFi ensures max speeds for up to 100 connected devices
- NETGEAR® Armor™ software provides an automatic shield of security for your WiFi and connected devices (PC, phone, camera, TV, Echo, etc.) for real-time protection against hackers and added privacy with VPN. 1-year subscription included.1
- Compatible with any internet service provider
Never sacrifice speed

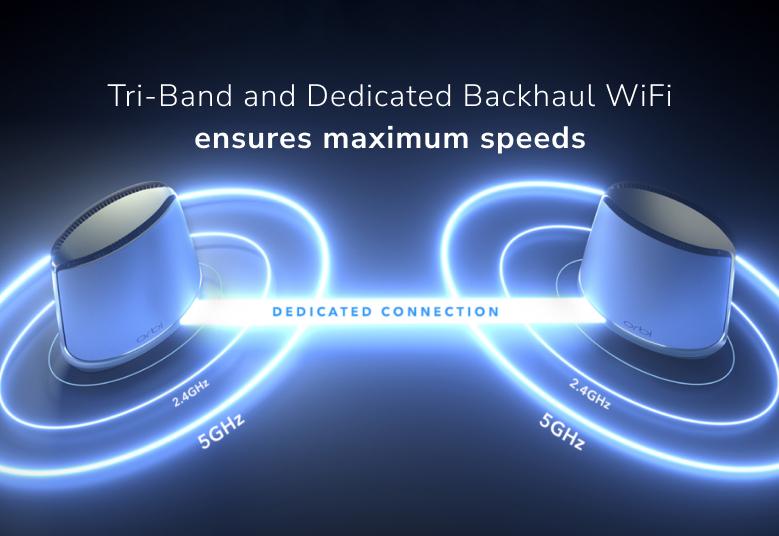

NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.
Bigger means better coverage

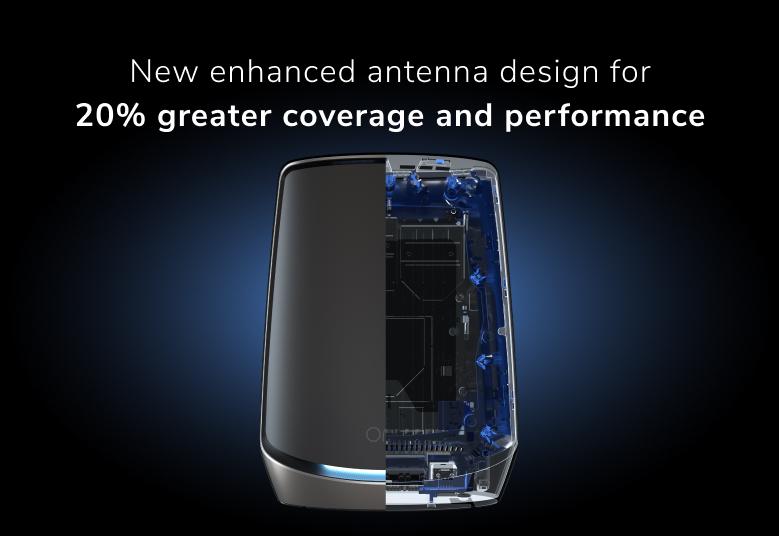

Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi coverage across your entire property - inside and outdoors.
Connect more devices than ever
Orbi WiFi 6 mesh systems are supercharged for today’s data intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.
Easy setup and management
The Orbi app makes it easy to install your Orbi and get it up and running in less than 15 minutes. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider’s equipment.
Satellite Considerations
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.
Coverage area
Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
Home shape
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Orbi placement
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Wired connections
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Construction materials
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
WHAT'S INCLUDED
-
Orbi WiFi 6 Router (RBR860B)1
-
Orbi WiFi 6 Satellites (RBS860B)2
-
6ft (2m) Ethernet cable1
-
19V/3.16A power adapters3
-
Quick Start Guide1
TECHNICAL DETAILS
-
Height10 inches (254mm)
-
Width7.5 inches (190.5mm)
-
Depth2.8 inches (71.12mm)
-
Weight2.86 lbs (1.29kg)
-
Overall WiFi Coverage8,000 sq. ft.
-
RequirementsHigh-speed internet connection to existing modem or gateway
ROUTER
-
WiFi Coverage2,700 sq. ft.
-
SpeedAX6000 (2400 + 2400 + 1200Mbps)†
-
Simultaneous Tri-Band WiFi with dedicated backhaul
Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support
Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
-
ProcessorQuad-core 2.2GHz processor
-
Memory512MB NAND Flash and 1GB RAM
-
AntennaEight (8) high-performance internal antennas with high-power amplifiers
-
Ports
One (1) 10Gbps Multi-Gigabit Ethernet WAN port
Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports
SATELLITE
-
WiFi Coverage2,700 sq. ft.
-
SpeedAX6000 (2400 + 2400 + 1200Mbps)†
-
Simultaneous Tri-Band WiFi with dedicated backhaul
Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support
Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
-
ProcessorQuad-core 2.2GHz processor
-
Memory512MB NAND Flash and 1GB RAM
-
AntennaEight (8) high-performance internal antennas with high-power amplifiers
-
Ports(Four) 10/100/1000Mbps Gigabit Ethernet LAN ports each
NETWORK SECURITY
-
Standards-based WiFi Security802.11i, 128-bit AES encryption with PSK
-
Guest WiFi NetworkEasy to setup separate & secure Internet access for guests
COMPATIBLE SERVICES
-
NETGEAR Armor™Internet security for your home with automatic protection, updates, & alerts that monitors and helps safeguard all connected devices from hackers and data theft.
Learn More -
NETGEAR Smart Parental Controls™
Easily manage your kids' time and accessibility online across their connected devices.2
Learn More
WARRANTY
-
NETGEAR 1-year limited warranty (valid only if purchased from a NETGEAR authorized reseller)
Extend your warranty and technical support within 90 days of product purchase (US only) Learn More
SUPPORT
-
90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)
