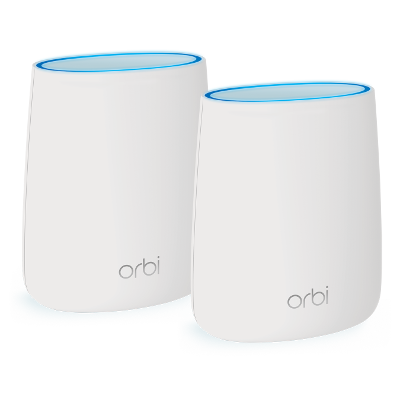

NETGEAR Orbi AC2200 Tri-band WiFi System (RBK20-100SQR)

This Orbi WiFi System comes with an Orbi WiFi Router and Satellite that deliver unparalleled WiFi coverage. It covers homes up to 4,000 square feet with strong WiFi signals. Innovative Tri-band WiFi helps maximize the Internet speeds available in your home. This system now includes NETGEAR Armor™, advanced cyber security for all your devices. Enjoy better WiFi. Everywhere.

Features
One WiFi Network.
Enjoy the convenience of a single WiFi name for your whole home.

Your Home. Covered.
This kit of two delivers 2.2Gbps maximum WiFi speeds for homes up to 3,000 sq ft.

Simple & Secure.
Use the Orbi app and NETGEAR Armor to create your secure whole home WiFi in minutes.

Manage Your Kids’ Screen Time. Circle
Smart Parental Controls let you easily manage content & time online on any device.

What’s In the Box?
• One (1) Orbi Router (RBR20)
• One (1) Orbi Satellite (RBS20)
• One (1) 2m Ethernet cable
• Two (2) 12V/1.5A power adapters
• Quick start guide

What Do I Need for Orbi to Work?
• High-speed Internet connection
• Connect to existing modem or gateway

Physical Specifications
• Orbi Router (RBR20)
- Dimensions: 5.6 x 2.4 x 6.6 in
- Weight: 1.05 lb
• Orbi Satellite (RBS20)
- Dimensions: 5.6 x 2.4 x 6.6 in
- Weight: 1.05 lb

Technical Specifications
• Orbi AC2200 Router & AC2200 Satellite (866+866+400Mbps)†
• Simultaneous Tri-band WiFi
- Radio 1: IEEE® 802.11b/g/n 2.4GHz– 256QAM support
- Radio 2: IEEE® 802.11a/n/ac 5GHz– 256QAM support
- Radio 3: IEEE® 802.11a/n/ac 5GHz– 256QAM support
• Tx/Rx: 2x2 (2.4GHz) + 2x2 (5GHz) + 2x2 (5GHz)
dedicated backhaul
• IEEE®
802.11a/b/g/n/ac
• MU-MIMO capable for simultaneous data streaming
• Implicit & Explicit Beamforming for 2.4GHz &
5GHz bands
• Processor – Router & Satellite
- Powerful quad-core 710MHz processor each
• Memory – Router
- 256MB flash and 512MB RAM
• Antenna
- Four (4) high-performance internal antennas each

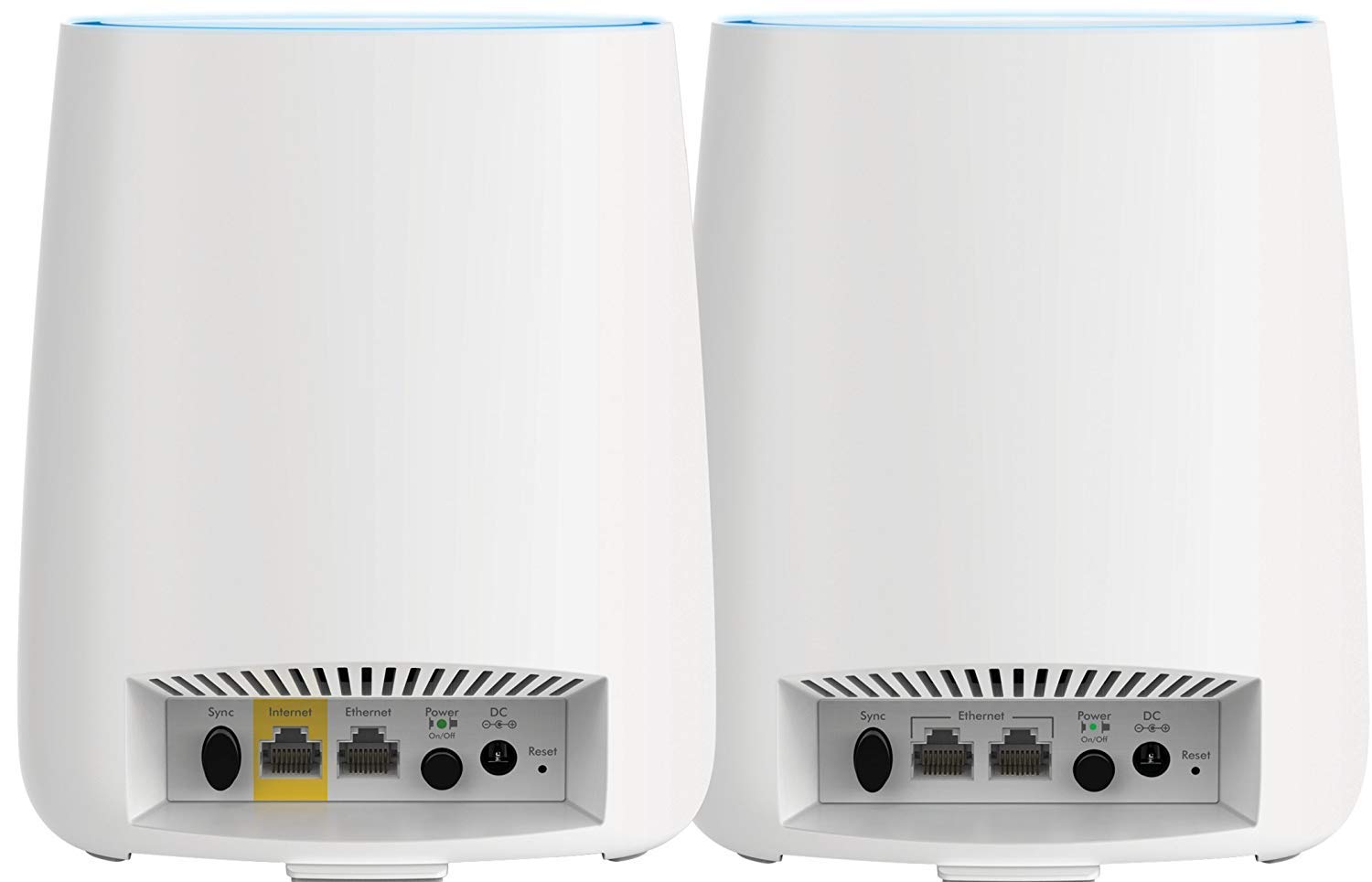

• Ports – Orbi Router
- Two (2) 10/100/1000Mbps Gigabit Ethernet
ports
- One (1) WAN & one (1) LAN
• Ports – Orbi Satellite
- Two (2) 10/100/1000Mbps Gigabit Ethernet
LAN ports
• Power On/Off switch
• Push Button WPS and SYNC support
• Security
- Comprehensive anti-virus & data theft protection for your PC, Mac® and mobile devices with NETGEAR Armor™
- Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK)
- Guest WiFi network is easy to setup separate & secure Internet access for guests
• Voice Control
- Amazon Alexa™
- The Google© Assistant
• Circle®
Smart Parental Controls manage content and time online for all your devices. Learn more at netgear.com/circle
