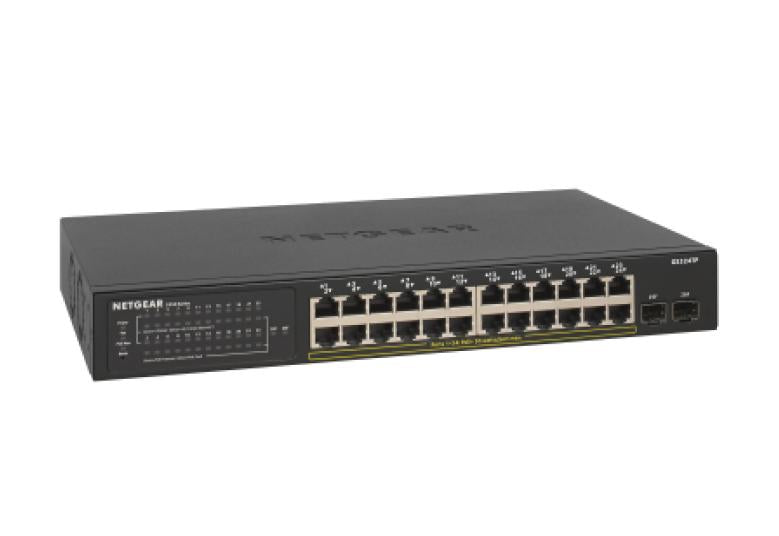

NETGEAR S350 Smart Switches 24-Port Gigabit Ethernet PoE+ Smart Switch with 2 Dedicated SFP Ports 180W (GS324TP-100AJS)

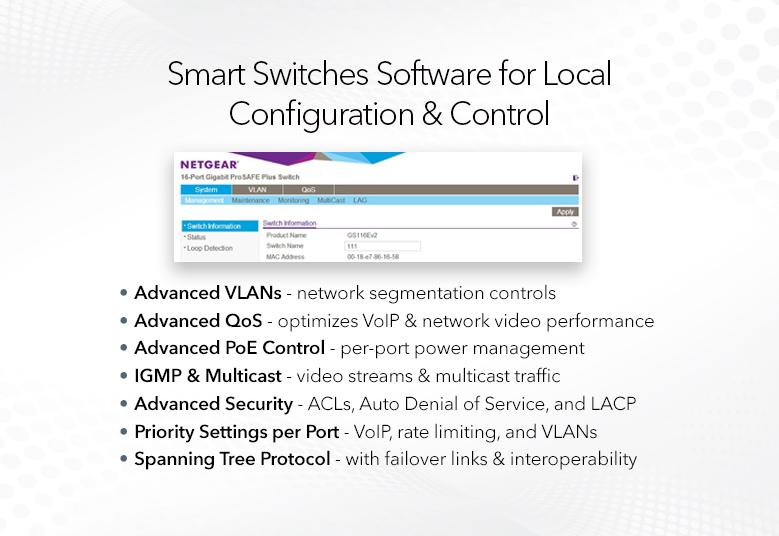

Experience advanced configuration & control with an easy-to-use GUI interface that offers refined control for secure setup, access, and SNMP management. Also benefit from advanced PoE controls and high PoE budget for any PoE deployment. Comes with a modern desktop design for simple and stylish for use in any room or office. Built to last: every NETGEAR network switch is rigorously tested for reliability, quality, and performance.
MANAGEMENT
Traffic Management
- Auto Negotiation of speed and duplex modes
- IEEE 802.3x Flow Control
- Dynamic MAC address management
- IEEE 802.1Q-based VLAN
- Auto Voice VLAN
- Auto Video VLAN
- QoS based on WRR, strict priority, or both
- Port-based and IEEE 801.2p-based QoS
- TCP/UDP-based QoS
- DiffServ
- DSCP Support
- Rate Limiting (ingress, or egress)
- Link Aggregation and LACP
Switch Management
- Web browser-based management GUI
- Smart Control Center Software for multi-switch management
- IP Access List
- Configurable Management VLAN
- SNMP v1/v2c and v3
- Standard MIBs (RFC1213, RFC1643, and RFC1493)
- RMON group 1, 2, 3, 9
- Firmware Upgrade through Smart Control Center (TFTP)
- Firmware download (to switch) and upload (to server) through TFTP/HTTP
- Configuration and Image Upload (to PC) through HTTP
- Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
- Memory & FLASH log
- Syslog (server)
- System password protection
- Registration through NETGE
- AT Insight App
MULTICAST EFFICIENCY
- IGMP snooping, v1, v2 and v3
- IGMP Snooping querier
- Blocking of unknown multicast traffic
Spanning Tree, Routing and Stacking
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Security
- MAC lockdown
- MAC lockdown by number of MACs
- IEEE 802.1x port authentication EAP
- Dynamic VLAN Assignment
- Guest VLAN
- TACACS+
- 3 HTTPS /SSL versions (Selected models)
- TLS session
- Trusted MAC
- IPv4, L4-based Access Control List (ACL)
- Weight (kg) : 2.69kg (5.93lb)
- Dimensions (WxDxH) mm : 330 x 206 x 43mm(13.0 x 8.1 x 1.7in)

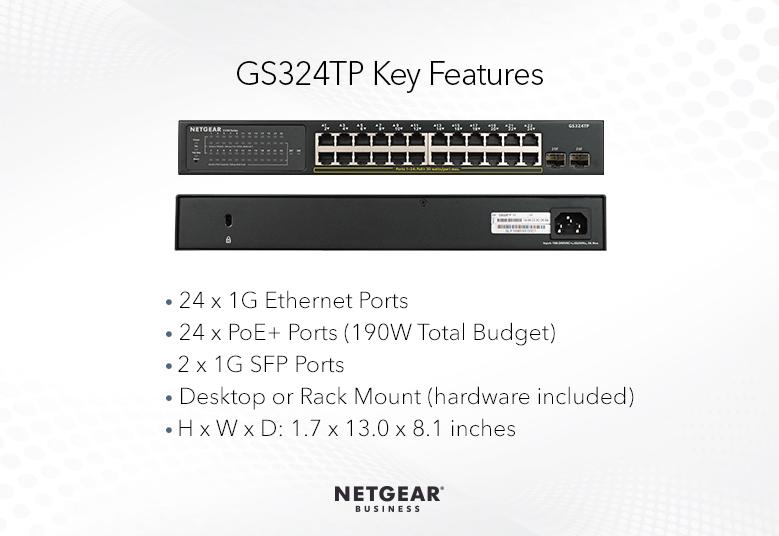

- Model Description : NETGEAR® S350 Series 24-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports
- Gigabit ports : 24
- SFP ports : 2 (dedicated)
- PoE+ (802.3at) ports : 24
- Total PoE Power budget (Watts) : 190W
- Max MAC entries : 16K
- Buffer size : 512KB
- VLAN (Number Supported) : 256
- VLAN routing : N/A
- Dynamic VLAN assignment : Yes
- MLD Snooping : N/A
- Static route : N/A
- Host ARP table : Yes
- EEE : Yes
- DoS Prevention : Yes
- Internal/External Power Supply : Internal 100-240VAC ~ 50-60Hz, 5A Max
- Max consumption (Watts) : 229.9W (full PoE)
- FAN : 2
- Acoustic Noise Level @25C (dBA) : 32.8 dBA
- Operating Temperature : 0° to 45° C (32° to 113° F)
- MTBF : 1,328,429 hrs(152 yrs)
