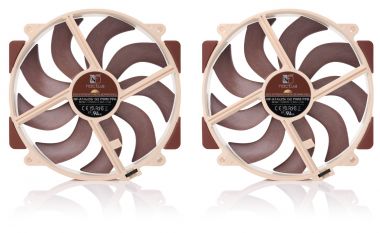

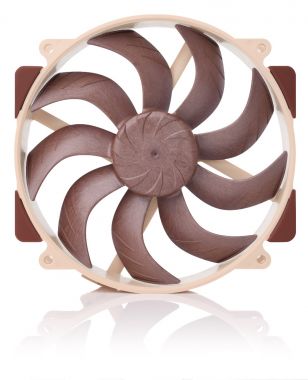

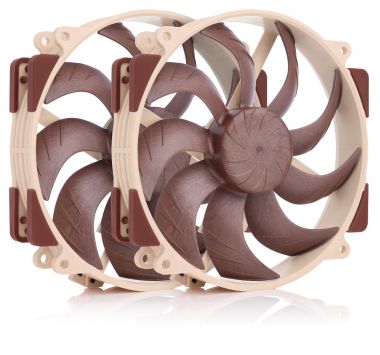

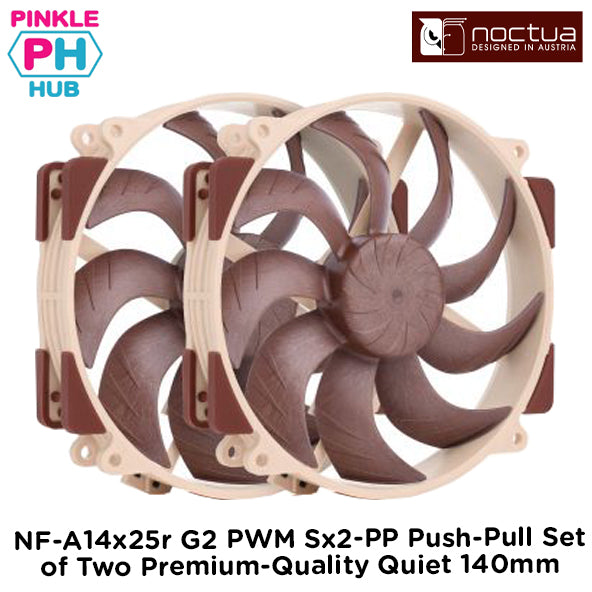

Noctua NF-A14x25r G2 PWM Sx2-PP Push-Pull Set of Two Premium-Quality Quiet 140mm

Noctua NF-A14x25r G2 PWM Sx2-PP Push-Pull Set of Two Premium-Quality Quiet 140mm

Brand : Noctua

SKU:  NF-A14X25r G2 PWM SX2-PP

3 in stock

₱4,687.50
₱5,250.00 ₱4,687.50
Sale! Sold out
Product Details
Notes and warnings

Further reading:
FAN Specification
Size

140x140x25 mm
Mounting hole spacing

105x105 mm
Connector & pin-configuration

4-pin PWM
Cable length

20cm + 30cm NA-EC1 extension cable
Bearing

SSO2
Blade geometry

Progressive-Bend impeller
Frame technology

AAO (Advanced Acoustic Optimisation)
Material

Sterrox® LCP
Rotational speed (+/- 10%)

1500 RPM
Rotational speed with L.N.A. (+/- 10%)

1250 RPM
Airflow

155.6 m³/h
Airflow with L.N.A.

127.1 m³/h
Acoustical noise

24.8 dB(A)
Acoustical noise with L.N.A.

19.7 dB(A)
Static pressure

2.56 mm H₂O
Static pressure with L.N.A.

1.3 mm H₂O
Input power (max.)

2.28 W
Max. input current

0.19 A
Operating voltage

12 V
Voltage PWM signal

5 V
MTTF

> 150,000 h

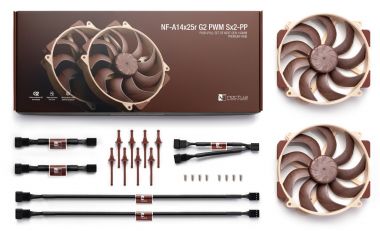

Scope of delivery

  • NF-A14x25r G2 PWM PPA
  • NF-A14x25r G2 PWM PPB
  • 2x NA-RC16 Low-Noise Adaptor (L.N.A.)
  • NA-YC1 4-pin PWM splitter cable
  • 2x NA-EC1 30cm extension cable
  • 8x NA-AV2 anti-vibration mounts
  • Fan screws
Warranty

6 years
View full details
