Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A9x14 has established itself as a default choice when it comes to premium-quality slim 92mm fans. The chromax.black.swap edition combines the NF-A9x14’s signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-9x14 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

Details

Award-winning NF-A9x14 design

Having received dozens of recommendations from the international press, Noctua’s NF-A9x14 has become a proven premium choice for slim 92mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

chromax.black.swap edition

Maximising colour choices, the NF-A9x14 chromax.black.swap fan can be colour-customised using the included self-adhesive anti-vibration pads as well as optional coloured cables. This makes it ideal for enthusiasts looking for a true premium-grade fan that can be colour-coordinated with popular build themes such as all black, black & white or black & red.

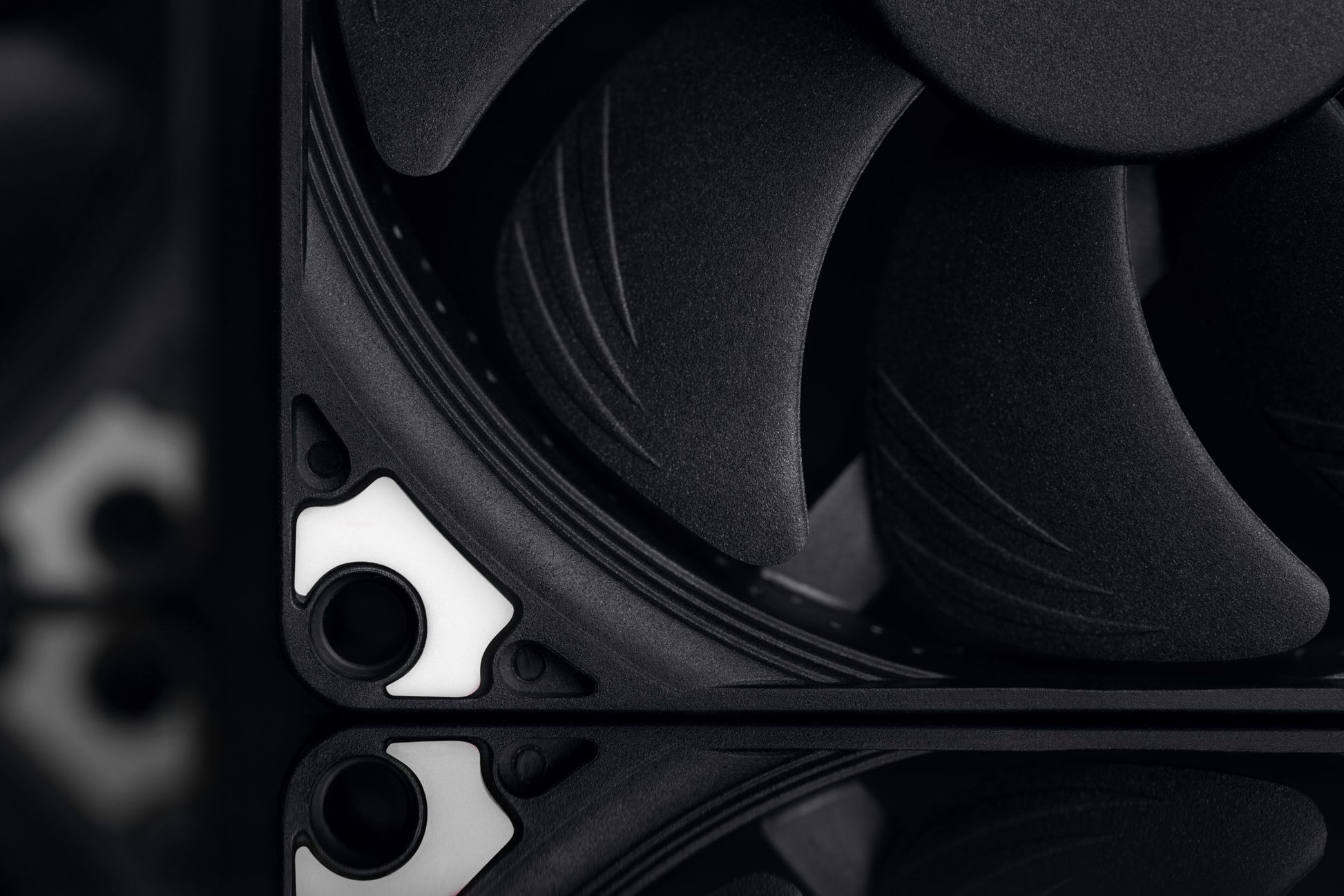

Self-adhesive anti-vibration pads in 6 colours

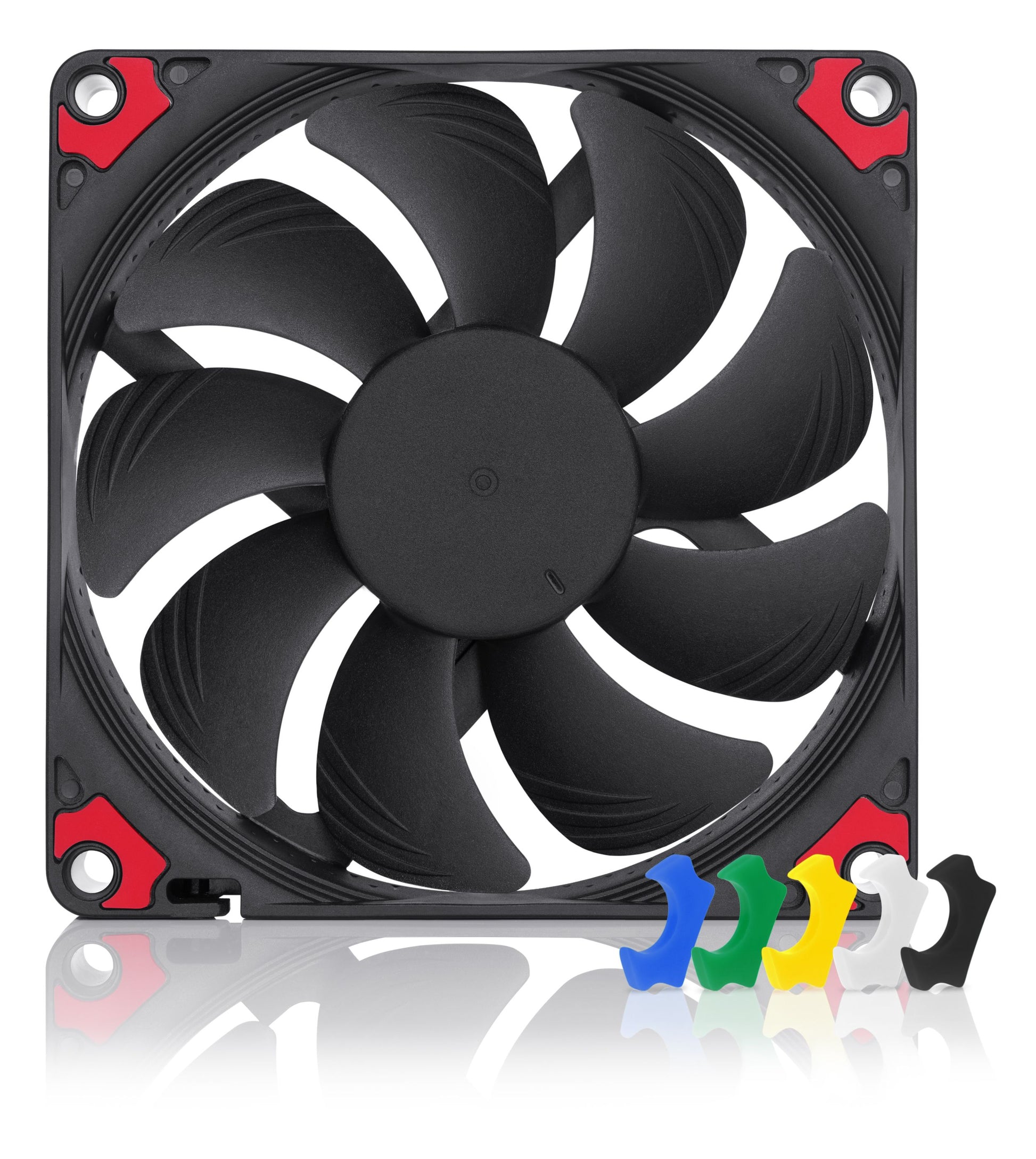

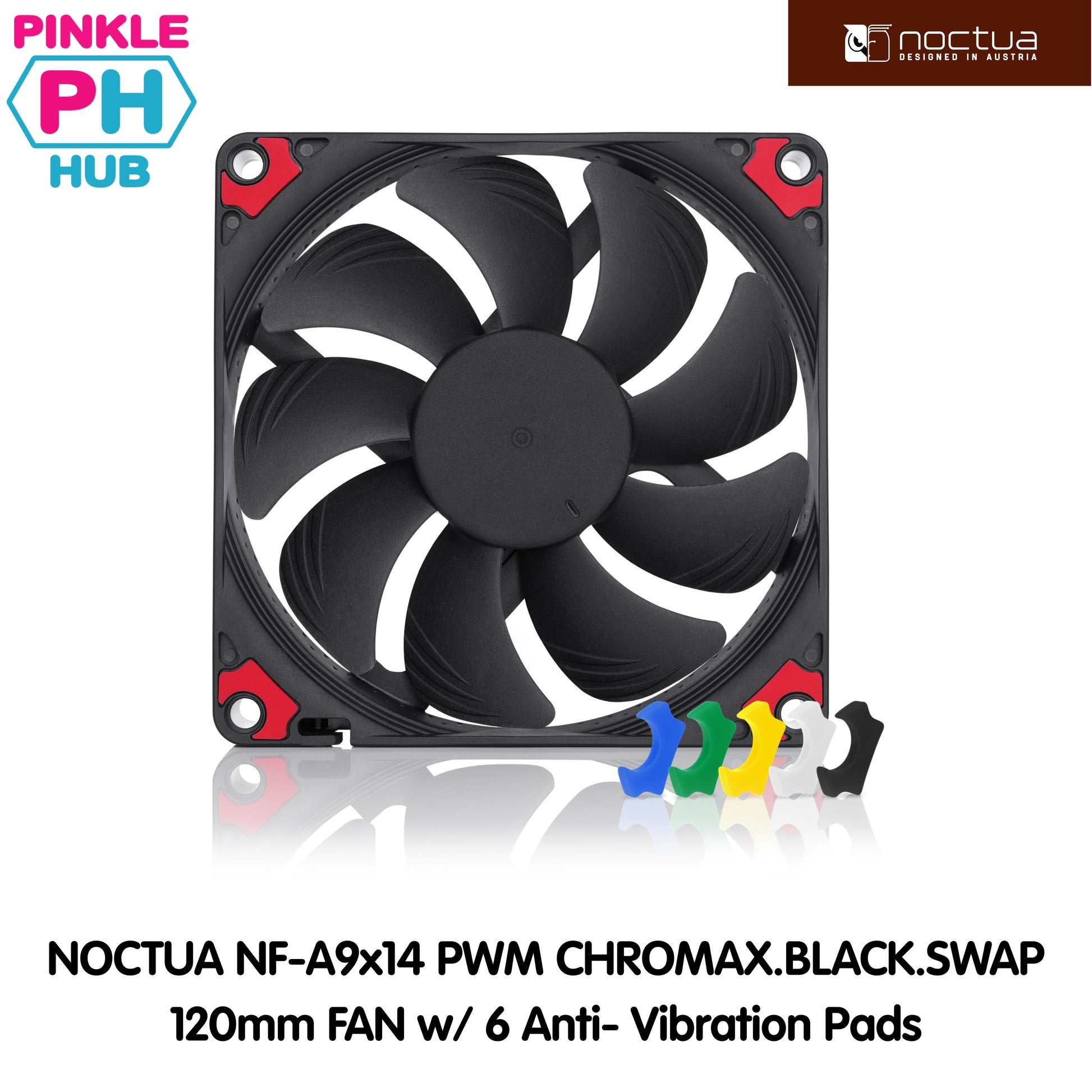

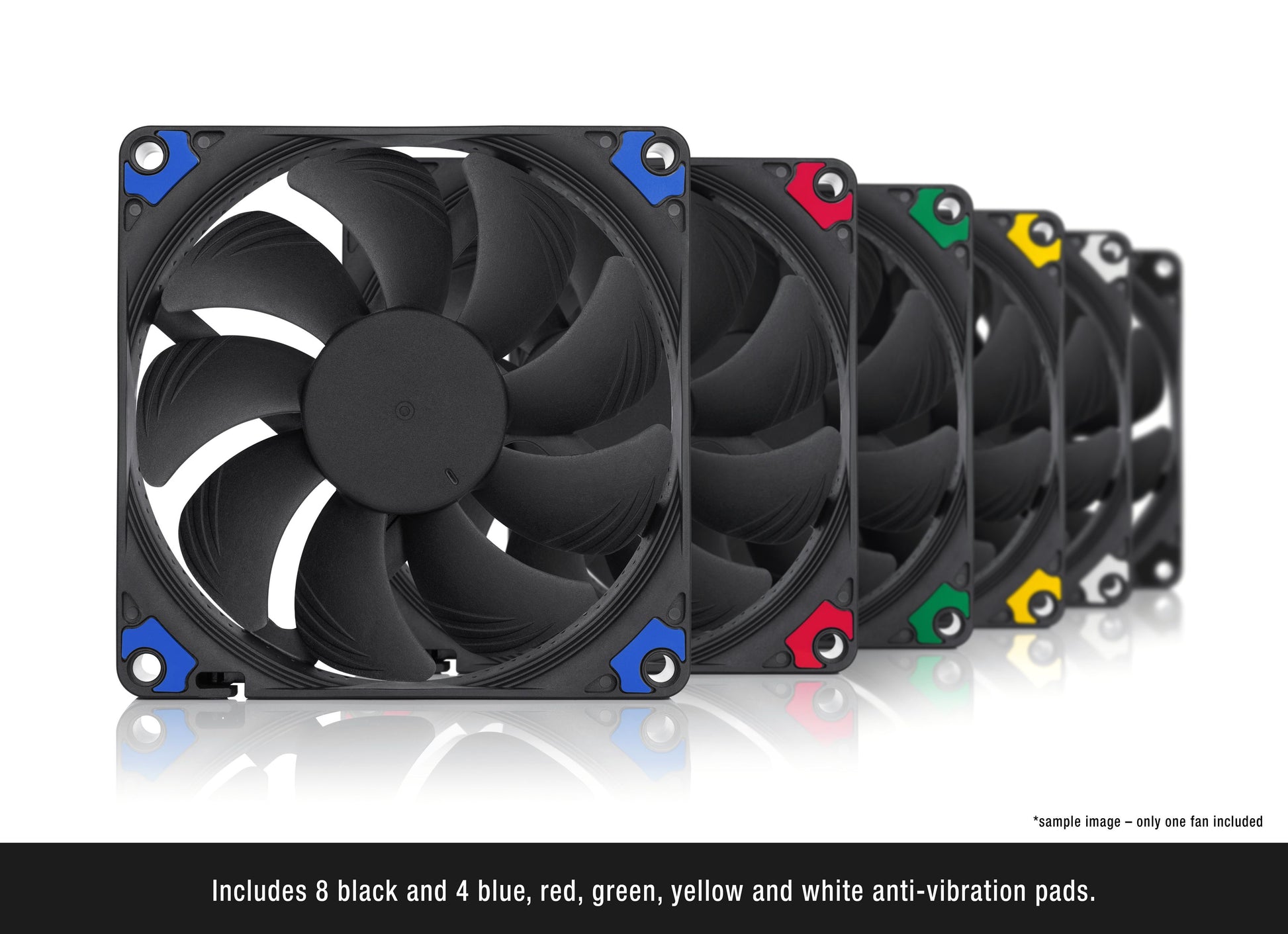

The NF-A9x14 PWM chromax.black.swap comes with 8 swappable, self-adhesive anti-vibration pads in black, white, red, blue, green and yellow respectively, which allow the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes.

Optional coloured cables

Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.

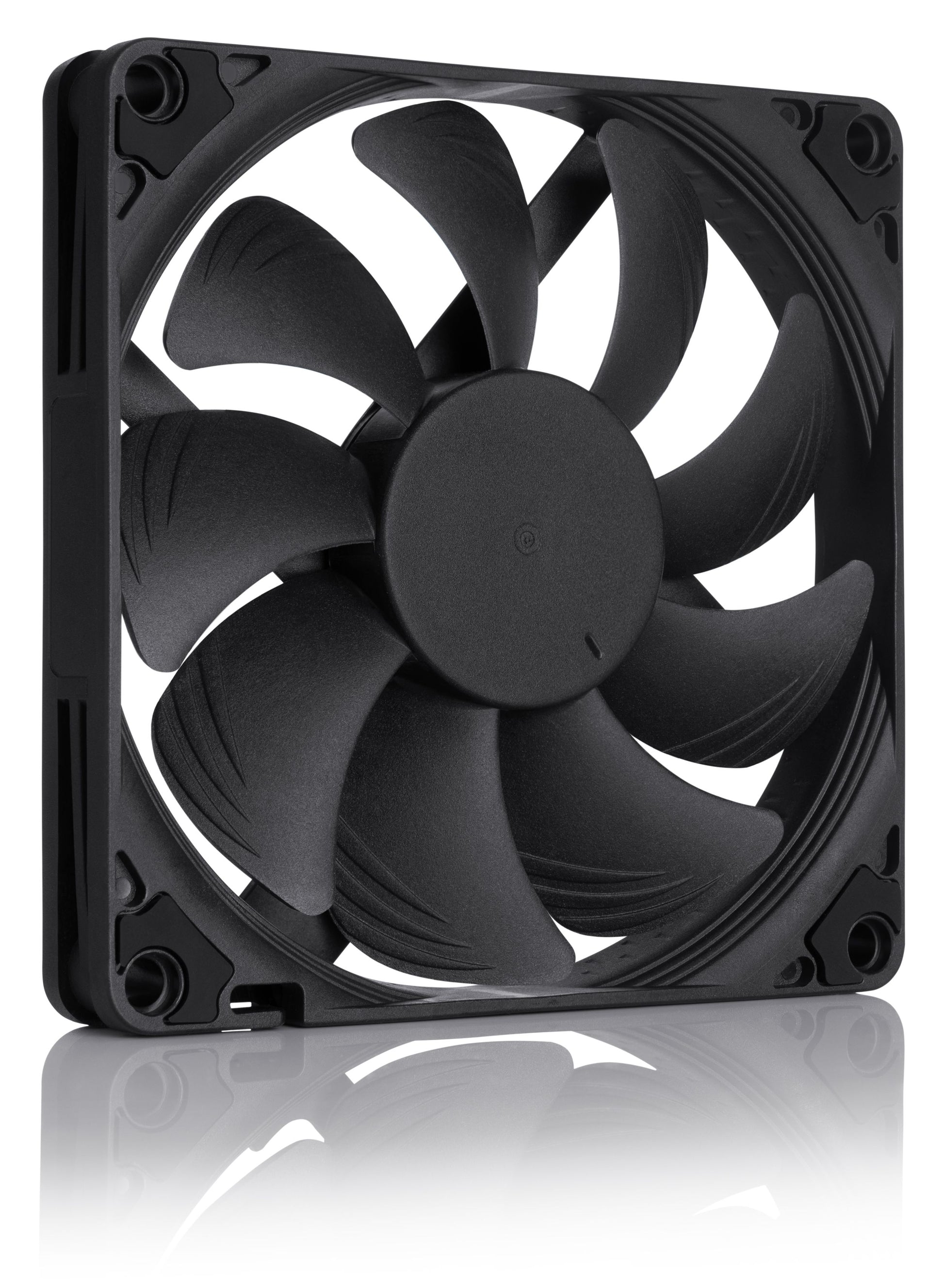

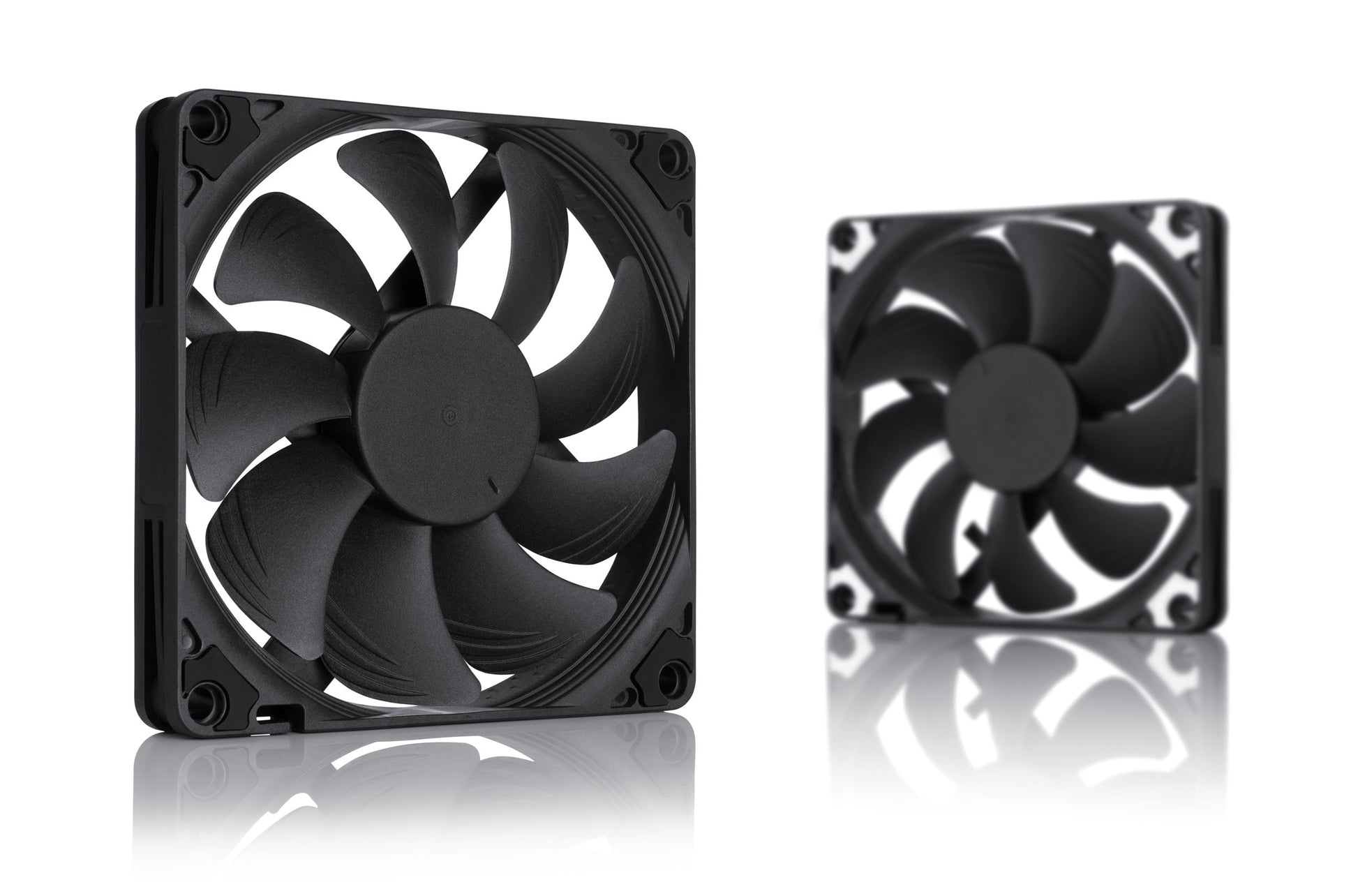

14mm low profile design

Measuring only 14mm in thickness, the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space, such as low profile CPU coolers in HTPC builds or server environments.

Flow Acceleration Channels

The NF-A9x14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

SSO2 Bearing

The NF-A9x14 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A9x14 uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9x14 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

FAN Specification

Size



92x92x14 mm

Mounting hole spacing



82,5x82,5 mm

Connector & pin-configuration



4-pin PWM

Cable length



2cm + 30cm NA-EC1 extension cable

Bearing



SSO2

Blade geometry



A-Series with Flow Acceleration Channels

Frame technology



AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)



2500 RPM

Min. rotational speed @ 20% PWM (+/-20%)



600 RPM

Airflow



57,5 m³/h

Acoustical noise



23,6 dB(A)

Static pressure



2,11 mm H₂O

Input power (typical)



1,848 W

Input power (max.)



2,52 W

Input current (typical)



0,154 A

Max. input current



0,21 A

Operating voltage



12 V

MTTF



> 150.000 h

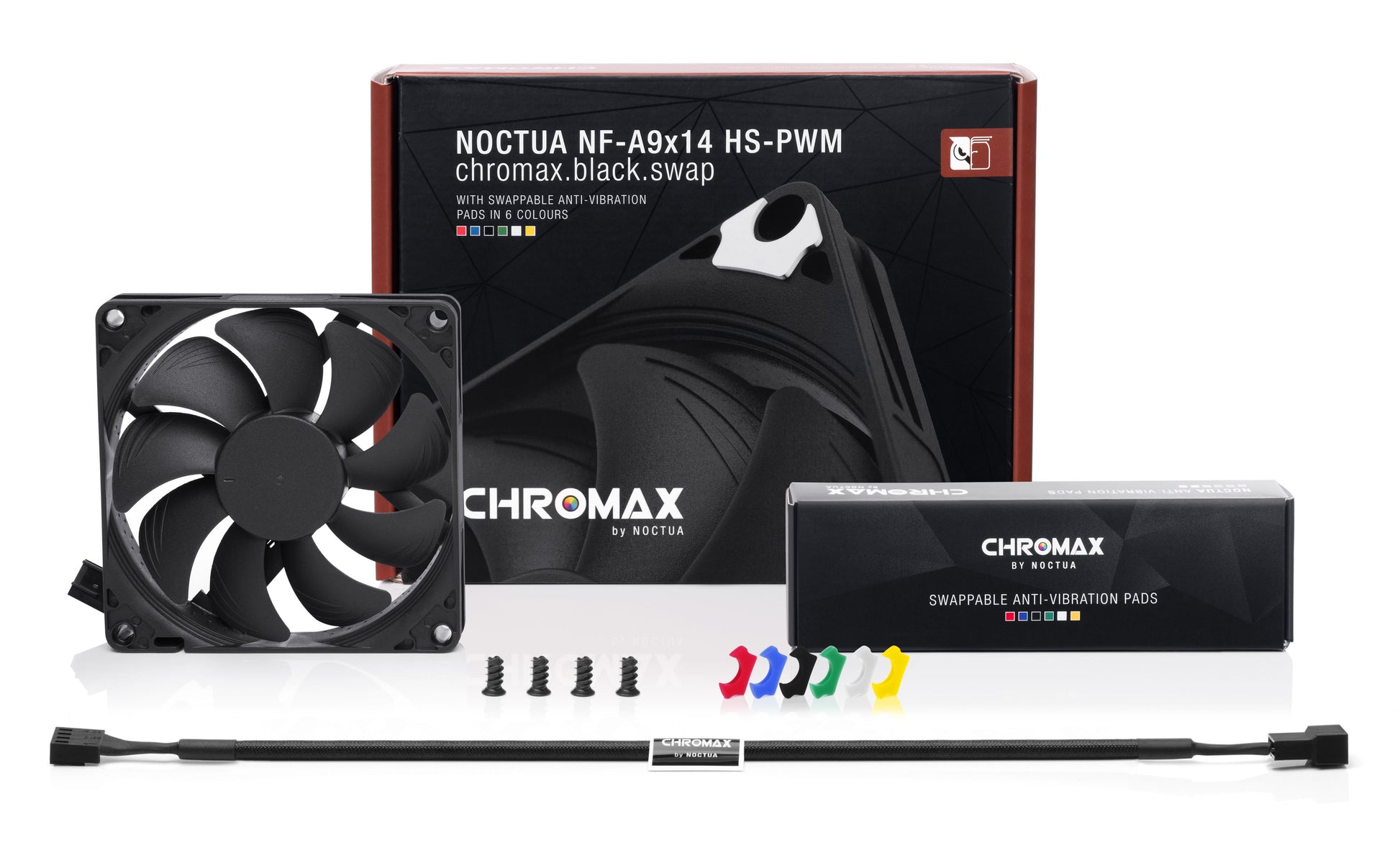

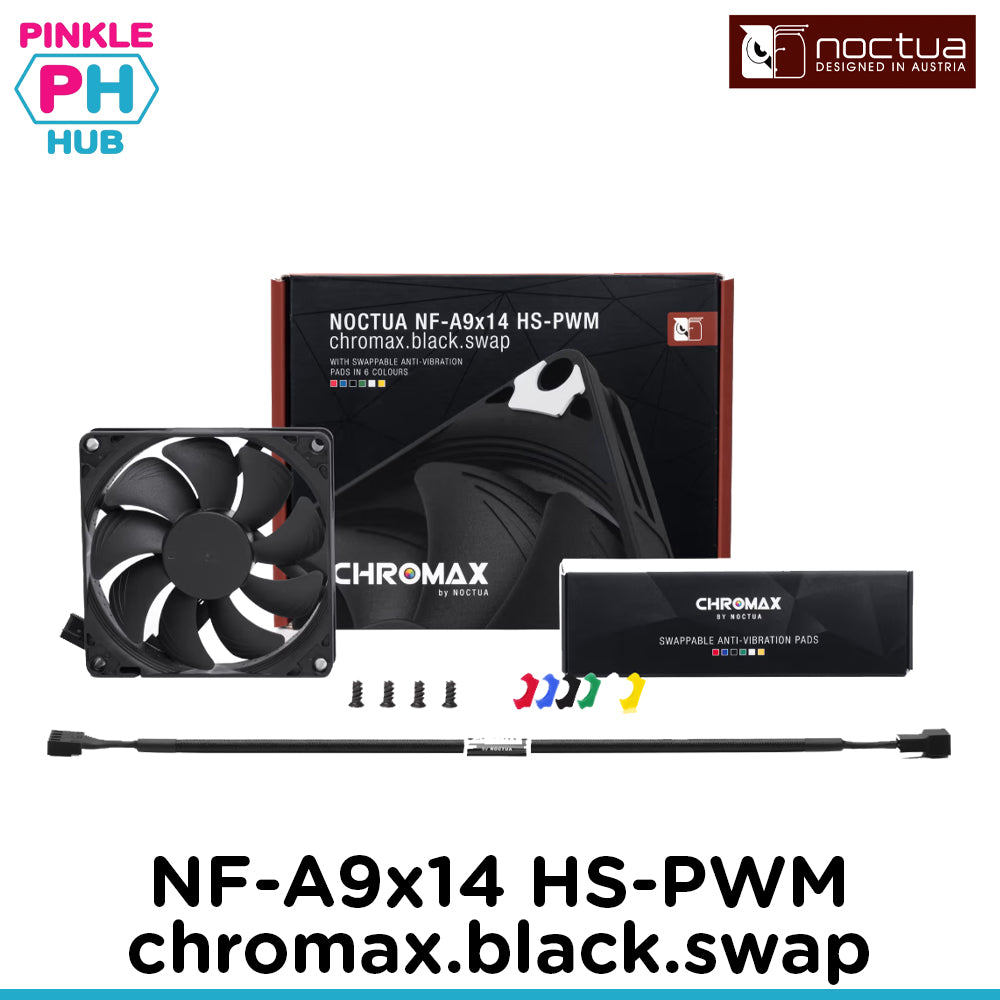

Scope of delivery



• 8x NA-AVP8 chromax.black anti-vibration pads
• 8x NA-AVP8 chromax.blue anti-vibration pads
• 8x NA-AVP8 chromax.green anti-vibration pads
• 8x NA-AVP8 chromax.red anti-vibration pads
• 8x NA-AVP8 chromax.white anti-vibration pads
• 8x NA-AVP8 chromax.yellow anti-vibration pads
• NA-EC1 chromax.black 30 cm extension cable
• 4x fan screws
