NF-S12A PWM Chromax.Black.Swap Fan (NF-S12A PWM CH.BK.SNF-S12A PWM CH.BK.S)

Having received more than 100 awards and recommendations from international hardware websites and magazines, the NF-S12A is one of Noctua’s most renowned and popular 120mm fans. Its outstanding airflow efficiency and superb acoustics make it ideal for case cooling and other low-impedance applications. The chromax.black.swap edition combines the NF-S12A’s signature quiet cooling performance with an attractive all-black design and a bundle of swappable red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. For further customisation, a wide range of accessories such as coloured cables, additional anti-vibration pads and anti-vibration mounts are available separately. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-S12A PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

Award-winning NF-S12A design

Having received more than 100 awards and recommendations from the international press, Noctua's NF-S12A has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

chromax.black.swap edition

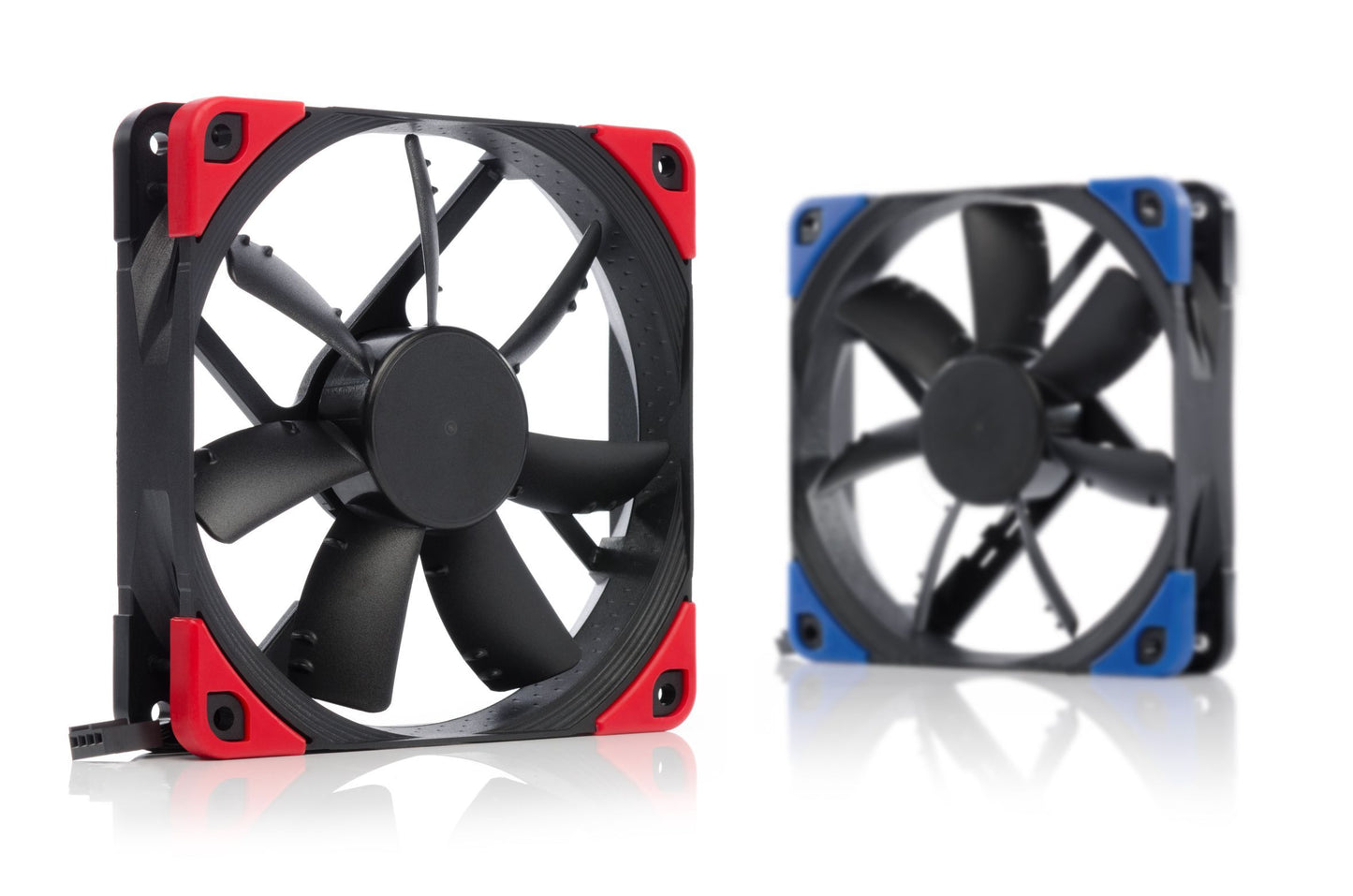

Maximising colour choices, Noctua’s chromax.black.swap edition fans can be colour-customised using the included swappable anti-vibration pads as well as optional anti-vibration mounts and cables. This makes them ideal for enthusiasts looking for true premium-grade fans that can be colour-coordinated with popular build themes such as all black, black & white or black & red.

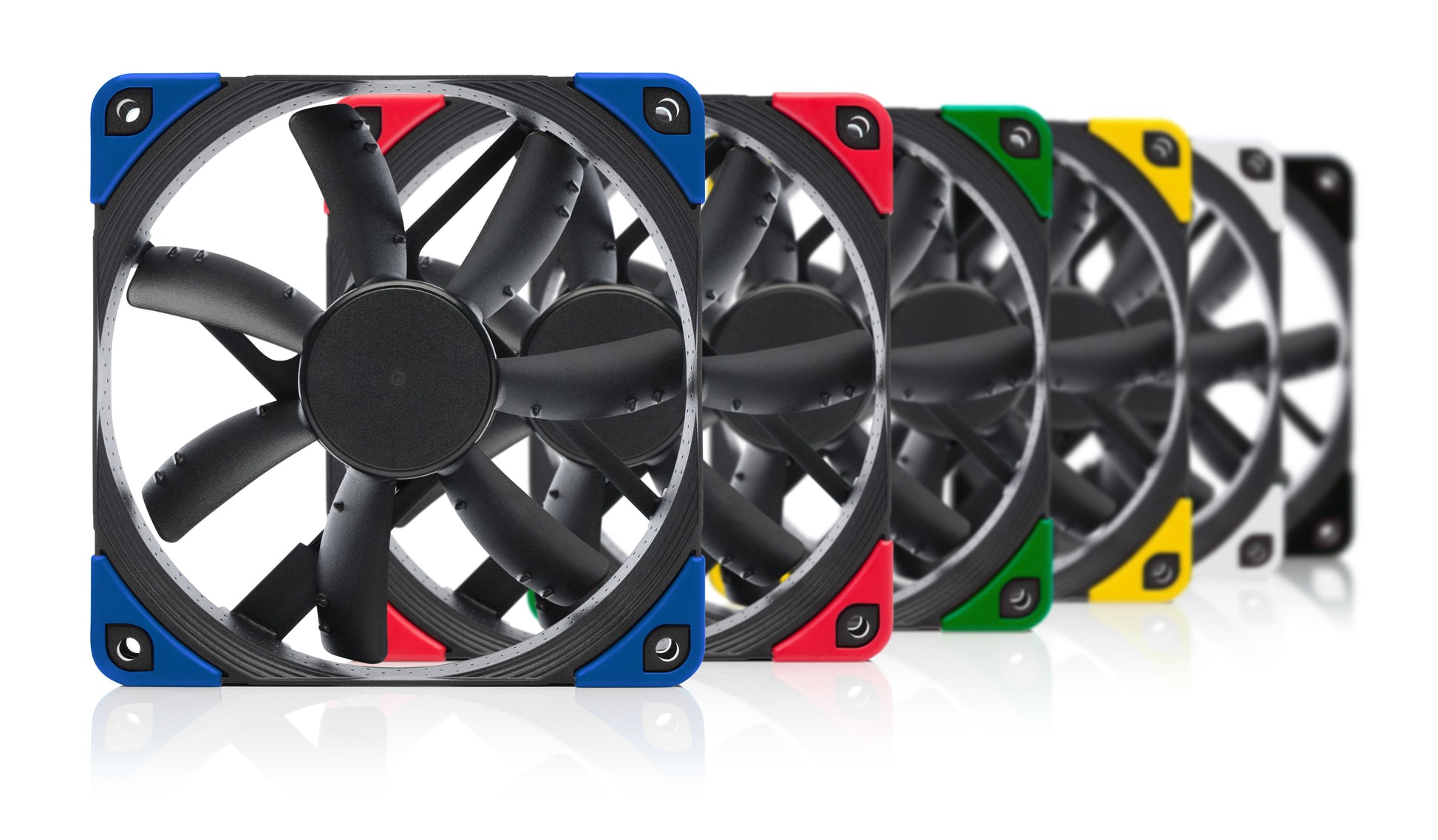

Swappable anti-vibration pads in 6 colours

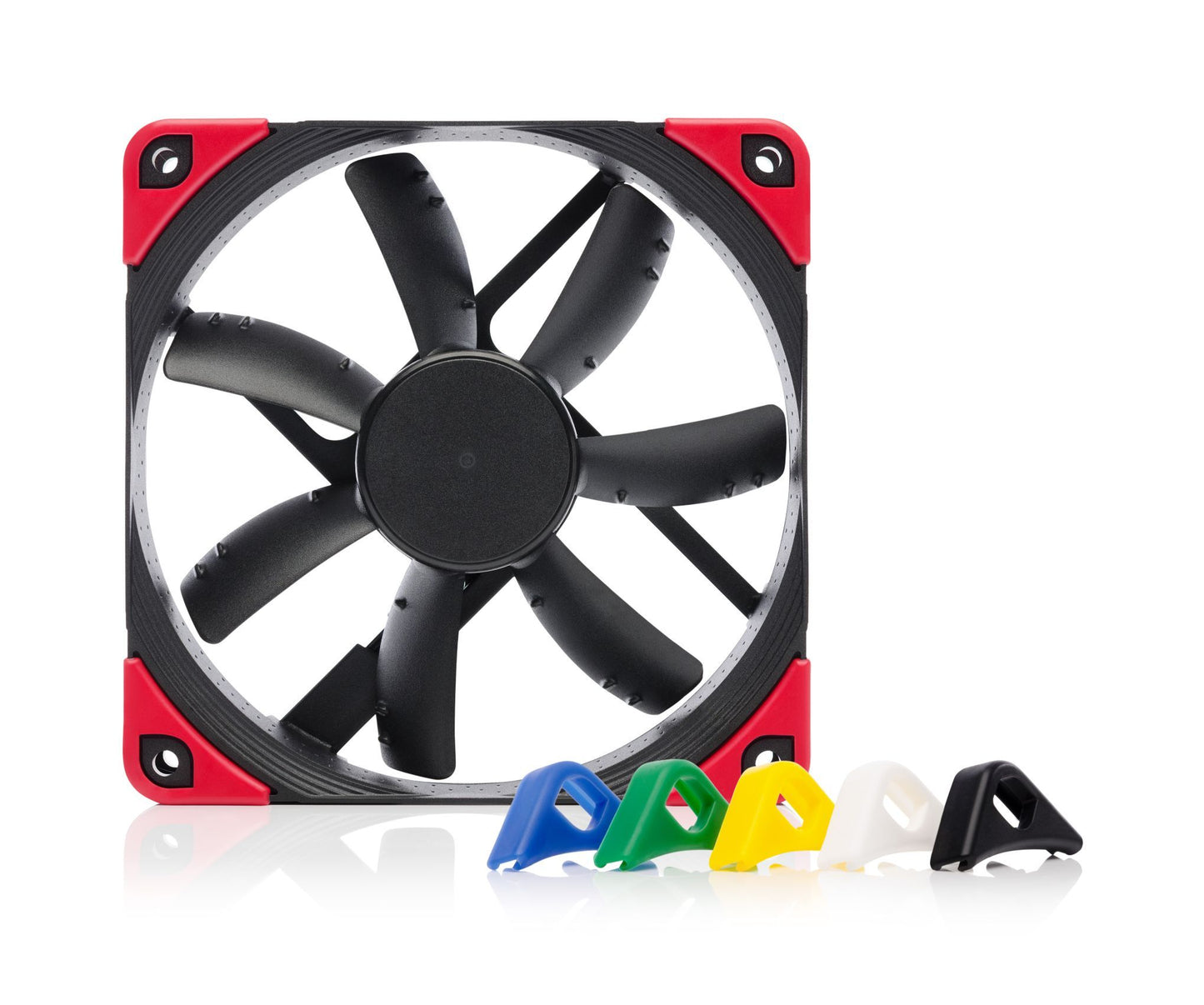

The NF-S12A PWM chromax.black.swap comes with 4 black, white, red, blue, green and yellow NA-AVP1 anti-vibration pads respectively. By combining the various colours with black or leaving off the pads on one side, the fan can be coordinated with most popular build colour schemes out of the box. Additional NA-SAVP1 sets for outfitting both sides in one colour can be purchased separately.

Optional coloured cables

Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.

Optional coloured anti-vibration mounts

To complement the coloured anti-vibration pads included with the fans, users can purchase chromax line NA-SAV2 anti-vibration mounts that enable the convenient, quick and vibration-free installation of fans in standard mounting holes for case fans.

Anti-Stall Knobs

The NF-S12A's Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan's stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

SSO2 bearing

The chromax line fans feature the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the chromax edition fans sport a CNC milled bearing shell made entirely from brass.

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the chromax edition fans use Noctua’s custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the chromax edition models feature an MTBF of more than 150,000 hours rating and come with a full 6-year manufacturer's warranty.

FAN Specification

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

1cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

S-Series with Anti-Stall Knobs

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

1200 RPM

Min. rotational speed @ 20

% PWM (+/-20%)

300 RPM

Airflow

107,5 m³/h

Acoustical noise

17,8 dB(A)

Static pressure

1,19 mm H₂O

Input power (typical)

1,19 W

Input power (max.)

1,44 W

Input current (typical)

0,1 A

Max. input current

0,12 A

Operating voltage

12 V

MTTF

> 150.000 h

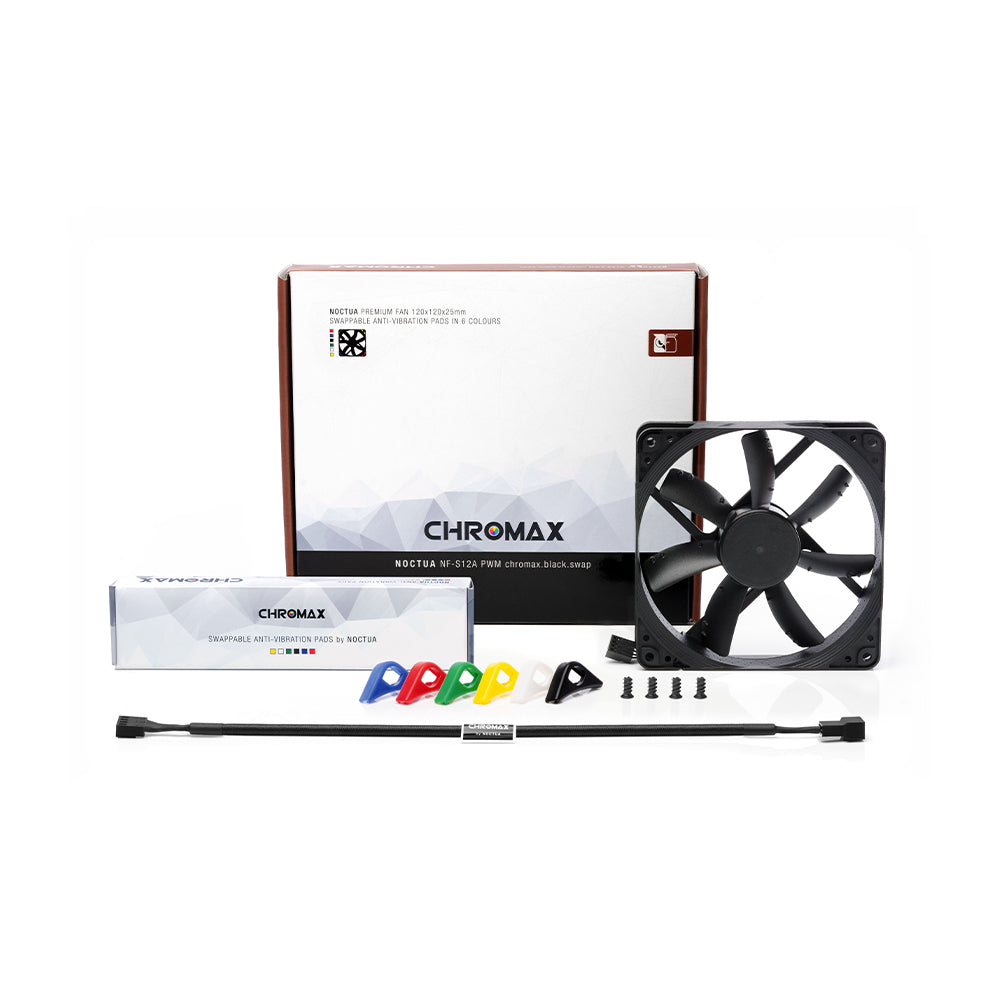

Scope of delivery

• 4x NA-AVP
• 1 chromax.black anti-vibration pads
• 4x NA-AVP1 chromax.blue anti-vibration pads
• 4x NA-AVP1 chromax.green anti-vibration pads
• 4x NA-AVP1 chromax.red anti-vibration pads
• 4x NA-AVP1 chromax.white anti-vibration pads
• 4x NA-AVP1 chromax.yellow anti-vibration pads
• 4x fan screws

Warranty

6 years
