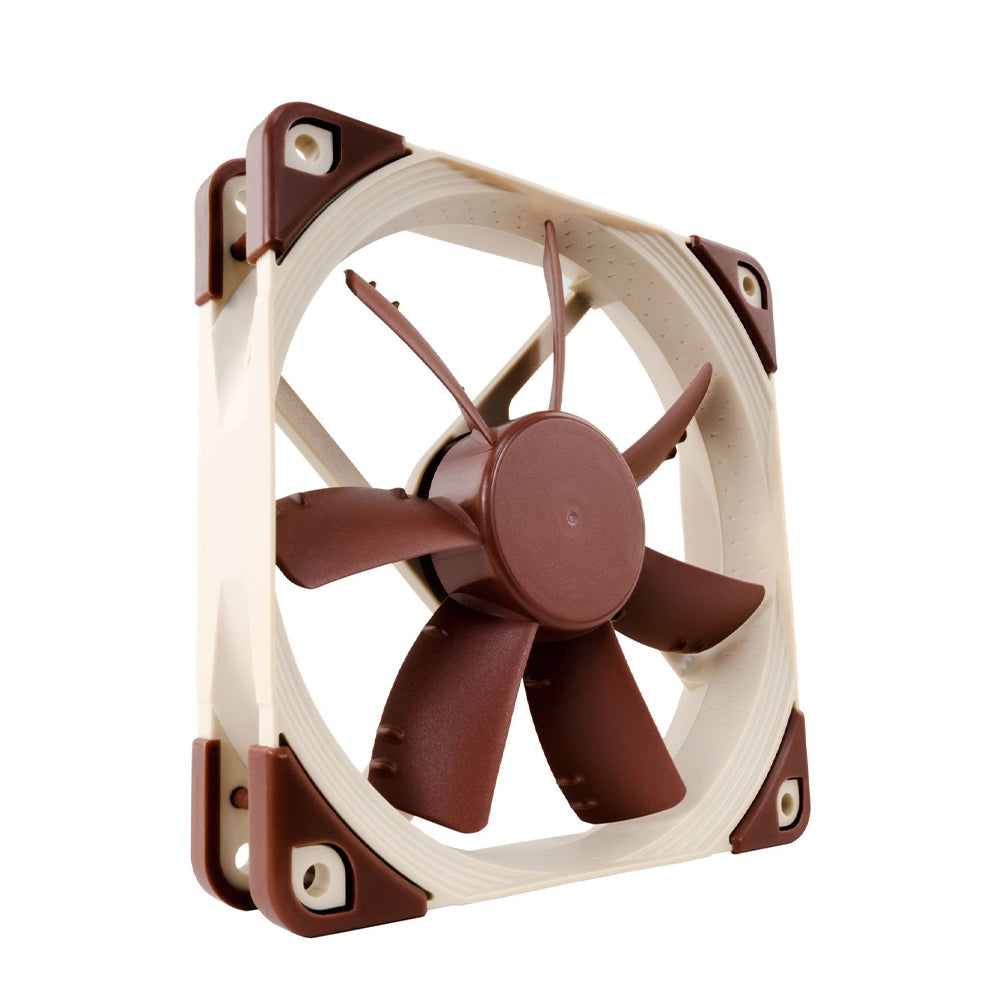

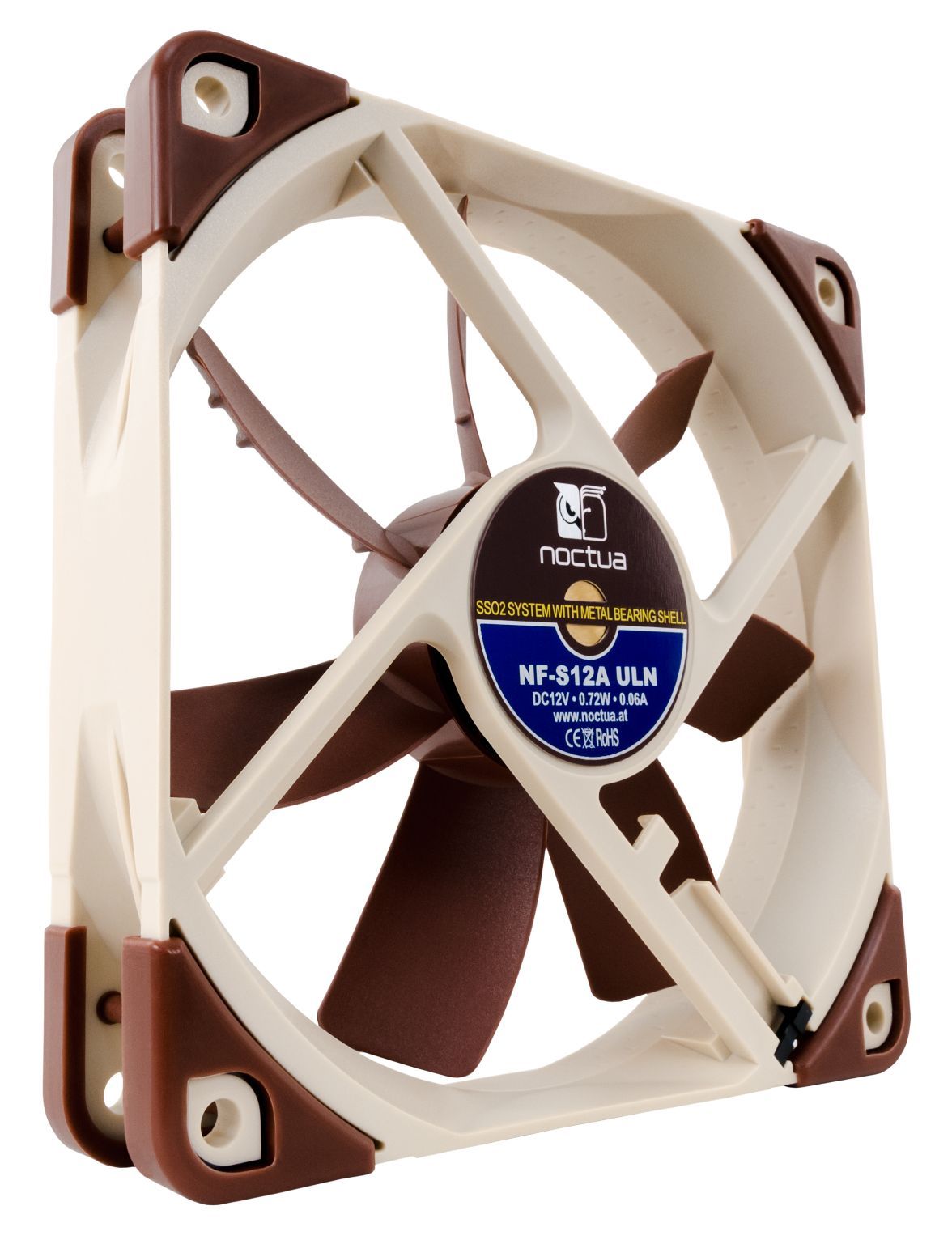

The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The ULN version provides super-slow 800/600rpm speed settings for ultra-low-noise applications and highly noise sensitive users who demand near-silent operation. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.

Award-winning S12 design

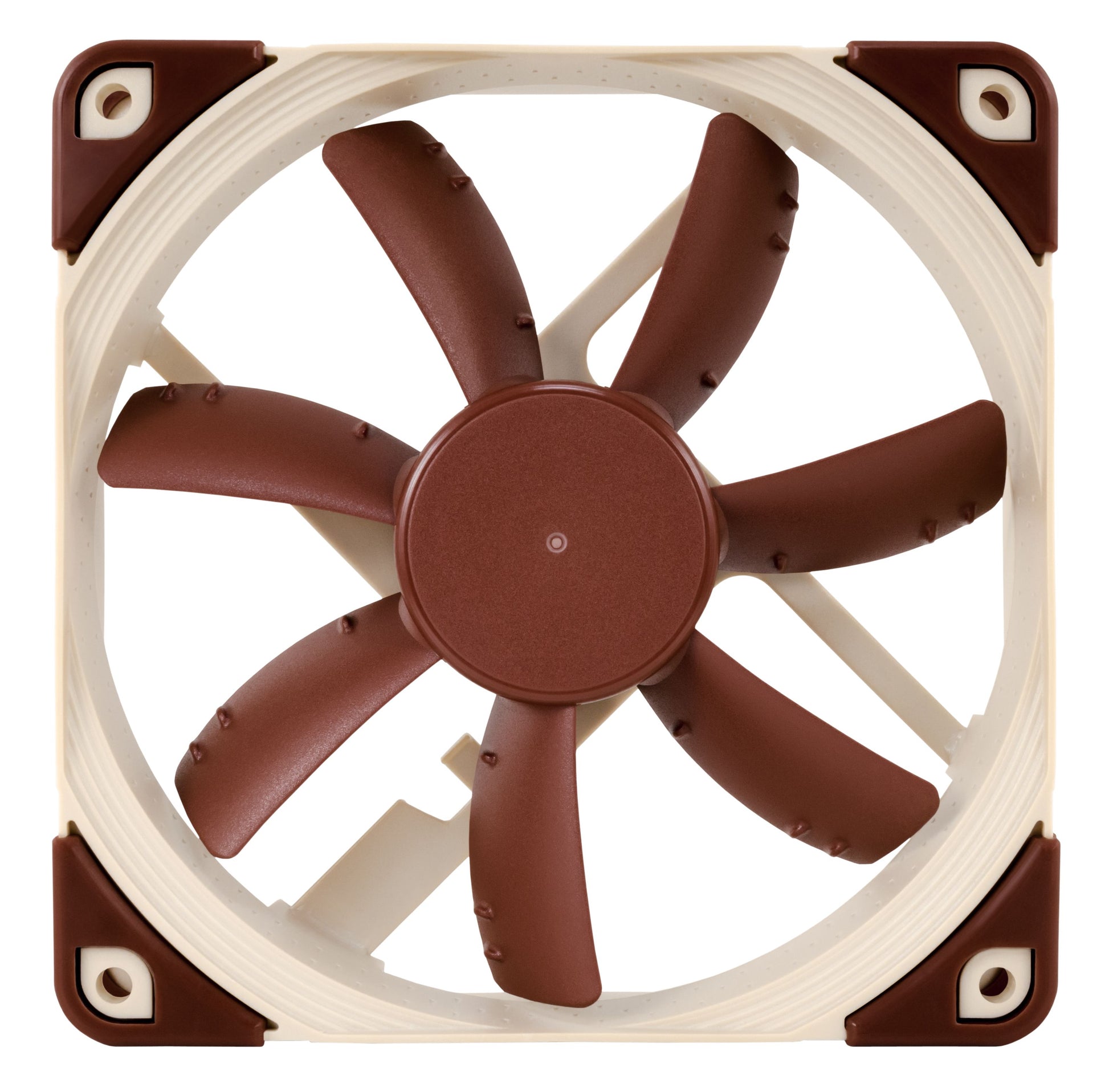

The NF-S12A features the third evolution of Noctua's classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.

Anti-Stall Knobs

The NF-S12A's Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan's stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-S12A remarkably quiet even at very close distances.

2 speed settings for maximum quietness

Providing 800 and 600 rpm speed settings via the supplied adapter, the ULN (Ultra-Low-Noise) version is tailor made for serious silent enthusiasts who demand super-slow running speeds and utmost quietness of operation.

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.

SSO2 Bearing

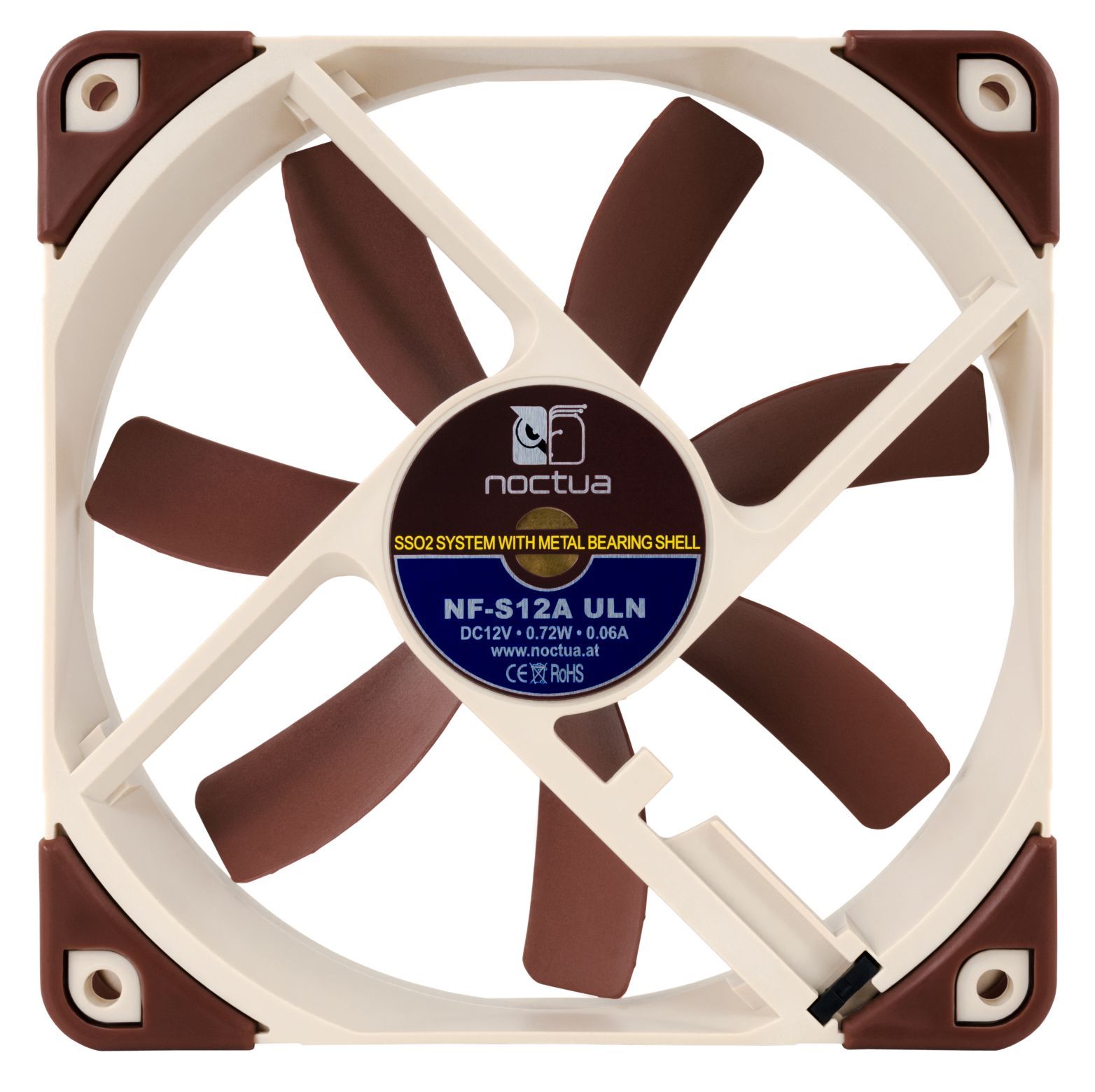

The NF-S12A features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-S12A sports a CNC milled bearing shell made entirely from brass.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

FAN Specification

Size

120x120x25 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

3-pin

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

S-Series with Anti-Stall Knobs

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

800 RPM

Rotational speed with L.N.A. (+/- 10%)

600 RPM

Airflow

74,3 m³/h

Airflow with L.N.A.

57,5 m³/h

Acoustical noise

8,6 dB(A)

Acoustical noise with L.N.A.

6,7 dB(A)

Static pressure

0,62 mm H₂O

Static pressure with L.N.A.

0,44 mm H₂O

Input power (typical

0,264 W

Input power (max.)

0,72 W

Input current (typical)



0,022 A

Max. input current

0,06 A

Operating voltage

12 V

MTTF

> 150.000 h

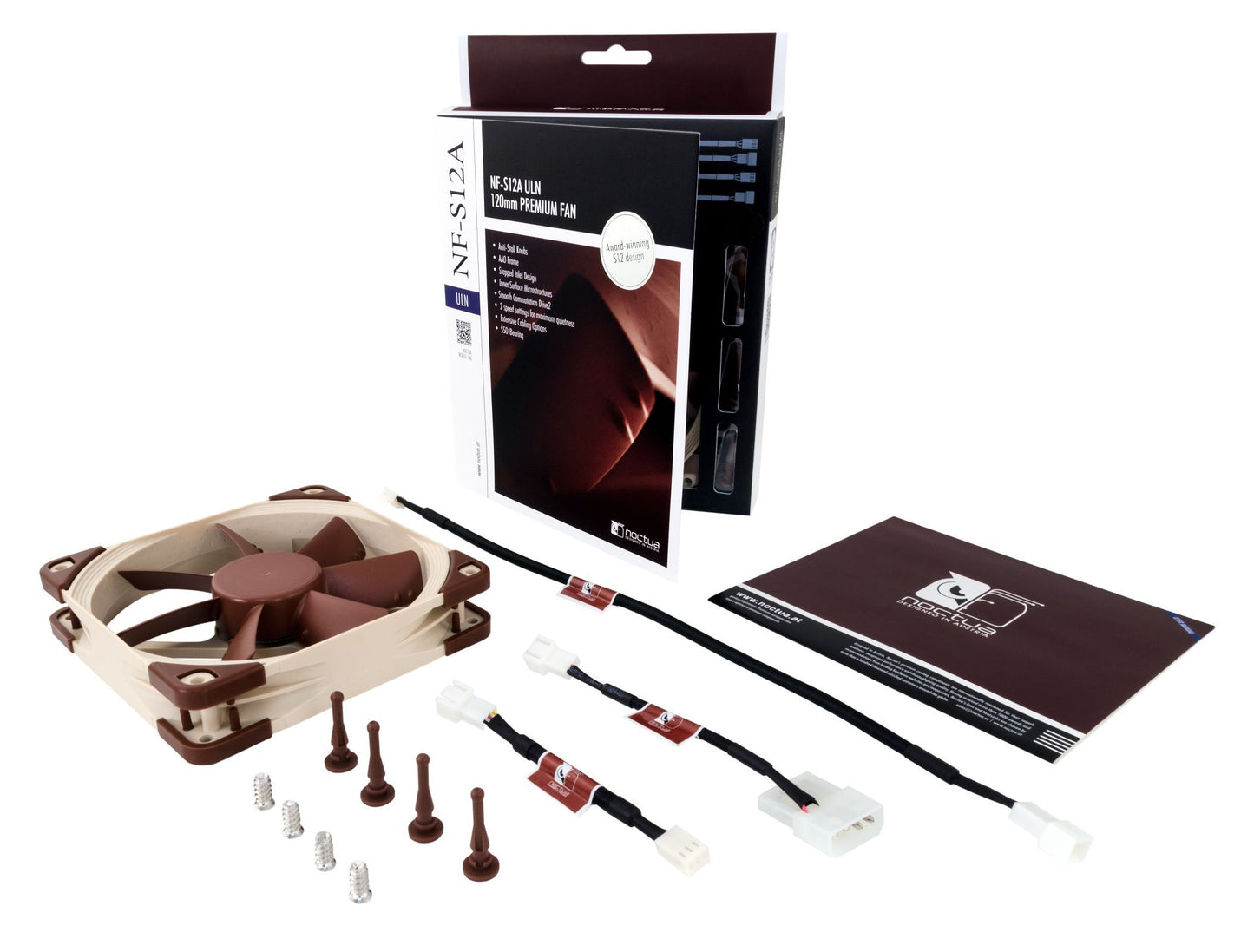

Scope of delivery

• Low-Noise Adaptor (L.N.A.)
• 3:4 Pin Adaptor
• 30cm Extension Cable
• 4 Vibration-Compensators
• 4 Fan Screws

Warranty

6 years
