NH-L9x65 SE-AM4

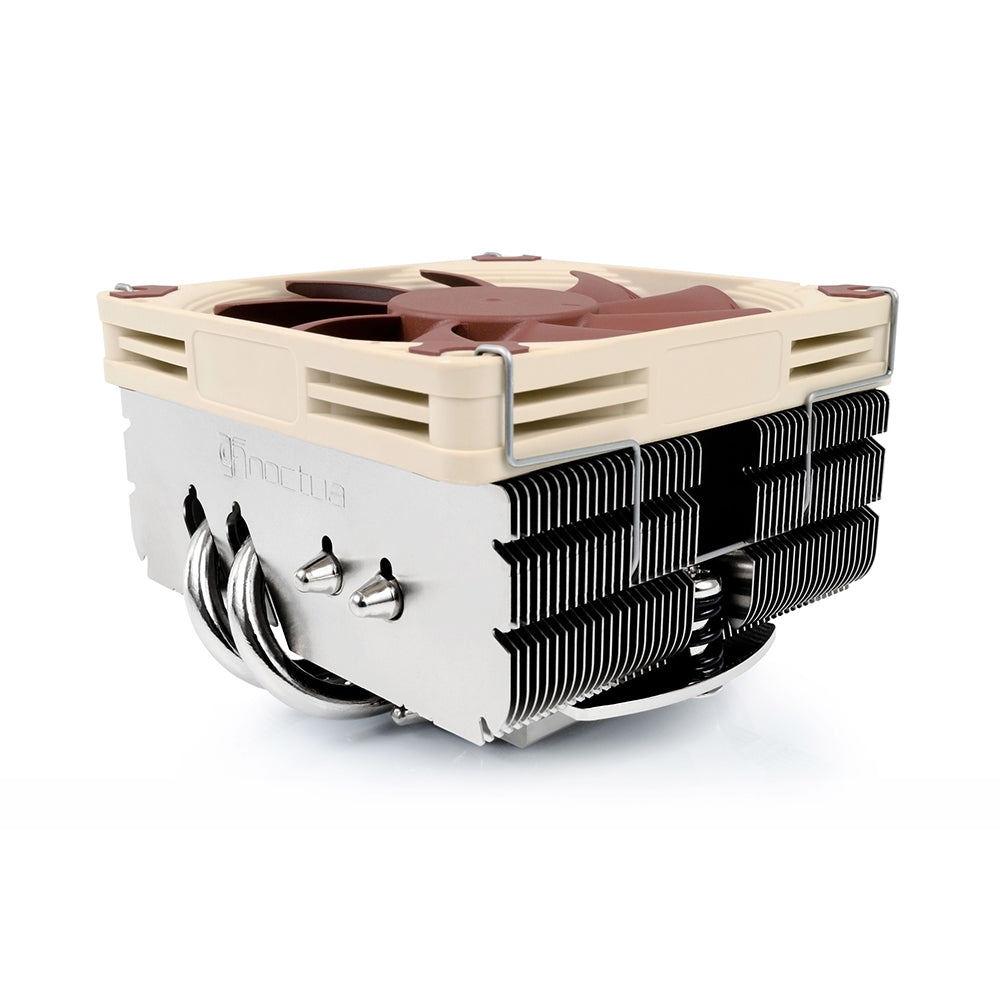

Having received more than 100 awards and recommendations from international hardware websites and magazines, Noctua’s compact NH-L9x65 has become a standard choice among 65mm tall low-profile coolers. The SE-AM4 version is a dedicated special edition for AMD’s AM4/AM5 (Ryzen) platform featuring the latest SecuFirm2™ mounting system for AM4/AM5. Topped off with the renowned quiet NF-A9x14 PWM 92mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9x65 SE-AM4 forms a complete premium-quality solution for AM4/AM5-based ITX builds and HTPC systems.
Please note that being a dedicated special edition for AM4/AM5, the NH-L9x65 SE-AM4 comes with AM4/AM5 mounting hardware only.
Caution: The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9x65 is recommended for your CPU.
Caution: The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9x65 is recommended for your CPU.
Award-winning NH-L9x65 cooler
Tens of thousands of enthusiast users all over the world swear by the NH-L9x65’s quality and performance. Recommended by more than 100 international hardware websites and magazines, it is renowned for being one of the best sub-70mm low-profile heatsinks on the market.
Dedicated special edition for AM4/AM5
The NH-L9x65 SE-AM4 brings the NH-L9x65’s signature quiet cooling performance to AMD’s new AM4/AM5 platform. With its highly compact design and low profile, it is ideal for cooling lower TDP AM4/AM5 CPUs in HTPC or Small Form Factor cases.
65mm low profile

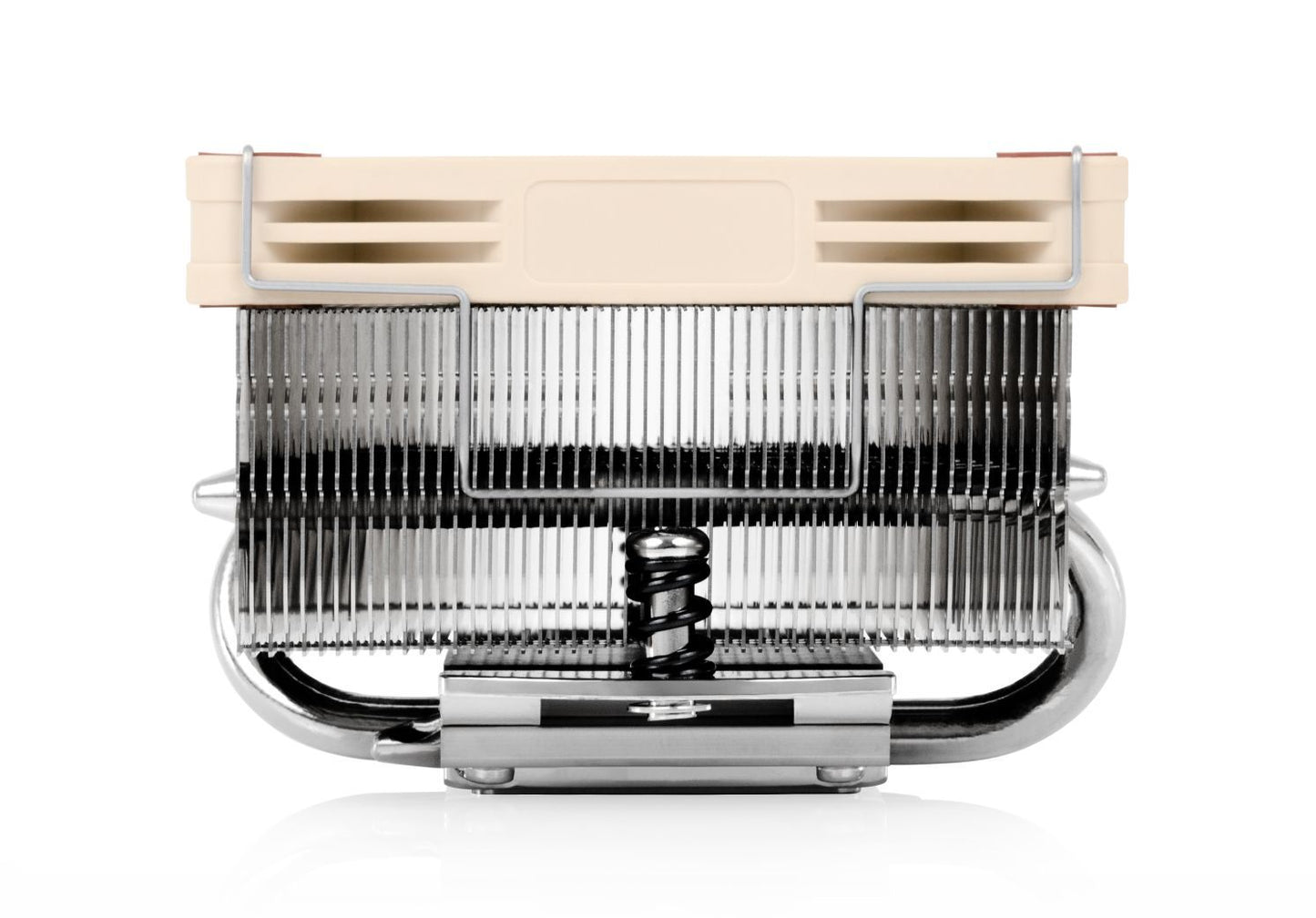

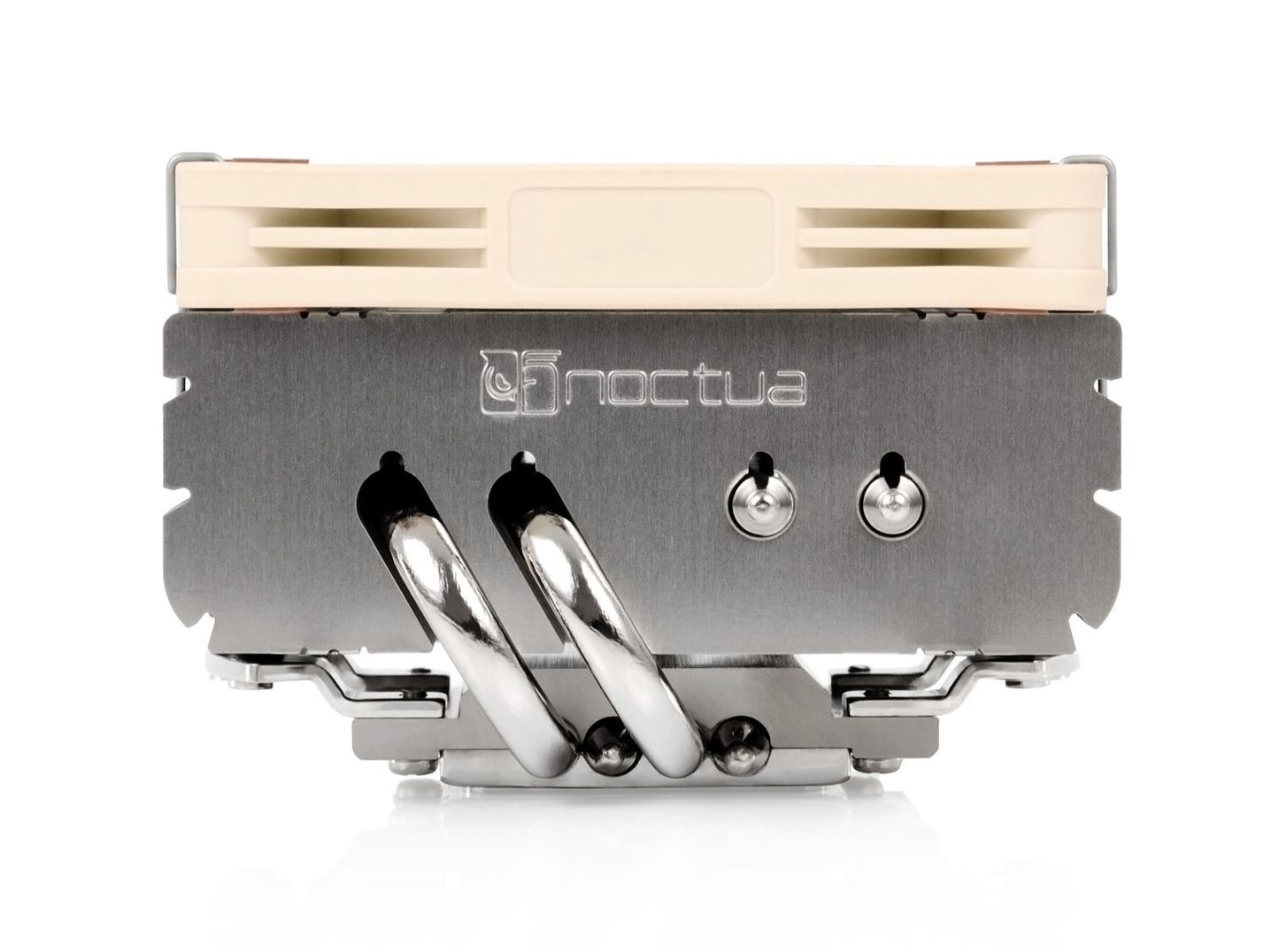

Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.
100% RAM compatibility
Being 95mm wide, the NH-L9x65 SE-AM4 complies with the AMD AM4/AM5 socket’s keep-out zone. This means that it won’t cause issues with chipset coolers and doesn’t overhang the RAM slots, making it fully compatible with tall memory modules.
100% compatibility with PCIe cards on mini-ITX
Many mini-ITX motherboards have the PCIe slot sitting close to the socket zone. While larger coolers with 120mm or 140mm fans that exceed this zone may block the PCIe slot, the compact NH-L9x65 provides full compatibility with PCIe cards.
Easy access to near-socket connectors

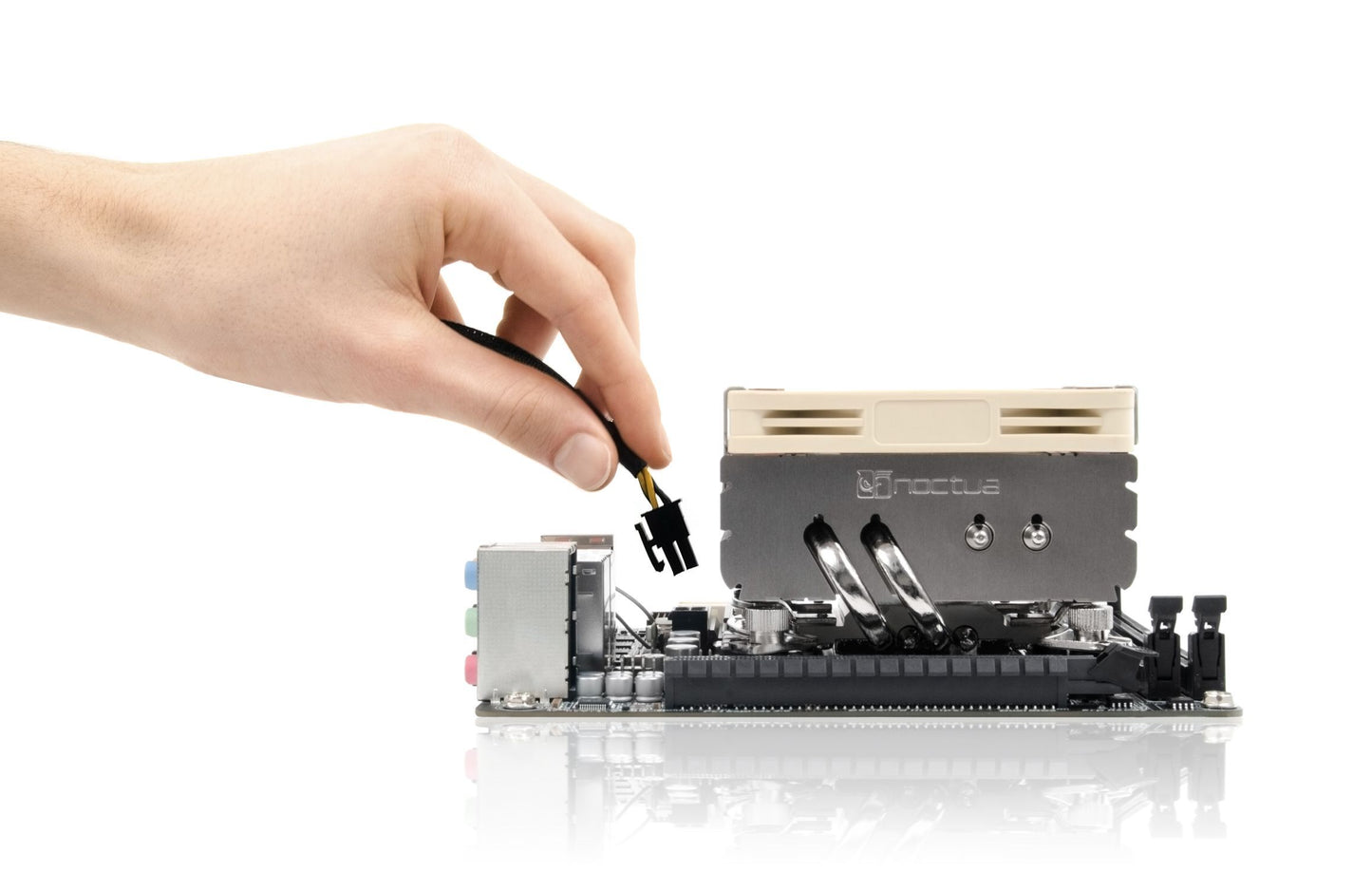

Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient cooling performance, but by protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX mainboards. Thanks to its compact footprint, the NH-L9x65 provides easy access to all connectors and components.
NF-A9x14 PWM premium fan

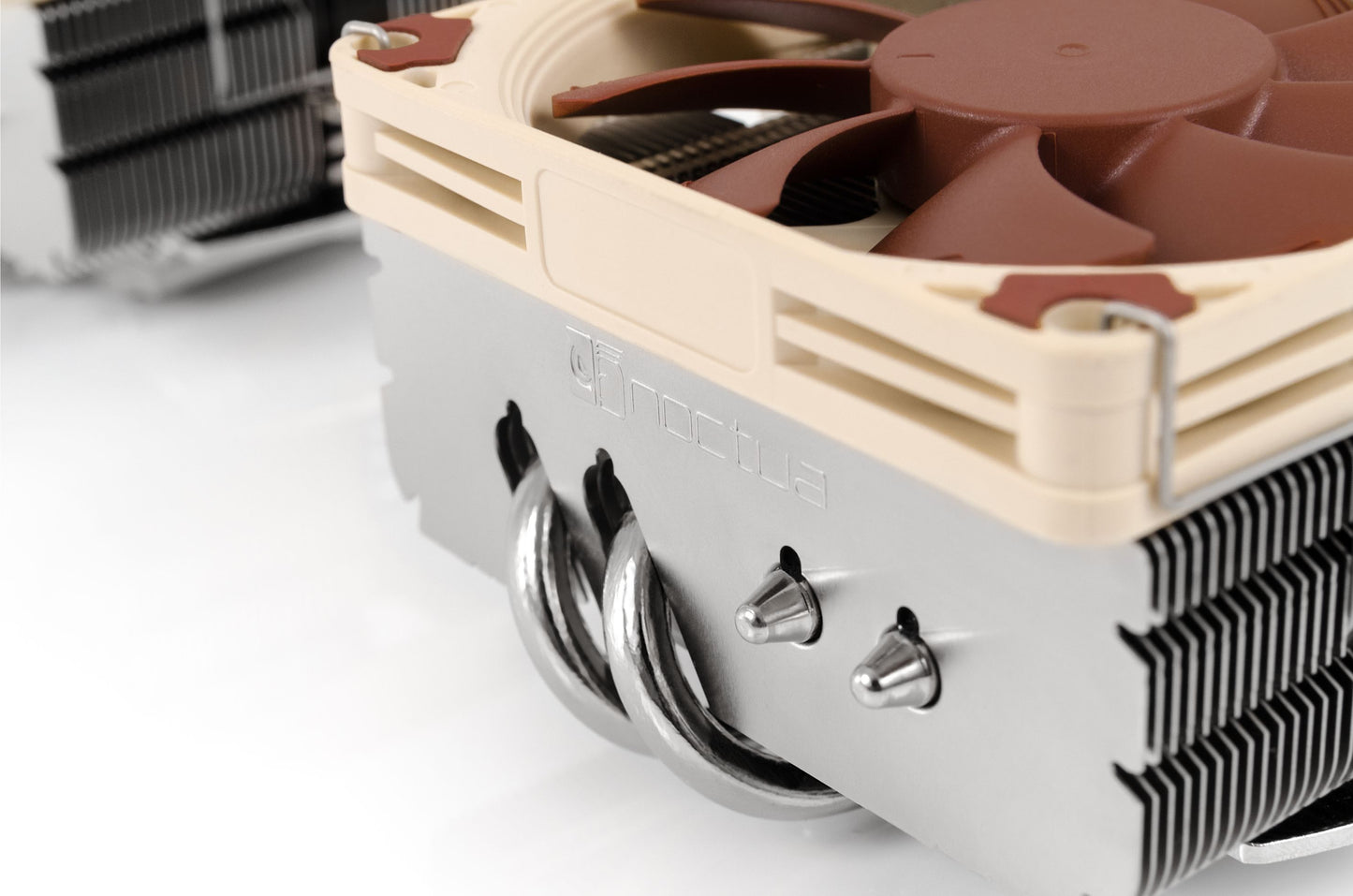

The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9x65 to stay remarkably quiet.
SecuFirm2™ mounting system for AM4/AM5
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. In order to achieve the best compatibility and to match the airflow path inside the case, the SecuFirm2™ mounting for AM4/AM5 makes it possible to install the cooler either in standard orientation or turned by 90°.*
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTTF rating of more than 150.000 hours and the entire NH-L9x65 package comes with a full 6-year manufacturer’s warranty.
Product Details
Cooler Specification
Height (without fan)
51 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Weight (without fan)
340 g
Height (with fan)
65 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (with fan)
413 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
see NSPR
Fan compatibility
92x92x14, 92x92x25

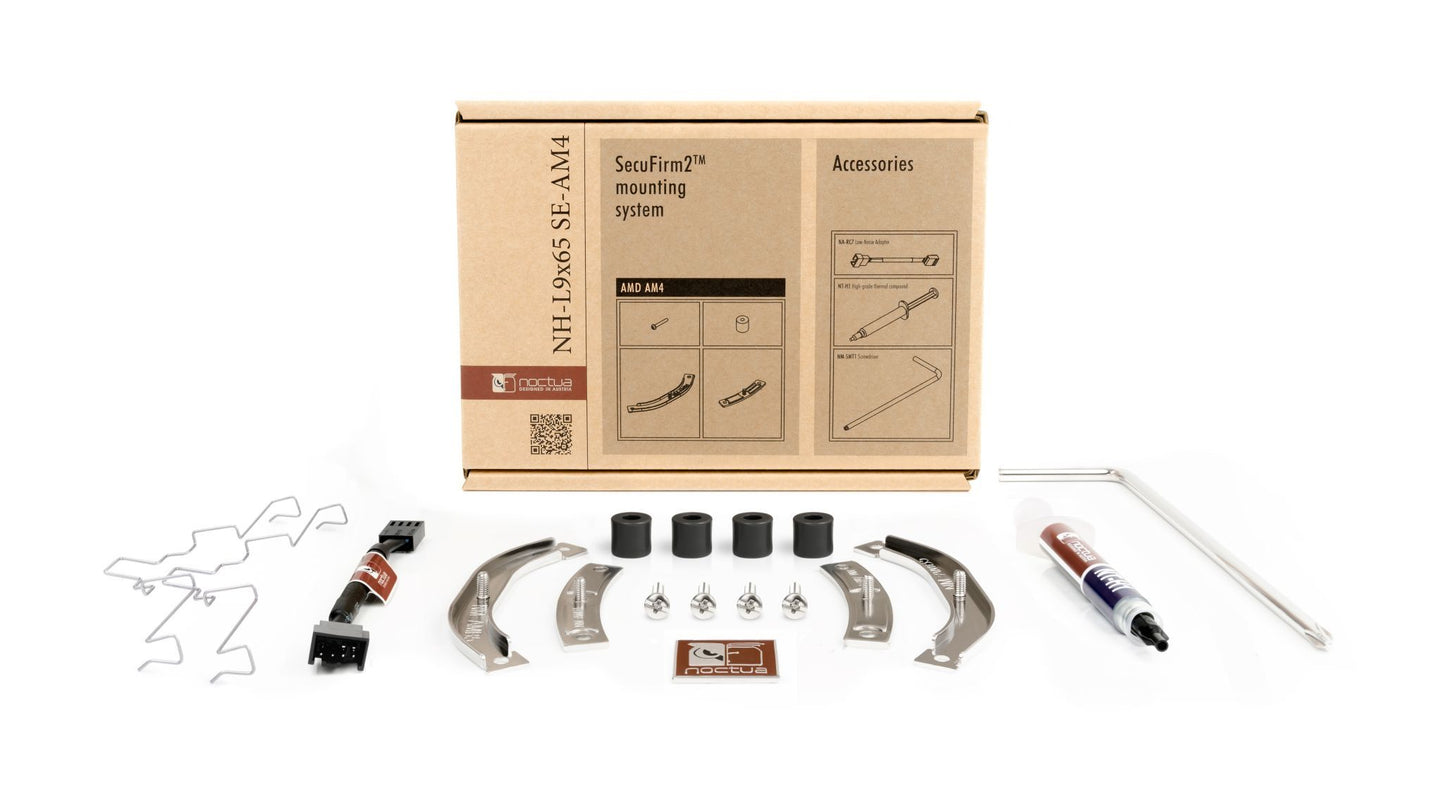

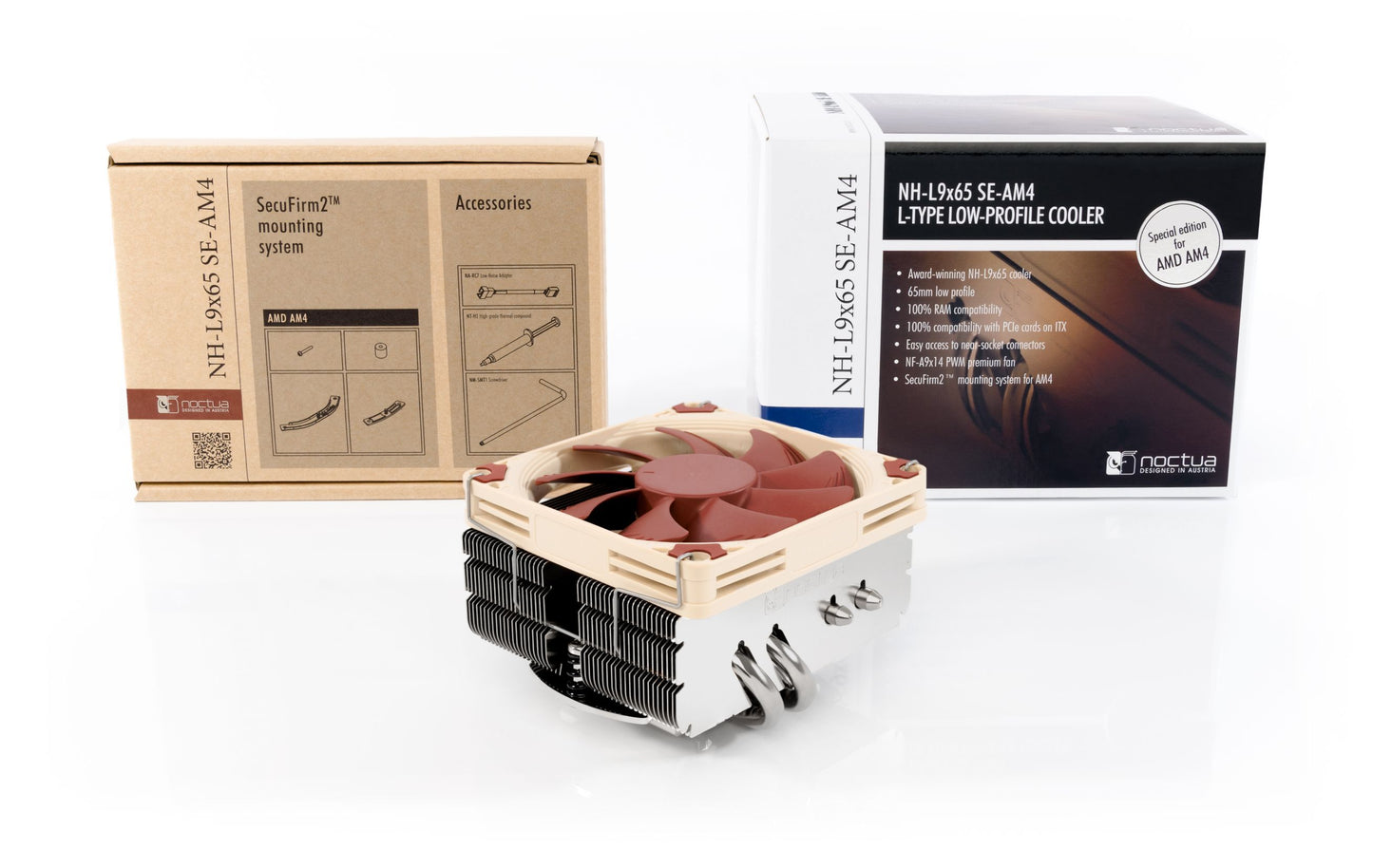

Scope of delivery
- NF-A9x14 PWM premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ AM4/AM5 mounting-kit
- Noctua metal case-badge
6 Years
FAN Specification
Model
Noctua NF-A9x14 PWM
Max. rotational speed (+/- 10%)
2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)
600 RPM
57,5 m³/h
Max. acoustical noise
23,6 dB(A)
Max. acoustical noise with L.N.A.
14,8 dB(A)
Input power (max.)
2,52 W
Voltage range
12 V
MTTF
> 150.000 h
Description
NH-L9x65 SE-AM4
Having received more than 100 awards and recommendations from international hardware websites and magazines, Noctua’s compact NH-L9x65 has become a standard choice among 65mm tall low-profile coolers. The SE-AM4 version is a dedicated special edition for AMD’s AM4/AM5 (Ryzen) platform featuring the latest SecuFirm2™ mounting system for AM4/AM5. Topped off with the renowned quiet NF-A9x14 PWM 92mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9x65 SE-AM4 forms a complete premium-quality solution for AM4/AM5-based ITX builds and HTPC systems.
Please note that being a dedicated special edition for AM4/AM5, the NH-L9x65 SE-AM4 comes with AM4/AM5 mounting hardware only.
Caution: The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9x65 is recommended for your CPU.
Caution: The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9x65 is recommended for your CPU.
Award-winning NH-L9x65 cooler
Tens of thousands of enthusiast users all over the world swear by the NH-L9x65’s quality and performance. Recommended by more than 100 international hardware websites and magazines, it is renowned for being one of the best sub-70mm low-profile heatsinks on the market.
Dedicated special edition for AM4/AM5
The NH-L9x65 SE-AM4 brings the NH-L9x65’s signature quiet cooling performance to AMD’s new AM4/AM5 platform. With its highly compact design and low profile, it is ideal for cooling lower TDP AM4/AM5 CPUs in HTPC or Small Form Factor cases.
65mm low profile
Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.
100% RAM compatibility
Being 95mm wide, the NH-L9x65 SE-AM4 complies with the AMD AM4/AM5 socket’s keep-out zone. This means that it won’t cause issues with chipset coolers and doesn’t overhang the RAM slots, making it fully compatible with tall memory modules.
100% compatibility with PCIe cards on mini-ITX
Many mini-ITX motherboards have the PCIe slot sitting close to the socket zone. While larger coolers with 120mm or 140mm fans that exceed this zone may block the PCIe slot, the compact NH-L9x65 provides full compatibility with PCIe cards.
Easy access to near-socket connectors
Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient cooling performance, but by protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX mainboards. Thanks to its compact footprint, the NH-L9x65 provides easy access to all connectors and components.
NF-A9x14 PWM premium fan
The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9x65 to stay remarkably quiet.
SecuFirm2™ mounting system for AM4/AM5
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. In order to achieve the best compatibility and to match the airflow path inside the case, the SecuFirm2™ mounting for AM4/AM5 makes it possible to install the cooler either in standard orientation or turned by 90°.*
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTTF rating of more than 150.000 hours and the entire NH-L9x65 package comes with a full 6-year manufacturer’s warranty.
Product Details
Cooler Specification
Height (without fan)
51 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Weight (without fan)
340 g
Height (with fan)
65 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (with fan)
413 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
see NSPR
Fan compatibility
92x92x14, 92x92x25
Scope of delivery
- NF-A9x14 PWM premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ AM4/AM5 mounting-kit
- Noctua metal case-badge
6 Years
FAN Specification
Model
Noctua NF-A9x14 PWM
Max. rotational speed (+/- 10%)
2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)
600 RPM
57,5 m³/h
Max. acoustical noise
23,6 dB(A)
Max. acoustical noise with L.N.A.
14,8 dB(A)
Input power (max.)
2,52 W
Voltage range
12 V
MTTF
> 150.000 h
