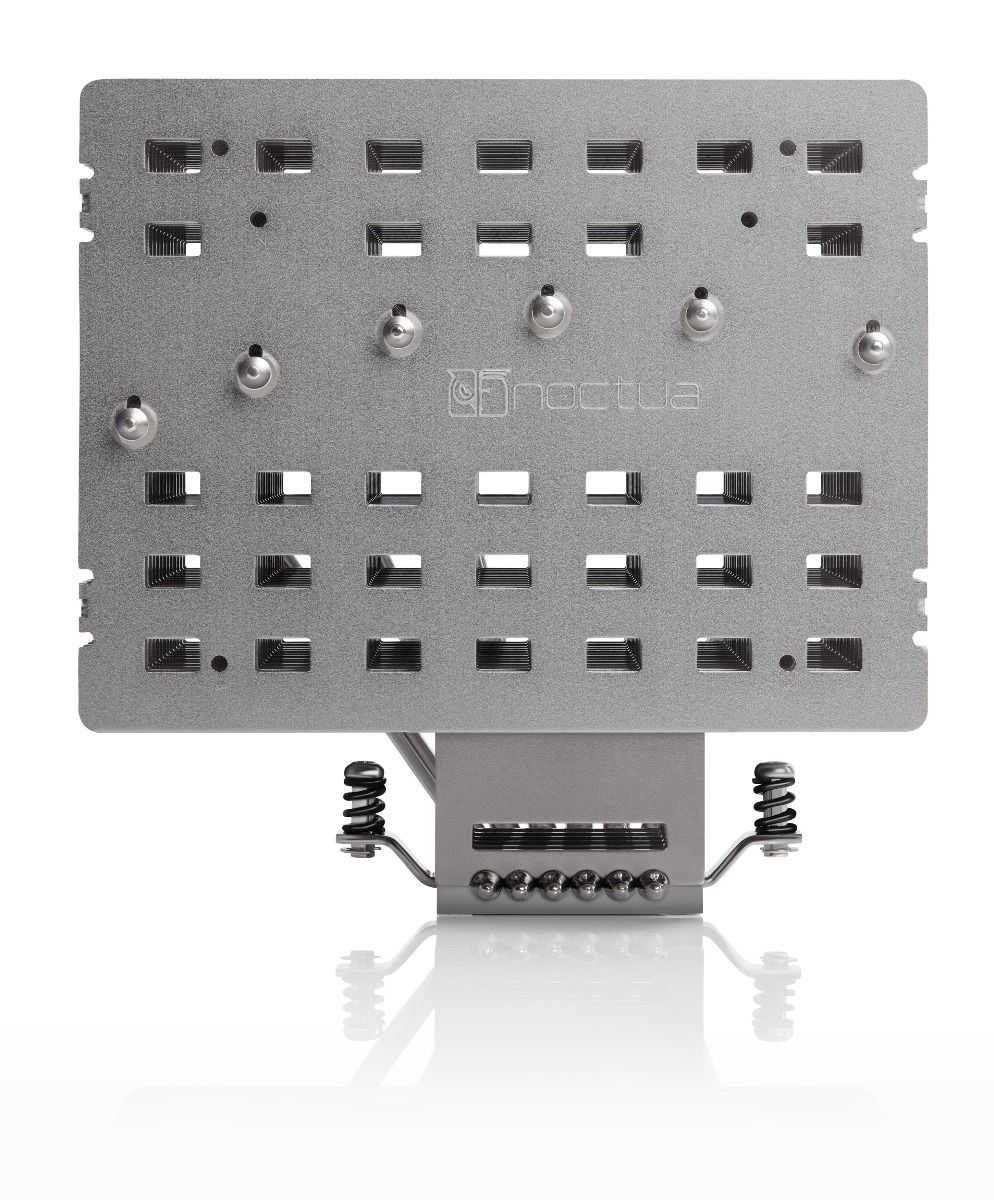

Noctua NH-P1 CPU cooler
Noctua NH-P1 CPU cooler
Brand : Noctua
Regular price
₱6,900.00
Sale price
₱6,900.00
Regular price
₱7,190.00
-4%
Unit price
per
Regular price
Couldn't load pickup availability
NH-P1

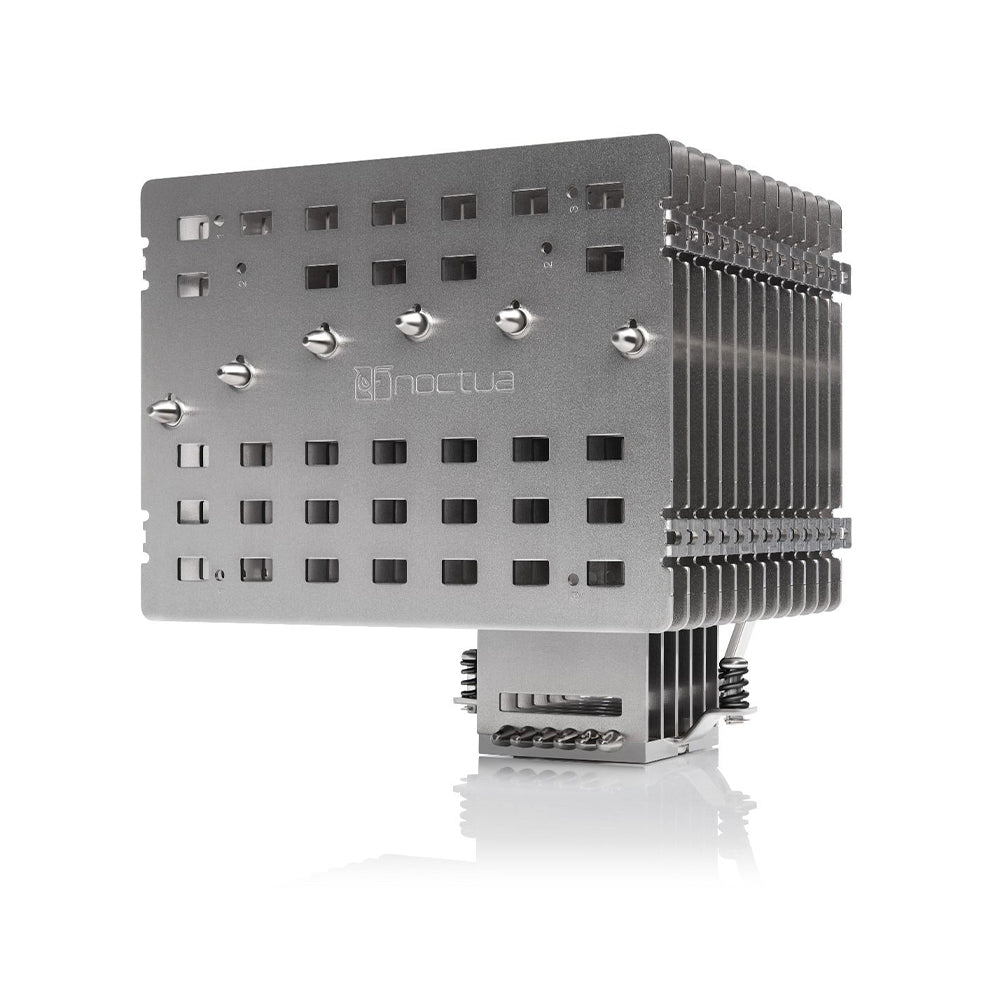

The NH-P1 is Noctua’s first passive CPU cooler and has been custom-designed for fanless operation from the ground up: in enclosures with good natural convection, its six heatpipes and thick, widely spaced heatsink fins enable it to cool modern high-end CPUs with low to moderate heat dissipation completely passively (see setup guidelines and list of recommended cases). For further enhanced performance or semi-passive setups that only spin up their fans when necessary, the NH-P1 can be outfitted with a low-speed, ultra-quiet 120mm fan such as the NF-A12x25 LS-PWM. Topped off with the professional Torx-based SecuFirm2+ mounting system, Noctua’s award-winning NT-H2 thermal compound and a 6-year manufacturer’s warranty, the NH-P1 is the ideal cornerstone for premium-grade fanless or semi-passive builds.
Designed for passive cooling from the ground up

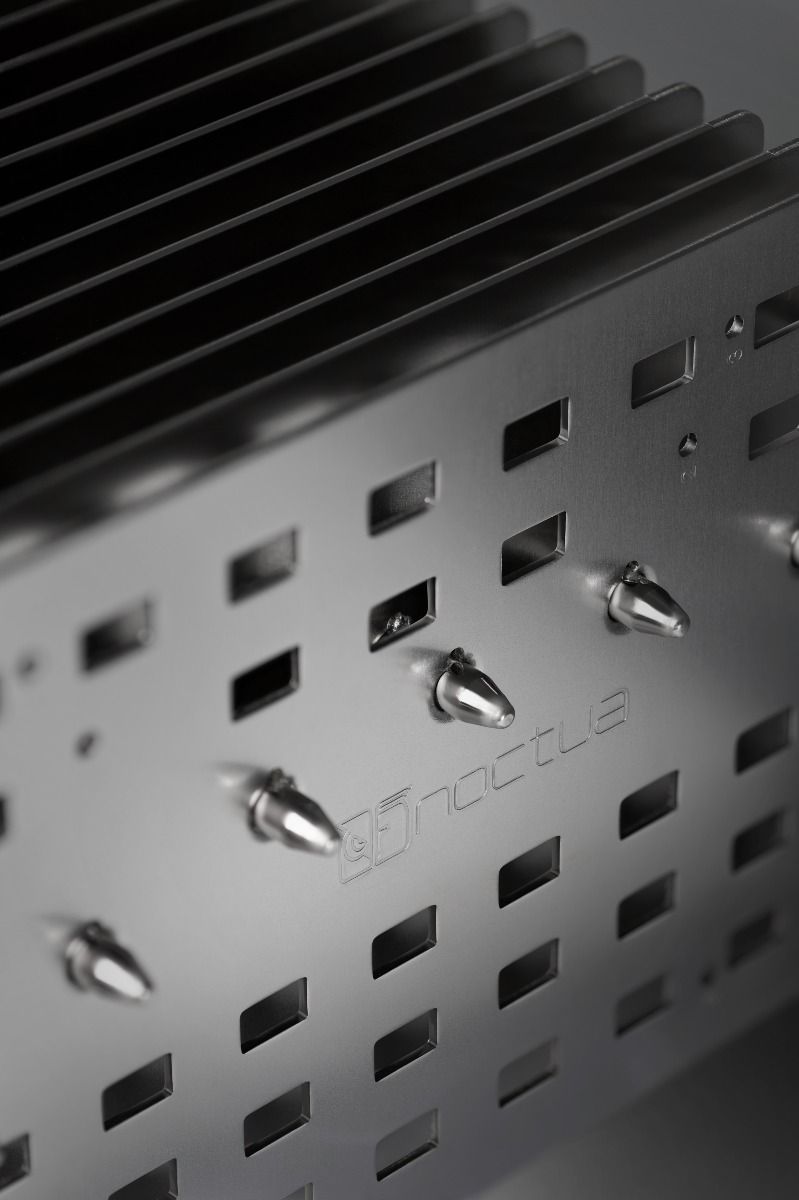

The NH-P1 isn’t just a regular heatsink without a fan: it has been designed for fanless operation from the ground up, featuring much thicker, much more widely spaced fins in order to achieve both the mass and the minimal airflow resistance that are required in order to excel in natural convection cooling.
Fanless cooling for high-end CPUs

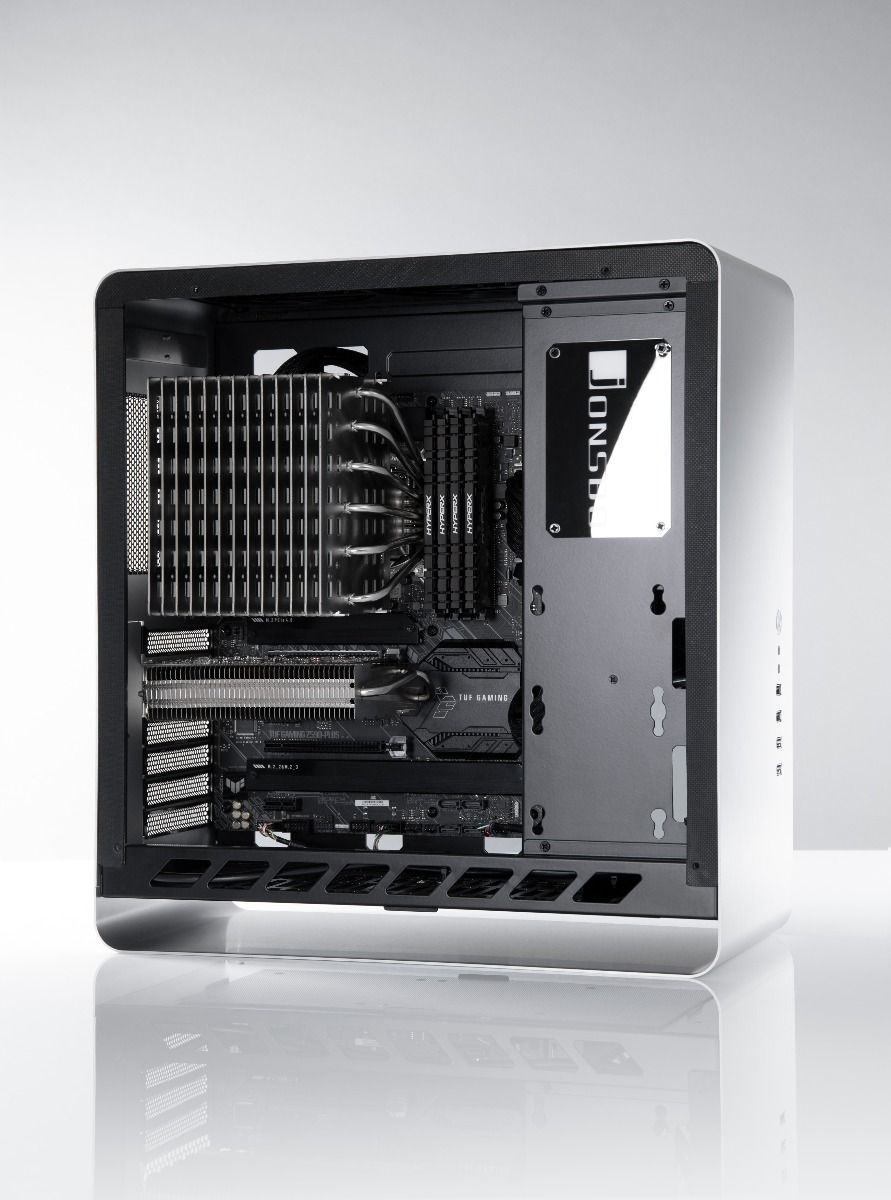

In fully optimised fanless systems, the NH-P1 is capable of cooling high-end CPUs with low to moderate heat dissipation using natural convection only (see setup guidelines and CPU compatibility list). This makes it ideal for powerful builds that have no moving parts and run absolutely silent.
Increased performance headroom with extra fan

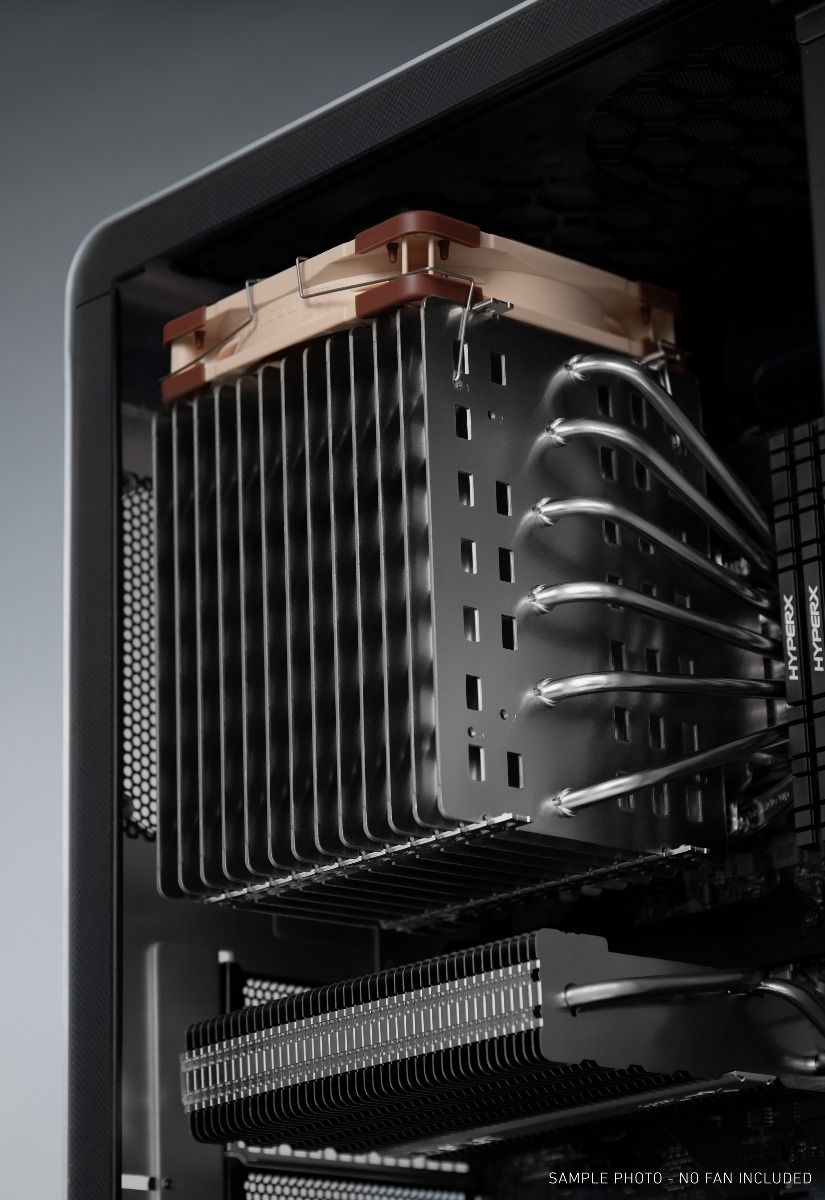

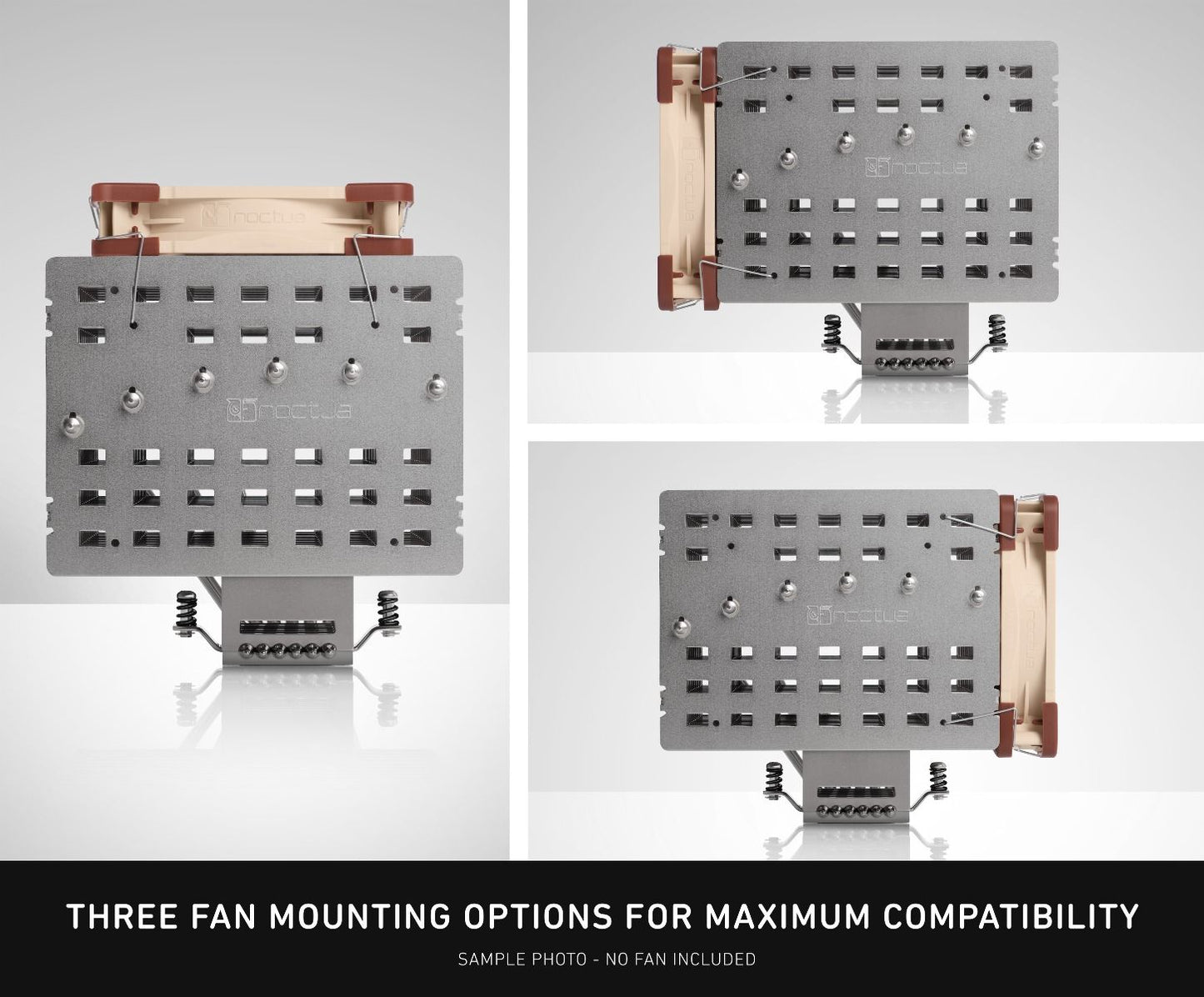

The NH-P1 can be fitted with an extra 120mm fan such as the near inaudible NF-A12x25 LS-PWM in order to increase its maximum dissipation capacity significantly (see setup guidelines and CPU compatibility list): ideal for short spikes of higher heat loads or semi-passive systems that only start their fans when necessary!
No noise, less dust, 100% fail-proof
Fanless cooling doesn’t only have the advantage of being completely silent: if you’re relying on natural convection only and don’t have case fans pushing air through a case, less dust will accumulate in filters or inside the system. Last but not least, with no moving parts such as fans or pumps that could possibly fail, the NH-P1 is as fail-proof as it can be.
Asymmetrical layout for optimal PCIe compatibility

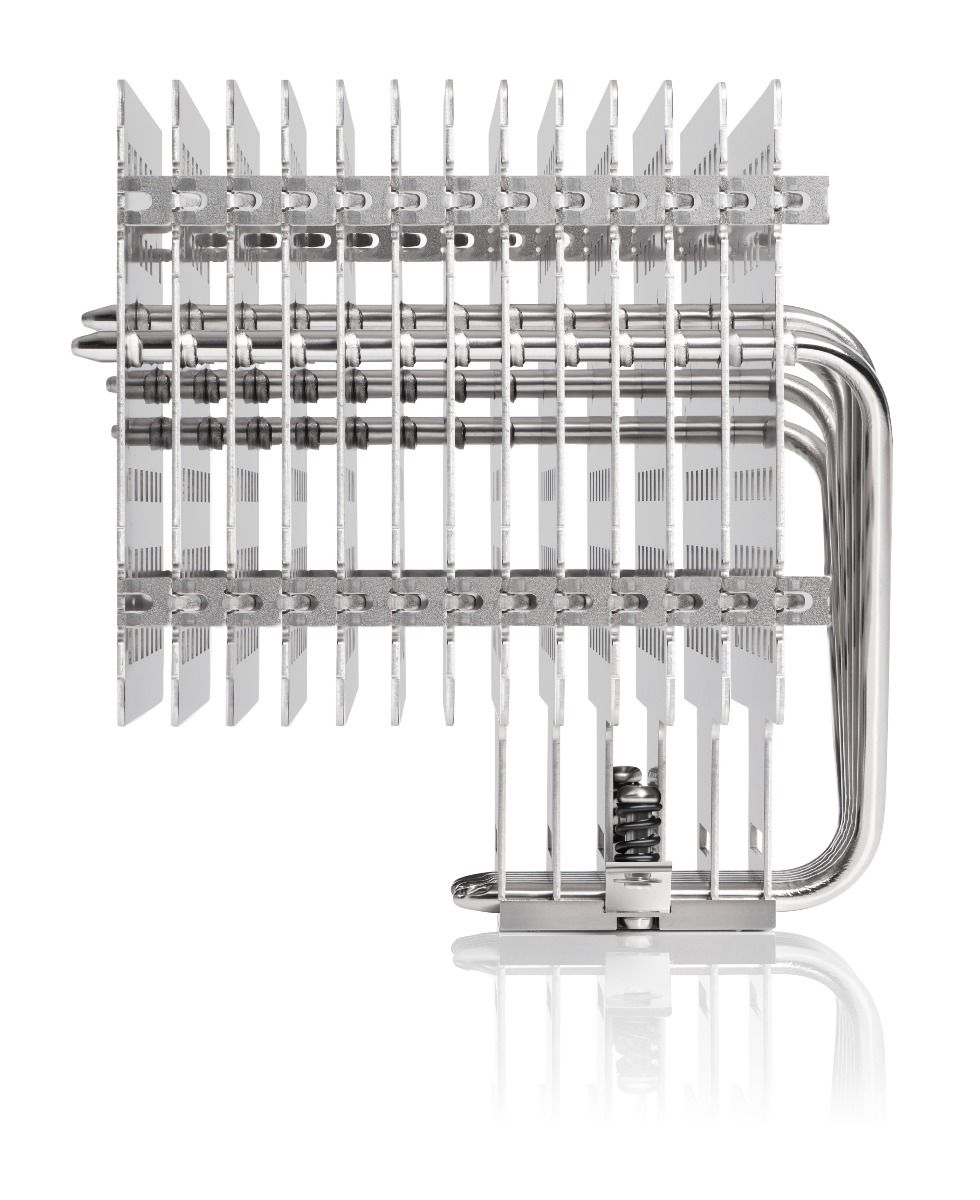

As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-P1 is offset towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboards (see motherboards compatibility list).
100% RAM compatibility on LGA1700/1200 and AM4/AM5

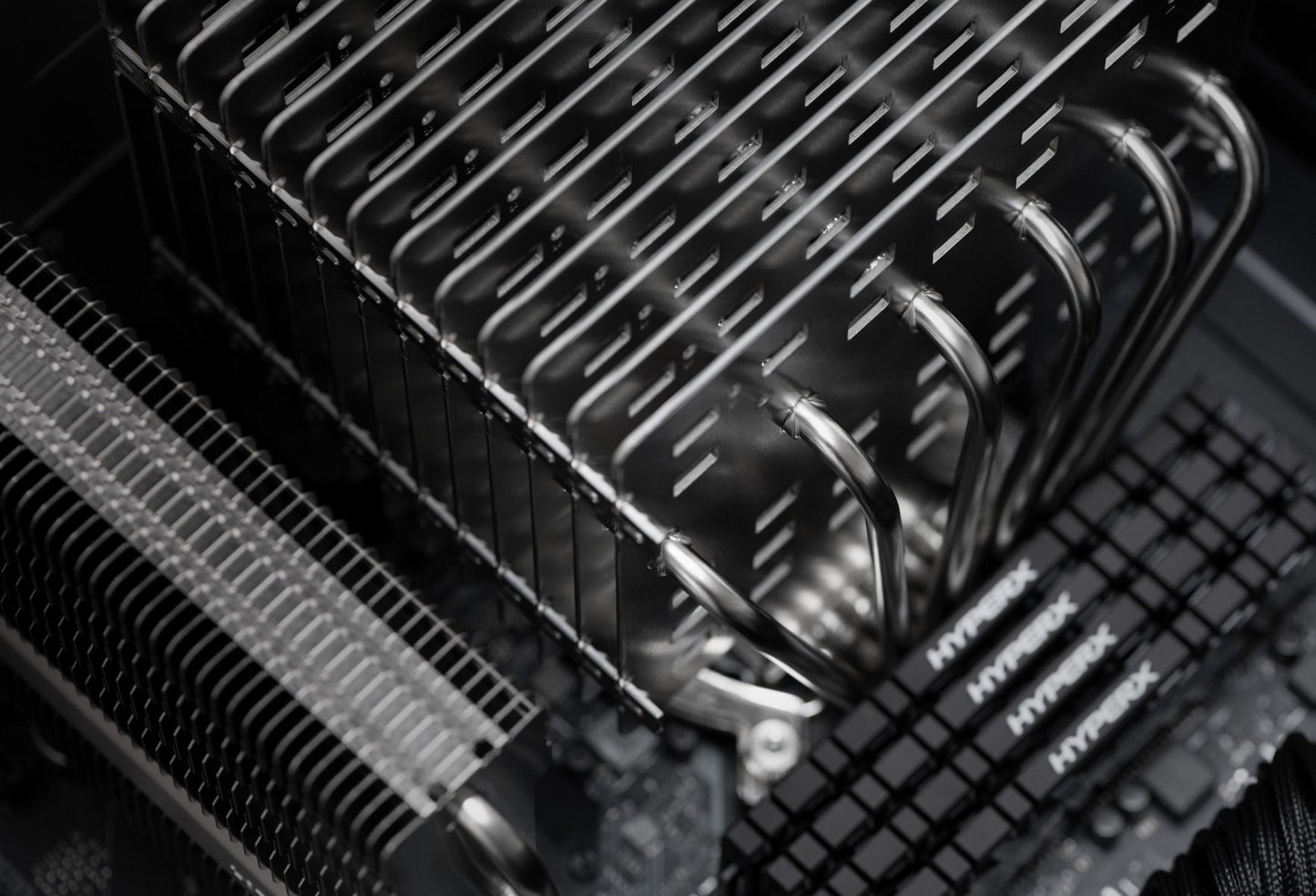

Due to its asymmetric design, the NH-P1 does not overhang the RAM slots on Intel LGA1700 (LGA17xx family)/LGA1200/LGA115x and AMD AM4/AM5 based motherboards, which ensures easy access to the modules and 100% compatibility with tall heat-spreaders. On LGA2066, the rear fan will overhang the RAM slots on the left-hand side of the socket, so RAM modules should not exceed 42mm in height.
SecuFirm2+™ Torx-based multi-socket mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Torx-based, the professional SecuFirm2+™ version with its included screwdriver provides even better handling and durability. Socket support includes Intel LGA1700 (since 2021), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4 and AM5.
Compatibility with past and future sockets
Thanks to Noctua’s SecuFirm™ ecosystem, the NH-P1 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-P1 a safe long-term investment.
NT-H2 next-gen thermal compound
In high-end passive cooling, every degree counts. This is why the NH-P1 includes a tube of Noctua’s next-generation NT-H2 thermal compound that provides even better performance than the award-winning NT-H1, allowing you to achieve the best possible passive cooling results.
Soldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-P1’s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua CPU coolers, the NH-P1 is built to the highest standards and comes with a full 6-year manufacturer’s warranty.
Product Details
Notes and warnings
Caution: while the NH-P1 provides first-rate performance for a passive cooler, it is not suitable for overclocking or CPUs that create high heat loads.
Please note that the TDP (Thermal Design Power) rating or amount of heat dissipation that the cooler can handle not only depends on the chassis and various other factors such as ambient temperature or other components inside the system, but also generally varies from CPU model to CPU model. For this reason, we specify cooling performance using the Noctua Standardised Performance Rating (NSPR) instead of giving a general TDP specification. In addition, we refer to our CPU compatibility list where we indicate how well the cooler can be expected to work on a particular CPU in a fully optimised setup (see our setup guidelines).
Please also note that the NH-P1 strictly requires either a fanless PC case with good natural convection, an open benchtable-type setup or a PC case with fans in order to achieve its full performance. We offer a list of recommended cases for completely fanless systems using the NH-P1. If necessary, Noctua recommends adding a near-inaudible 120mm fan like the NF-A12x25 LS-PWM to the heatsink for improved performance headroom.
Please note that the TDP (Thermal Design Power) rating or amount of heat dissipation that the cooler can handle not only depends on the chassis and various other factors such as ambient temperature or other components inside the system, but also generally varies from CPU model to CPU model. For this reason, we specify cooling performance using the Noctua Standardised Performance Rating (NSPR) instead of giving a general TDP specification. In addition, we refer to our CPU compatibility list where we indicate how well the cooler can be expected to work on a particular CPU in a fully optimised setup (see our setup guidelines).
Please also note that the NH-P1 strictly requires either a fanless PC case with good natural convection, an open benchtable-type setup or a PC case with fans in order to achieve its full performance. We offer a list of recommended cases for completely fanless systems using the NH-P1. If necessary, Noctua recommends adding a near-inaudible 120mm fan like the NF-A12x25 LS-PWM to the heatsink for improved performance headroom.
Cooler Specification
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4, AM5
Height (without fan)
158 mm
Width (without fan)
154 mm
Depth (without fan
152 mm
Weight (without fan)
1180 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
42
Max. TDP
see NSPR
Fan compatibility
120x120x25

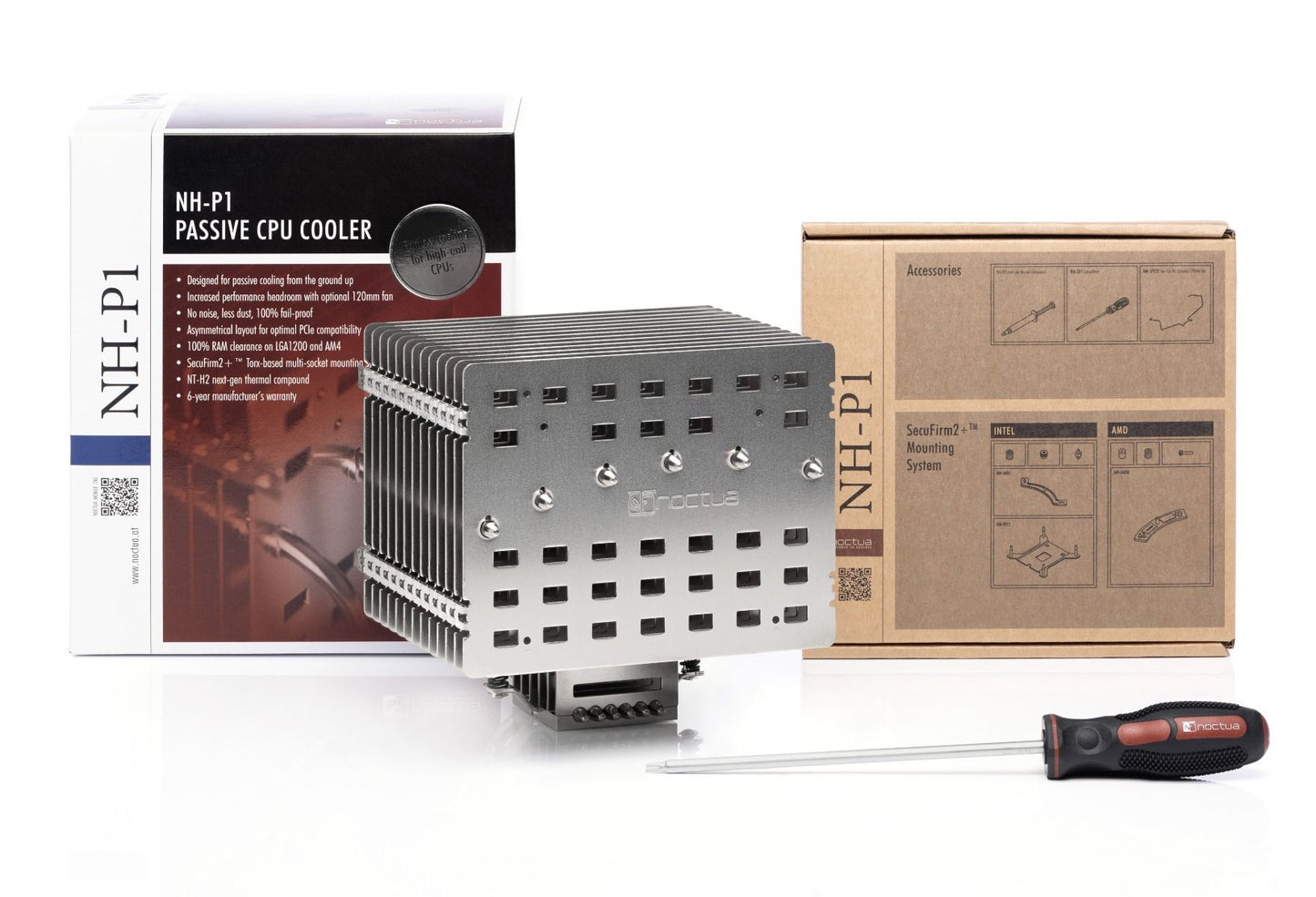

Scope of delivery
- NH-P1 heatsink
- SecuFirm2+™ multi-socket mounting system
- NT-H2 high-grade thermal compound
- NA-CW1 cleaning wipe
- NM-SD1 screwdriver
- Fan clips for optional 120mm fan
- Noctua Metal Case-Badge
6 Years
