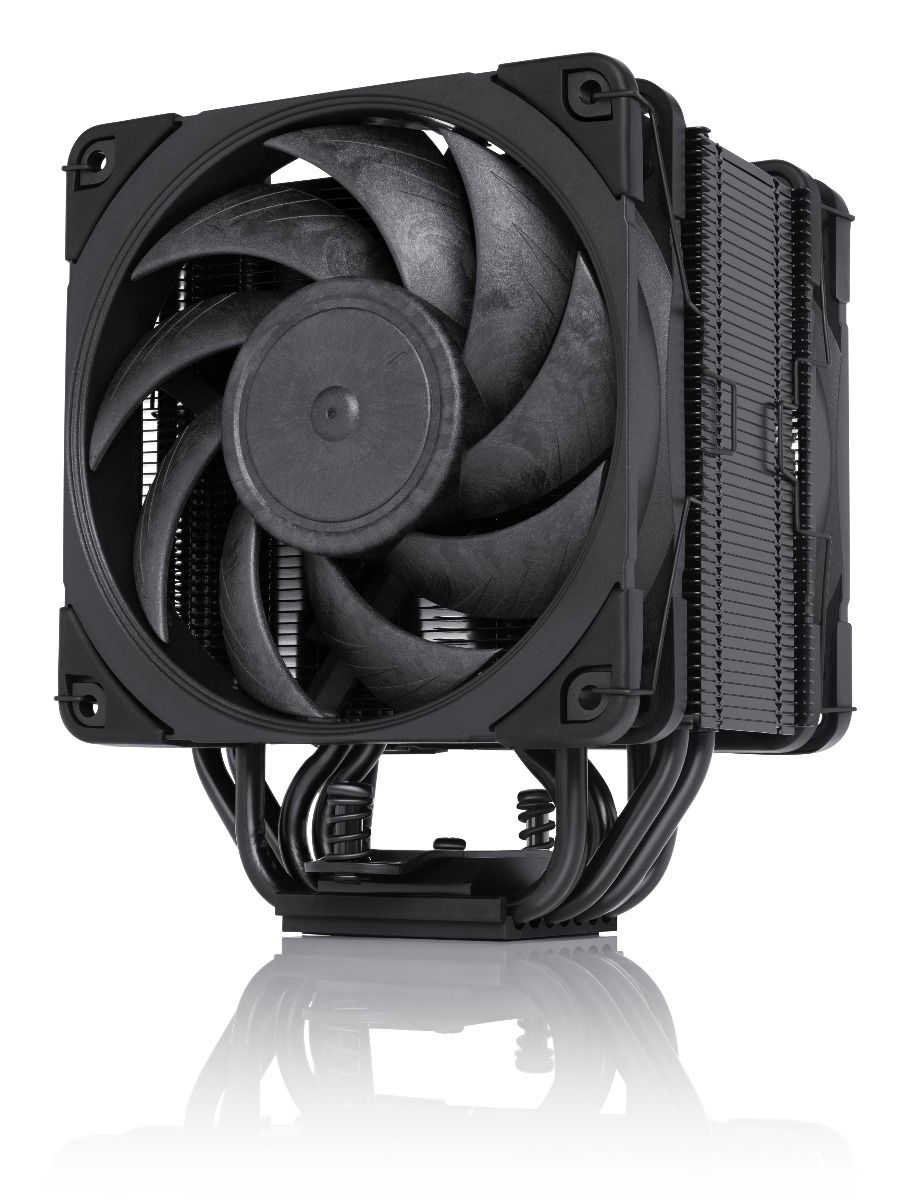

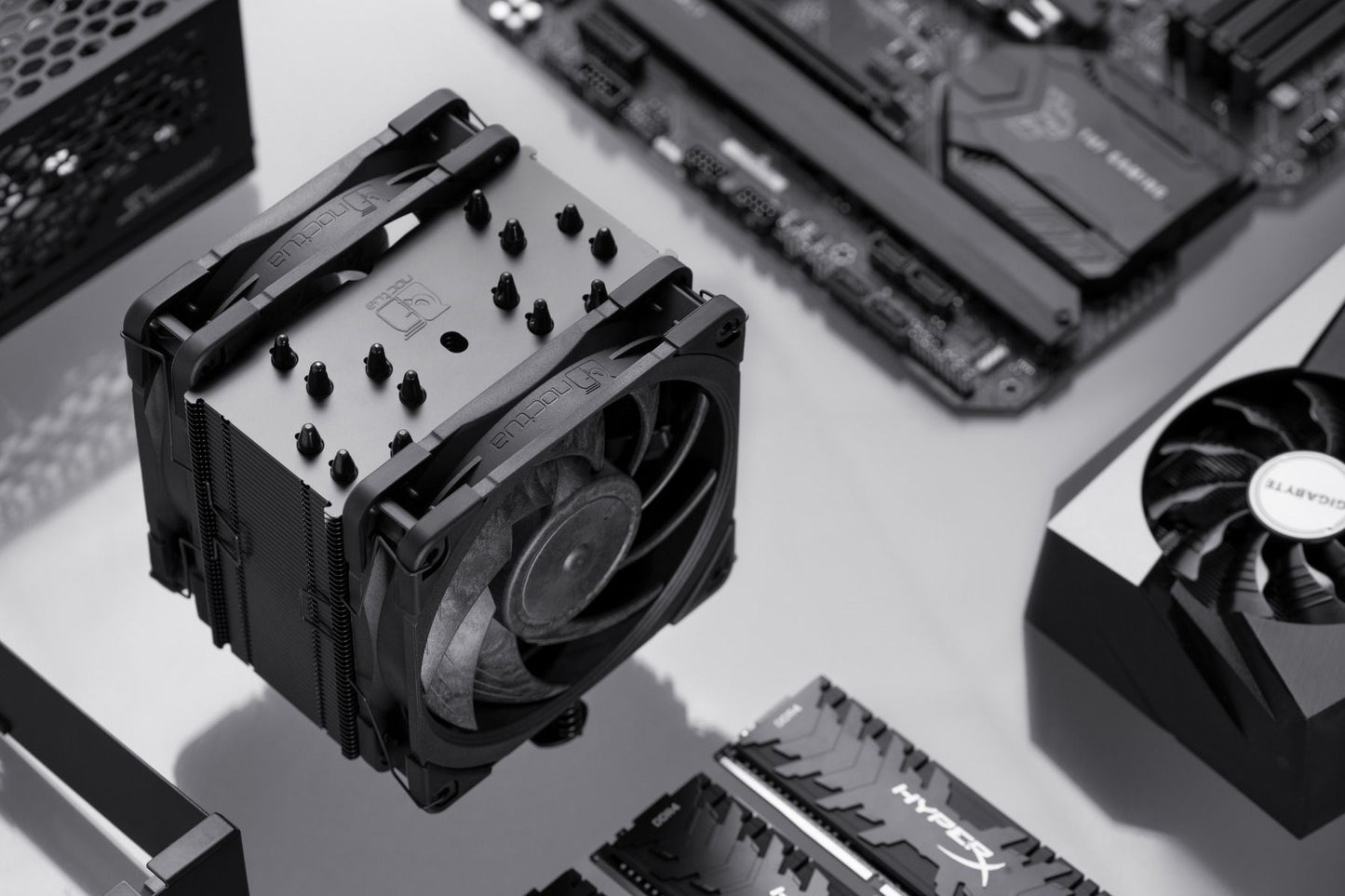

NOCTUA NH-U12A chromax.black

NOCTUA NH-U12A chromax.black

Brand : Noctua

Regular price ₱8,112.00
Sale price ₱8,112.00
Regular price ₱8,450.00 -4%
Sale! Sold out

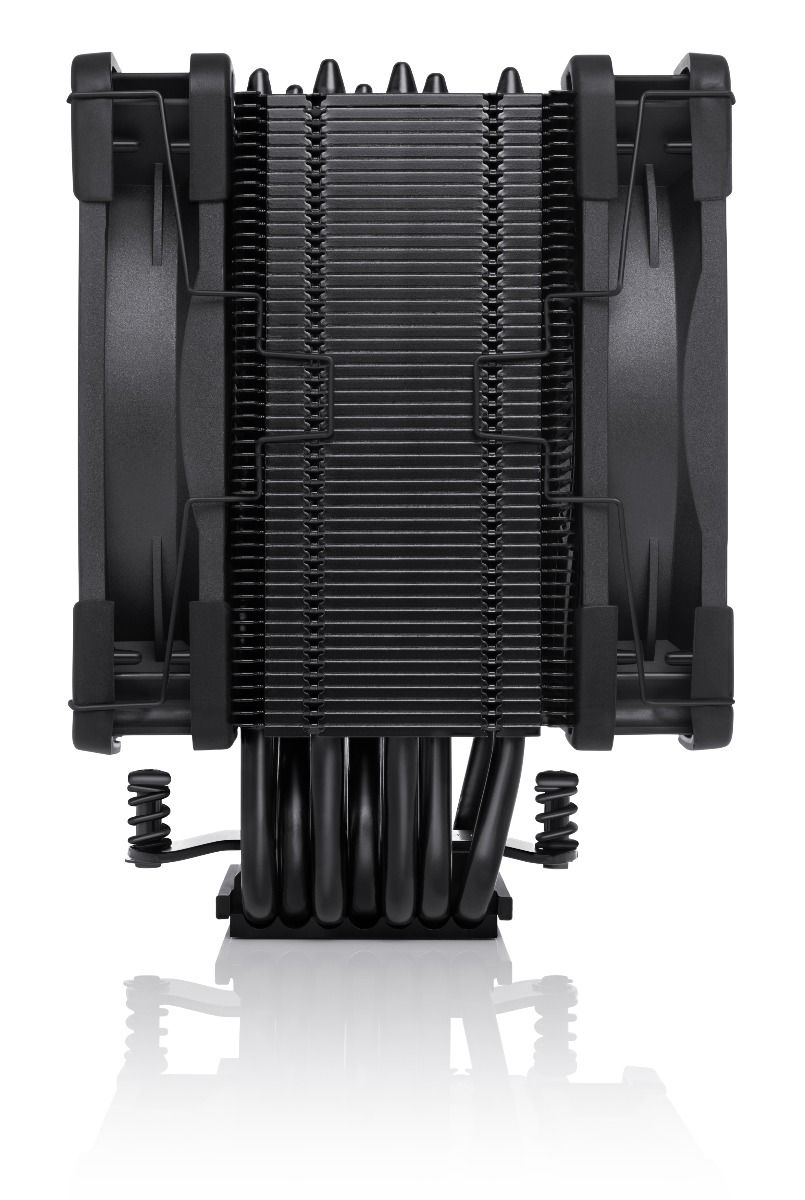

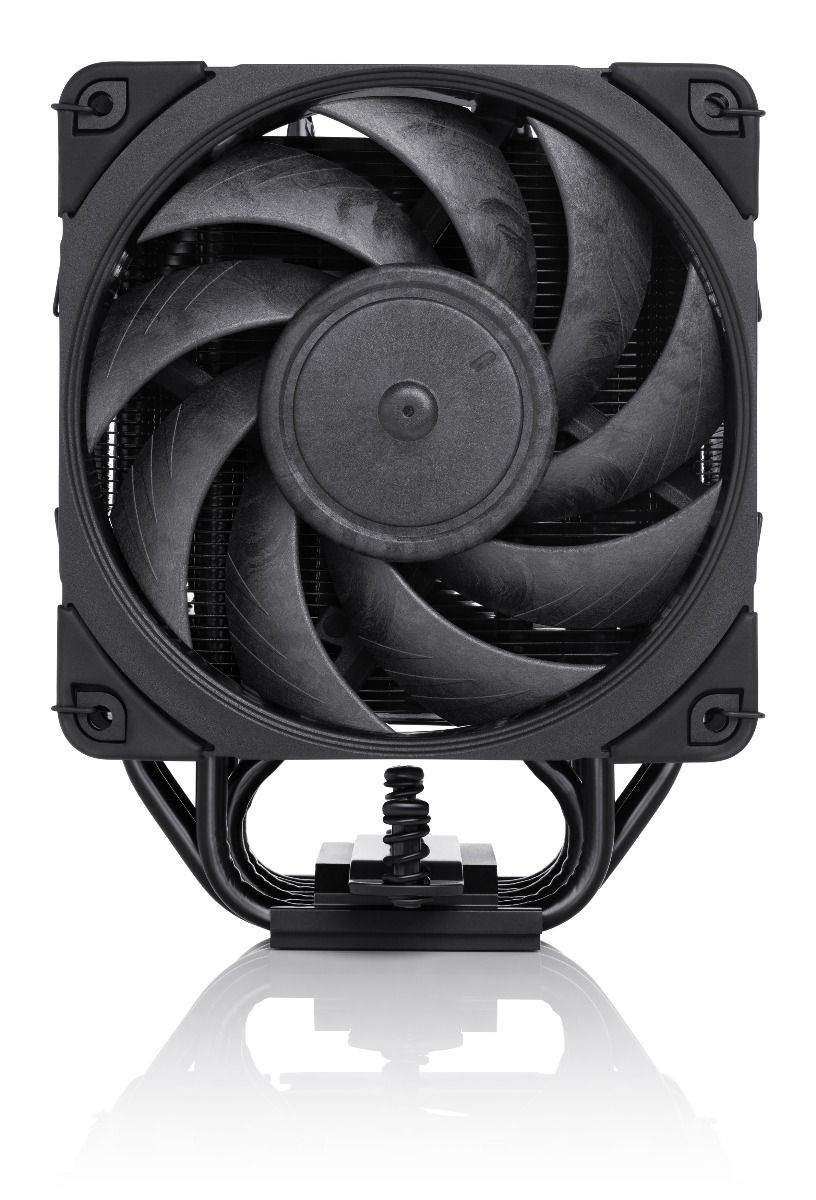

The NH-U12A chromax.black is an all-black version of Noctua’s award-winning NH-U12A premium-quality quiet CPU cooler. Thanks to the same proven asymmetrical single-tower heatsink design and state-of-the-art NF-A12x25 PWM fans, it stays true to the NH-U12A’s successful formula of fusing best-in-class cooling performance with superb quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fans and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12A chromax.black is a deluxe choice for customers who seek a highly compatible 120mm heatsink that can rival the performance of 140mm units and looks just as great as it cools.

Cooler Specification

Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 & AMD AM4, AM5

Height (without fan) -158 mm
Width (without fan)- 125 mm
Depth (without fan)- 58 mm
Weight (without fan)- 760 g
Height (with fan)- 158 mm
Width (with fan)- 125 mm
Depth (with fan)- 112 mm
Weight (with fan)- 1220 g

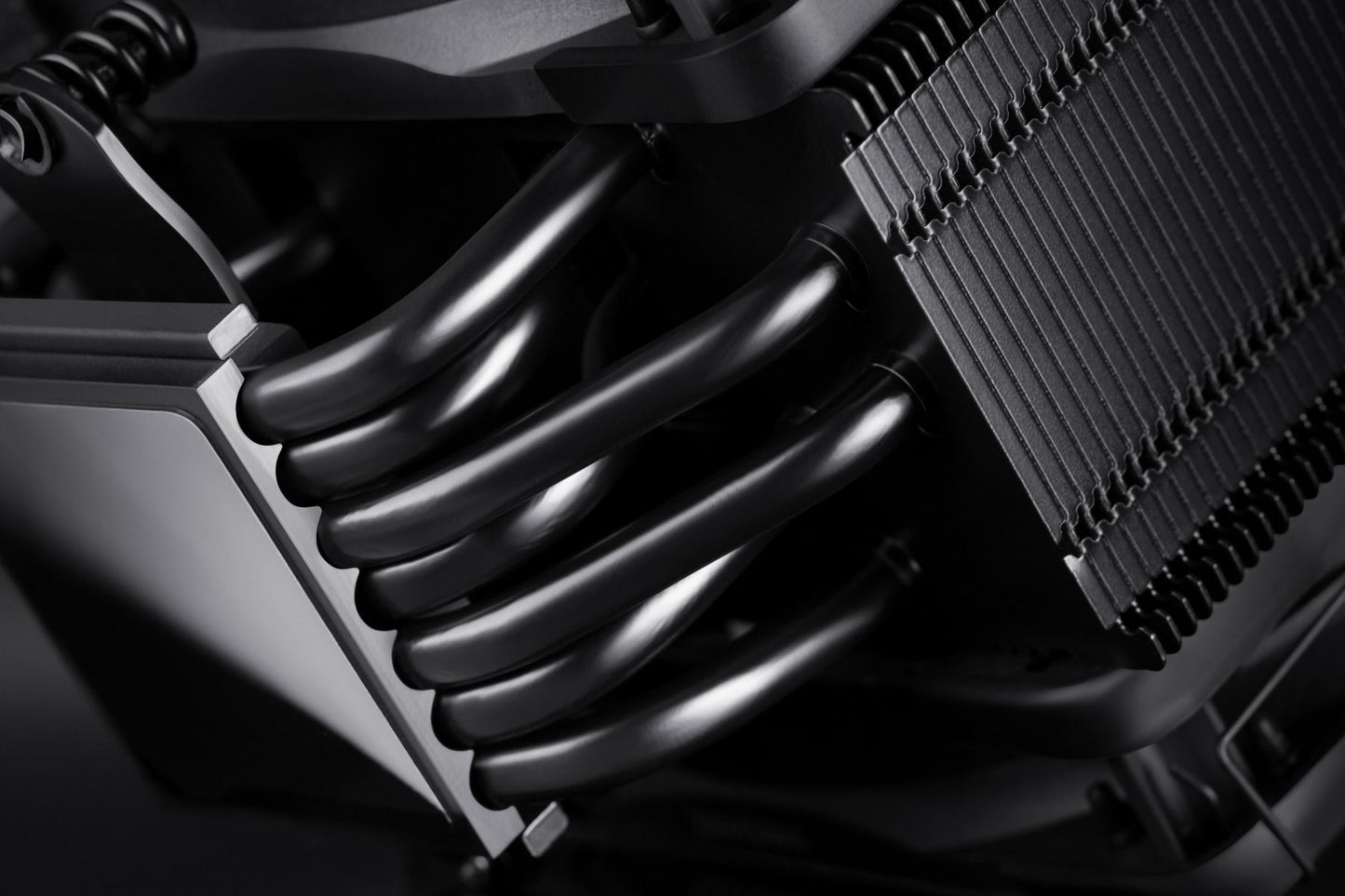

Material - Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR - 169
Max. TDP - see NSPR
Fan compatibility - 120x120x25

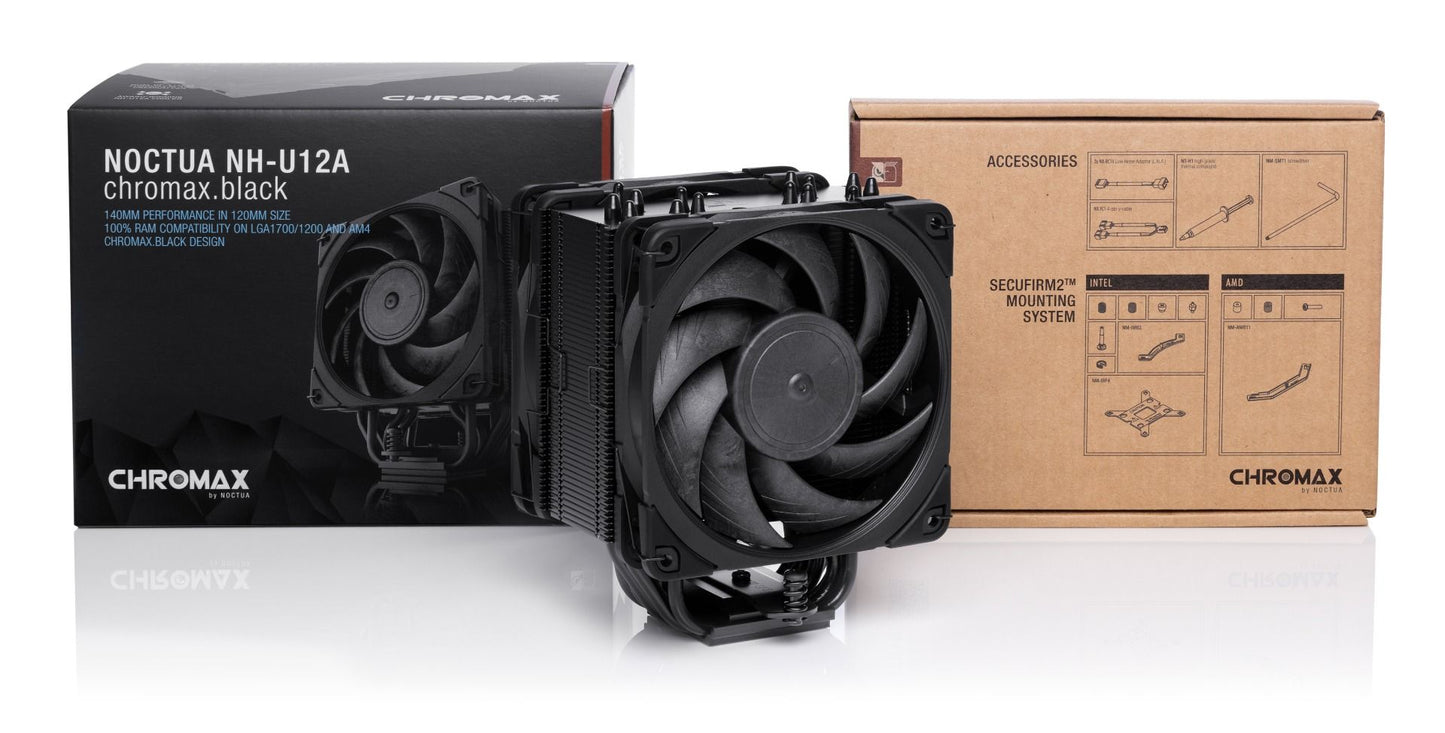

Scope of delivery
  • Black NH-U12A heatsink
  • 2x NF-A12x25 PWM chromax.black premium fan
  • 2x NA-RC14 Low-Noise Adaptor (L.N.A)
  • NA-YC1 4-pin PWM y-cable
  • NT-H1 high-grade thermal compound
  • Black SecuFirm2™ mounting kit
  • Noctua Metal Case-Badge
Warranty - 6 Years

FAN Specification
Bearing- SSO2
Max. rotational speed (+/- 10%) - 2000 RPM
Max. rotational speed with L.N.A. (+/- 10%)- 1700 RPM
Min. rotational speed @ 20% PWM (+/-20%)- 450 RPM
Max. acoustical noise- 22,6 dB(A)
Max. acoustical noise with L.N.A.- 18,8 dB(A)
Voltage range- 12 V
MTTF- > 150.000 h
View full details
