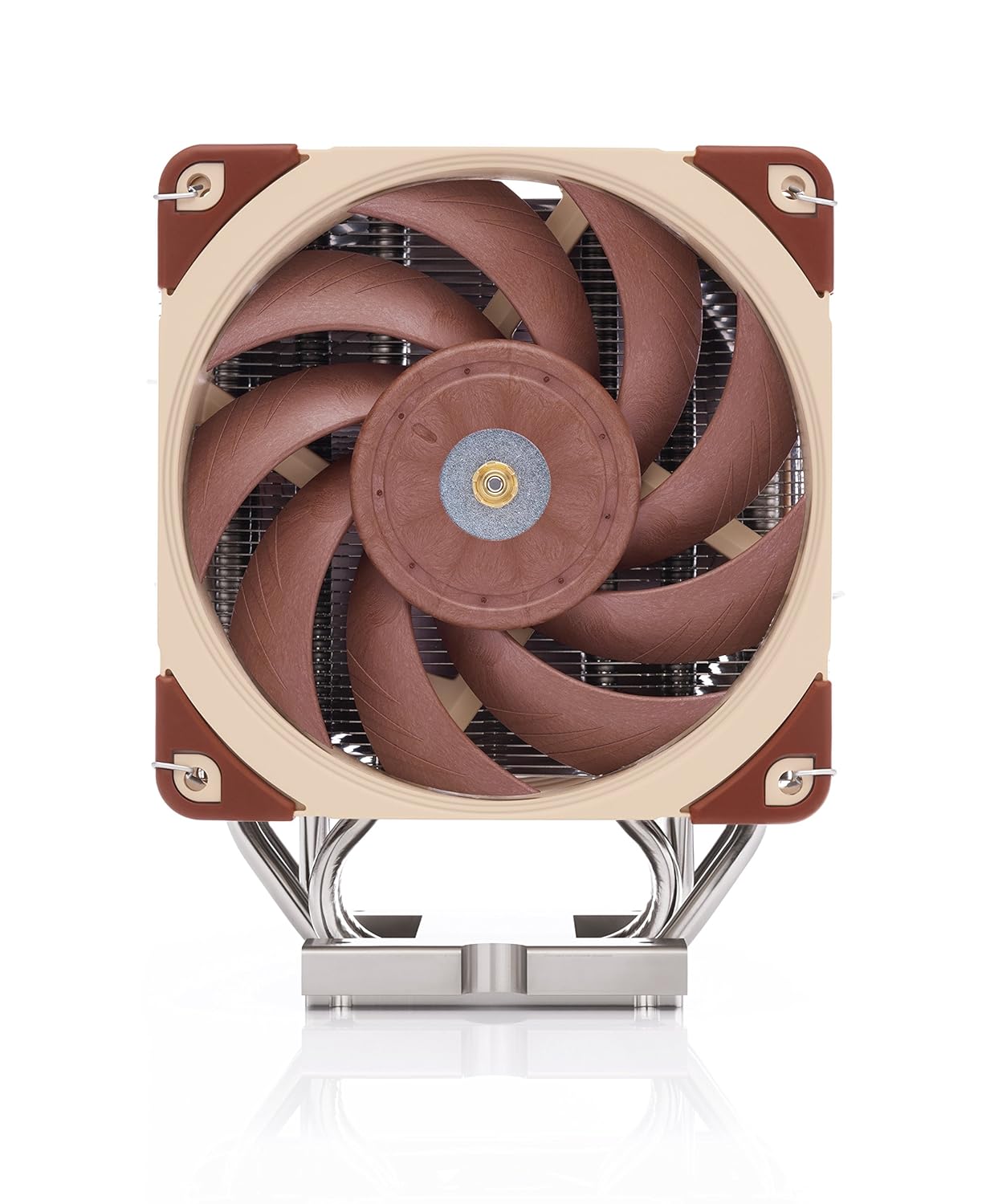

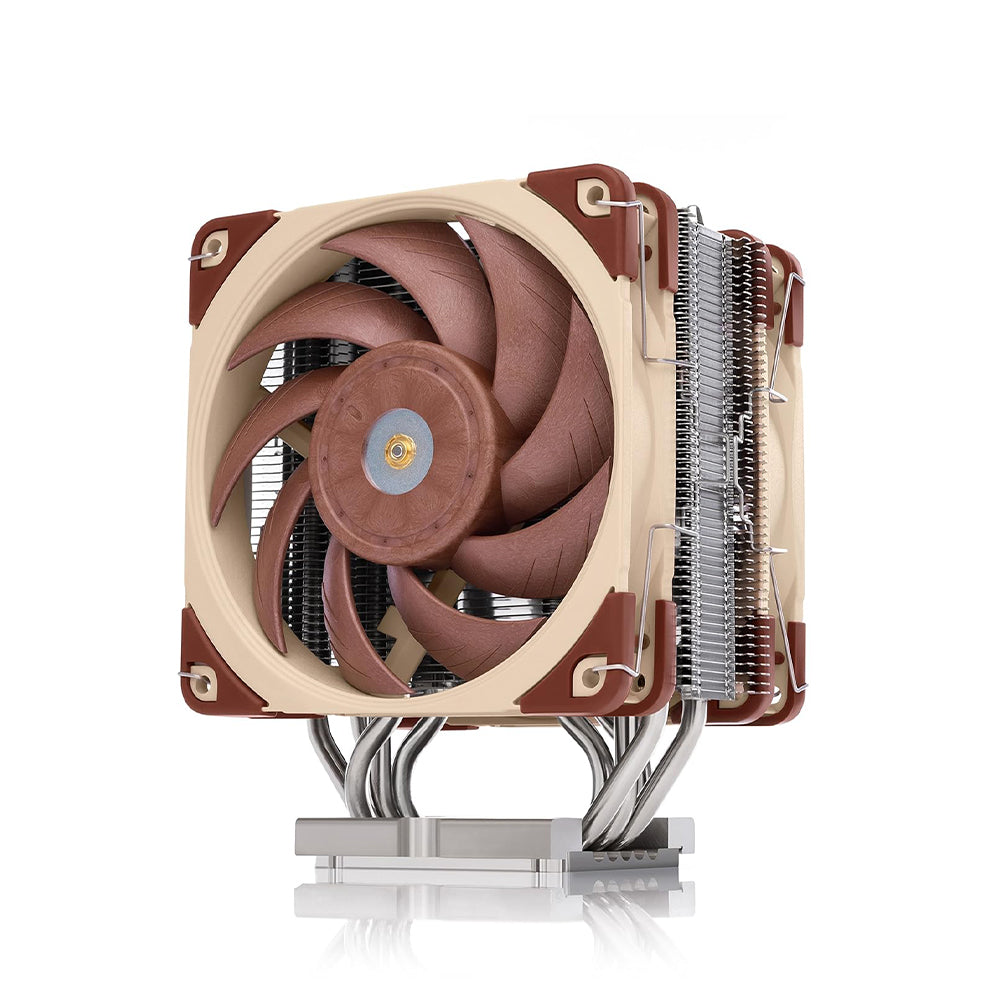

NH-U12S DX-3647 CPU Cooler

Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U12S DX-3647 features a larger, custom-designed contact surface and supports both square and narrow type LGA3647 platforms. Based on the proven, 120mm size NH-U12S heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A12x25 120mm fans, it provides an excellent balance of performance, compatibility and quietness of operation. Topped off with the professional SecuFirm2 mounting system and pre-applied NT-H1 thermal compound, the NH-U12S DX-3647 forms a complete premium quality package for quietly cooling LGA3647 based Xeon workstations and servers.

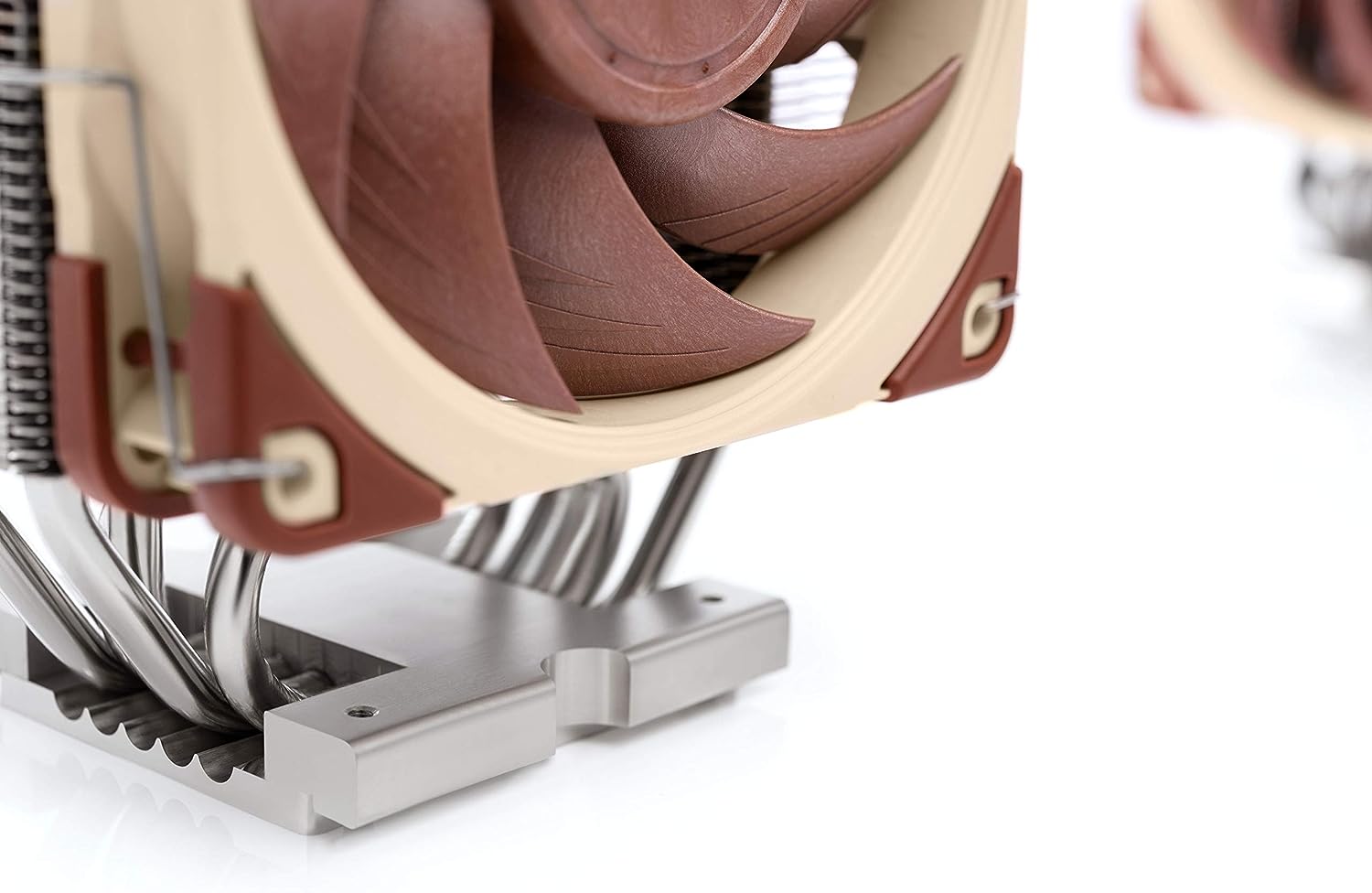

Enlarged contact surface
At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA3647-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

Dual NF-A12x25 PWM fans
The NH-U12S DX-3647 is equipped with two of Noctua’s award-winning, next-generation NF-A12x25 120mmm fans. This exquisite, state-of-the art push/pull dual fan configuration allows it to achieve a remarkable level of quiet cooling performance despite its relatively compact size.

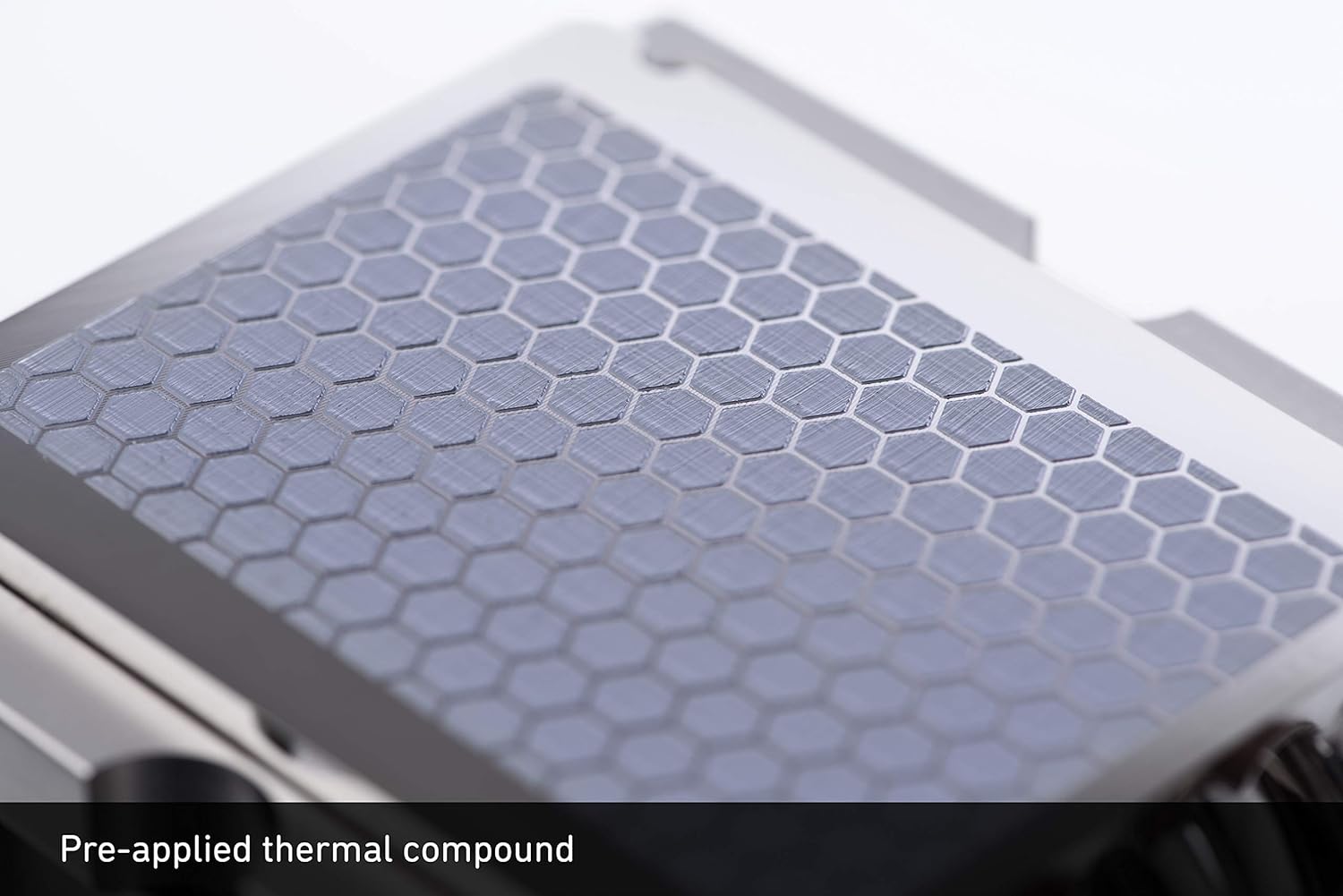

Pre-applied NT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!

Supports square and narrow type LGA3647 sockets
The heatsink’s SecuFirm2 mounting system includes two sets of brackets in order to support both square and narrow type LGA3647 sockets. Thanks to pre-installed mounting screws and the included processor clips (square type and narrow type without Omni-Path fabric connector, with fabric connector on request), the installation procedure is easy, quick and secure.

Cooler Specification

Socket compatibility

Please note that the NH-U12S DX-3647 is a dedicated version for the Intel LGA3647. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.

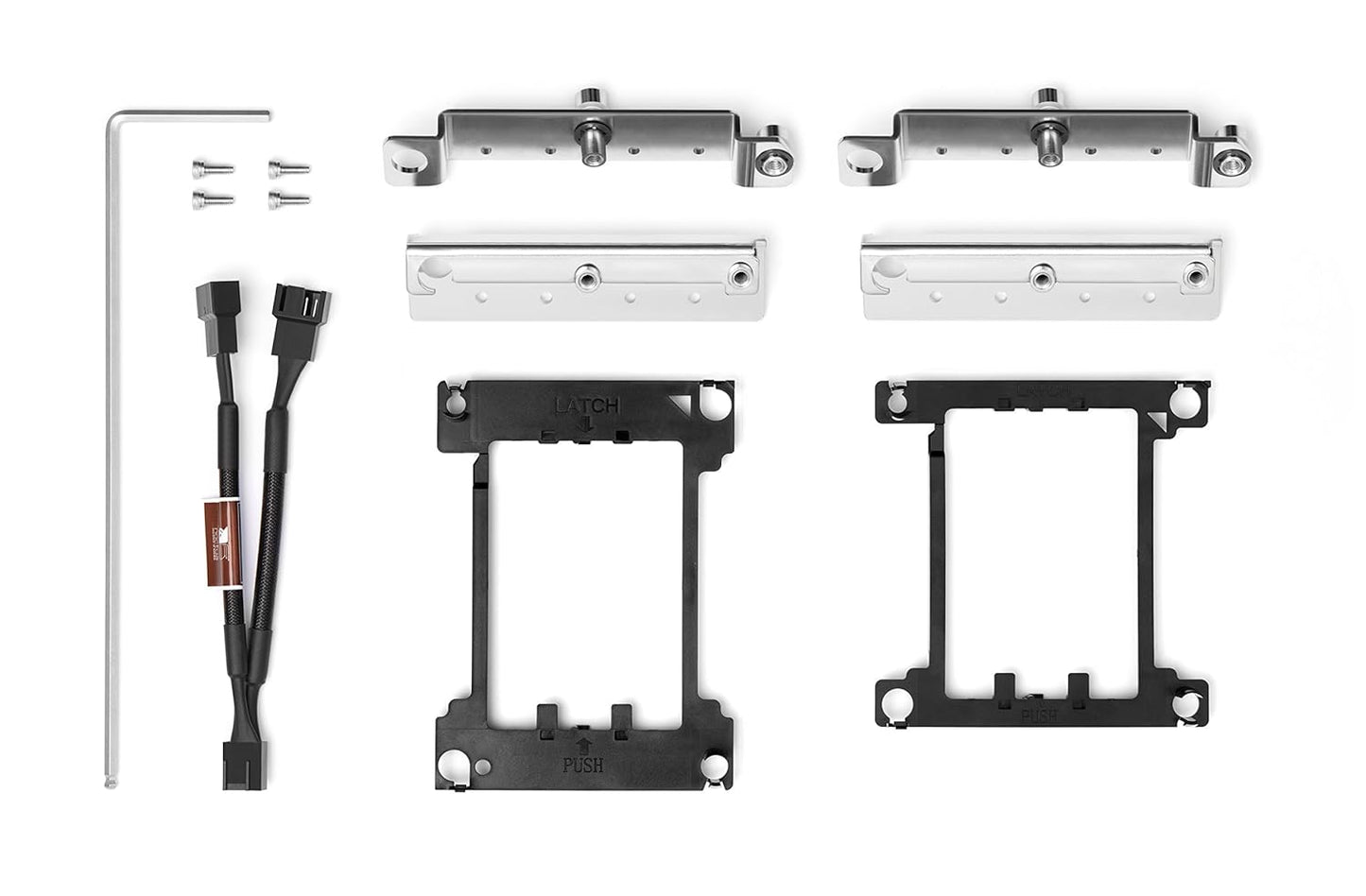

Scope of delivery

• 2x NF-A12x25 PWM premium fan
• NA-YC1 4-pin PWM y-cable
• NT-H1 high-grade thermal compound (pre-applied)
• SecuFirm2 mounting kit for LGA3647
• Noctua metal case-badge

Measurements

Materials

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
