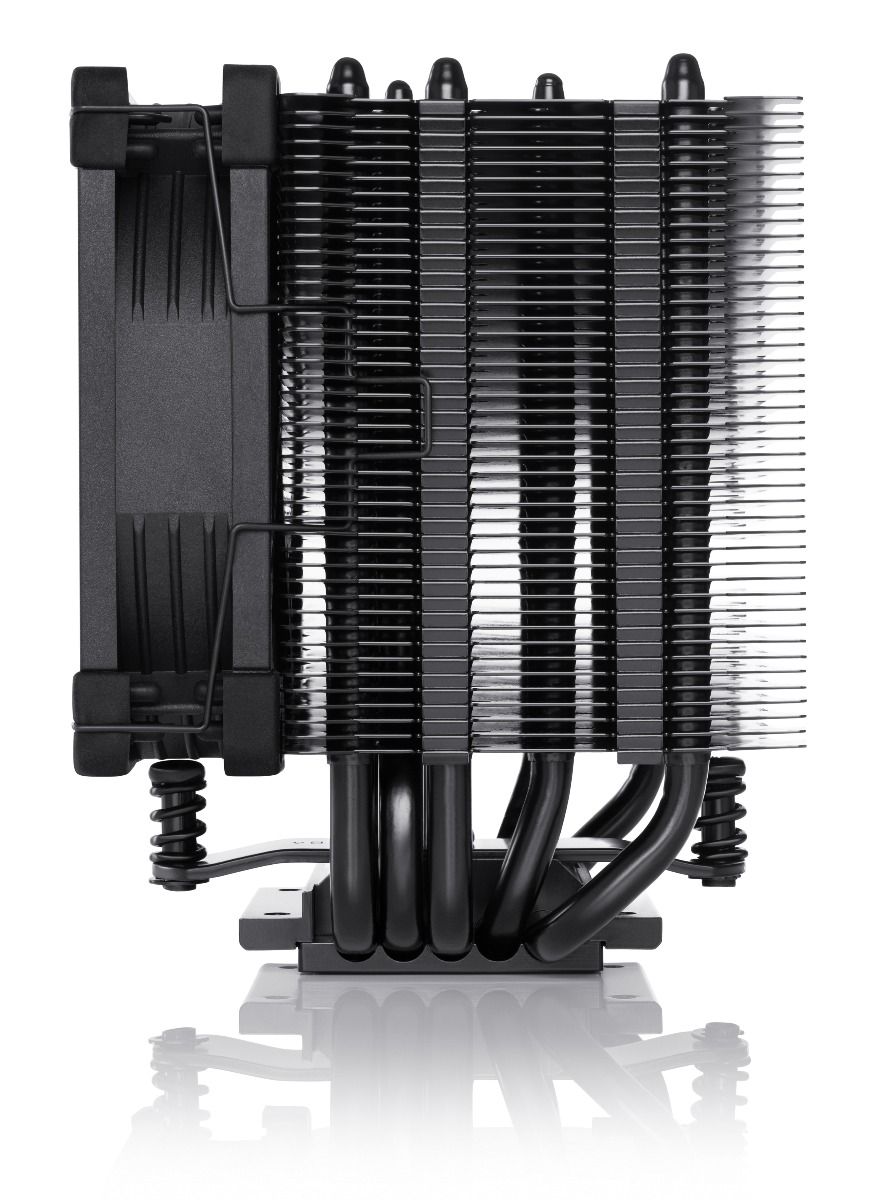

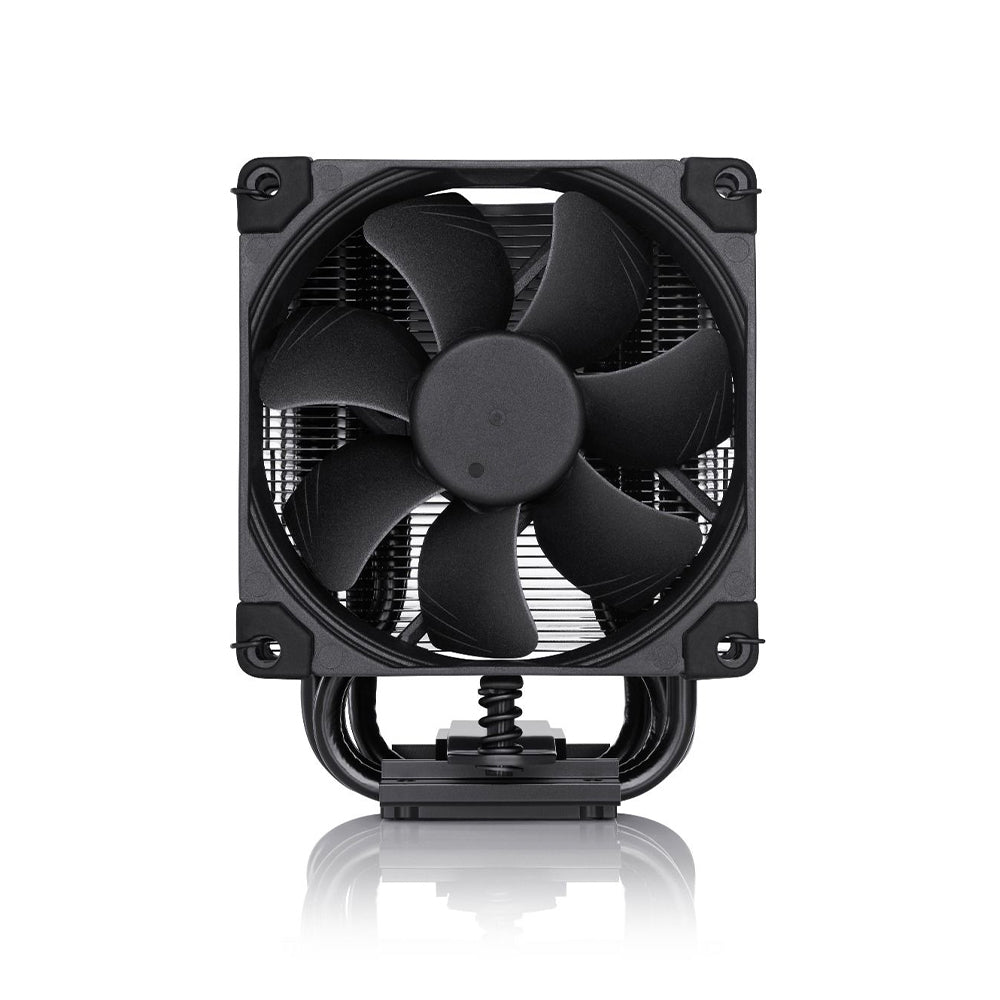

NH-U9S Chromax Black CPU Cooler

The NH-U9S chromax.black is an all-black version of Noctua’s award-winning NH-U9S premium-quality quiet CPU cooler. Thanks to the same proven compact 92mm tower heatsink design and NF-A9 PWM fan, it stays true to the NH-U9S’s successful formula of fusing strong cooling performance with excellent quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U9S chromax.black is a premium choice for customers who seek a compact, highly compatible 92mm heatsink that looks just as great as it cools.

Award-winning NH-U9S cooler

Tens of thousands of enthusiast users all over the world swear by the NH-U9S’s quality and performance. Recommended by more than 100 international hardware websites and magazines, it is renowned as being one of the best 92mm coolers on the market.

chromax.black design

The NH-U9S chromax.black is black from head to toe: Featuring a black coated heatsink, a black fan with black anti-vibration pads, black fan clips and black mounting parts, it is right at home in all-black builds and easy to integrate with other colour schemes.

Colour-customisable

Using the optional NA-SAVP5 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-U9S chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.

100% RAM compatibility

With its 95x95mm footprint, the NH-U9S does not overhang the RAM slots on current Intel and most AMD mainboards. This gives the user full access to the memory modules and guarantees 100% compatibility with tall RGB modules, large heatspreaders or optional memory fans.

100% compatibility with PCIe cards on mini-ITX

Many mini-ITX motherboards have the PCIe slot sitting close to the socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-U9S provides full compatibility with PCIe cards, be it on ATX, microATX or ITX.

NF-A9 premium fan

The highly optimised features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, which allows it to further improve the renowned efficiency of Noctua's previous 92mm models and contributes to the NH-U9S' superior cooling performance.

Dual fan ready

The NH-U9S chromax.black includes an extra set of fan mounting clips for users who want to achieve even better cooling performance by adding a second, optional NF-A9 PWM chromax.black.swap fan in order to create a push/pull setup.

SecuFirm2™ multi-socket mounting system

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA1700 (since 2021), LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4 and AM5, the SecuFirm2™ mounting included with the NH-U9S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.

Compatibility with past and future sockets

Thanks to Noctua’s SecuFirm™ ecosystem, the NH-U9S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-U9S a safe long-term investment.

NT-H1 thermal compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.

Soldered interface between heatpipes and fins

With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-U9S’s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U9S heatsink is built to last and, like all Noctua fans, the supplied NF-A9 units feature an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty.

Cooler Specification

Socket compatibility

Intel LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5

Height (without fan)

125 mm

Width (without fan)

95 mm

Depth (without fan)

68 mm

Height (with fan)

125 mm

Width (with fan)

95 mm

Depth (with fan)

95 mm

Weight (with fan)

618 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

93

Max. TDP

see NSPR

Fan compatibility

92x92x25

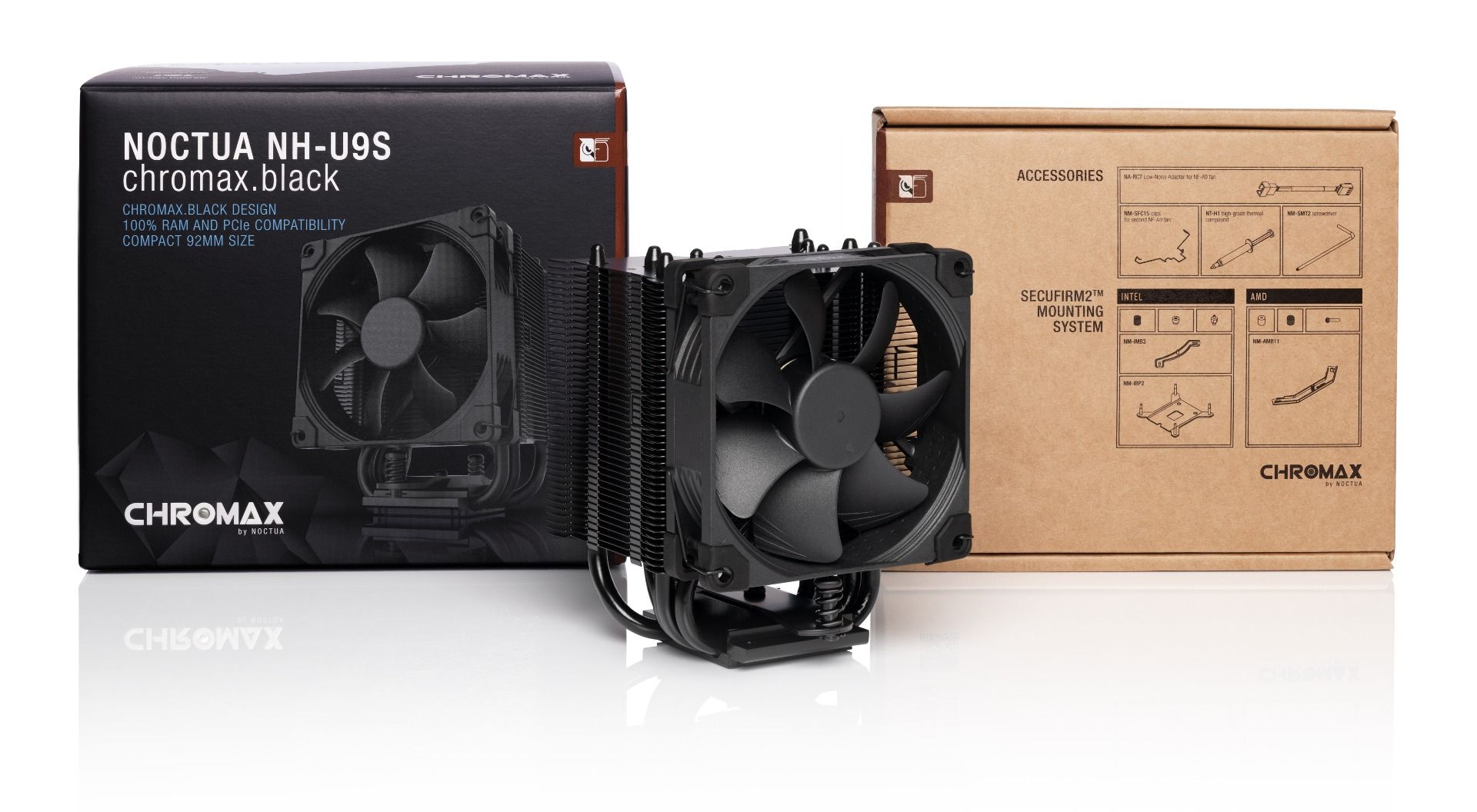

Scope of delivery

• Black NH-U9S heatsink
• NF-A9 PWM chromax.black premium fan
• NA-RC7 Low-Noise Adaptor (L.N.A)
• NT-H1 high-grade thermal compound
• Black SecuFirm2™ mounting kit
• Black fan-clips for second NF-A9
• Noctua Metal Case-Badge

Warranty

6 Years

FAN Specification

Model

Noctua NF-A9 PWM chromax.black

Bearing

SSO2

Max. rotational speed (+/- 10%)

2000 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1550 RPM

Min. rotational speed @ 20% PWM (+/-20%)

400 RPM

Max. airflow

78,9 m³/h

Max. airflow with L.N.A.

62,6 m³/h

Max. acoustical noise

22,8 dB(A)

Max. acoustical noise with L.N.A.

16,3 dB(A)

Input power (max.)

1,2 W

Voltage range

12 V

MTTF

> 150.000 h
