Description
NM-AM5/4-MP83 CH.BK

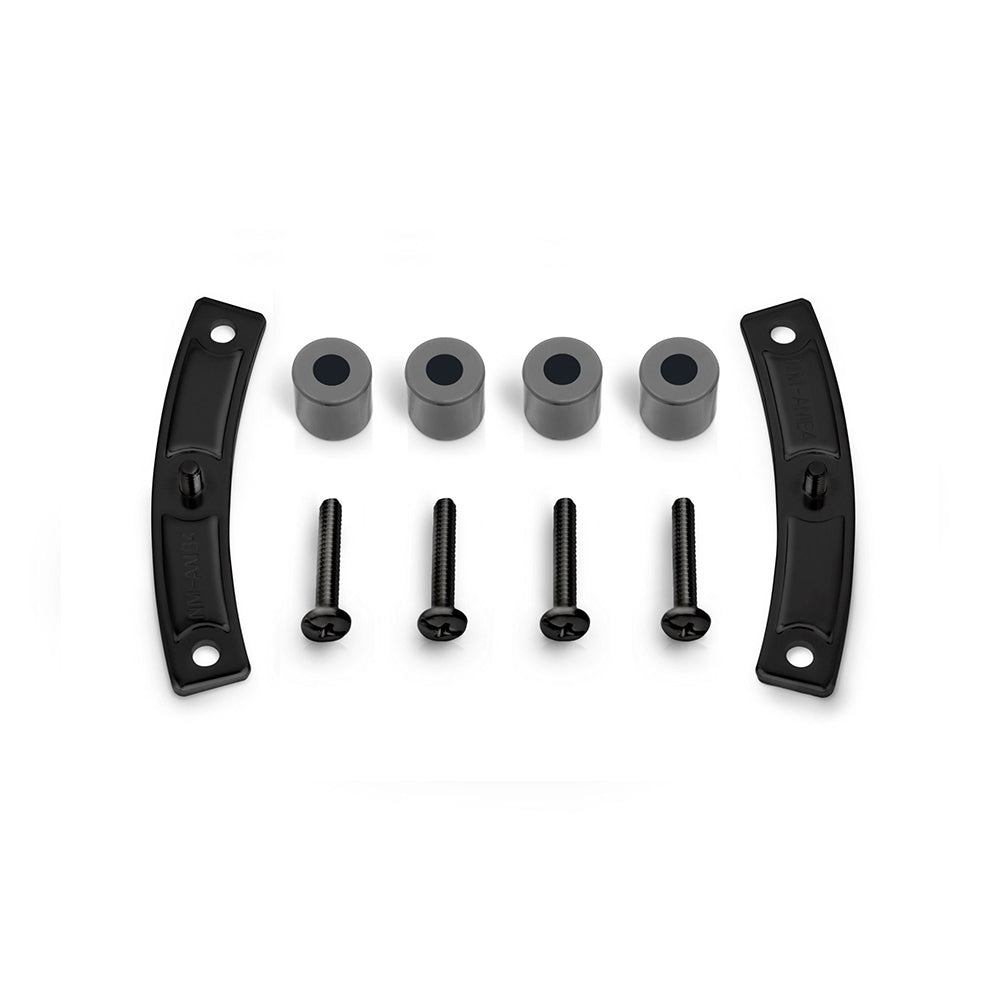

The NM-AM5/4-MP83 is a SecuFirm2™ mounting upgrade kit that allows Noctua CPU coolers with 83mm mounting pitch (see detailed compatibility information) to be upgraded to AMD’s AM5 and AM4 platforms. True to the SecuFirm2™ tradition, it combines outstanding reliability, optimal contact pressure and easy, straightforward installation in order to enable Noctua users to continue using their heatsinks on AMD’s latest Ryzen processors. The chromax.black version with its all-black parts is a perfect match for Noctua’s chromax.black line heatsinks.
For Noctua coolers with 83mm mounting pitch
The NM-AM5/4-MP83 kit is compatible with a wide range of Noctua CPU coolers that use 83mm mounting pitch, whereas heatsinks with 78mm mounting pitch must use the MP78 version. Please refer to our detailed compatibility information to check which kit is right for your cooler.
chromax.black version
With all-black mounting bars and thumb screws, the chromax.black versions of the NM-AM5/4 kits are ideal for upgrading chromax.black line coolers. Featuring the same premium grade coating as the original mounting parts, they allow maintaining the same consistent black stealth design.
Trusted SecuFirm2™ quality
Over the years, SecuFirm2™ has become synonymous with impeccable long-term stability and flawless craftsmanship. Enthusiast users and industry clients alike trust the time-tested quality of Noctua's professional mounting systems.
Perfect contact pressure
SecuFirm2™ mounting systems use high-grade coil springs to achieve perfect contact pressure. No guesswork regarding how far to tighten the mounting screws, no risk of damaging the socket with excessive pressure!
Standard AMD backplate
Minimising unnecessary waste and facilitating the installation procedure, the NM-AM5/4 kits install to the stock AMD backplate that is pre-installed on the motherboard.
Tailor-made for AM5/AM4
Aiming to cut costs, many manufacturers use cross-platform parts for both AMD and Intel, which can cause compatibility issues. Noctua’s SecuFirm2™ mounting system for AM5 and AM4 has been tailor-made for these sockets in order to ensure optimal compatibility and ease of installation.
Backwards compatibility
Noctua CPU coolers are renowned for being safe, long-term investments that can be used for several CPU generations. Accordingly, even coolers that are 15 years or older can be upgraded to the latest AMD Ryzen platform using this mounting kit.
Sustainability
Using a CPU cooler across several platform generations instead of buying a new heatsink for each generation is not only economical, it also helps to reduce unnecessary waste and save precious resources. By upgrading rather than replacing your cooler, you’re actively contributing to a more sustainable PC industry.
Product Details
Notes and warnings
Caution: Please note that the NM-AM5/4-MP83 is only compatible with heatsinks that have 83mm mounting pitch (see detailed compatibility information) and that the NM-AM5/4-MP78 kit must be used for heatsinks with 78mm mounting pitch.
In line with Noctua’s policy of supplying customers with its premium-class SecuFirm2™ mountings free of charge, owners of eligible Noctua heatsink models can order the NM-AM5/4-MP83 kit for free via this form. A proof of purchase (electronic version, photo or scan of the invoice) of both an eligible Noctua CPU cooler and either a AM5 motherboard or AM5 CPU are required. Depending on the country, express shipping options may be available but are subject to service charges.
The NM-AM5/4-MP83 chromax.black SecuFirm2™ mounting-kit is also available for purchase at some of our resellers at a suggested service charge of EUR 9.90/USD 8.90. If you need the kit urgently, please consider ordering it via a local reseller or using the paid express shipping options.
In line with Noctua’s policy of supplying customers with its premium-class SecuFirm2™ mountings free of charge, owners of eligible Noctua heatsink models can order the NM-AM5/4-MP83 kit for free via this form. A proof of purchase (electronic version, photo or scan of the invoice) of both an eligible Noctua CPU cooler and either a AM5 motherboard or AM5 CPU are required. Depending on the country, express shipping options may be available but are subject to service charges.
The NM-AM5/4-MP83 chromax.black SecuFirm2™ mounting-kit is also available for purchase at some of our resellers at a suggested service charge of EUR 9.90/USD 8.90. If you need the kit urgently, please consider ordering it via a local reseller or using the paid express shipping options.
Kit Specification
AMD AM5, AM4
Cooler compatibility
Noctua NH-D15, NH-D15 chromax.black, NH-D15 SE-AM4, NH-D15S, NH-D15S chromax.black, NH-D14, NH-D14 SE2011, NH-D9L, NH-C14, NH-C14S, NH-C12P, NH-C12P SE14, NH-L12, NH-U12, NH-U12F, NH-U12P, NH-U12P SE1366, NH-U12P SE2, NH-U9, NH-U9F, NH-U9B, NH-U9B SE2, NH-L9x65, NH-L9x65 SE-AM4, NH-P1
