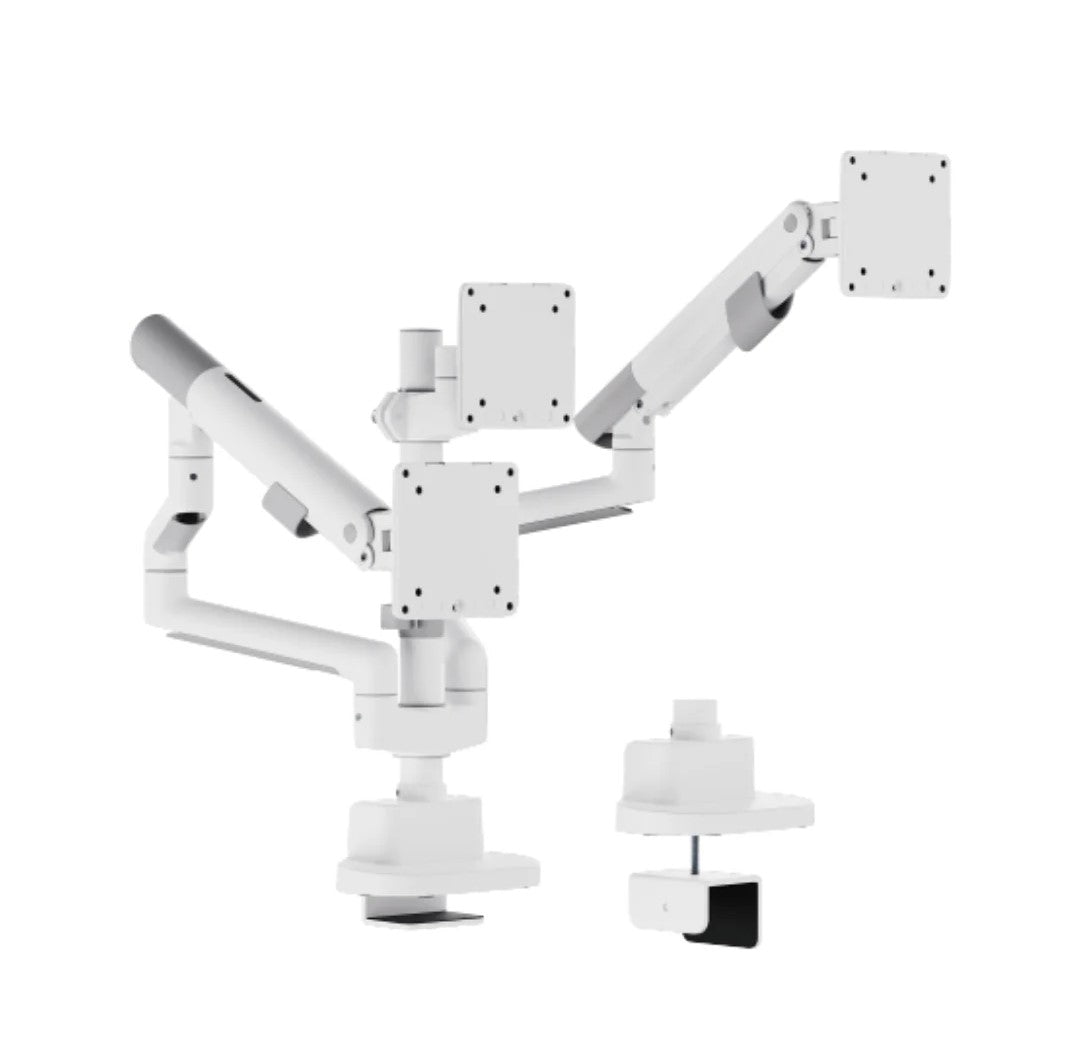

Nova Slim Pole-Mounted Mechanical Spring Triple Monitor Arm

DESCRIPTION
The LDT105-C036P features a slim, modern profile that seamlessly complements
contemporary workspaces. Its precision-engineered mechanical spring system enables
smooth and reliable adjustments for both height and angle, ensuring ergonomic comfort
throughout the day. An integrated tension indicator allows for accurate spring tension

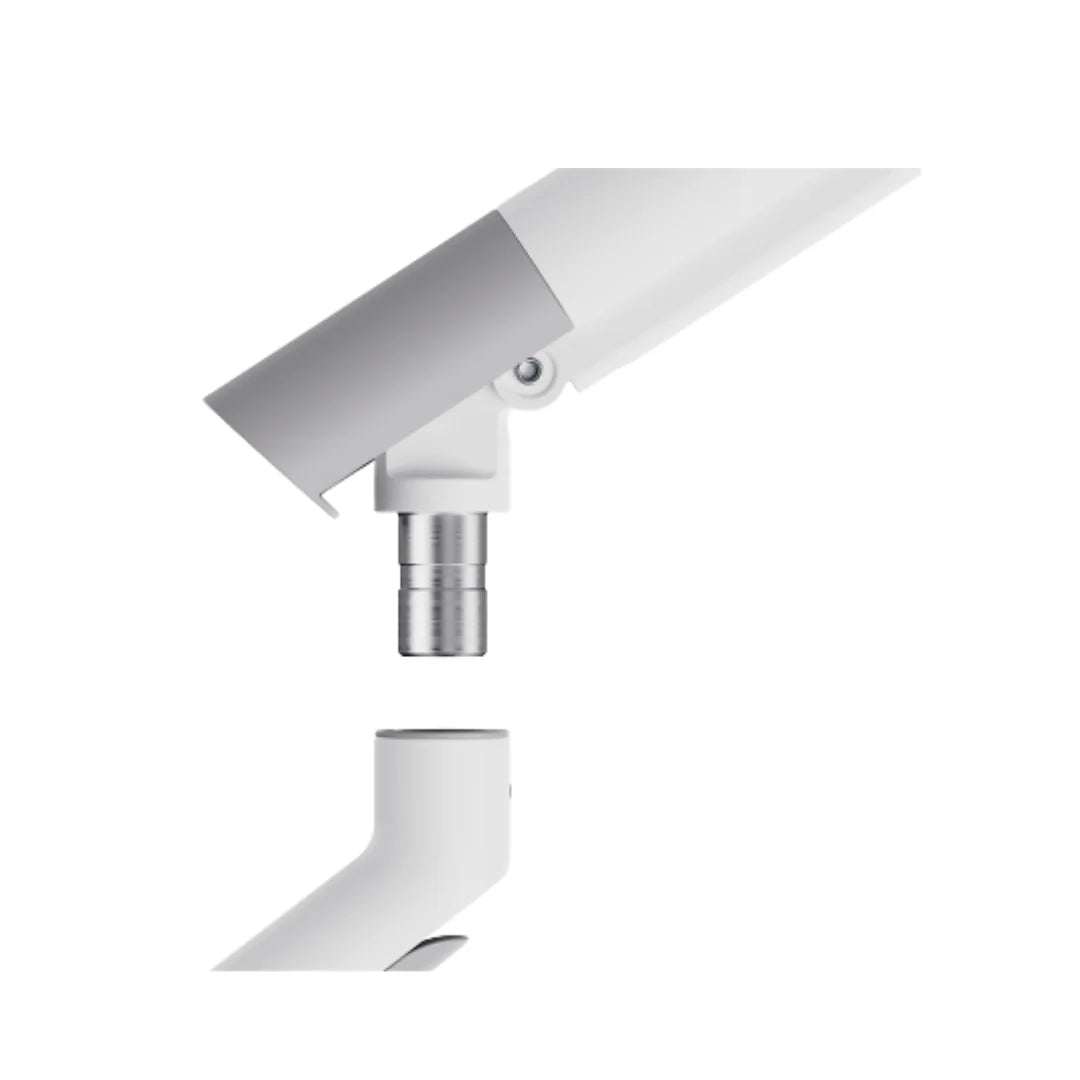

calibration—ideal for multi-monitor setups. Designed with efficiency in mind, the quick-
release VESA plate and joint make installation fast and hassle-free, while the topside

mounting design eliminates the need to crawl under the desk.
FEATURES

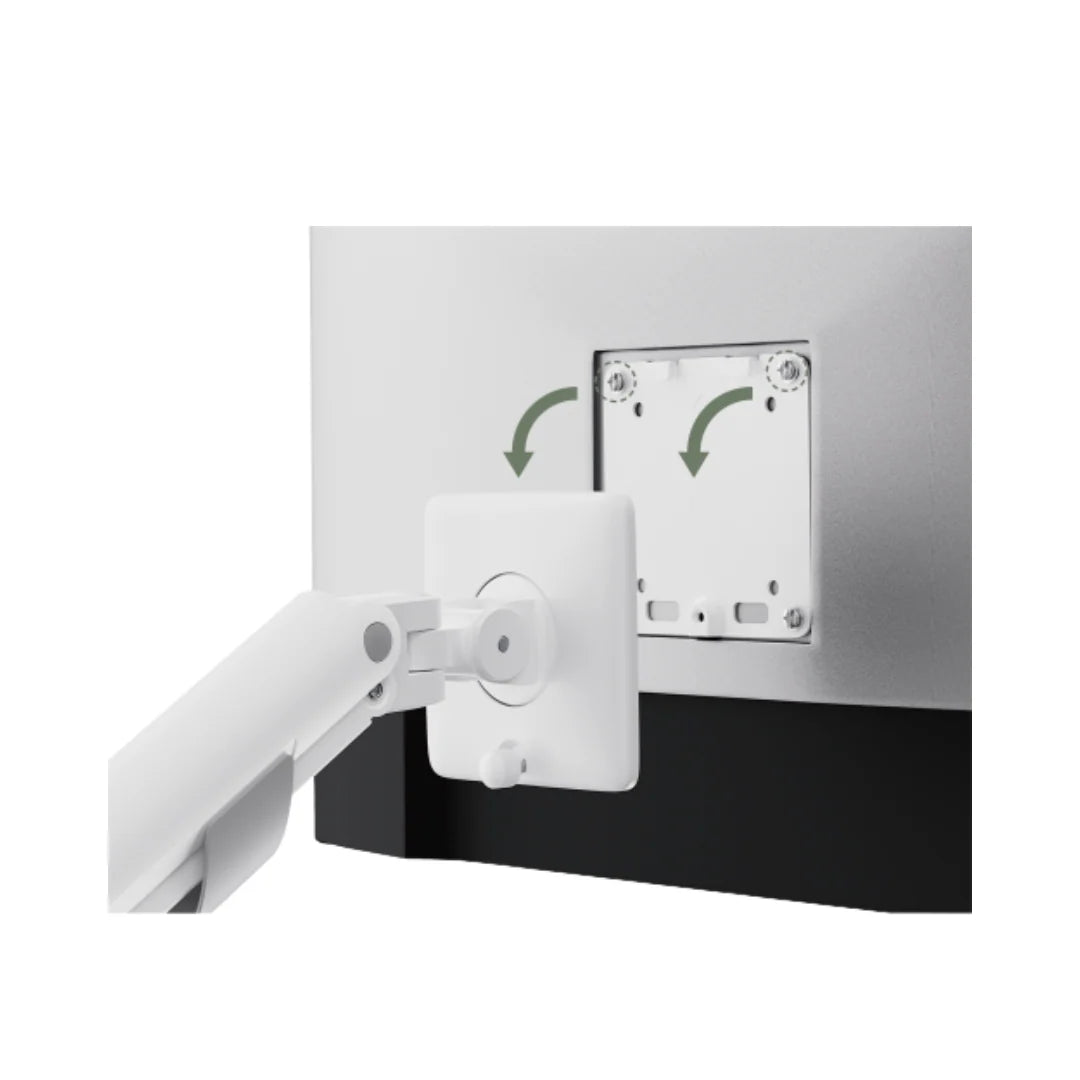

• Quick-Release VESA Plate: for easy installation and removal
• Built-in Spring Tension Mechanism: for perfect weight adjustments
• Tension Indicator: designed for spring tension alignment when installing multiple
monitors
• Installs from Top Side: installs entirely from above the desk surface
• Wide Range of Movements: allows screen tilting, swiveling, rotation and height
adjustments for optimum viewing

SPECIFICATIONS
Material: Aluminum,Steel,Plastic
Surface Finish: Powder Coating
Color: Fine Texture White
Dimensions: 1462x165x812mm (57.6"x6.5"x32")
Fit Screen Size: 17"-27"
Fit Curved Monitor: Yes
Screen Quantity: 3
Weight Capacity (per screen): 2~9kg (4.4~19.8lbs)
VESA Compatible: 75x75,100x100
Tilt Range: +75°~-75°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Arm Full Extension: 712mm (28")
Pole Height: 450mm (17.7")
Installation: Clamp,Grommet

Suggested Desktop Thickness:

Clamp:10~50mm Grommet:10~55mm
(Clamp:0.39"~2" Grommet:0.39"~2.2")

Quick Release VESA Plate: Yes
Cable Management: Yes
