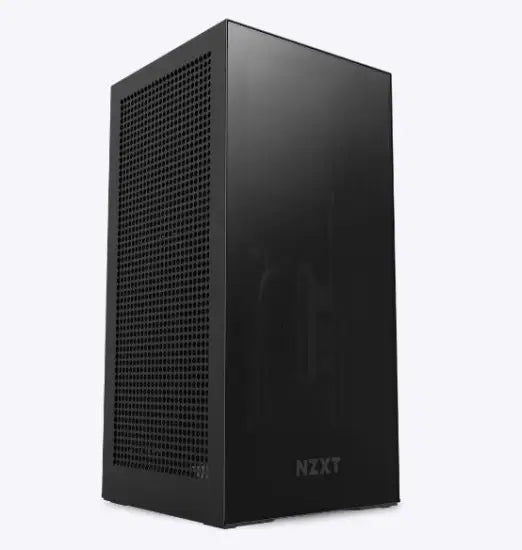

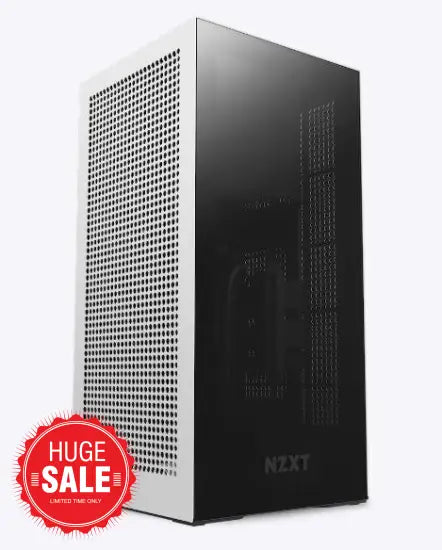

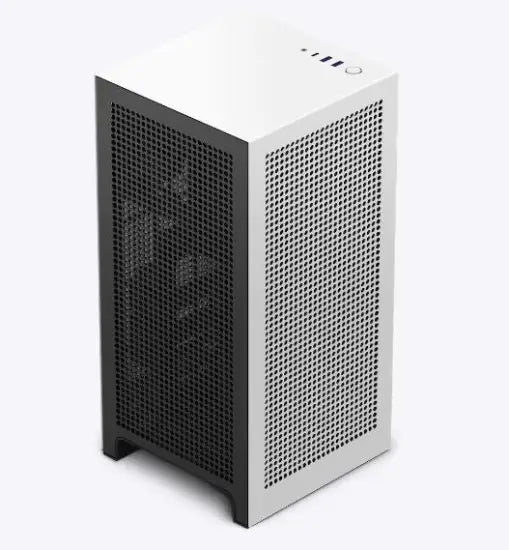

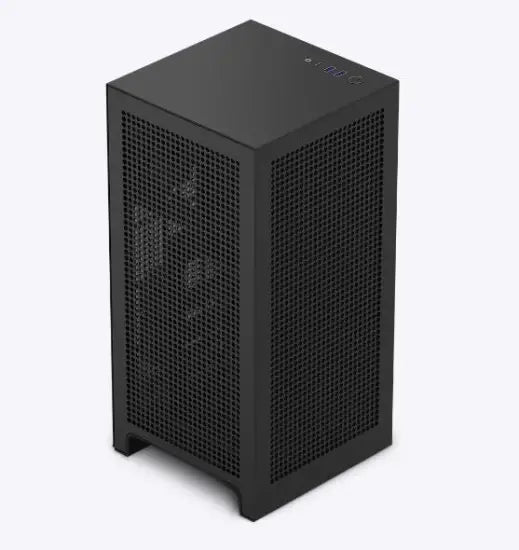

NZXT H1 15.6-liter Mini-ITX
NZXT H1 15.6-liter Mini-ITX
Brand : NZXT
Regular price
Couldn't load pickup availability
DETAILS
The H1 allows you to get the most out of a small package. Pre-routed cables, a 750W PSU, support for the latest GPUs, and PCIe Gen 4 make the build powerful and simple.

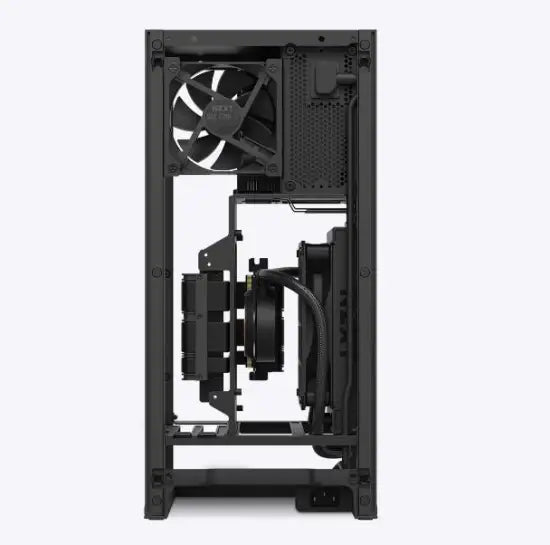

- 140mm AIO liquid cooling
- NZXT CAM enabled fan controller
- SFX 750W Gold PSU included
- Chassis size accommodates latest NVIDIA 30 series & AMD 6000 series graphics cards
- Pre-routed cables and downward-facing motherboard I/O for a clean, simplified appearance.
- PCIe 4.0 Extender supporting maximum 25Gbps high-speed transmission

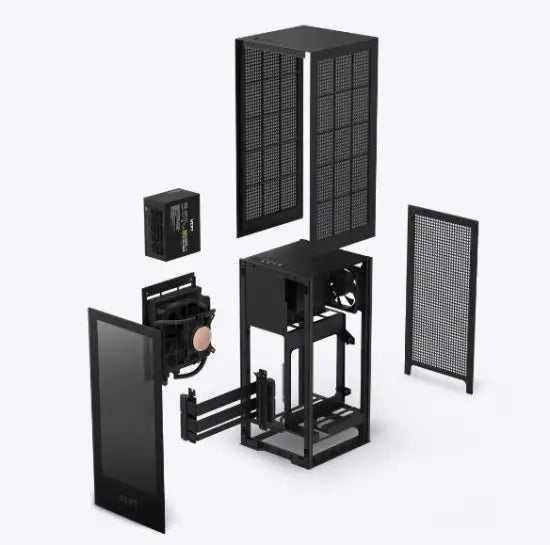

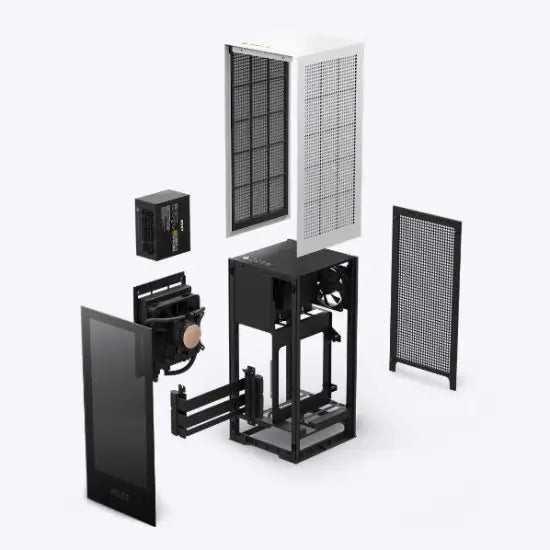

INSIDE THE BOX
-
H1 Case 1
-
140mm AIO Liquid Cooler 1
-
SFX 750W 80 Plus Gold Power Supply 1
-
Aer P140mm Fan 1
-
92mm PWM Fan 1
-
PCIe x16 Gen4 Compatible High-Speed Riser Card 1
-
Installation Accessories 1
-
Manual1
KEY SPECS
-
Motherboard Support:Mini-ITX
-

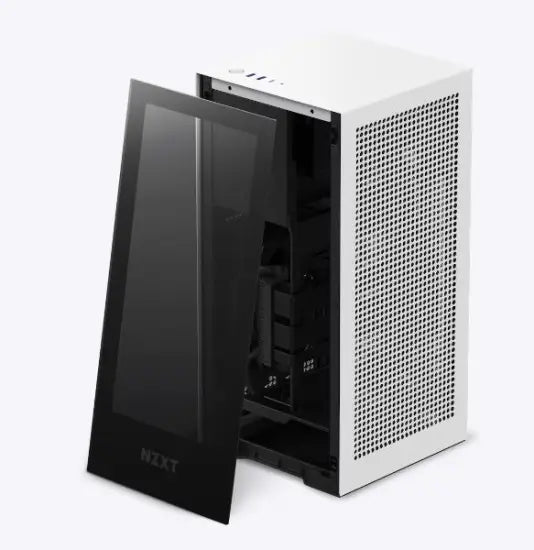

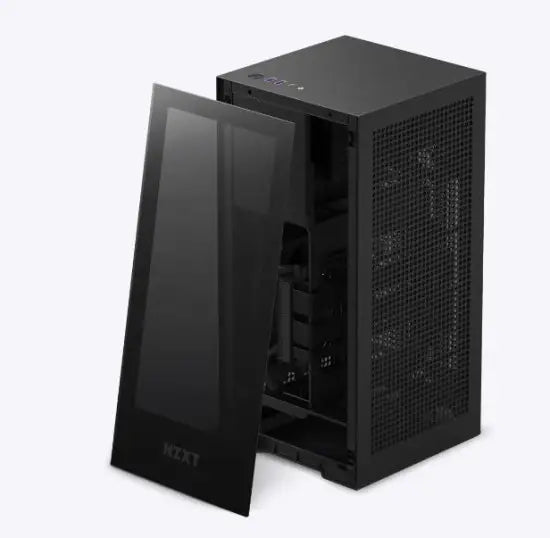

Case Material:SGCC Steel, Tempered Glass
DIMENSIONS
-
Height:405 mm / 15.9 inches
-
Width:196 mm / 7.7 inches
-
Depth:196 mm / 7.7 inches
-
Weight:7.6 kg / 16.7 lb
COMPATIBILITY & CLEARANCE
-
Max GPU Clearance:324mm
-
Max GPU Thickness:58mm
-
Memory Height:46mm

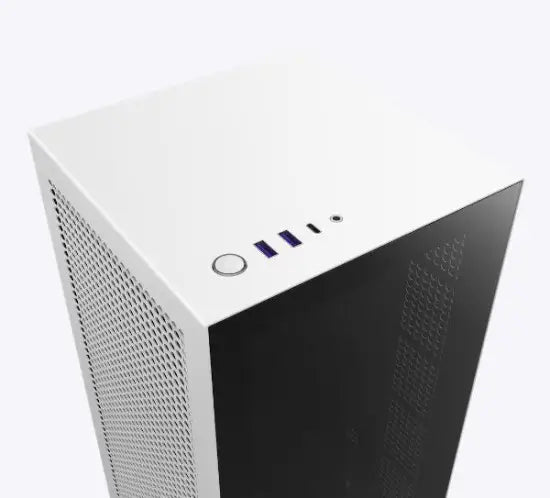

FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:2
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
EXPANSION SLOTS
-
Standard:2
DRIVE BAYS
-
2.5":2
-
3.5":-
COMPATIBLE SOCKET & CPU
-
Intel:Socket LGA 1700, 1200/115X
-
AMD:AMD Socket AM5, AM4
RADIATOR
-
Dimensions:139 x 174 x 28 mm
-
Material:Aluminum
PUMP
-
Dimensions (D x H):65 x 26 mm
-
Motor Speed:4200 ± 10%RPM
-
Power:12V DC, 0.35A
FAN CONTROLLER
-
Channel:2
-
Controller Method:PWM
-
Input:12V DC
-
Output:12V DC
FAN SPECS
-
Model:Aer P140mm PWM fan
-
Quantity:1
-
Speed:500 - 1,800 ± 300RPM
-
Airflow:27.27 - 98.17 CFM
-
Static Pressure:0.21 - 2.71 mm-H₂O
-
Noise:21 - 38 dBA
-
Fan Connector:4-pin
FAN SPECS
-
Model:RF-92RC1-B1
-
Quantity:1
-
Speed:600 - 1800 ± 200 RPM
-
Airflow:28.64 CFM
-
Static Pressure:1.1 mm-H₂O
-
Noise:23 dBA
-
Fan Connector:4-pin
POWER SUPPLY SPECS
-
Model:PS-7G1B
-
Form Factor:SFX
-
Modular:Full
-
Wattage:750W
-
Compliance Standard:Complies with SFX12V v3.42 ATX12V v2.52 & EPS12V v2.92
-
Energy Efficiency:80 Plus Gold
-
Fan:92mm FDB Silent Fan
-
MTBF:100,000 hours at 25°C. excluding the DC Fan.
-
Protection:OPP, OVP, UVP, OCP, OTP, SCP
PCIE EXTENDER CABLE
-
Form Factor:X16
-
Compatibility:PCIe 4.0 Compatible
-
Cable Length:330 ± 5 mm
GENERAL
-
Warranty:3 years on case, riser card, and AIO 10 years on PSU
-
Model Number:CS-H11BW (White) / CS-H11BB (Black)
