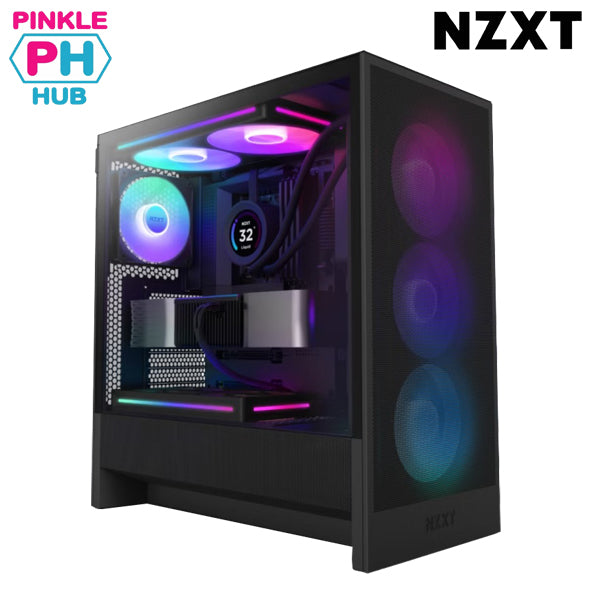

NZXT H5 Flow RGB Black Compact ATX Mid-Tower Airflow Case with RGB Fans (2024 Edition)

NZXT H5 Flow RGB Black Compact ATX Mid-Tower Airflow Case with RGB Fans (2024 Edition)

Brand : NZXT

SKU:  CC-H52FB-R1

₱7,104.00
₱8,288.00 ₱7,104.00
Sale! Sold out
Taxes included.

Low stock: 4 left

Overview

Details

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

  • The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
  • Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
  • Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
  • Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
  • Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Inside the Box

  • H5 Flow RGB1

  • F360 RGB Core (CV)1

  • F120Q (CV)1

  • Installation accessories1

  • User guide1

Tech Specs

Key Specs

  • Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

  • Enclosure Type:Mid-Tower

  • Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

  • Height (with feet):465 mm / 18.31 in

  • Width:225 mm / 8.86 in

  • Depth:430 mm / 16.93 in

  • Weight:7.63 kg / 16.82 lb

Compatibility & Clearance

  • CPU Cooler Height:Up to 170 mm

  • GPU Length:Up to 410 mm

  • PSU Length:Up to 200 mm

  • Cable Management:Up to 28.7 mm

  • Top Radiator:Up to 240 mm (280 mm with low-profile memory)

  • Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm

Front Ports

  • USB 3.2 Type-A:1

  • USB 3.2 Gen 2x2 Type-C (20 Gbps):1

  • Headset Audio Jack:1

Expansion Slots

  • Standard:7

  • Vertical:0

Drive Bays

  • 2.5":2

  • 3.5":1

Fan Support

  • Front:3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)

  • Top:2 x 120 mm / 2 x 140 mm

  • Bottom:2 x 120 mm

  • Rear:1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

  • Front:Up to 360 mm

  • Top:Up to 240 mm (280mm with low-profile memory only)

Fan Specs

  • Model:F360 RGB Core (Case Version)

  • Speed:1,700 ± 200 RPM

  • Airflow:50.1 CFM

  • Static:1.27 mm-H₂O

  • Noise:23.3 dBA

  • Fan Connector:3-pin

Fan Specs

  • Model:F120Q (Case Version)

  • Speed:1,350 ± 150 RPM

  • Airflow:60.2 CFM

  • Static:1.05 mm-H₂O

  • Noise:24.1 dBA

  • Fan Connector:3-pin

General

  • Warranty:2 years

  • Model Number:CC-H52FW-R1 (White) / CC-H52FB-R1 (Black)

  • UPC:810074845922 (White) / 810074845939 (Black)

  • EAN:5056547205861 (White) / 5056547205878 (Black)

View full details
