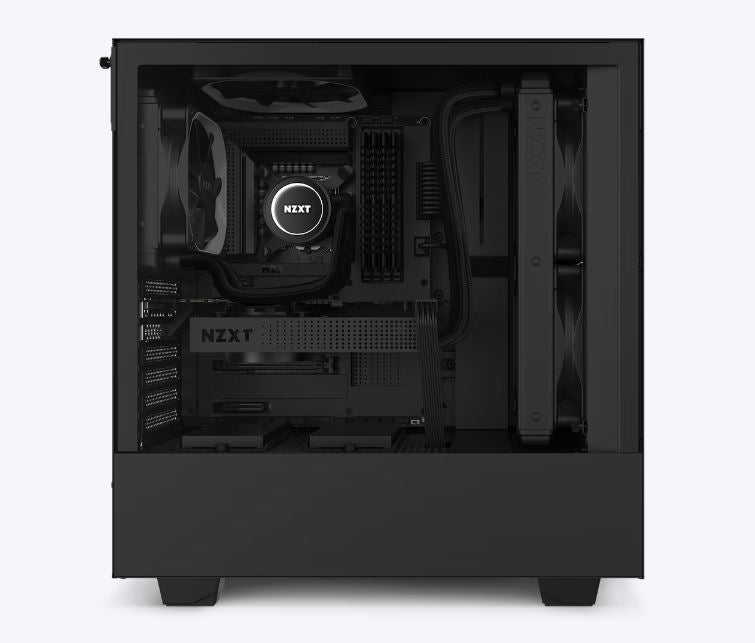

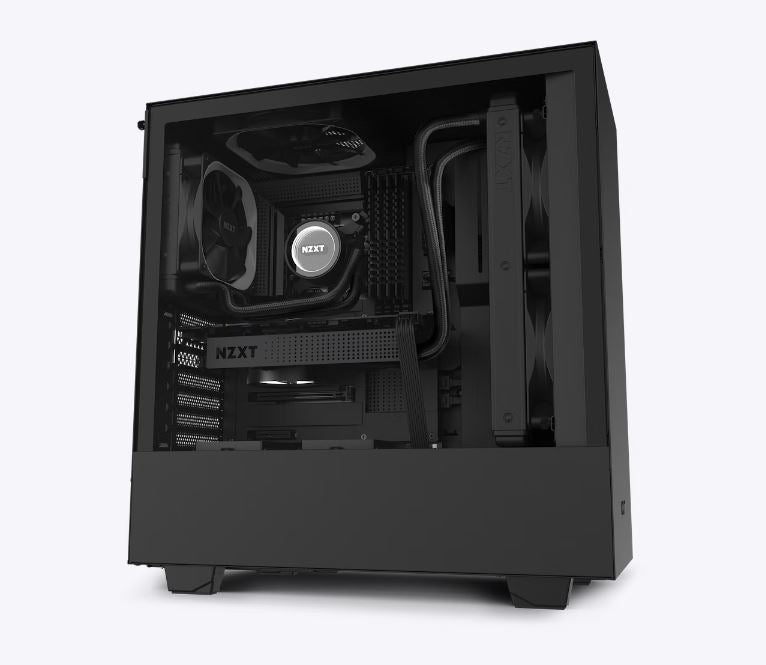

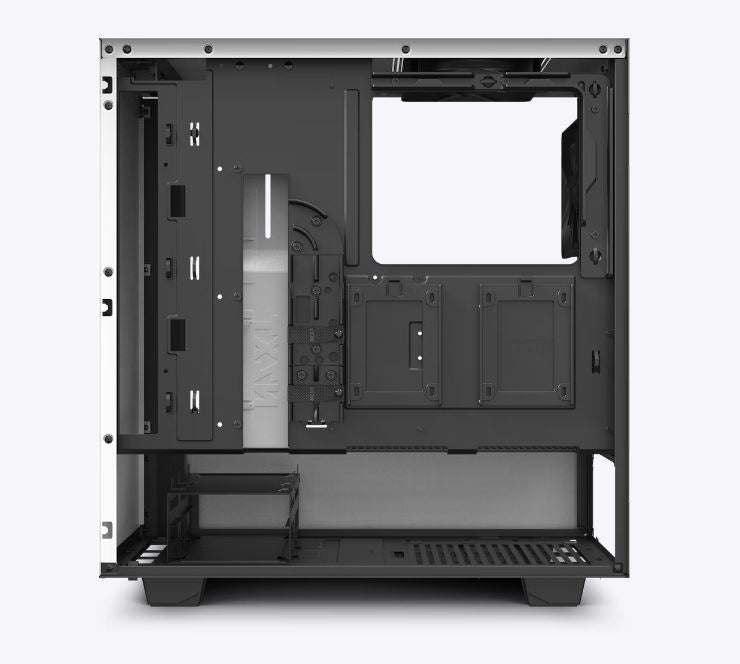

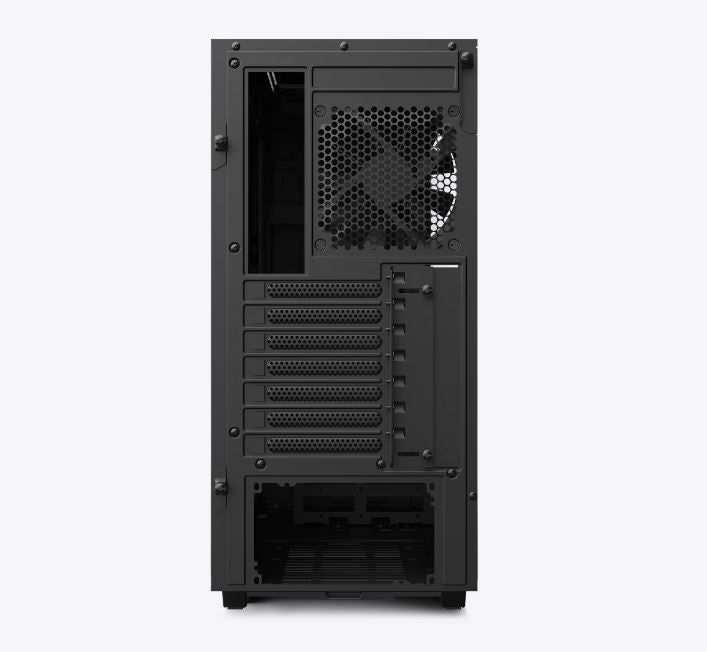

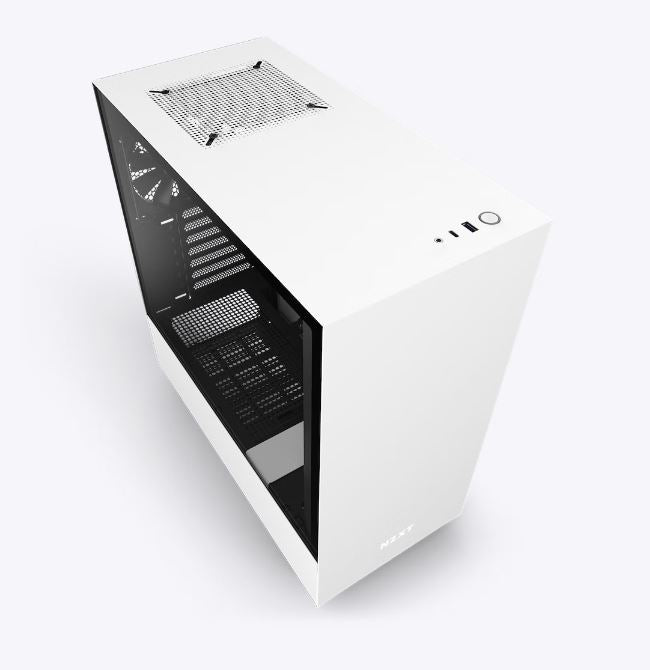

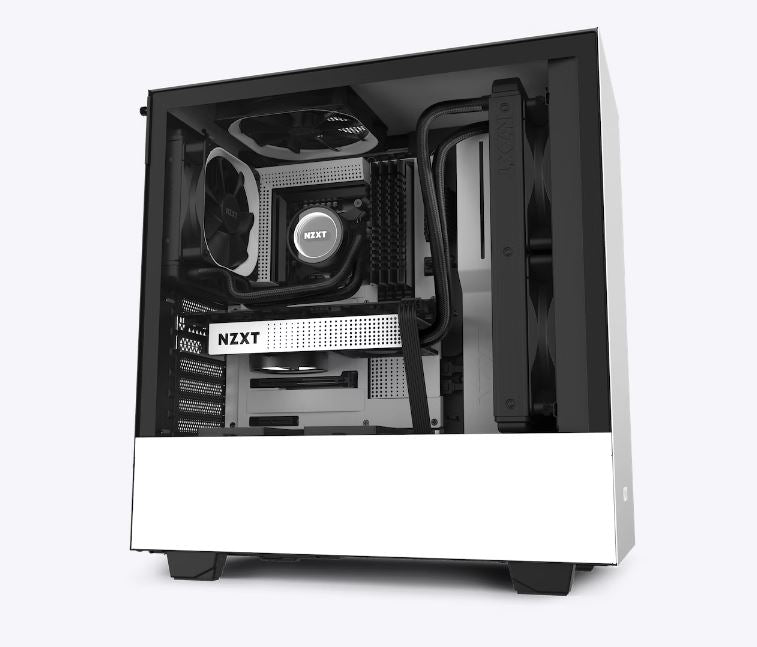

NZXT H510 Compact Mid-Tower Case
NZXT H510 Compact Mid-Tower Case
Brand : NZXT
SKU: SKU: CA-H510B-W1
5 in stock
Couldn't load pickup availability
DETAILS
Our best-selling case is loved by more than 100,000 customers!
This compact mid-tower is an ideal case for the majority of builds. The H510 is easy-to-build-in and offers flexibility for a variety of ATX parts.
- Iconic cable management bar and uninterrupted tempered-glass side panel
- USB 3.2 Gen2-compatible USB-C connector on the front panel
- Cable routing kit with pre-installed channels and straps
- Two Aer F120mm fans and removable filter on PSU intake
- Removable bracket designed for radiators up to 280mm
*Case version fans and specs vary from retail version
INSIDE THE BOX
-
H510 Case1
-
Aer F 120mm (Case Version)2
-
Headset Audio Jack Splitter1
-
Breakout Cable1
-
Installation Accessories1
-
Manual1
KEY SPECS
-
Motherboard Support:Mini-ITX, MicroATX, ATX
-
Enclosure Type:Compact Mid-Tower
-
Case Material:SGCC Steel, Clear Tempered Glass
DIMENSIONS
-
Height:460mm / 18.11 inches
-
Width:210mm / 8.27 inches
-
Depth:428mm / 16.85 inches
-
Weight:6.6 kg / 14.55 lb
COMPATIBILITY & CLEARANCE
-
Max CPU Cooler Clearance:165mm
-
Max GPU Clearance:381mm
-
Front Fan & Radiator Clearance:60mm
-
Cable Management:19 - 23mm
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:1
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
EXPANSION SLOTS
-
Standard:7
-
Vertical:-
DRIVE BAYS
-
2.5":2 + 1
-
3.5":2 + 1
FAN SUPPORT
-
Front:2 x 120mm / 2 x 140mm
-
Top:1 x 120mm / 1 x 140mm
-
Rear:1 x 120mm
-
Filters:All air intakes
RADIATOR SUPPORT
-
Front:280mm
-
Top:-
-
Rear:120mm
FAN SPECS
-
Model:Aer P 120mm (Case Version)
-
Speed:1,200 ± 200RPM
-
Airflow:50.42 CFM
-
Noise:28 dBA
-
Fan Connector:3-pin
GENERAL
-
Warranty:2 years
-
Model Number:CA-H510B-W1
-
UPC:815671014764
-
EAN:5060301695065
