Description
DETAILS

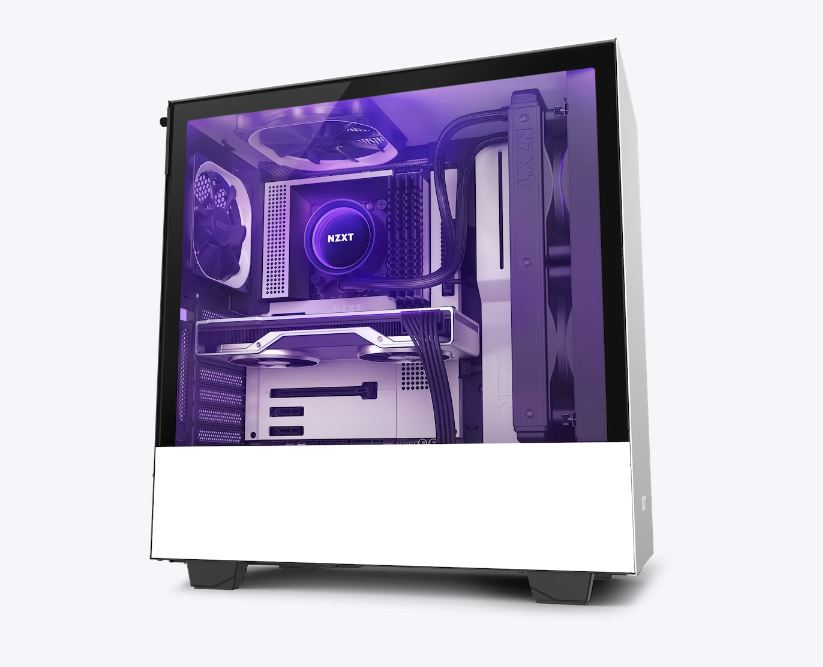

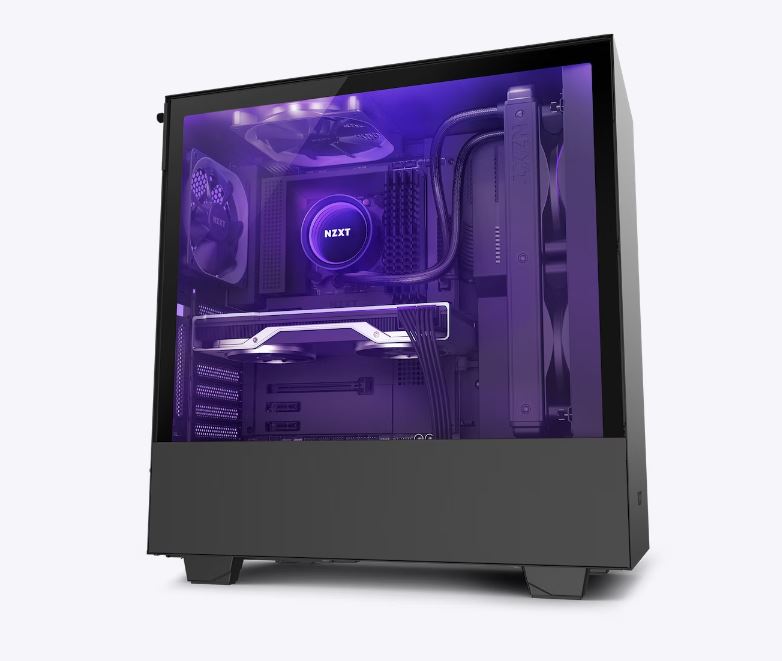

Taking it a step up from the H510, the H510i brings even more features to the H Series.
- Pre-installed RGB LED Strip
- Built-in mounting bracket for installing your GPU vertically
- Lighting and fan control supported by CAM Smart Device V2

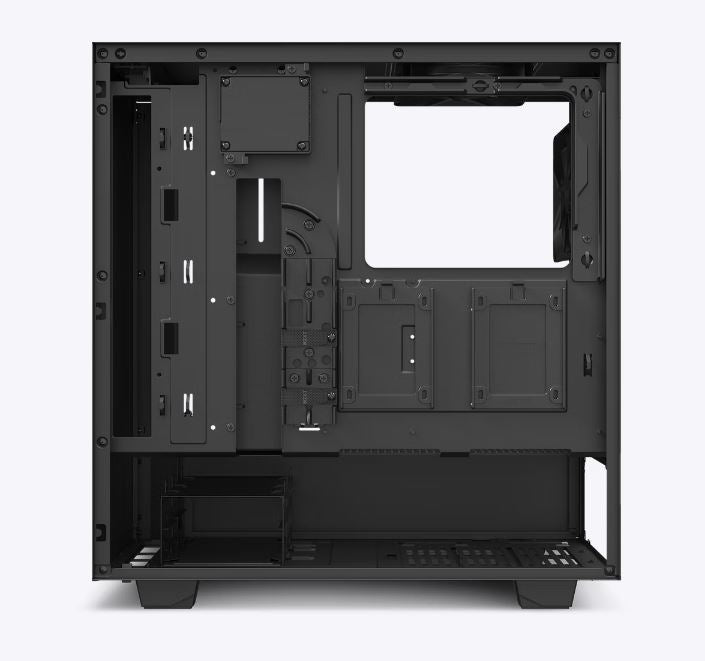

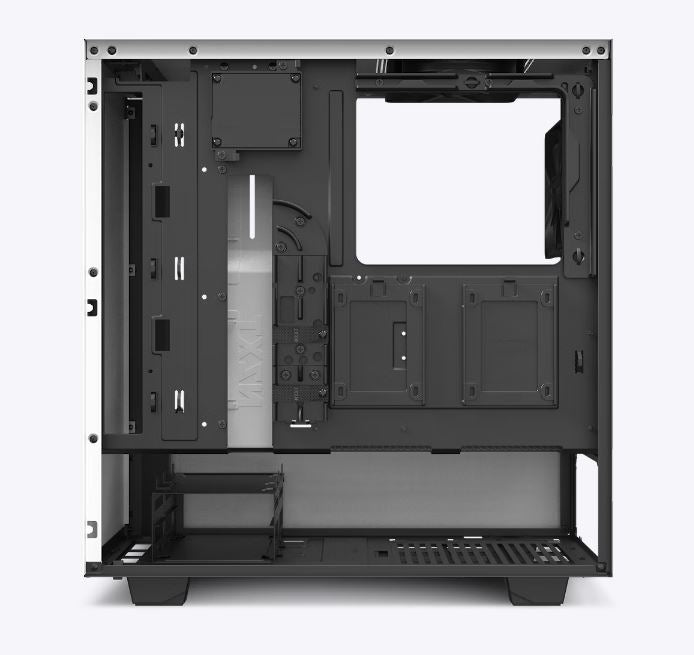

- Cable routing kit with pre-installed channels and straps
- USB 3.1 Gen2-compatible USB-C connector on the front panel

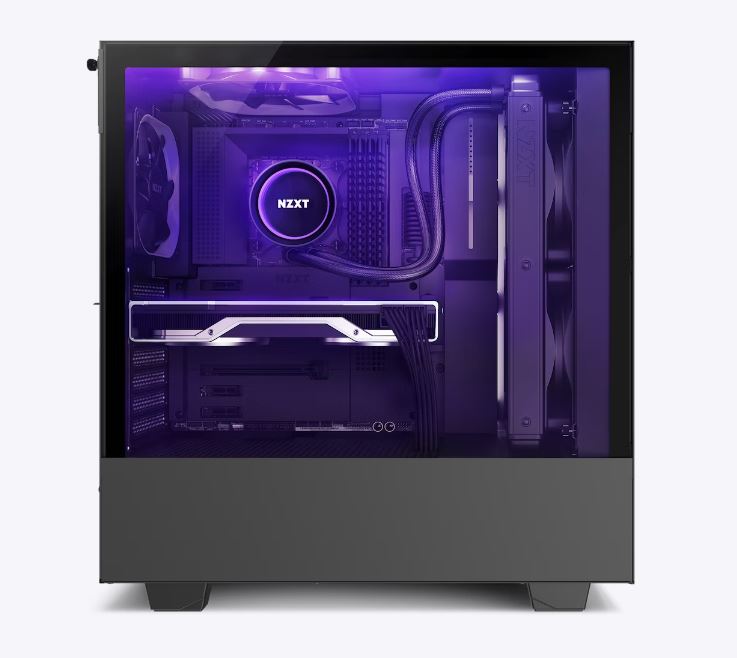

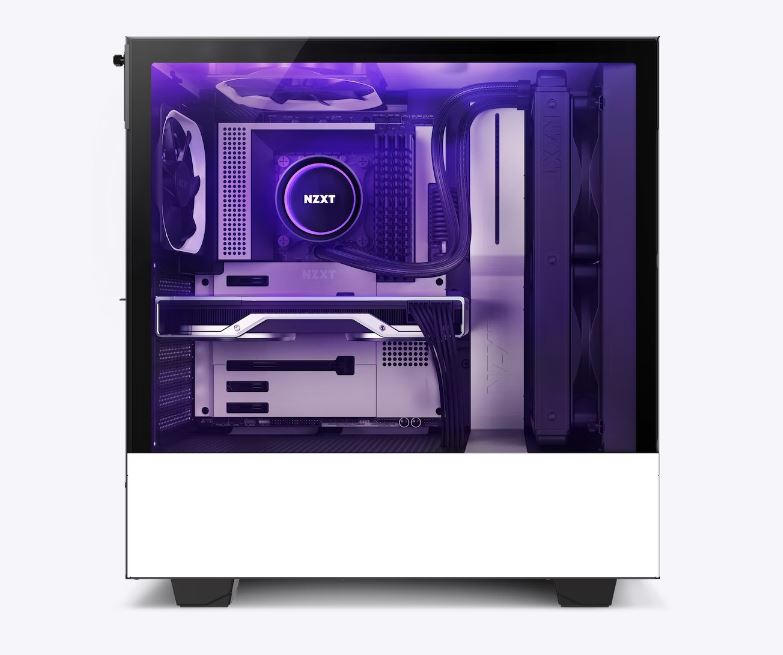

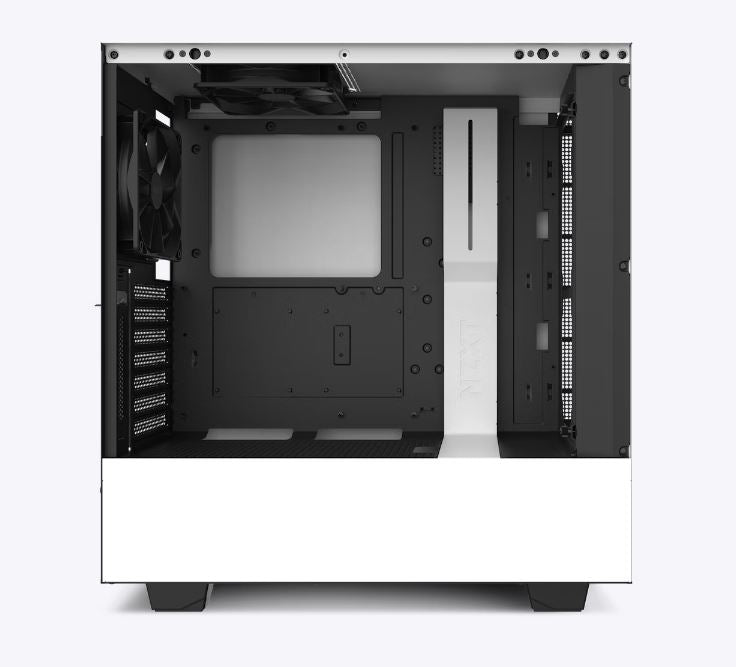

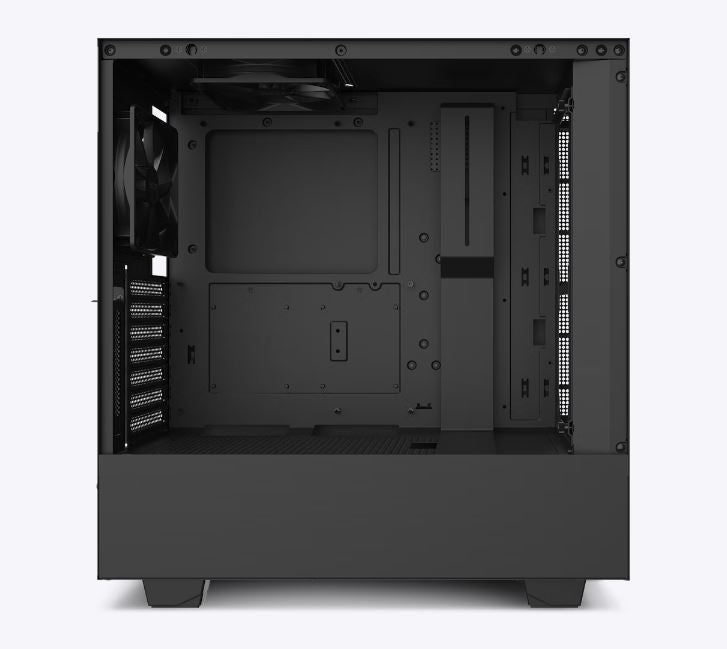

- The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
- Two Aer F120mm fans and removable filter on PSU intake.
- Removable bracket designed for radiators up to 280mm
Case version fans and specs vary from retail version
INSIDE THE BOX
-
H510i Case1
-
Aer F 120mm (Case Version)2
-
Smart Device V21
-
Integrated LED Strips2
-
Headset Audio Jack Splitter1
-
Breakout Cable1
-
Installation Accessories1
-
Manual1
KEY SPECS
-
Motherboard Support:Mini-ITX, MicroATX, ATX
-
Enclosure Type:Compact Mid-Tower
-
Case Material:SGCC Steel, Clear Tempered Glass
DIMENSIONS
-
Height:460mm / 18.11 inches
-
Width:210mm / 8.27 inches
-
Depth:428mm / 16.85 inches
-
Weight:6.8 kg / 15lbs
COMPATIBILITY & CLEARANCE
-
Max CPU Cooler Clearance:165mm
-
Max GPU Clearance:321 - 381mm
-
Front Fan & Radiator Clearance:60mm
-
Vertical GPU Clearance:50.8mm
-
Cable Management:19 - 23mm

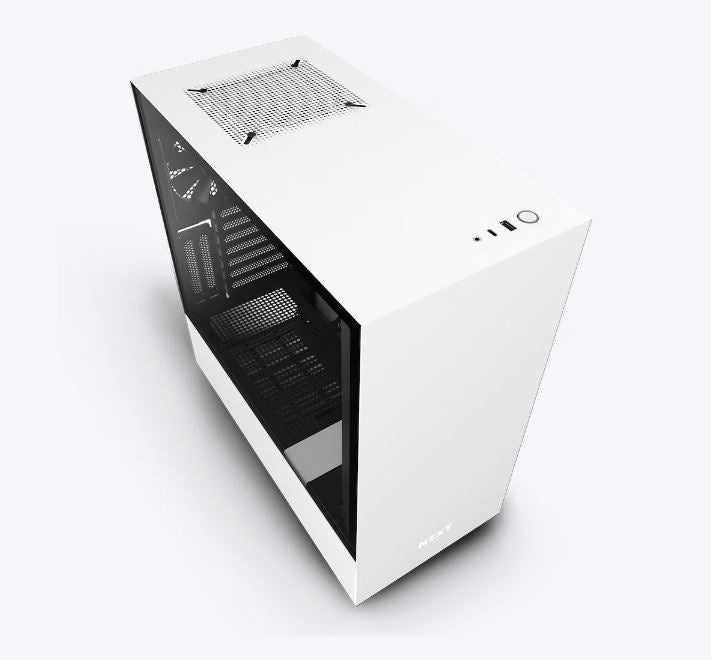

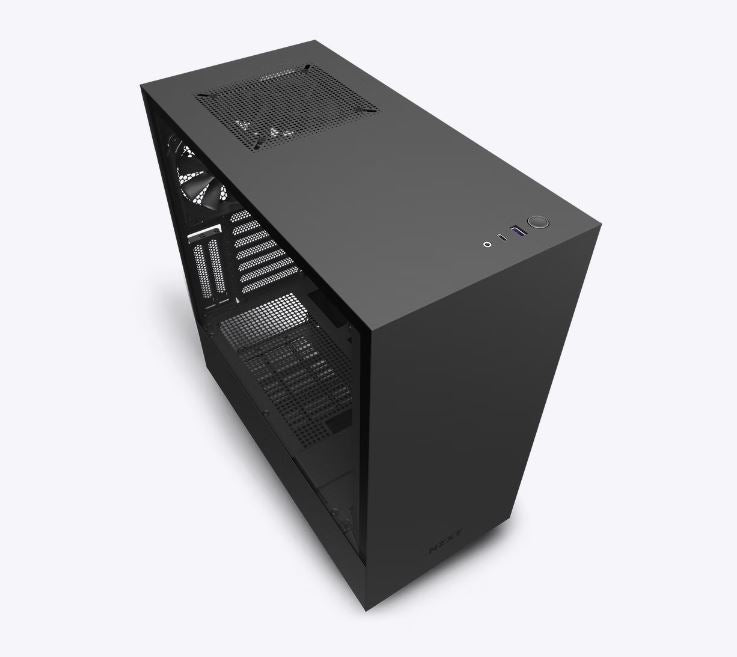

FRONT I/O PORTS
-
USB 3.2 Gen 2 Type-A:1
-
USB 3.2 Gen 1 Type-C:1
-
Headset Audio Jack:1
SMART DEVICE
-
Fan Channels:3 (10W max per channel)
-
NZXT RGB Connector:2 (Support up to 40 LEDs)

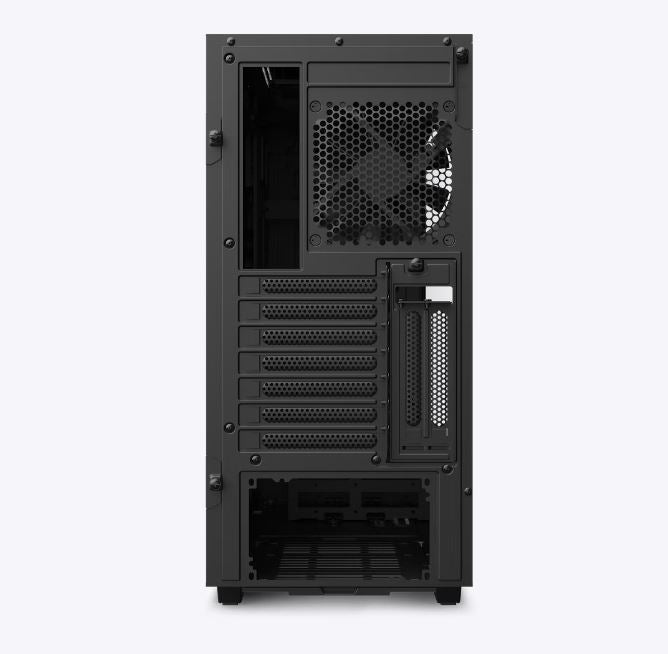

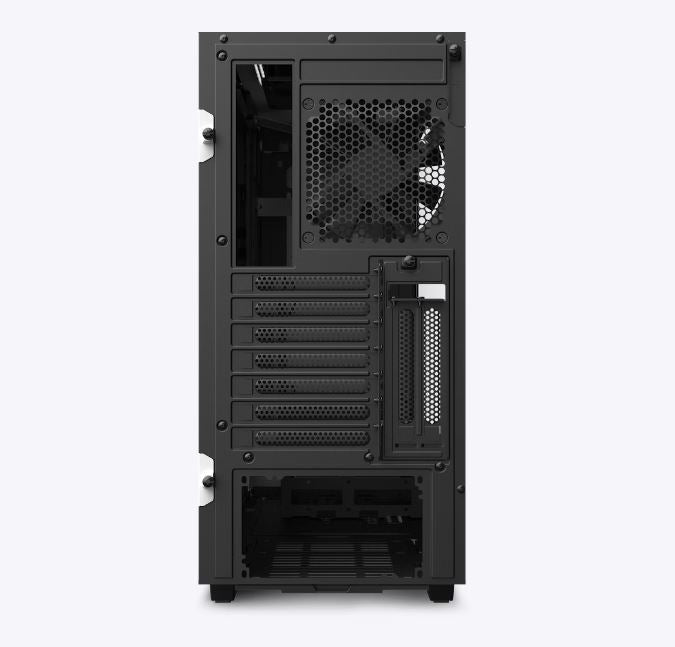

EXPANSION SLOTS
-
Standard:7
-
Vertical:2
DRIVE BAYS
-
2.5":2 + 1
-
3.5":2 + 1
FAN SUPPORT
-
Front:2 x 120mm / 2 x 140mm
-
Top:1 x 120mm / 1 x 140mm
-
Rear:1 x 120mm
-
Filters:All air intakes
RADIATOR SUPPORT
-
Front:280mm
-
Top:-
-
Rear:120mm
FAN SPECS
-
Model:Aer P 120mm (Case Version)
-
Speed:1,200 ± 200RPM
-
Airflow:50.42 CFM
-
Noise:28 dBA
-
Fan Connector:3-pin
GENERAL
-
Warranty:2 Years
-
Model Number:CA-H510i-W1
-
UPC:815671014726
-
EAN:5060301695027
