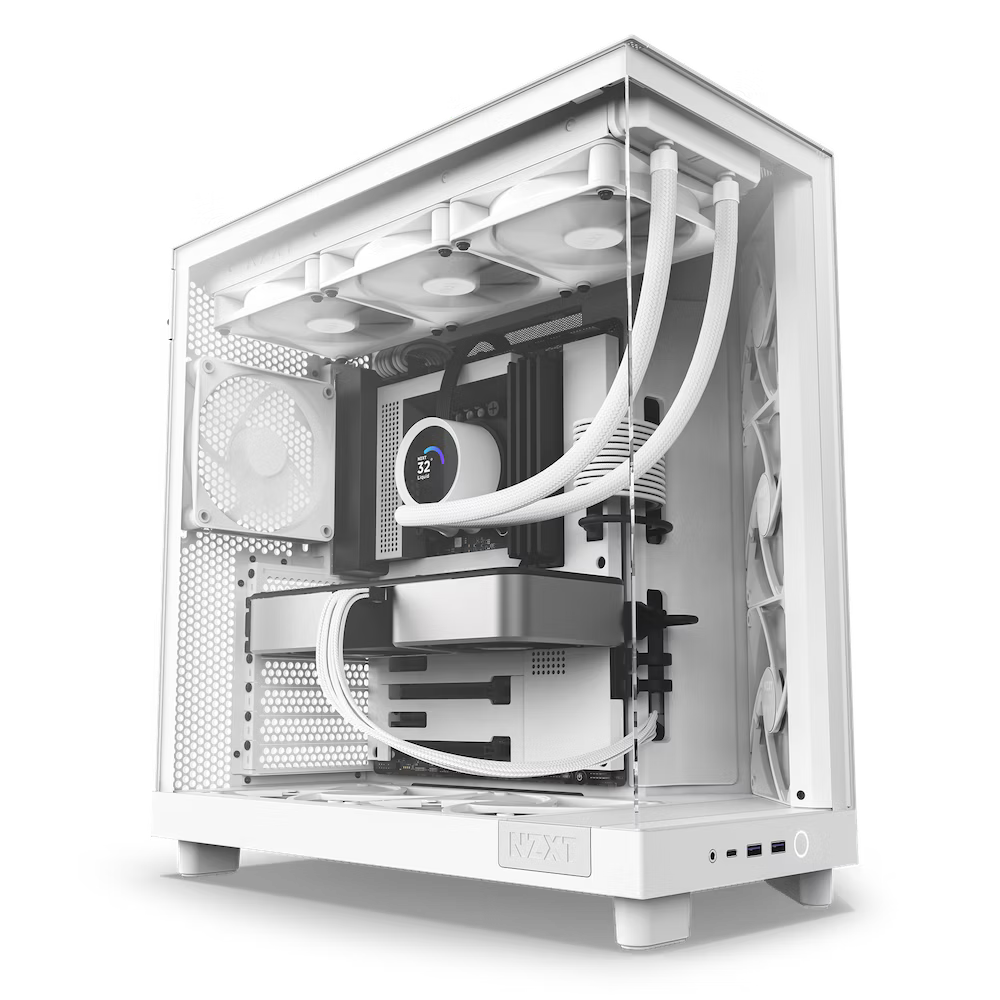

Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Inside the Box
-
H6 Flow 1
-
F120Q Airflow (Case Version) 3
-
Installation Accessories 1
-
User Guide 1
Tech Specs
KEY SPECS
-
Motherboard Support:ATX, Micro-ATX, Mini-ITX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)
DIMENSIONS
-
Height (with feet):435 mm / 17.13 in
-
Width:287 mm / 11.3 in
-
Depth:415 mm / 16.34 in
-
Weight:9.4 kg
COMPATIBILITY & CLEARANCE
-
CPU Cooler Height:163 mm / 6.42 in
-
GPU Length:365 mm / 14.37 in
-
PSU Length:200 mm / 7.87 in
-
Cable Management:91 mm / 3.58 in
-
Top Radiator:30 mm / 1.18 in
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:2
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
EXPANSION SLOTS
-
Standard:7
-
Vertical:0
DRIVE BAYS
-
2.5":2
-
3.5":1
FAN SUPPORT
-
Front-Right:3 x 120 mm (3 x F120Q included)
-
Top:3 x 120 mm / 2 x 140 mm
-
Bottom:2 x 140 mm
-
Rear:1 x 120 mm
-
Filters:High-Performance Mesh
RADIATOR SUPPORT
-
Top:Up to 360 mm
-
Rear:Up to 120 mm
FAN SPECS
-
Model:F120Q Airflow Fan (Case Version)
-
Speed:1200 ± 240RPM
-
Airflow:62.18 CFM
-
Static:1.05 mm - H2O
-
Noise:25.1 dBA
-
Fan Connector:3-pin
GENERAL
-
Warranty:2 Years
-
Model Number:CC-H61FW-01 (White) / CC-H61FB-01 (Black)
-
UPC:810074844130 (White) / 810074844147 (Black)
-
EAN:5056547204048 (White) / 5056547204055 (Black)
