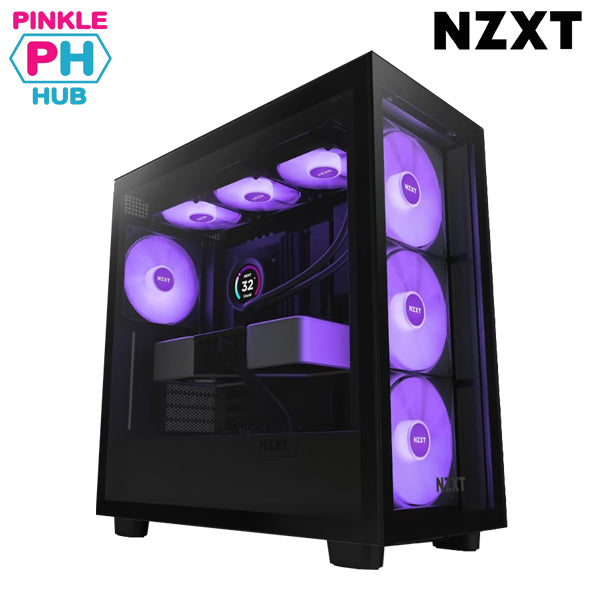

NZXT H7 Elite Black v2 Premium ATX Mid-Tower

NZXT H7 Elite Black v2 Premium ATX Mid-Tower

Brand : NZXT

SKU:  CM-H71EB-02

₱10,098.00
₱11,781.00 ₱10,098.00
Sale! Sold out
Taxes included.

Out of stock

Overview

Details

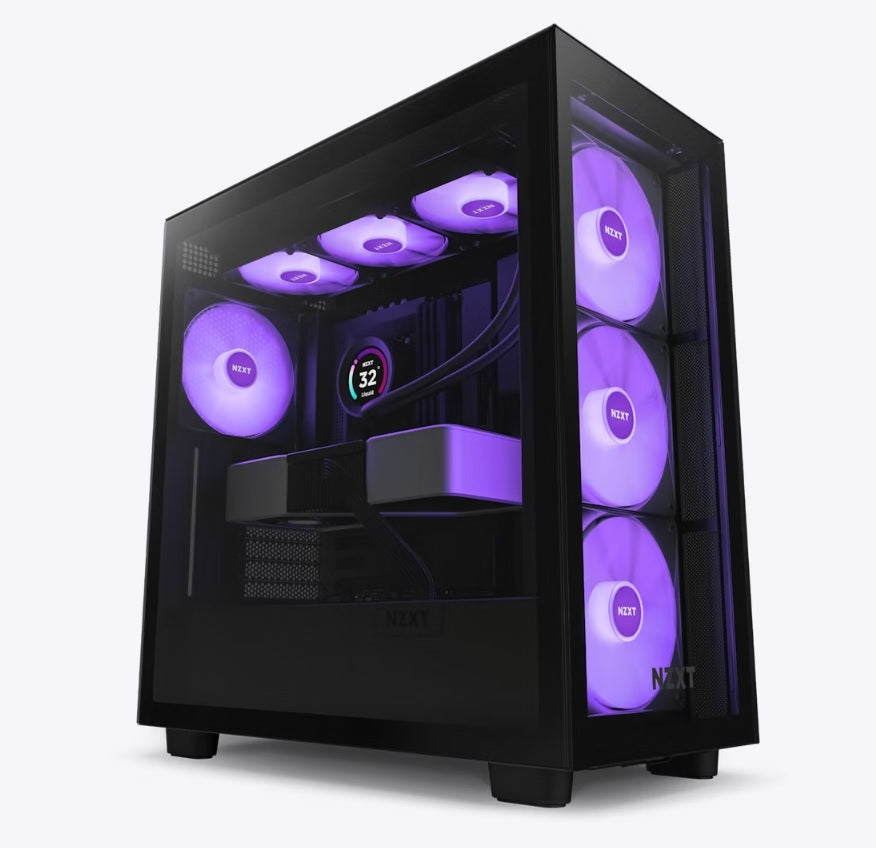

The H7 Elite is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed F140 RGB Core Fans, a built-in RGB Controller, widened channels, hooks, straps, and toolless entry.

  • Perforated top panel

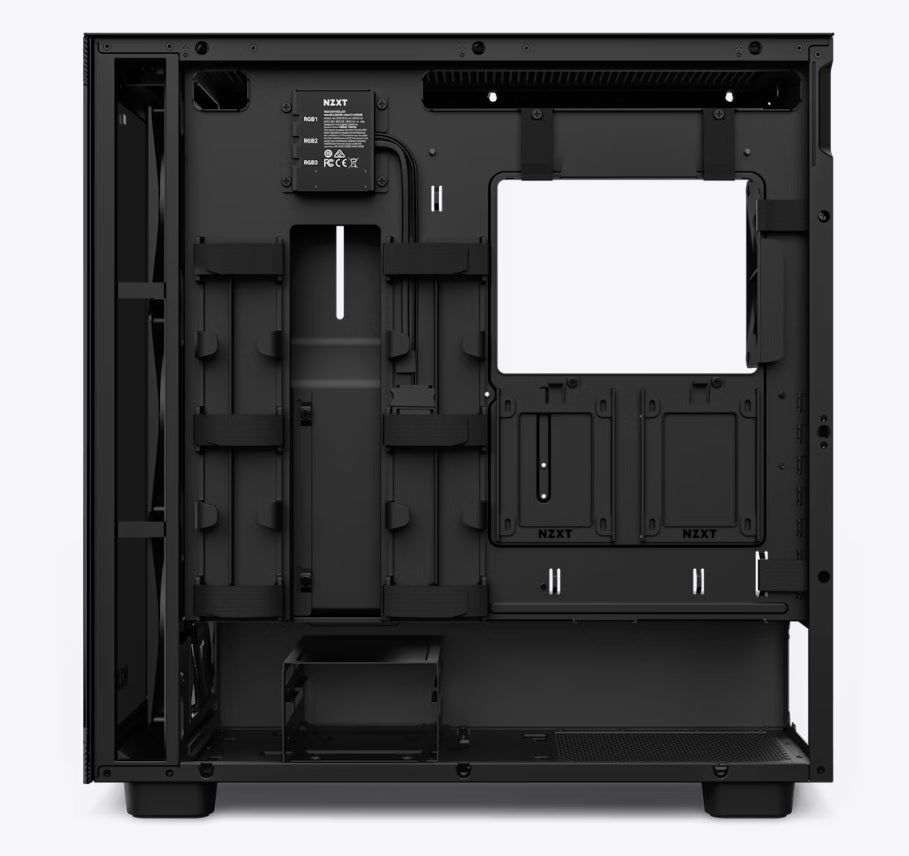

  • Intuitive cable management system with wide channels, hooks, & straps

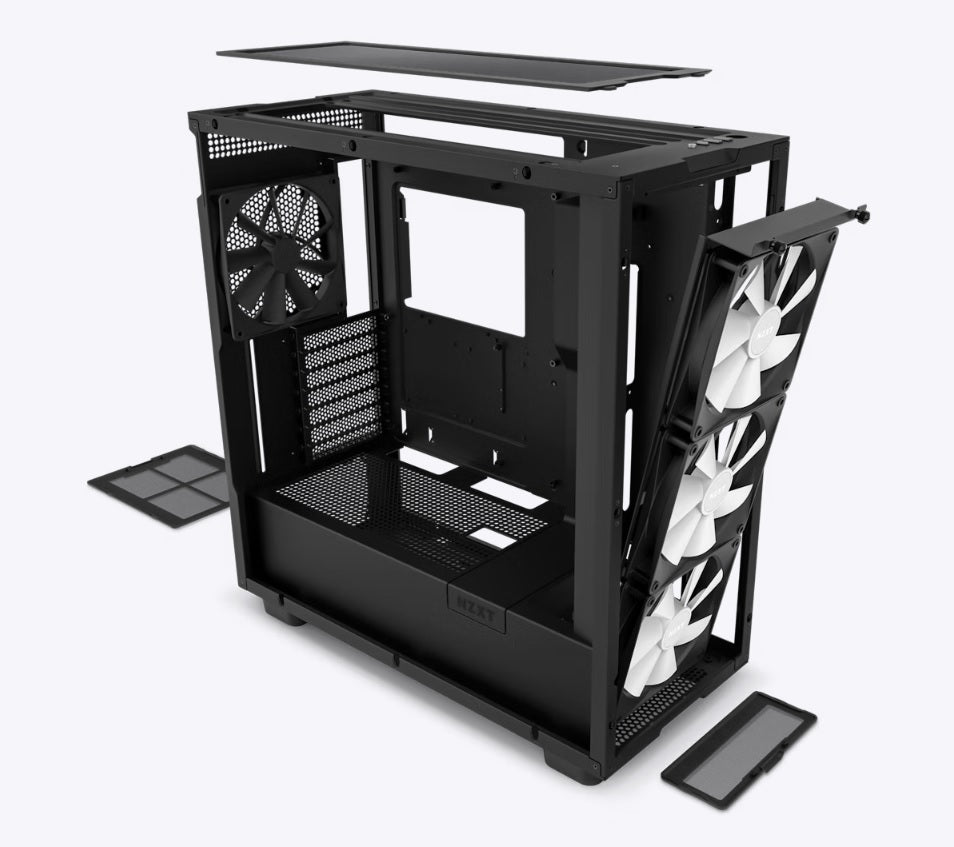

  • Tool-less access to front & side panels (tinted panels on black variant only) to front & side panels
  • Front & top support radiators up to 360mm
  • Three pre-installed F140 RGB Core Fans
  • One pre-installed F140Q Airflow Fan (Case Version)
  • Supports vertical GPU mounting (Sold Separately)
  • RGB Controller
  • Tempered glass front panel
  • Two top-mounted USB 3.2 Type-A ports
  • One top-mounted USB 3.2 Type-C port
  • Two color options (Matte Black, Matte White)

Inside the Box

  • H7 Elite Case1

  • F140Q Airflow Fan (Case Version) (pre-installed)1

  • F140 RGB Core Fan (pre-installed)3

  • RGB Controller1

  • Installation Accessories1

  • Manual1

Tech Specs

Key Specs

  • Motherboard Support:Mini-ITX, Micro-ATX, ATX

  • Enclosure Type:Mid-Tower

  • Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

Dimensions

  • Height:505mm (With Feet)

  • Width:230mm

  • Depth:480mm

  • Weight:11.36 kg

Compatibility & Clearance

  • Max CPU Cooler Clearance:Up to 185mm

  • Max GPU Clearance:Up to 400mm

  • Front Radiator Clearance:60mm

  • Top Radiator Clearance:30mm

  • Cable Management:18-22mm

Front I/O Ports

  • USB 3.2 Gen 1 Type-A:2

  • USB 3.2 Gen 2x2 Type-C (20 Gbps):1

  • Headset Audio Jack:1

RGB Controller

  • NZXT RGB Connector:3 (Support up to 120 LEDs)

Expansion Slots

  • Standard:7

  • Vertical:0

Drive Bays

  • 2.5":4+2

  • 3.5":2

Fan Support

  • Front:3 x 120mm / 3 x 140mm

  • Top:3 x 120mm / 2 x 140mm

  • Rear:1 x 120mm / 1 x 140mm

  • Filters:All Air Intakes

Radiator Support

  • Front:Up to 360mm with Push/Pull

  • Top:Up to 360mm

  • Rear:Up to 140mm

Fan Specs

  • Model:F140Q (Case Version)

  • Speed:1200 ± 240RPM

  • Airflow:99.56 CFM

  • Static Pressure:1.14 mm-H2O

  • Noise:24.18 dBA

  • Fan Connector:3-pin

Fan Specs

  • Model:F140 RGB Core Fan

  • Speed:500-1,500 ± 150 RPM

  • Airflow:90.79 CFM

  • Static Pressure:3.22 mm H2O

  • Noise:34.48 dBA

  • Fan Connector:4-pin PWM

General

  • Warranty:2 Years

  • Model Number:CM-H71EW-02 (White) / CM-H71EB-02 (Black)

  • UPC:810074843607 (White) / 810074843591 (Black)

  • EAN:5056547203522 (White) / 5056547203515 (Black)
