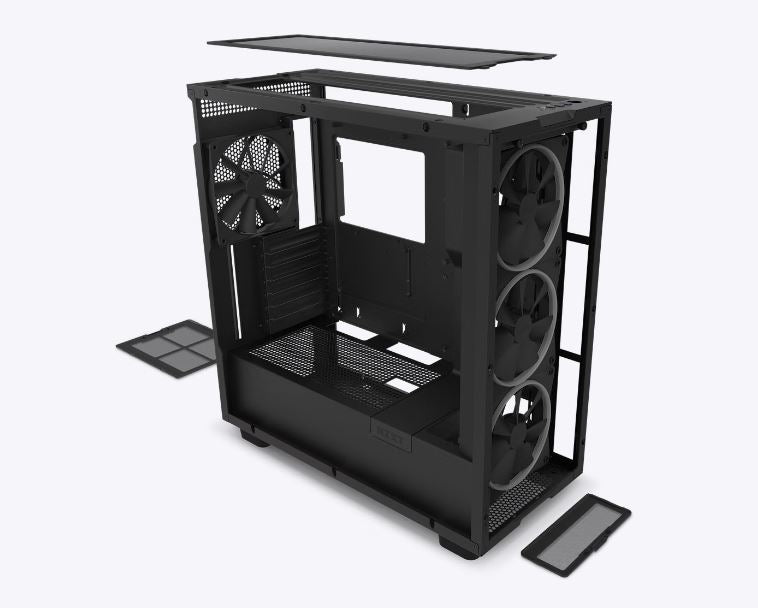

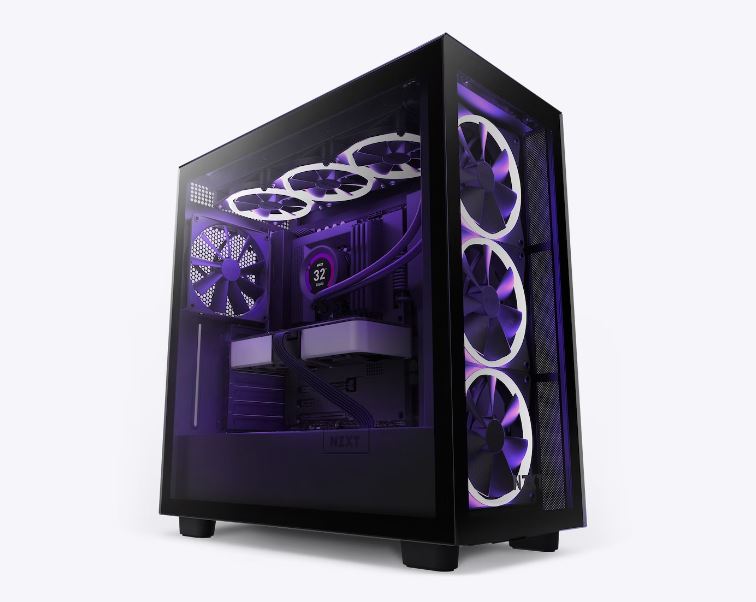

NZXT H7 Elite Premium Mid-Tower Case
NZXT H7 Elite Premium Mid-Tower Case
Brand : NZXT
Regular price
Couldn't load pickup availability
DETAILS

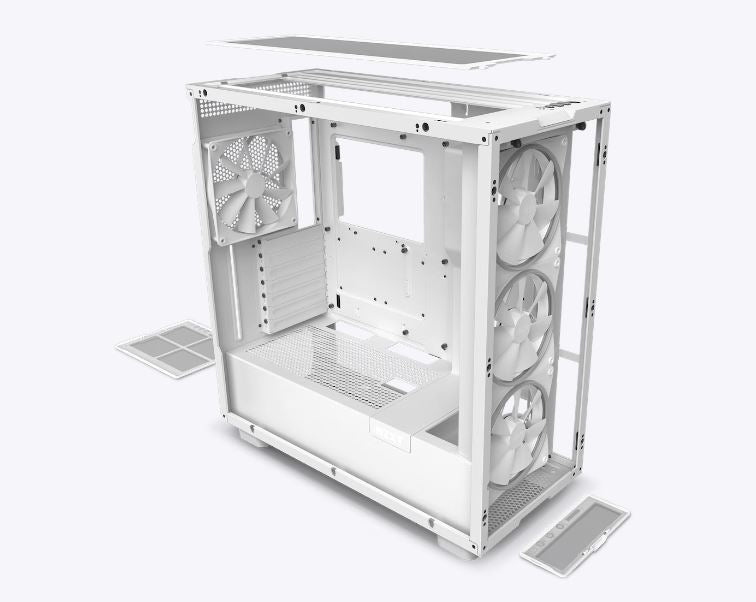

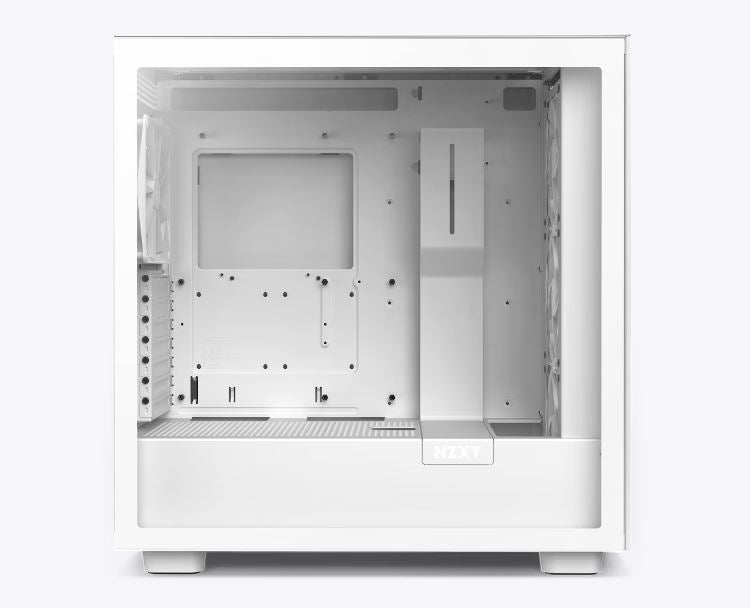

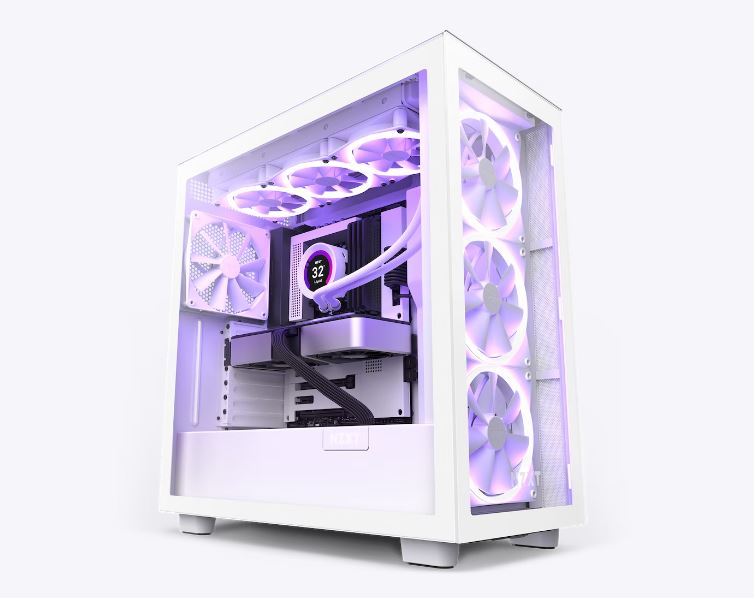

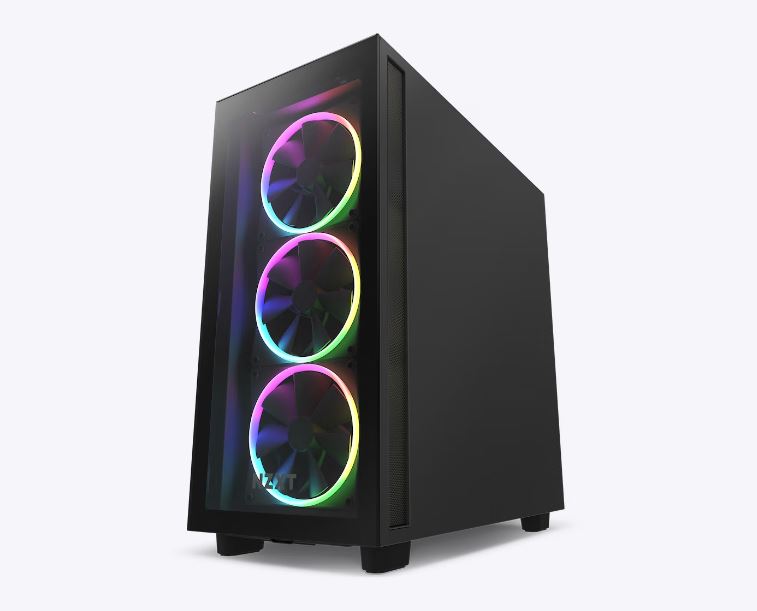

This mid-tower case is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed 140mm F Series RGB Fans, a built-in RGB & Fan Controller, widened channels, hooks, straps, and toolless entry.
- Perforated top panel

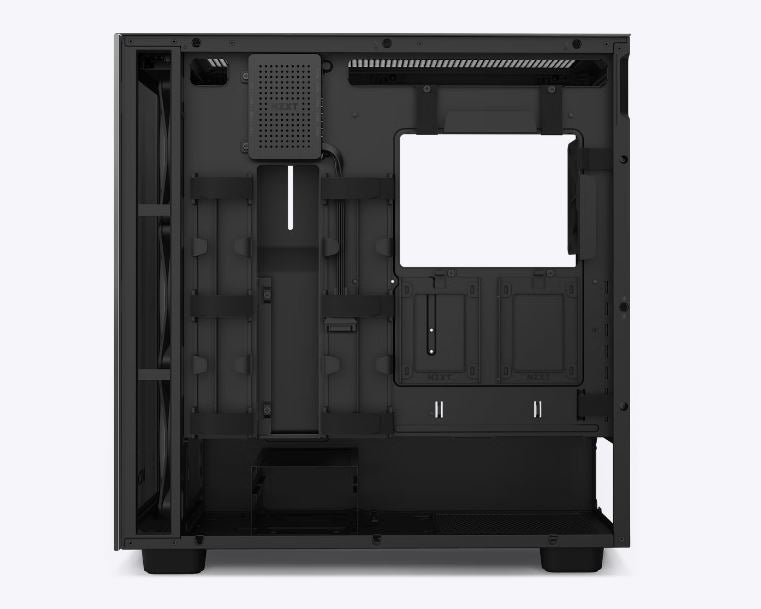

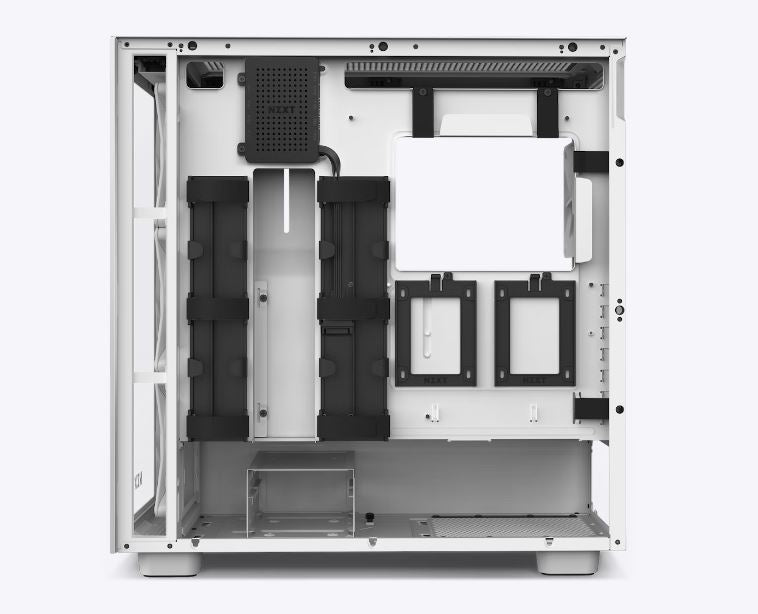

- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels (tinted panels on black variant only) to front & side panels
- Front & top support radiators up to 360mm

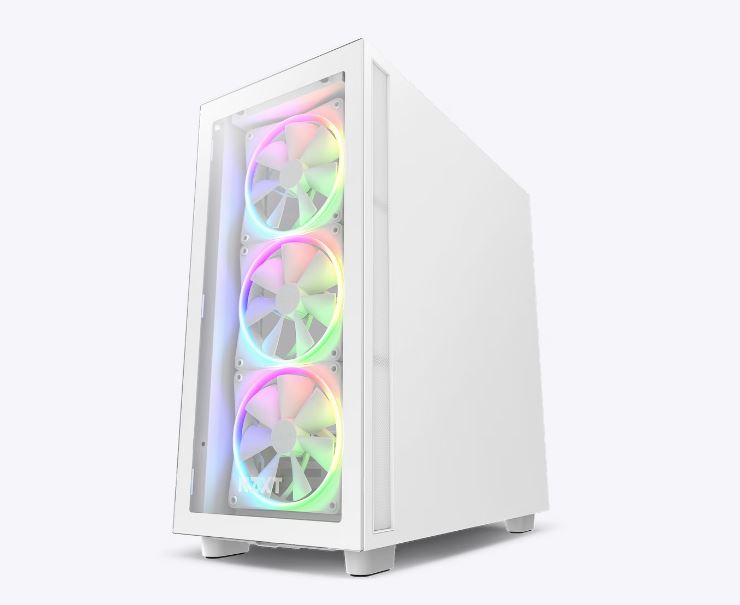

- Three pre-installed F Series RGB 140mm Fans
- One pre-installed 140mm F Series Quiet Airflow Fan
- Supports vertical GPU mounting (Sold Separately)
- Built-in RGB & Fan Controller V2 w/ NZXT CAM
- Tempered glass front panel

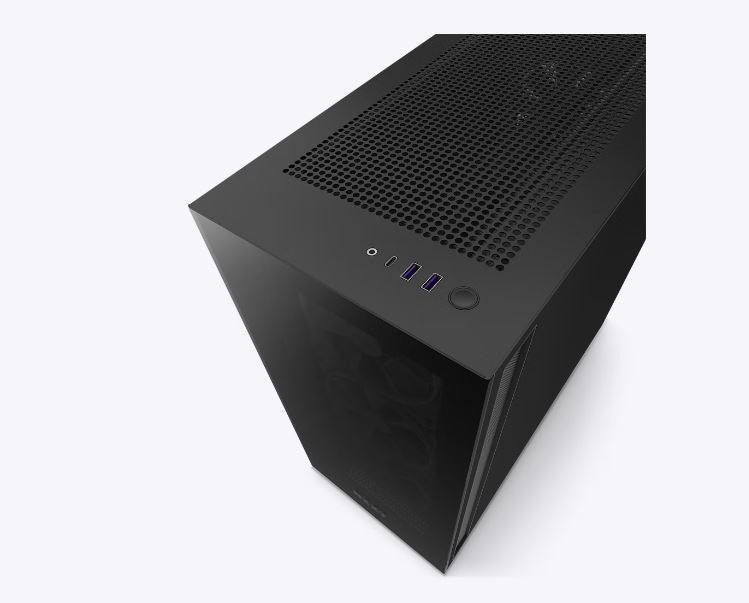

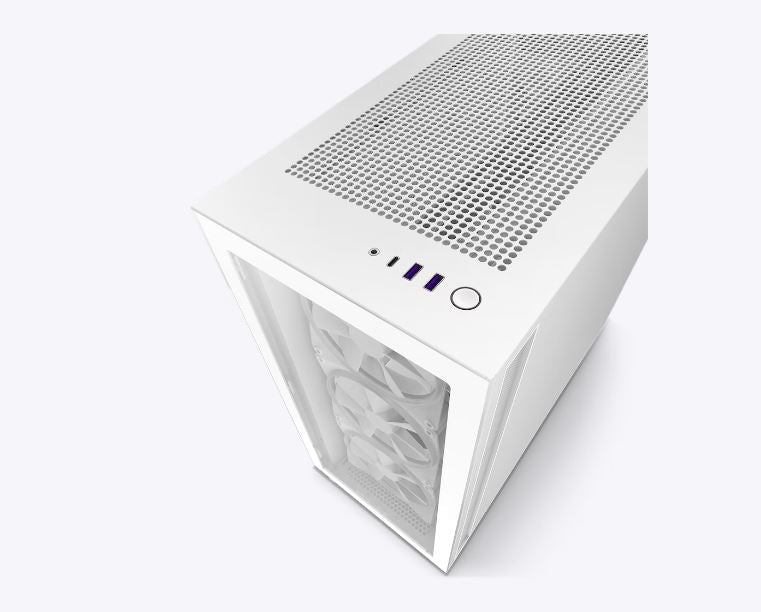

- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
- Two color options (Matte Black, Matte White)
INSIDE THE BOX
-
H7 Elite Case1
-
140mm Quiet Airflow Fan (Case Version)1
-
140mm RGB Fan3
-
RGB and Fan Controller1
-
Installation Accessories1
-
Manual1
KEY SPECS
-
Motherboard Support:Mini-ITX, Micro-ATX, ATX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
-
Height:505mm (With Feet)
-
Width:230mm
-
Depth:480mm
-
Weight:11.36 kg
COMPATIBILITY & CLEARANCE
-
Max CPU Cooler Clearance:Up to 185mm
-
Max GPU Clearance:Up to 400mm
-
Front Radiator Clearance:60mm
-
Top Radiator Clearance:30mm
-
Cable Management:18-22mm
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:2
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
RGB AND FAN CONTROLLER
-
Fan Channels:3
-
NZXT RGB Connector:6 (Support up to 120 LEDs)
EXPANSION SLOTS
-
Standard:7
-
Vertical:0
DRIVE BAYS
-
2.5":4+2
-
3.5":2
FAN SUPPORT
-
Front:3 x 120mm / 3 x 140mm
-
Top:3 x 120mm / 2 x 140mm
-
Rear:1 x 120mm / 1 x 140mm
-
Filters:All Air Intakes
RADIATOR SUPPORT
-
Front:Up to 360mm with Push/Pull
-
Top:Up to 360mm
-
Rear:Up to 140mm
FAN SPECS
-
Model:F140Q (Case Version)
-
Speed:1200 ± 240RPM
-
Airflow:99.56 CFM
-
Static Pressure:1.14 mm-H2O
-
Noise:24.18 dBA
-
Fan Connector:3-pin
FAN SPECS
-
Model:F140 RGB
-
Speed:500 - 1800 RPM
-
Airflow:24.85 - 89.48 CFM
-
Static Pressure:0.94 - 3.39 mm-H2O
-
Noise:20 - 32.5 dBA
-
Fan Connector:4-pin
GENERAL
-
Warranty:2 Years
-
Model Number:CM-H71EW-01 (White) / CM-H71EB-01 (Black)
-
UPC:815671019462 (White) / 815671019455 (Black)
-
EAN:5060301697021 (White) / 5060301697014 (Black)
