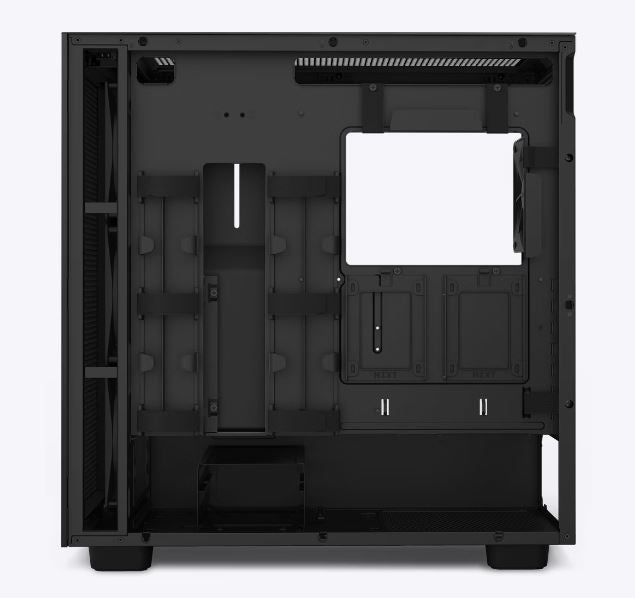

The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
Perforated front & top panels enable maximum thermal performance
Intuitive cable management system with wide channels, hooks, & straps
Tool-less access to front & side panels (tinted panels on black variant only)
Front & top support radiators up to 360mm
Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
Supports vertical GPU mounting (Sold Separately)
Two color options (Matte Black, Matte White)
Two top-mounted USB 3.2 Type-A ports
One top-mounted USB 3.2 Type-C port
Inside the Box
H7 Flow Case with fans (see specs) 1
F140 RGB Core Fan (pre-installed) 3
F120Q Airflow Fan (pre-installed) 1
Installation Accessories 1
Manual 1
KEY SPECS
Motherboard Support:Mini-ITX, Micro-ATX, ATX
Enclosure Type:Mid-Tower
Case Material (White):SGCC Steel, Ultra-clear Tempered Glass
Case Material (Black):SGCC Steel, Dark Tinted Tempered Glass
DIMENSIONS
Height (With Feet):505mm
Height (Without Feet):480mm
Width:230mm
Depth:480mm
Weight:10.57kg
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:Up to 185mm
Max GPU Clearance:Up to 400mm
Front Radiator Clearance:60mm
Top Radiator Clearance:30mm
Cable Management:18-22mm
PSU Clearance:Up to 200mm
FRONT I/O PORTS
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
EXPANSION SLOTS
Standard:7
Vertical:0
DRIVE BAYS
2.5":4+2
3.5":2
FAN SUPPORT
Front:3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
Top:3 x 120mm / 2 x 140mm
Rear:1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included)
Filters:All Air Intakes
RADIATOR SUPPORT
Front:Up to 360mm with Push/Pull
Top:Up to 360mm
Rear:Up to 140mm
FAN SPECS
Model:F140 RGB Core Fan (Case Version)
Speed:1200 ± 120 RPM
Airflow:61.74 CFM
Static:2.06mm-H2O
Noise:29.05 dBA
Fan Connector:3-pin
FAN SPECS
Model:F120Q (Case Version)
Speed:1200 ± 240RPM
Airflow:62.18 CFM
Static:1.05 mm - H2O
Noise:25.1 dBA
Fan Connector:3-pin
GENERAL
Warranty:2 Years
Model Number:CM-H71FW-R1 (White) / CM-H71FB-R1 (Black)
