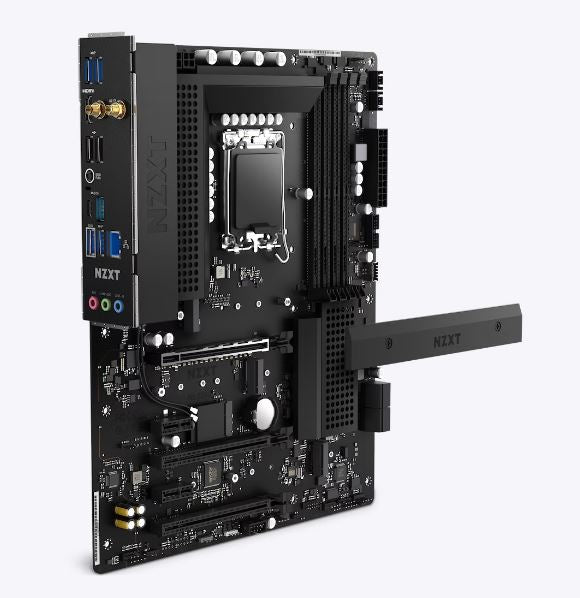

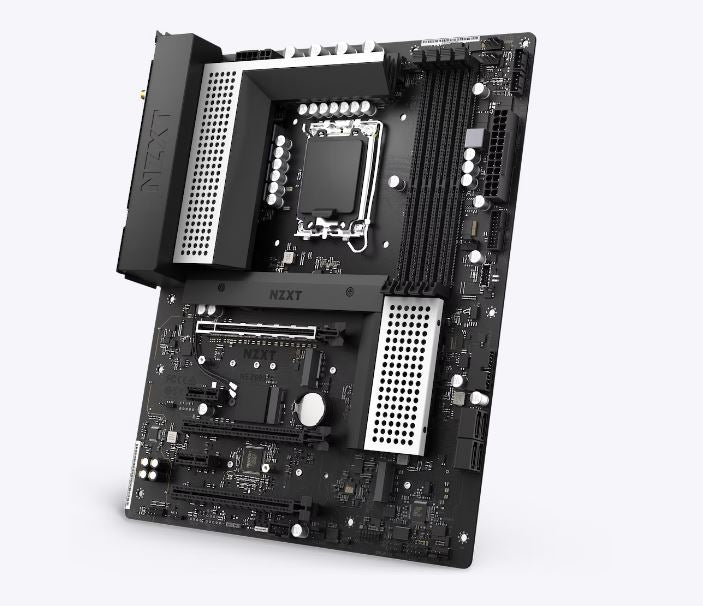

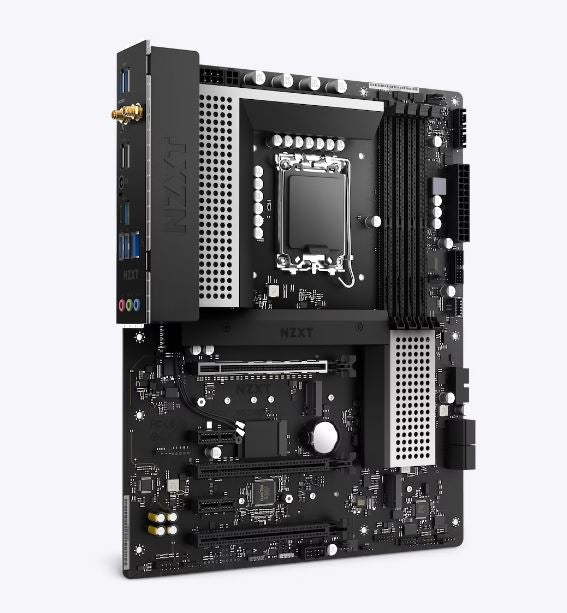

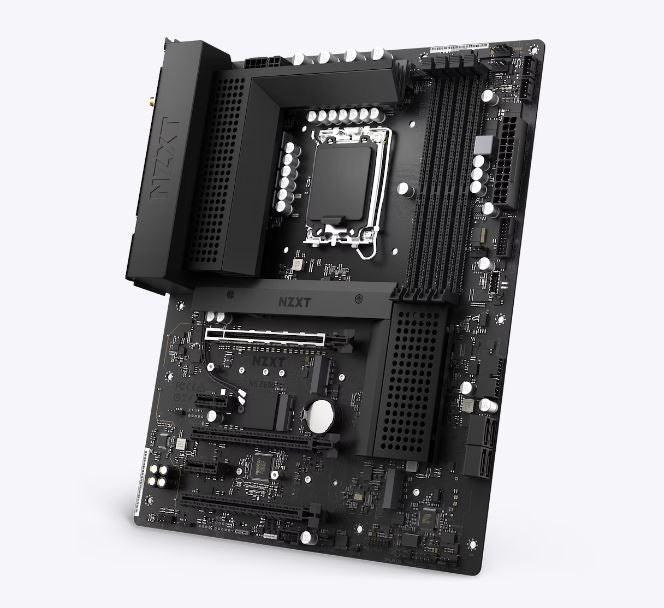

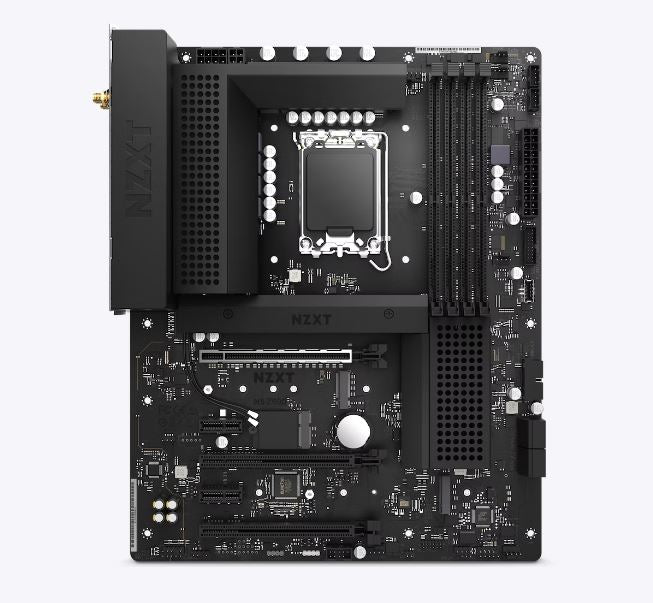

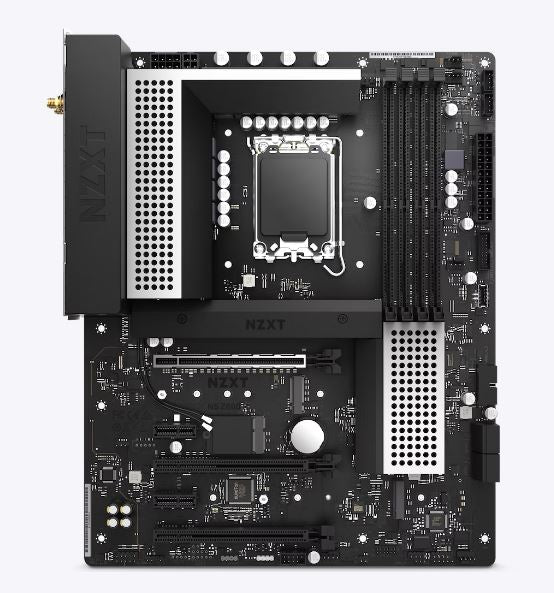

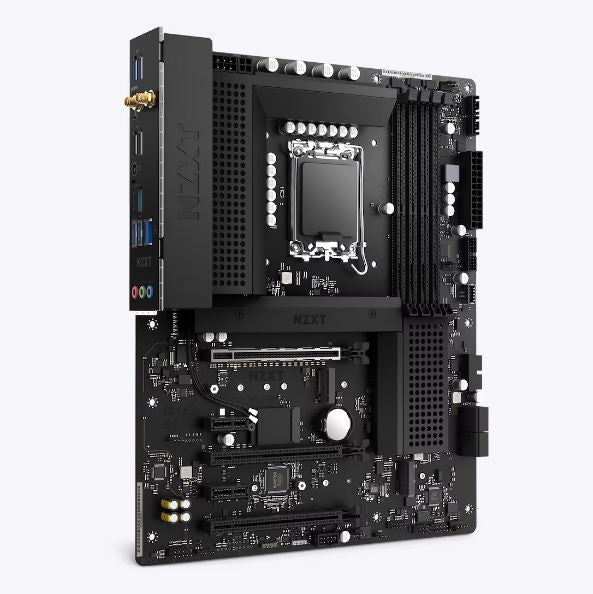

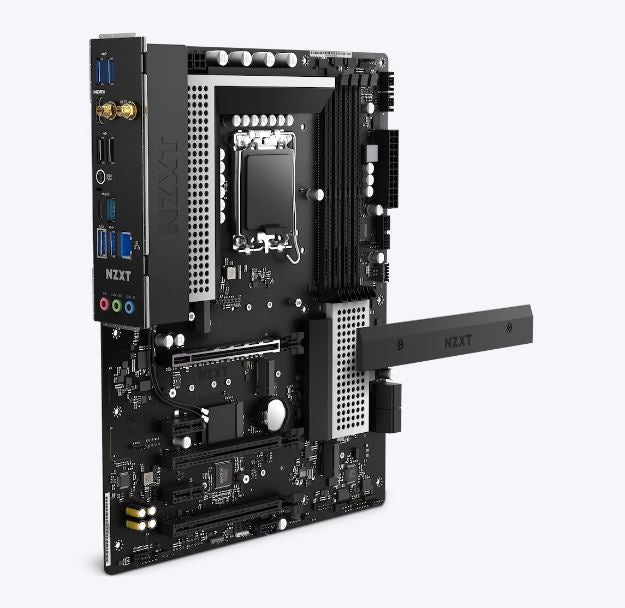

NZXT N5 Z690 Intel Motherboard with Wi-Fi and NZXT CAM Features
NZXT N5 Z690 Intel Motherboard with Wi-Fi and NZXT CAM Features
Brand : NZXT
Regular price
Couldn't load pickup availability
DETAILS
The N5 is a modern platform for a powerful build, driven by the latest Z690 chipset.
- Wi-Fi 6E connectivity with updated specs for Z690 chipset
- Digital RGB lighting control through NZXT CAM
- Digital fan control with profiles within NZXT CAM for six independent fan channels
- Integrated rear I/O shield and efficient layout ensures optimal setup with upgradeability
INSIDE THE BOX
-
N5 Z690 Motherboard1
-
SATA Cables (90 degree)2
-
SATA Cables (180 degree)2
-
Wireless Antenna2
-
M.2 Screws3
-
Manual1
CPU
-
Intel® Socket LGA1700 for 12th Generation Processors:Intel® Core™ Processors. Please refer to CPU support list.
-
Intel® Hybrid Technology:Supported
-
Turbo Boost Max 3.0 Technology:Supported
CHIPSET
-
Intel®:Z690
MEMORY
-
DIMM Slots:4, DDR4 only
-
Max Memory Support:128GB
-
Memory Architecture:Dual-Channel
-
OC Frequency:5000+(O.C.). Please refer to memory QVL.
-
Base Frequency:3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
-
Type:Non-ECC, Un-buffered Memory
-
Intel® XMP 2.0 Support:Supported
INTEGRATED GRAPHICS
-
Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs):HDMI 2.0 / HDMI 1.4b
-
HDMI Max Resolution:4096x2160@60Hz
MULTI-GPU SUPPORT
-
AMD 2-Way CrossFireX™ Technology:Supported
EXPANSION SLOTS
-
PCIe x16:3 (Single - PCIe_1: Gen 5 x16 mode / Dual - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4 / Triple - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4; PCIe_5: Gen 3 x1)
-
PCIe 3.0 x1:2
-
M.2 Socket (Key E):Supports Type 2230 Wi-Fi/BT Module, Intel CNVio
STORAGE (CHIPSET)
-
M.2_1 Type 2242/2260/2280 (PCIe 4.0 x4 mode):1
-
M.2_2 Type 2242/2260/2280 (PCIe 4.0 x4 mode):1
-
M.2_3 Type 2242/2260/2280/22110 (PCIe 4.0 x4 & SATA mode):1
-
M.2_4 Type 2242/2260/2280 (PCIe 4.0 x4 & SATA mode):1
-
SATA 6Gb/s:4
-
RAID 0/1/5/10 Support:Supported
-
Intel® Volume Management Device (VMD):Supported
-
Intel® Optane Technology:Supported
-
NVMe SSD as boot disks:Supported
LAN
-
Realtek®:RTL8125BG 2.5G
WIRELESS
-
Dual-Band Wireless:Wi-Fi 6E
-
Protocol:802.11 a/b/g/n/ac/ax
-
Frequency Bands:2.4 / 5 / 6 GHz
-
MU-MIMO Support:Supported
-
Bluetooth:V5.2
AUDIO
-
Realtek®:ALC897 Codec
-
Channels:8-Channel High Definition Audio

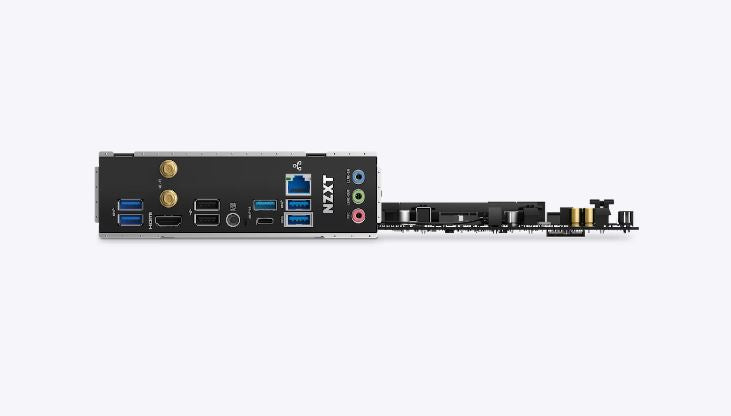

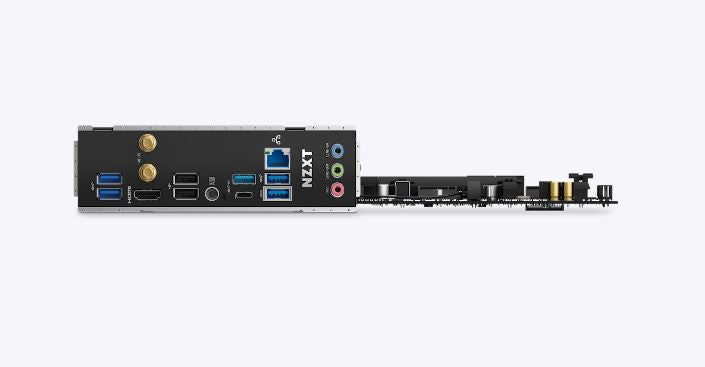

REAR I/O
-
USB 3.2 Gen 2 (Type-C):1
-
USB 3.2 Gen 2 (Type-A):1
-
USB 3.2 Gen 1 (Type-A):4
-
USB 2.0:2
-
HDMI™ 2.0:1
-
Wireless Antenna:2 (2T2R)
-
LAN (RJ45) Port:1
-
HD Audio Jacks: Line-in / Front Speaker / Mic:1
-
BIOS Flashback Button:1
INTERNAL I/O
-
USB 3.2 Gen 2 Header (Type-C):1
-
USB 3.2 Gen 1 Header:1 (Up to 2 ports)
-
USB 2.0 Header:2 (Up to 4 ports)
-
Front Panel Audio:1
-
CPU_FAN Connector:1 (Up to 24W)
-
AIO_PUMP Connector:1 (Up to 24W)
-
SYS_FAN Connector:4 (Up to 24W)
-
NZXT RGB LED Header:2
-
5V ARGB Header:1
-
12V RGB Header:1
-
24-pin EATX Power:1
-
8-pin ATX 12V Power:1
-
4-pin ATX 12V Power:1
-
POST LEDs:4
GENERAL
-
Operating System:Windows® 11/10 64-bit
-
Form Factor:ATX
-
Warranty:3 years
-
Model Number:N5-Z69XT-W1 (White) / N5-Z69XT-B1 (Black)
-
UPC:815671016027 (White) / 815671016034 (Black)
-
EAN:5056547200132 (White) / 5056547200149 (Black)
