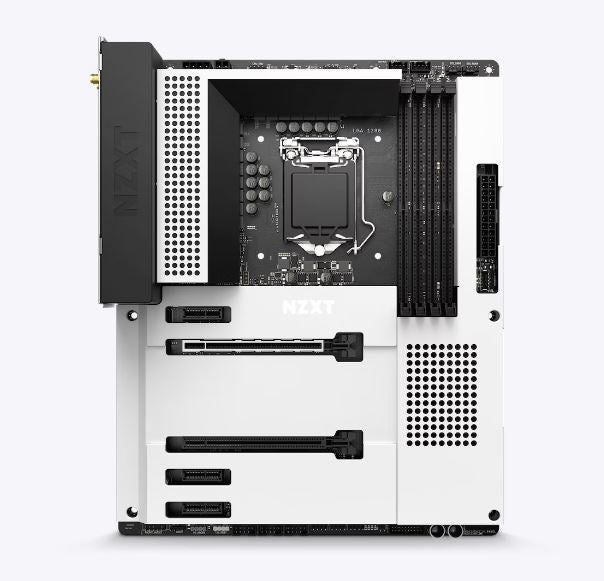

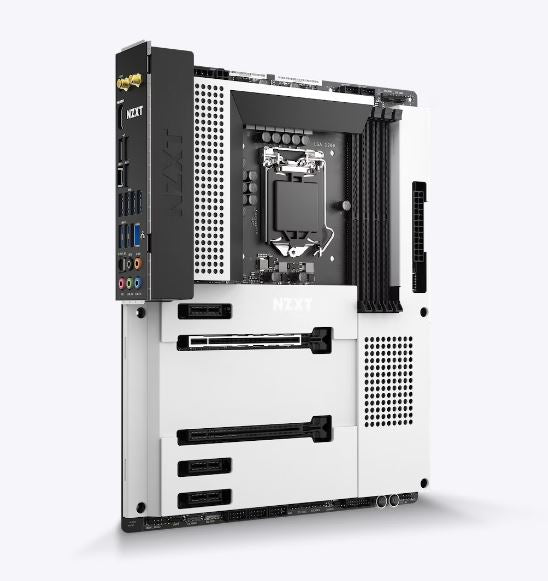

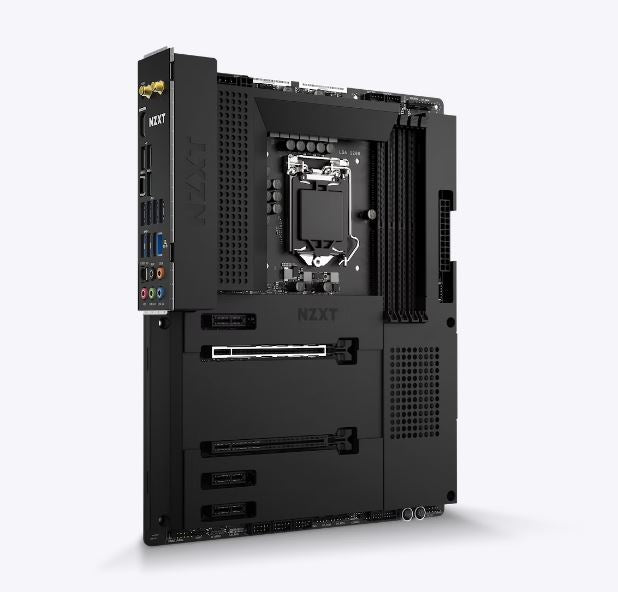

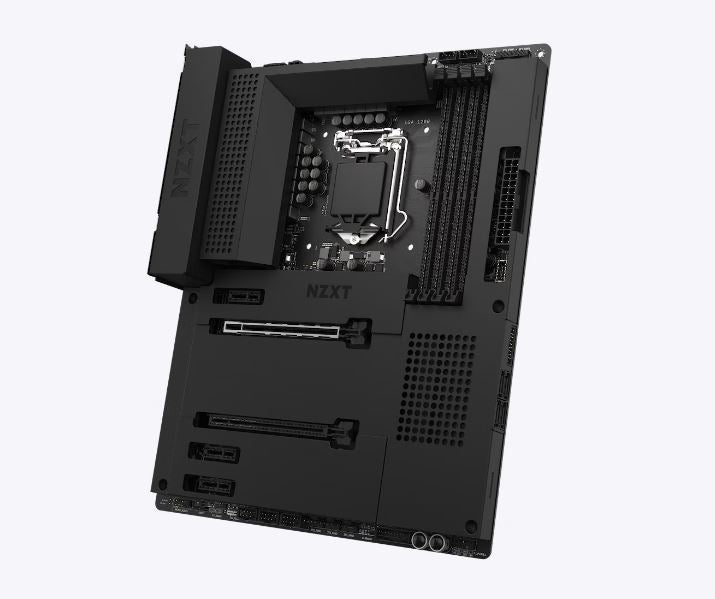

NZXT N7 Z590 Intel gaming motherboard with Wi-Fi and CAM features

Name: NZXT N7 Z590 Intel gaming motherboard with Wi-Fi and CAM features
Brand: NZXT
SKU: N7-Z59XT-W1
Price: 15360.0 PHP
Availability: InStock

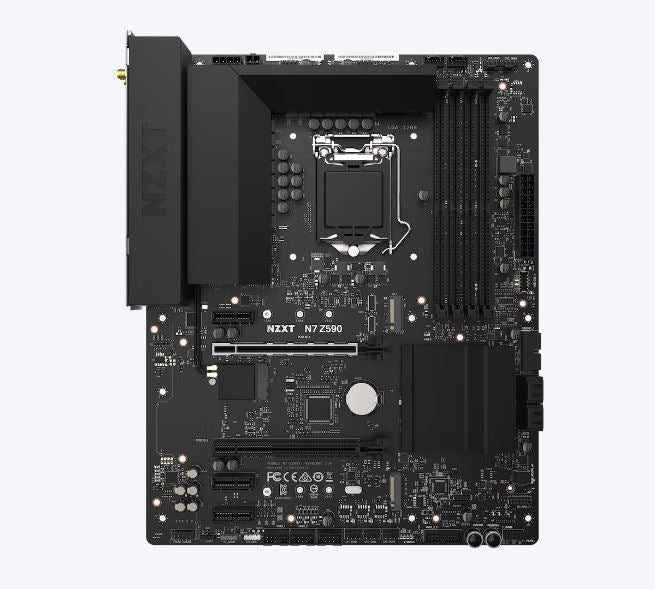

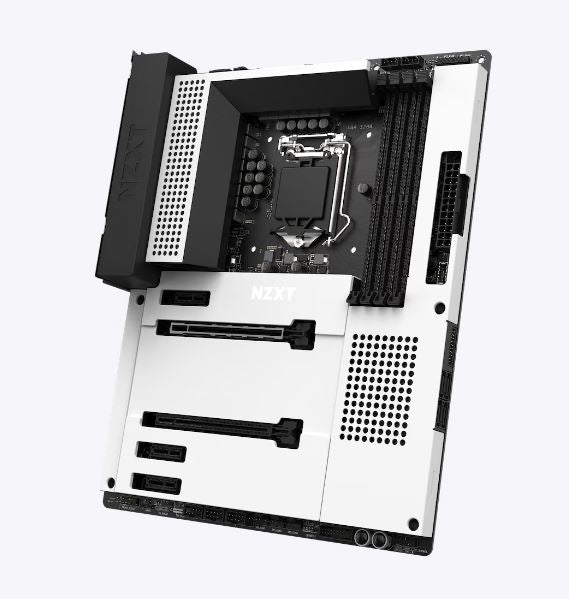

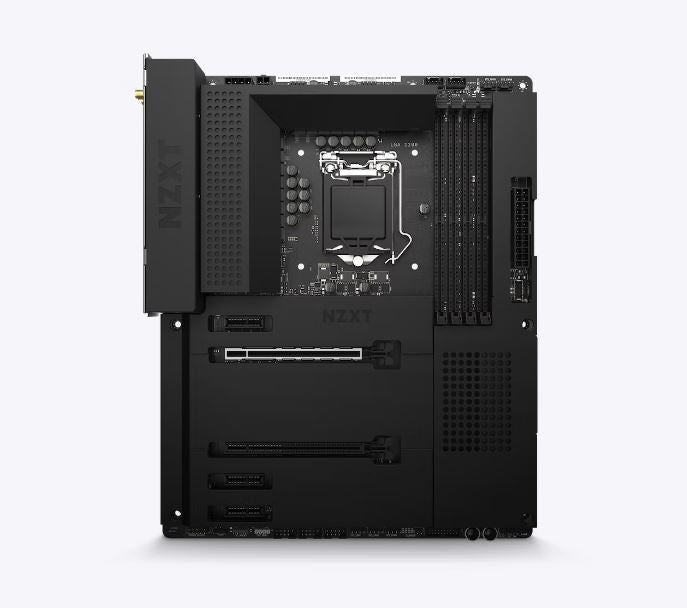

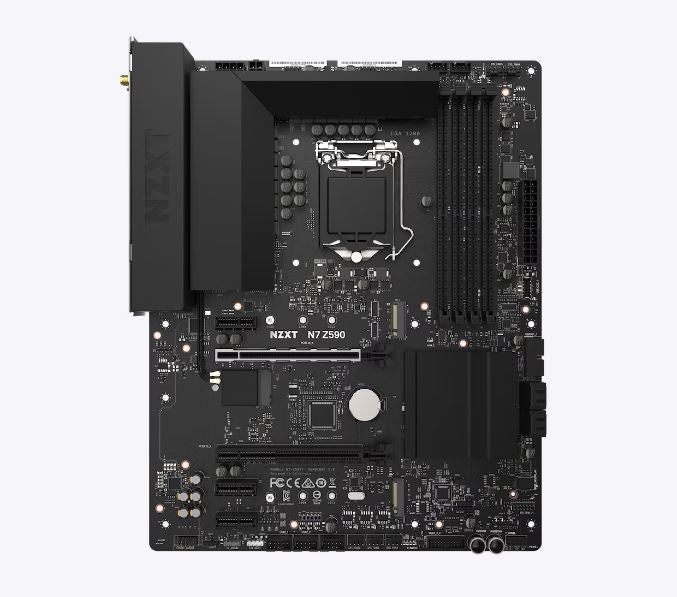

NZXT N7 Z590 Intel gaming motherboard with Wi-Fi and CAM features

Brand : NZXT

₱15,360.00

₱15,360.00
~~₱17,920.00~~ -14%

Sale! Sold out

Color White Black

Product variants

Quantity

DETAILS

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z590 chipset.

Digital RGB lighting control through NZXT CAM
Digital fan control for fan profiles within NZXT CAM for seven independent fan channels

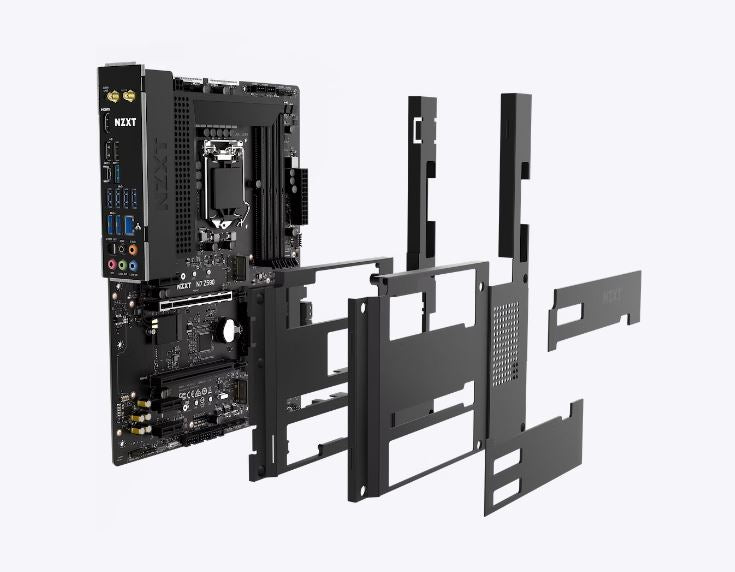

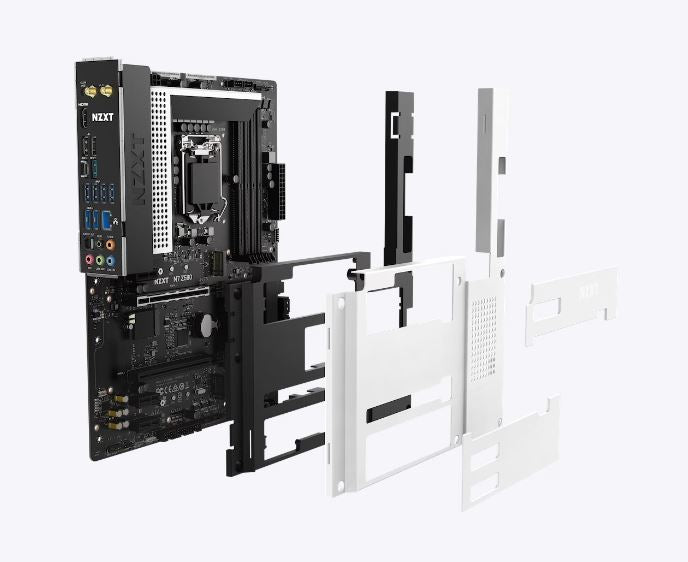

Integrated rear I/O shield and efficient layout
Compatible with Intel® 11th Generation Core™ i9, Core™ i7, Core™ i5, and Core™ i3 processors
12+2 DrMOS Power Phase Design
Intel® Wifi 6E wireless connectivity and Bluetooth V5.2
Intel® Optane™ Memory Ready
Two M.2 connectors for storage devices
Multi-GPU support with AMD CrossFireX™ Technology
Supports memory overclocking up to 4266 MHz and Intel® XMP 2.0
8-channel high-definition audio

INSIDE THE BOX

N7 Z590 Motherboard 1
SATA Cables (90 degree) 2
SATA Cables (180 degree) 2
Wireless Antenna 2
M.2 Screws 2
Manual 1

CPU

Intel® Socket LGA1200 for 10th and 11th Generation Processors:Intel® Core™ Processors. Please refer to CPU support list.
Turbo Boost Max 3.0 Technology:Supported

CHIPSET

Intel®:Z590

MEMORY

DIMM Slots:4, DDR4 only
Max Memory Support:128GB
Memory Architecture:Dual-Channel
OC Frequency (11th Gen CPUs):4600+ MHz
OC Frequency (10th Gen CPUs):4400+ MHz
Base Frequency (11th Gen CPUs):3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Base Frequency (10th Gen CPUs):2933 / 2800 / 2666 / 2400 / 2133 MHz
Type:Non-ECC, Un-buffered Memory
Intel® XMP 2.0 Support:Supported

INTEGRATED GRAPHICS

Intel® Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs):HDMI 2.0 / HDMI 1.4b
HDMI Max Resolution:4096x2160@60Hz

MULTI-GPU SUPPORT

AMD 2-Way CrossFireX™ Technology:Supported

EXPANSION SLOTS

PCIe x16 (x16 mode):1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0)
PCIe x16 (x4 mode):1
PCIe 3.0 x1:3

STORAGE (CHIPSET)

M.2 Type 2242/2260/2280 (PCIe x4 mode):1 (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0)
M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode):1
SATA 6Gb/s:4
RAID 0/1/5/10 Support:Supported
Intel® Smart Response Technology:Supported
Intel® Rapid Storage Technology:Supported
Intel® Optane Memory:Supported

LAN

Realtek®:RTL8125BG 2.5G

WIRELESS

Intel® Dual-Band Wireless:AX210 Wi-Fi 6E
Protocol:802.11 a/b/g/n/ac/ax
Frequency Bands:2.4 / 5 / 6 GHz
MU-MIMO Support:Supported
Bluetooth:V5.2

AUDIO

Realtek®:ALC1220 Codec
Channels:8-Channel High Definition Audio
Playback:32-bit / 192kHz DAC
Capacitors:Nichicon Fine Gold Series

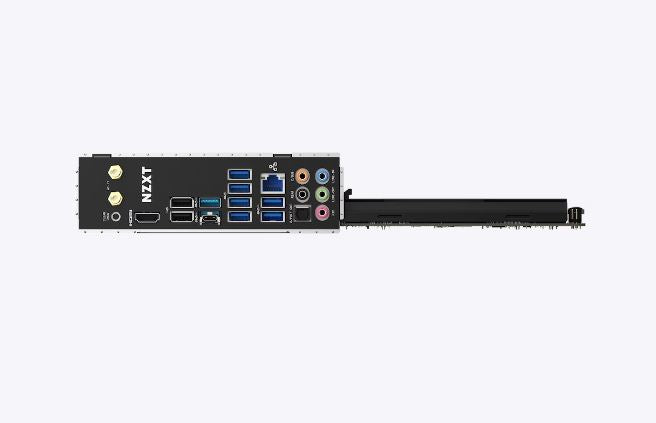

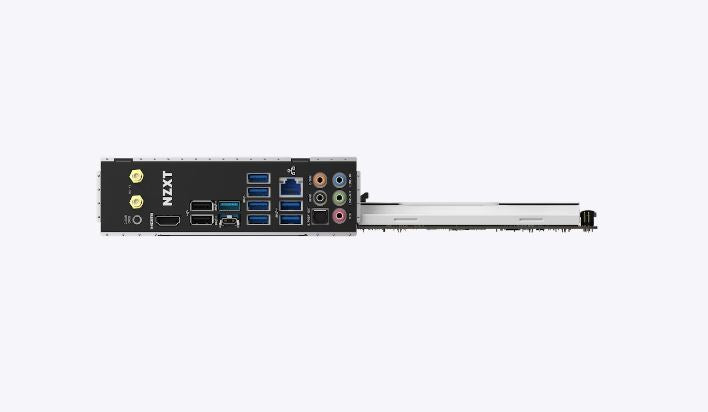

REAR I/O

USB 3.2 Gen 2x2 (Type-C):1
USB 3.2 Gen 2 (Type-A):3
USB 3.2 Gen 1 (Type-A):4
USB 2.0:2
HDMI™ 2.0:1
Wireless Antenna:2 (2T2R)
LAN (RJ45) Port:1
5.1-Channel Audio Jacks:1
Optical S/PDIF:1
Clear CMOS Button:1

INTERNAL I/O

M.2 (M Key), Type 2242/2260/2280:1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x4 & SATA mode)
M.2 (E Key) (For wireless cards):1
SATA 6Gbps Ports:4
USB 3.2 Gen 2 Header (Type-C):1
USB 3.2 Gen 1 Header:2 (Up to 4 ports)
USB 2.0 Header:3 (Up to 6 ports)
Front Panel Audio:1
CPU_FAN Connector:1 (Up to 24W)
AIO_PUMP Connector:1 (Up to 24W)
SYS_FAN Connector:5 (Up to 24W)
NZXT RGB LED Header:2
5V ARGB Header:1
12V RGB Header:1
24-pin EATX Power:1
8-pin ATX 12V Power:1
4-pin ATX 12V Power:1
Power Button:1
Reset Button:1
POST LEDs:4

GENERAL

Operating System:Windows® 10 64-bit
Form Factor:ATX
Warranty:3 years
Model Number:N7-Z59XT-W1 / N7-Z59XT-B1
UPC:815671015211 / 815671015228
EAN:5060301696666 / 5060301696673
