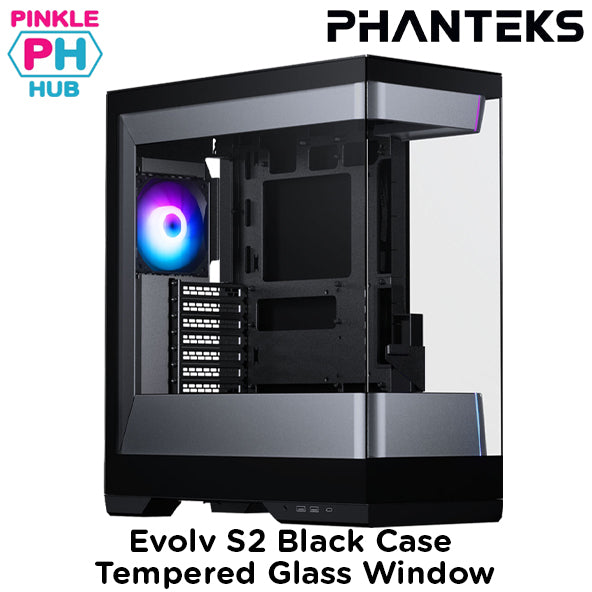

Phanteks Evolv S2 Black Case tempered glass window

Model Number

PH-ES524S2_DBK01

Colour

Silver Black

Product Dimension (D x W x H)

455 x 230 x 525 mm

Form Factor

Mid Tower

Mainboard Support

ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280mm wide)

Rear-Sided Mainboard Support

Yes, ATX

Integrated Fans Look

Yes

Cable Management Cover

Silkscreen on tempered glass

Integrated D-RGB Lightstrip

Yes

Materials

Steel Chassis, Tempered Glass, ABS plastic covers

Front IO

1x USB-C 3.2 Gen2x2 + 2x USB 3.0
Microphone/Headphone combo
Reset Button
Power Button

Connectors

Power Switch
Reset Switch
HD-audio
USB 3.0
USB-C Type-E

Weight

9.90 kg

What's Included

1x Evolv S2 chassis
1x M25-120 mm Regular D-RGB fan
3x M25-120 mm Reverse D-RGB fan
1x Storage Bracket (2x HDD / 2x SSD)
1x Accessory box with necessary screws

Expansion

PCI Slots

7

Internal 3.5" Bay

2 (1x if 2x SSD installed)

Internal 2.5" Bay

2 (0x if 2x HDD installed)

Vertical GPU Support

Yes, with optional bracket: PH-VGPUKT4.0_03R or PH-PGPUKT4.0_01

Fans & Radiators

Top Fan

3 x 120 mm

Bottom Fan

3 x 120 mm (3x included)

Rear Fan

1 x 120 mm (1x included)

Top Radiator

Up to 360

Clearances

GPU Length

395 mm

GPU Width

175 mm

CPU Cooler Height

175 mm

Power Supply

210 mm

Top 360 Radiator

410 x 125 x 55 mm
