Phanteks NV9 Mark II DRGB White
Phanteks NV9 Mark II DRGB White
Brand : Phanteks
SKU: SKU: PH-NV923TG_DMW02
Low stock: 2 left
Couldn't load pickup availability
NV9
A True Showcase of Performance
The Phanteks NV9 is a full-tower chassis, featuring a stunning near-seamless glass view and support for twelve 140 mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the mainboard at its center. Combined with a strong and defining outer frame, it captures and accentuates the hardware components.
With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
A Showcase of Performance
-
Near-seamless glass panels.
-
The mainboard as a centerpiece of your build.
-
Build to last from thick reinforced steel.
Performance without Compromise
-
Up to eleven 140mm fans all around the system with a strong outer frame.
-
Extensive cooling support for triple 420+280 radiators simultaneously for high end cooling performance.
-
Direct and dedicated GPU cooling from the bottom.
-
Immense bottom airflow intake with 65mm clearance.
-
Ultra-Fine Performance mesh on all external panels.
Clean Exterior From All Sides
-
The clean rear door and moveable front IO module allows for multiple placement options.
-
Rear door swings open to provide easy access.
-
Unique cable management system for external cables.
-
Go for a zero-cable setup using the hidden cable exit grommet.
-
Cover doors and velcro cable combs easily hide and manage the internal cables.
Unique Interior Features
-
Versatile GPU support bracket prevents sag and securely holds the GPU to the motherboard.
-
Removable side and bottom fan bracket for easy installation.
-
Bottom bracket can be reversed for angled or horizontal position.
-
Included airflow covers to prevent uneven air circulation.
New Generation D-RGB Controller
-
Built-in Digital-RGB Controller.
-

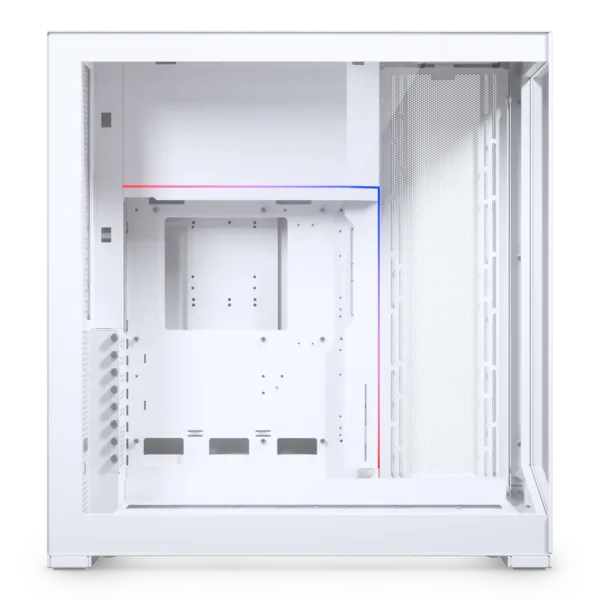

Integrated D-RGB lighting around the motherboard.
-
Dual channel output to allow for dual color effects.
-
A total of 4 output ports and dual Sata power expands the possibilities.
-
Refined D-RGB lighting effects that just work, no software required.
-
Expand with more Digital-RGB lighting.
-
Optionally sync with motherboard and software.
Multiple storage options
-
Support for 6x 2.5″ SSD.
-
Support 3x 3.5″ HDDs.
Specifications
General
Model No.
PH-NV923TG_DMW01
UPC Code
886523303084
Case Dimensions
575 x 280 x 615 mm | 22.63 x 11.02 x 24.21 in
Form Factor
Full Tower
Mainboard Support
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280mm wide
Materials
Steel chassis | Tempered glass
Side Window
Yes
PCI Slots
8
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
6
Internal 3.5″ Bay
3
+ 2x 2.5″ SSD
Max. 24mm HDD height when SSDs installed.
Front I/O
1x USB 3.2 USB-C Gen2
2x USB 3.0
Microphone | Headphone Combo
Power Button
D-RGB Mode Button
D-RGB Color Button
D-RGB Speed Button
D-RGB Channel Button
Fans 120 | 140
Total Fans
12x | 11x
Top
3x | 3x
Front
– | –
Side
4x | 3x
Rear
2x | 2x
Bottom
3x | 3x
Radiators 120 | 140
Top
Max. 360 | 420
Front
– | –
Side
Max. 480 | 420
Rear
Max. 240 | 280
Bottom
Max. 360 | 420
Clearance
CPU Cooler
Height
205 mm | 8.07 in
GPU
Length
490 mm | 19.29 in
GPU
Width
205 mm | 8.07 in
Power Supply
Length
210 mm | 8.26 in
Top Radiator
Length x Width
515 x 154 mm | 20.27 x 6.06 in
Front Radiator
Length x Width
– | –
Side Radiator
Length x Width
525 x 154 mm | 20.66 x 6.06 in
Rear Radiator
Length x Width
325 x 154 mm | 12.79 x 6.06 in
Extra
Net Weight
19.52 kg | 43.03 lbs
Gross Weight
23.00 kg | 50.70 lbs
Warranty
5 Years limited
Scope of Delivery
1x NV9 chassis
Accessory Box
2x Airflow covers
1x Microfiber cloth
6x Zip ties
1x GPU support bracket
Screws
34x Mainboard | SSD screws
4x Power supply screws
4x Thumb screws
9x HDD screws
1x Motherboard stand-off
1x Stand-off removal tool
1x Extra R-side panel screw
