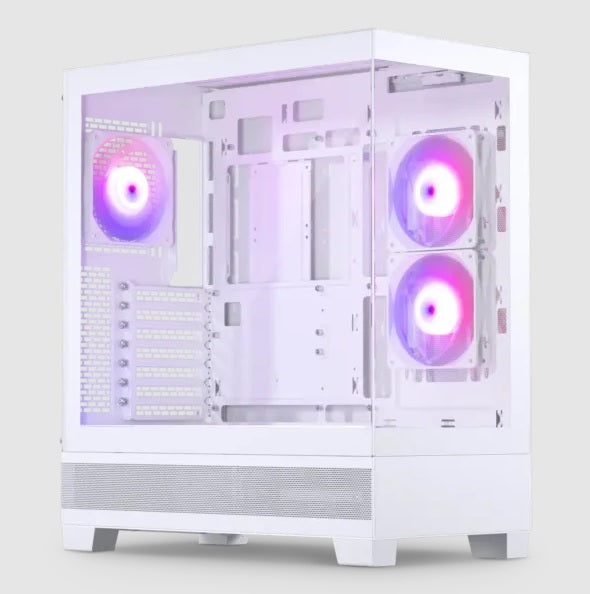

PHANTEKS XT View White 120mm DRGB Fan x3 - 886523303183
PHANTEKS XT View White 120mm DRGB Fan x3 - 886523303183
Brand : Phanteks
SKU: SKU: PH-XT523V1_DWT01
Low stock: 5 left
Couldn't load pickup availability

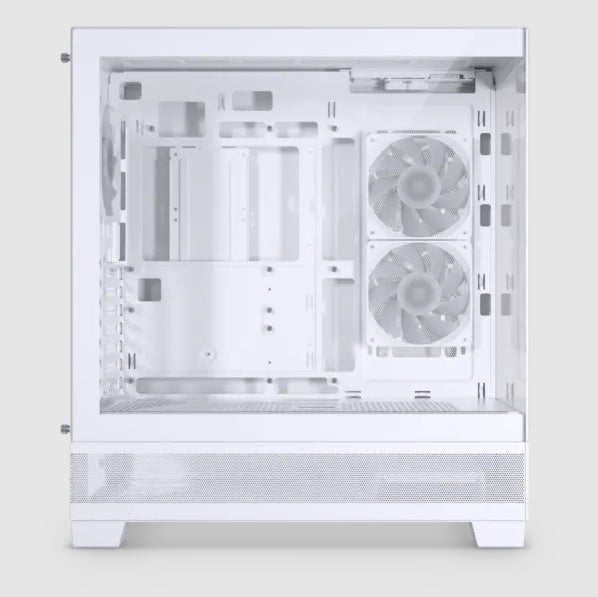

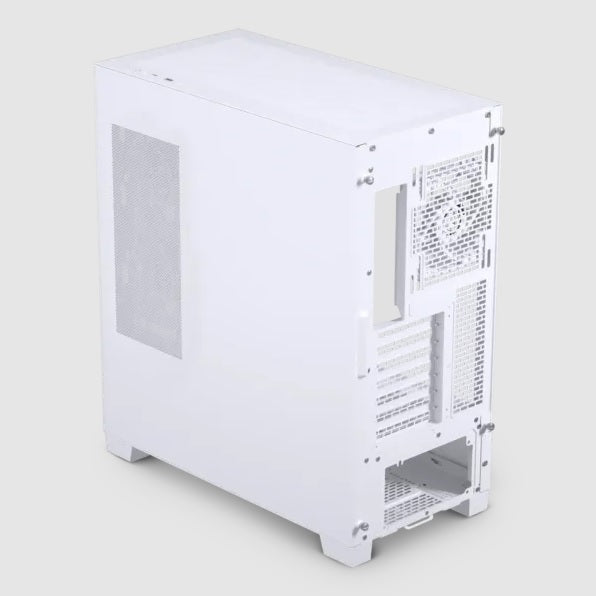

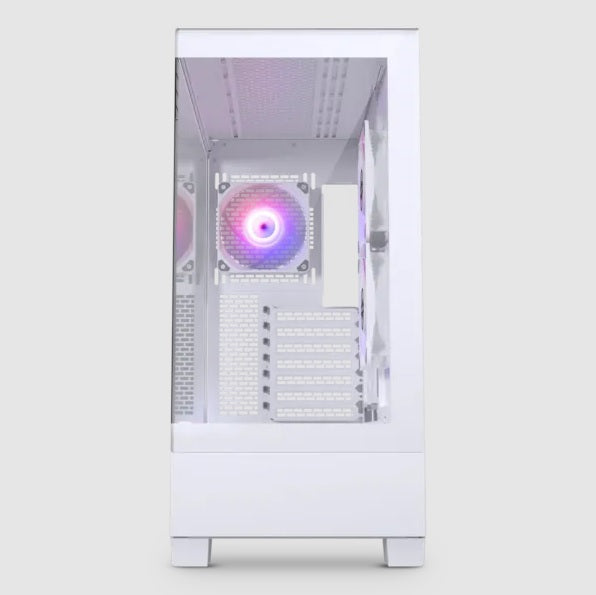

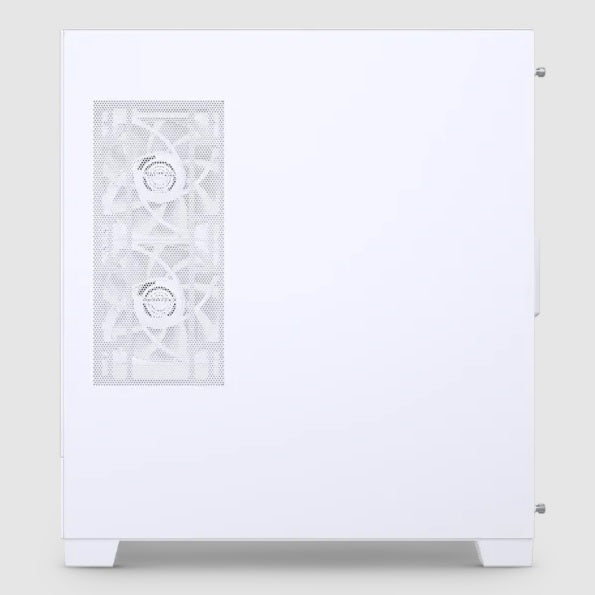

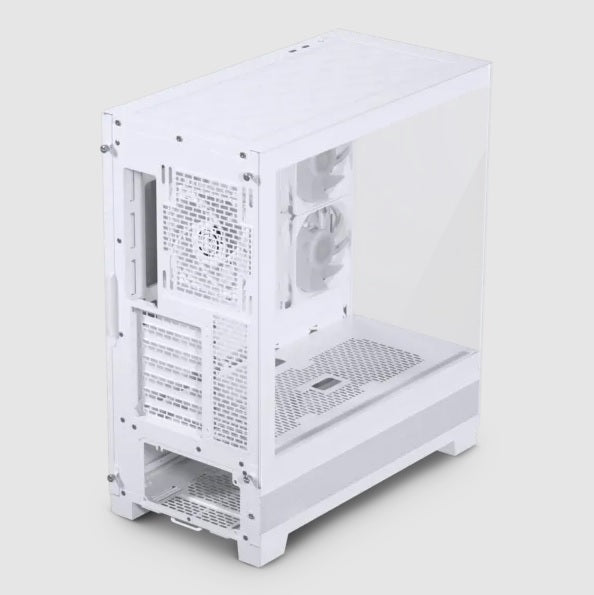

XT View
XTreme space, Cooling & Value
With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.
The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provides direct cooling.
Specifications
General
Model No.
PH-XT523V1_DWT01
UPC Code
886523303183
Case Dimensions
440 x 230 x 500 mm | 17.7×9.05×19.68 in
Form Factor
Mid-Tower
Mainboard Support
E-ATX* | ATX | Micro-ATX | Mini-ITX
*Up to 280mm wide
Materials
Steel chassis | Tempered glass | ABS plastic
Side Window
Yes
PCI Slots
7
Vertical GPU Support
3-slots
Riser Cable sold separately
Internal 2.5″ Bay
5
+ 1x 3.5″ HDD
Internal 3.5″ Bay
2
+ 3x 2.5″ SSD
Front I/O
1x USB-C 3.2 Gen2
1x USB 3.0
Microphone | Headphone combo
Power button
Reset button
D-RGB mode button
D-RGB color button
Fans
Total Fans
120 mm | 140 mm
10x | 6x
Top
3x | 2x
Front
3x | 3x
Side
– | –
Rear
1x | 1x
Midplate
3x | –
Radiators
Top
Max. 360 | –
Front
– | –
Side
Max. 240* | –
*Only with vertical GPU bracket
Rear
120 | –
Midplate
– | –
Clearance
CPU Cooler
Height
184 mm | 7.24 in
GPU
Length
415 mm | 16.33 in
GPU
Width
184 mm | 7.24 in
Power Supply
Length
270 mm | 10.62 in
Top Radiator
Length x Width x Height
415 x 138 x 60 mm | 16.33 x 5.43 x 2.36 in
Front Radiator
Length x Width
–
Side Radiator
Length x Width
305 x 120 x 62 mm | 12.00 x 4.72 x 2.44 in
*Only with vertical GPU bracket
Midplate Radiator
Length x Width
–
Extra
Scope of Delivery
1x XT View chassis
3x M25-120 D-RGB fans
Accessory
30x Zip ties
Screws
30x Mainboard | SSD screws
4x Power supply screws
8x HDD screws
4x Thumb screws
12x 30mm Fan Screw
1x Motherboard stand-off
1x Stand-off removal tool
