PinkleHub | NZXT C1000 Gold ATX 3.1 Black - 1000 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU - Black/White

PinkleHub | NZXT C1000 Gold ATX 3.1 Black - 1000 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU - Black/White

Brand : NZXT

SKU:  PA-0G2BB-US

₱10,500.00
₱12,250.00 ₱10,500.00
Sale! Sold out
Taxes included.

Low stock: 5 left

Color: Black

Overview

Details

Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.

  • Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
  • Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.

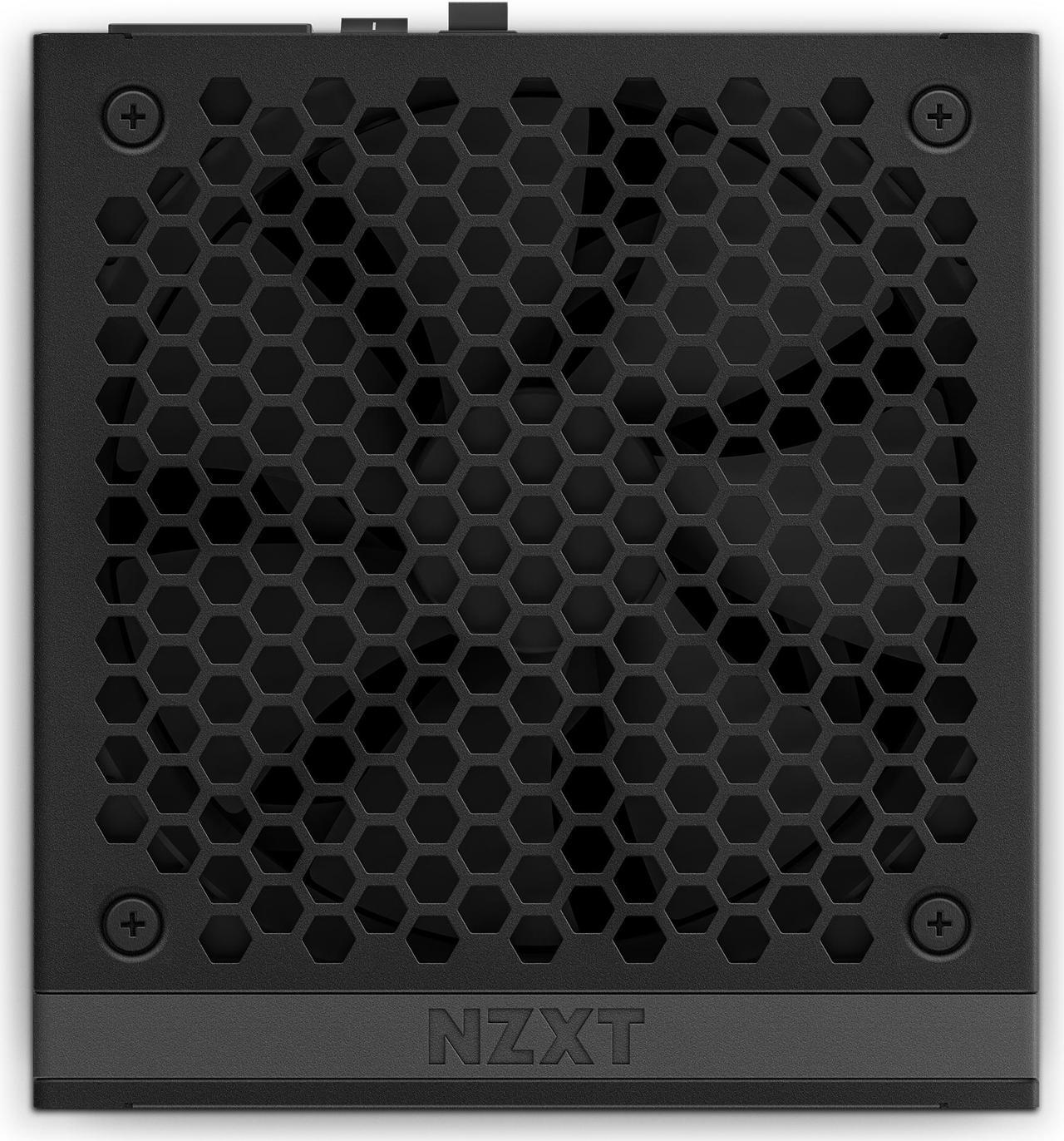

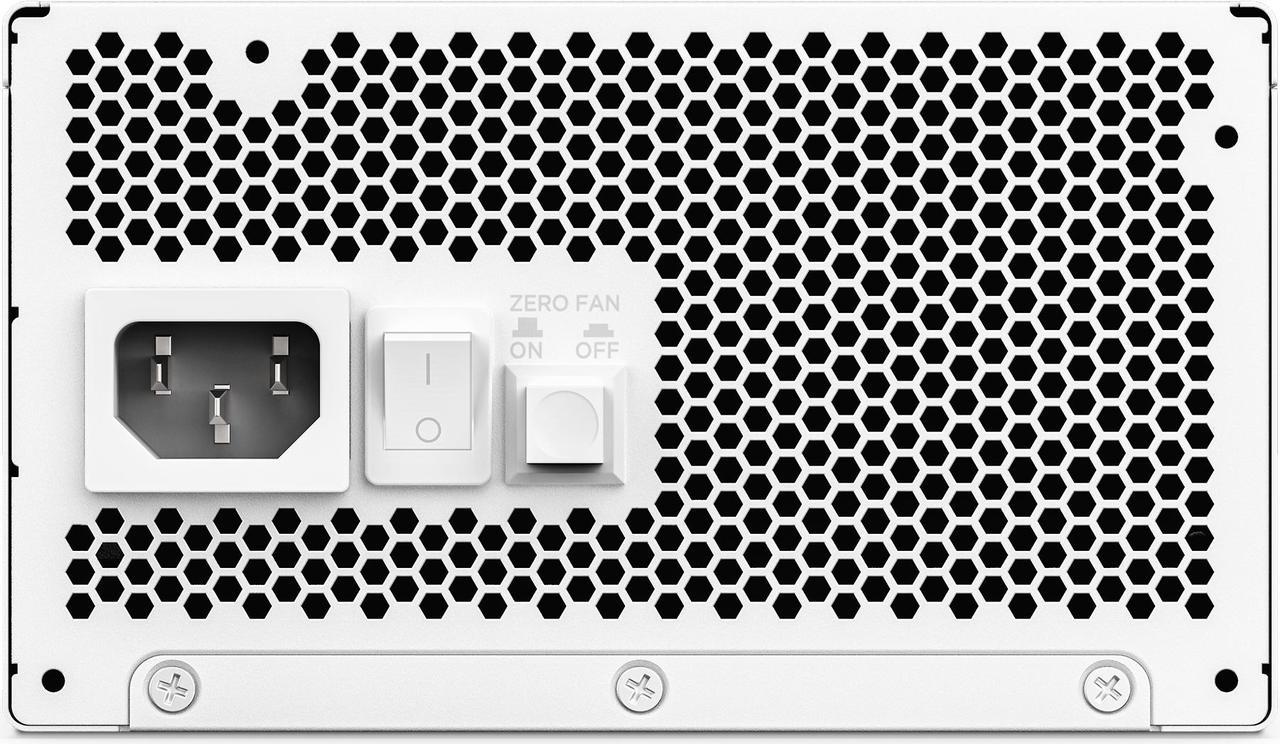

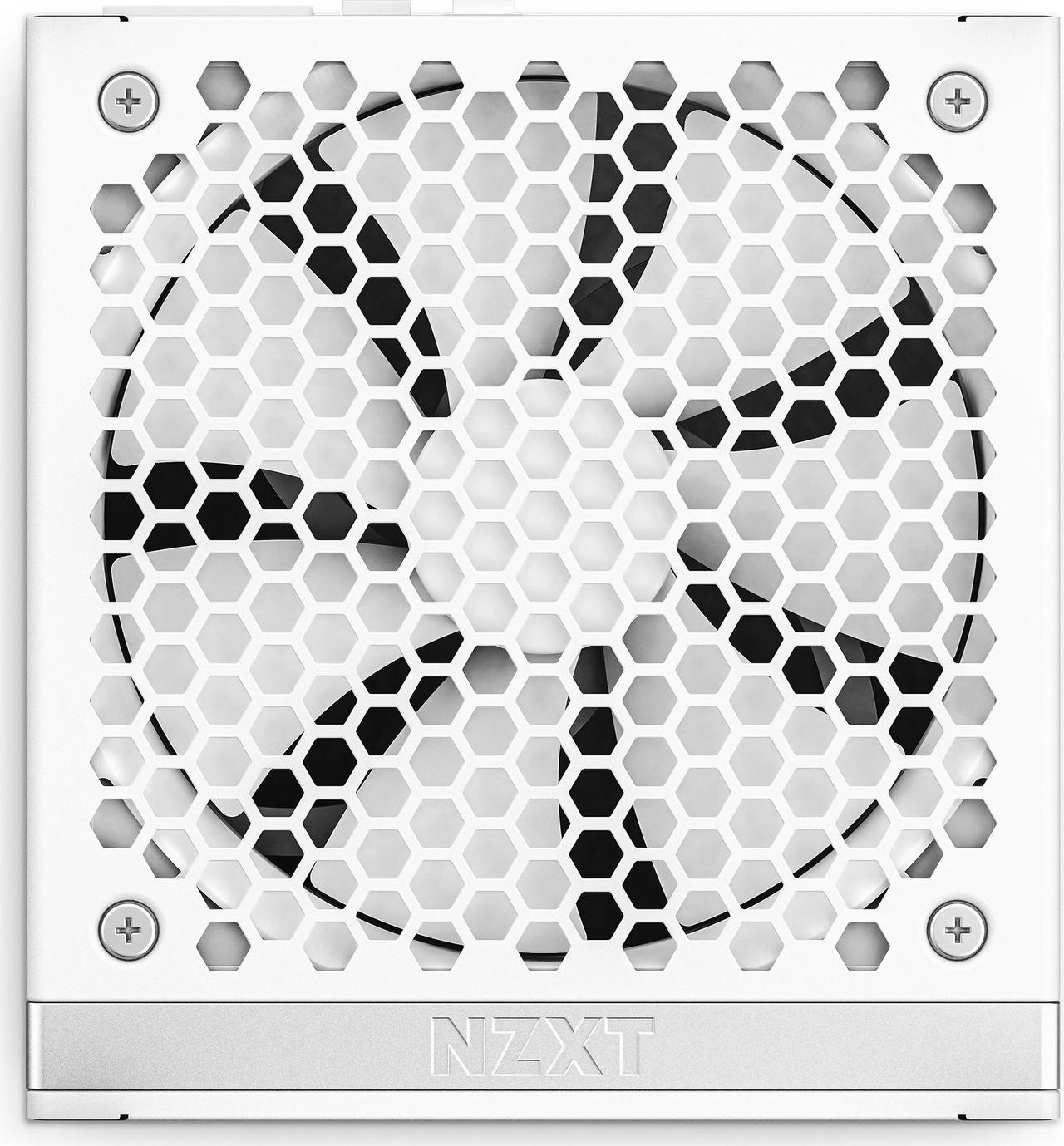

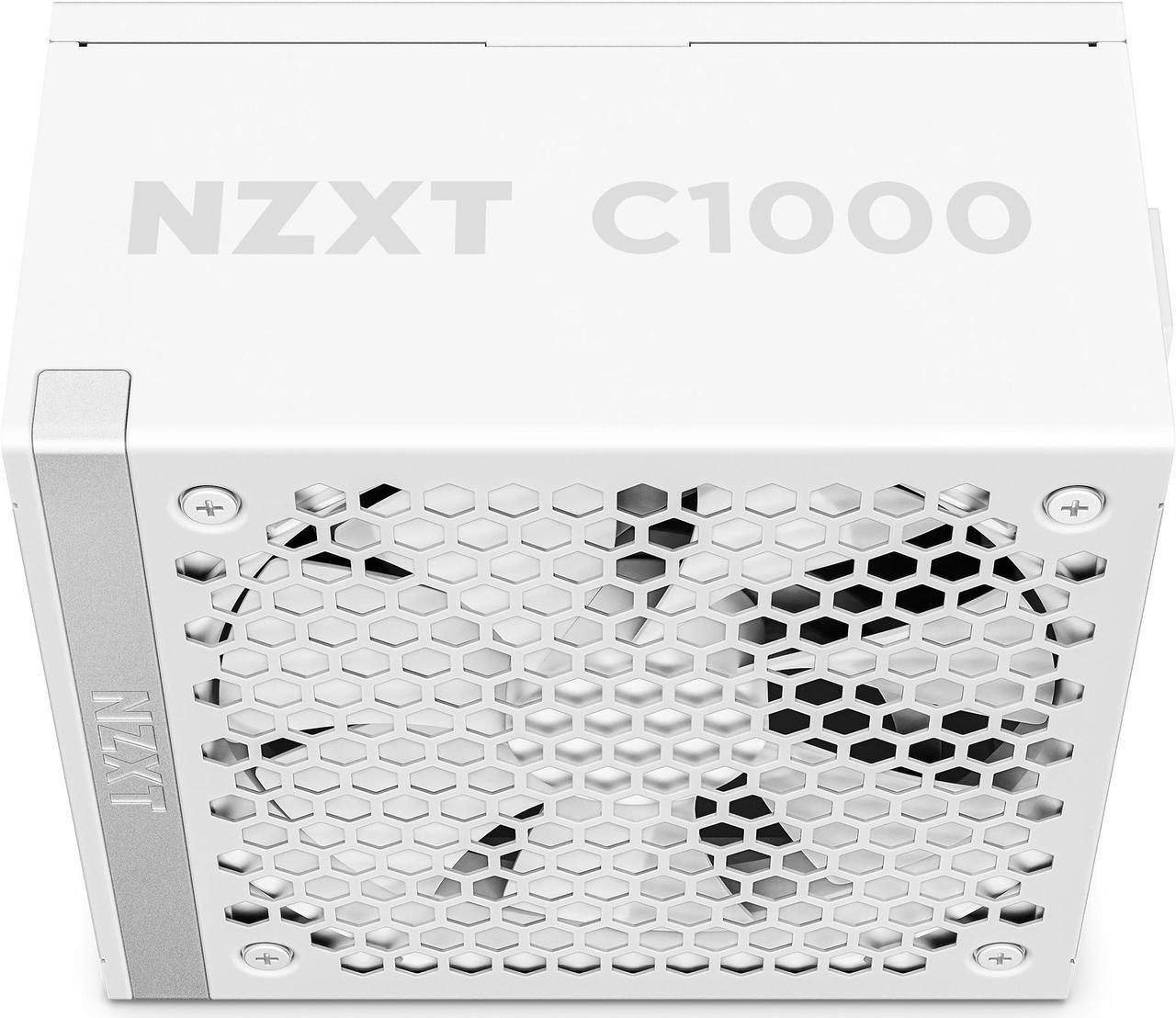

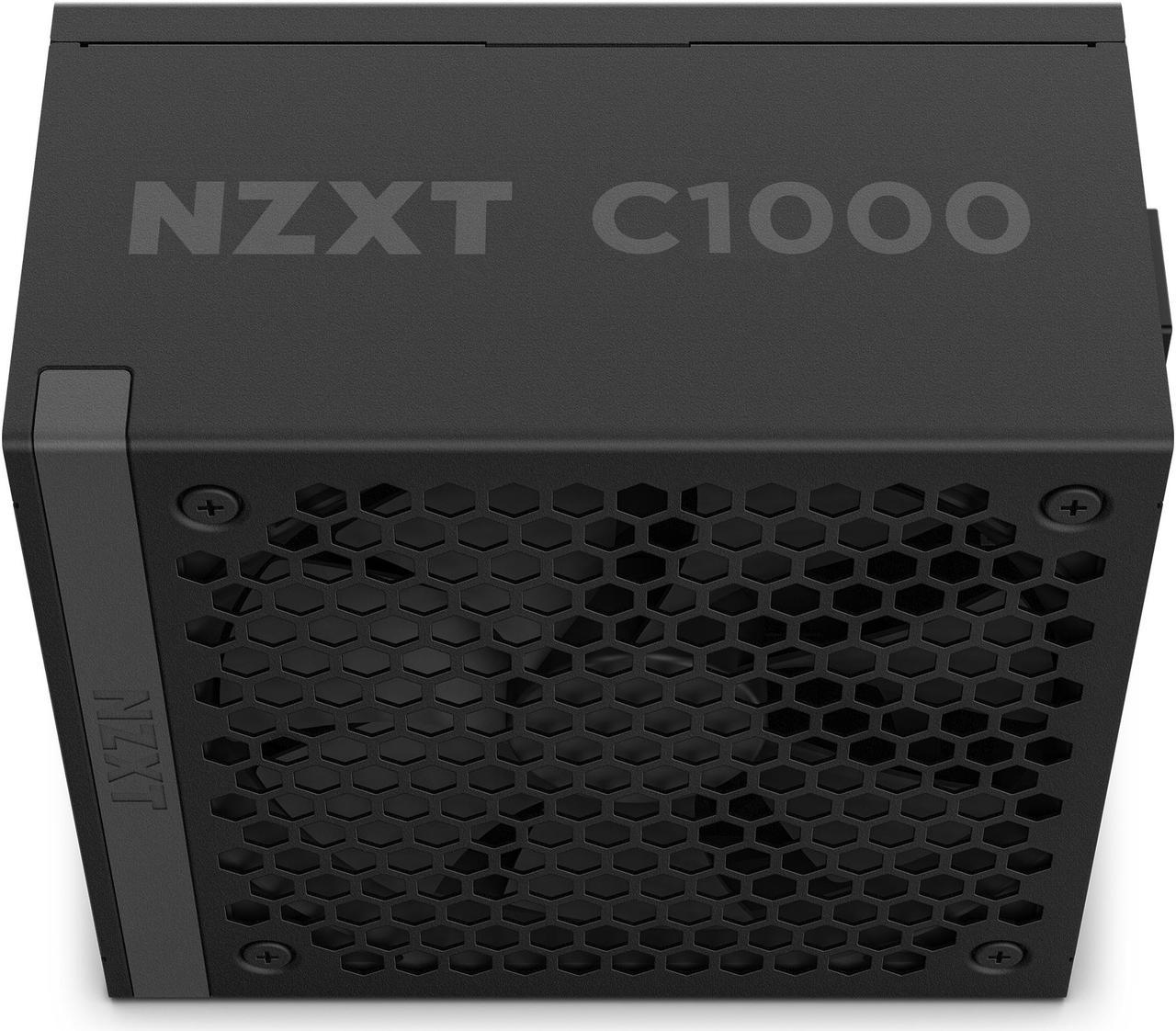

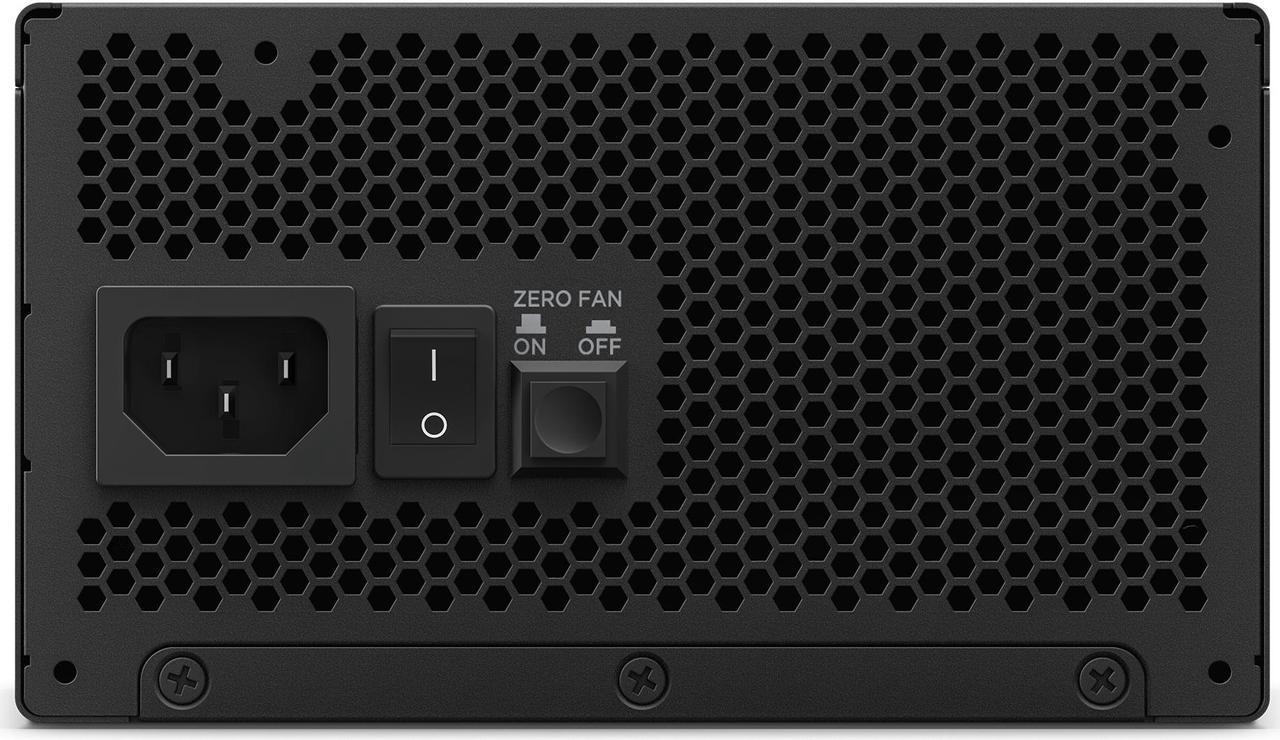

  • 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
  • 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.

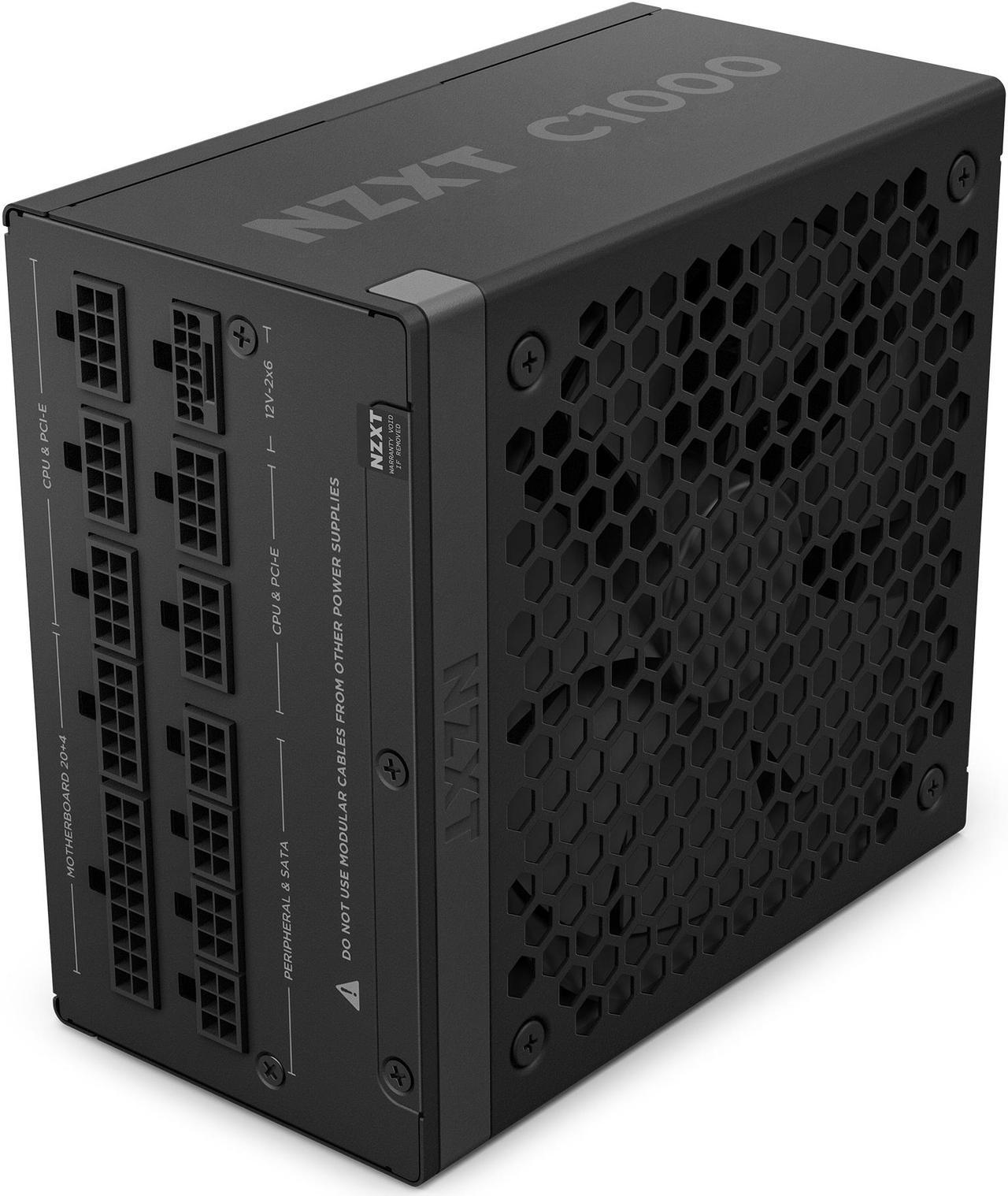

  • Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.

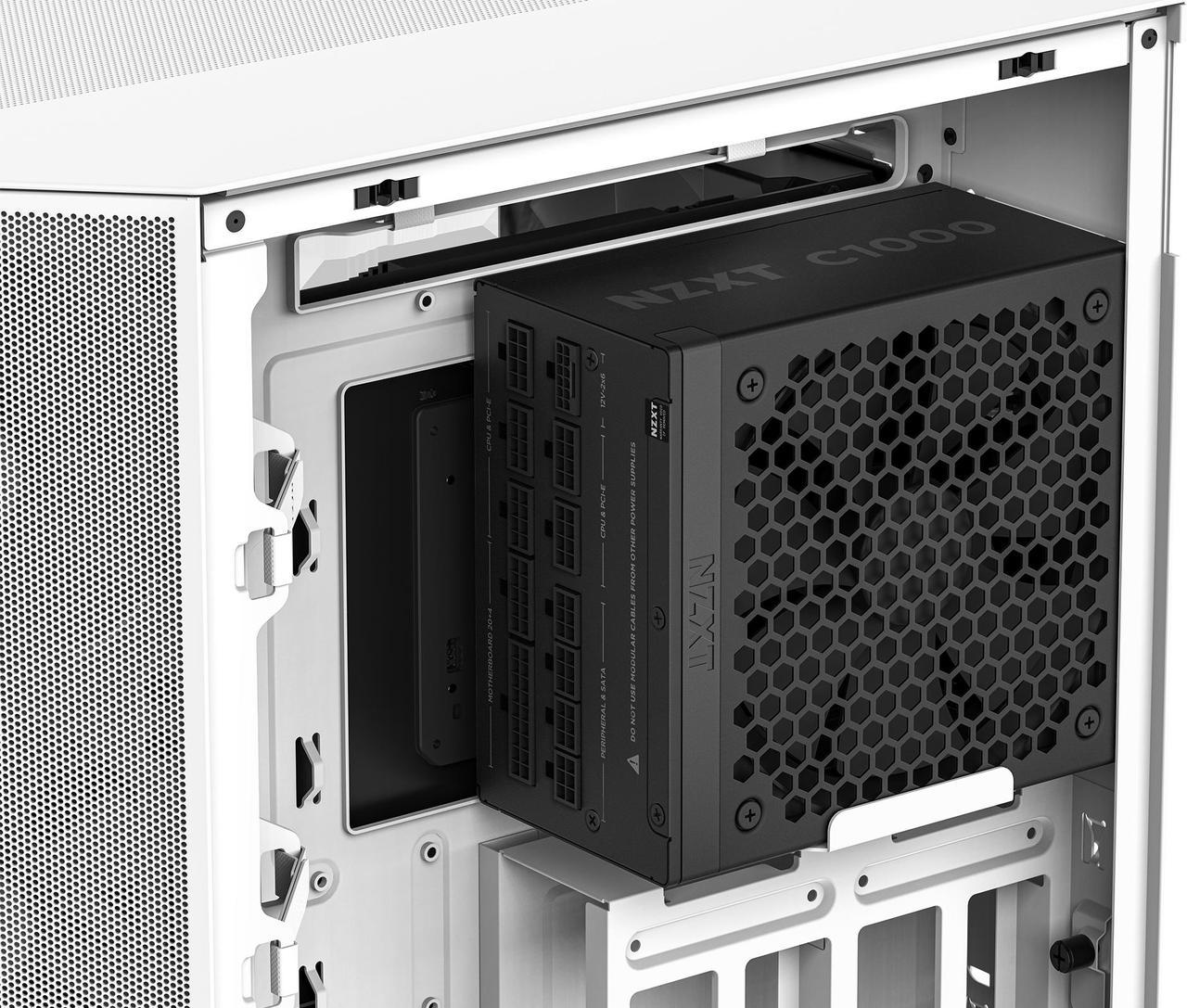

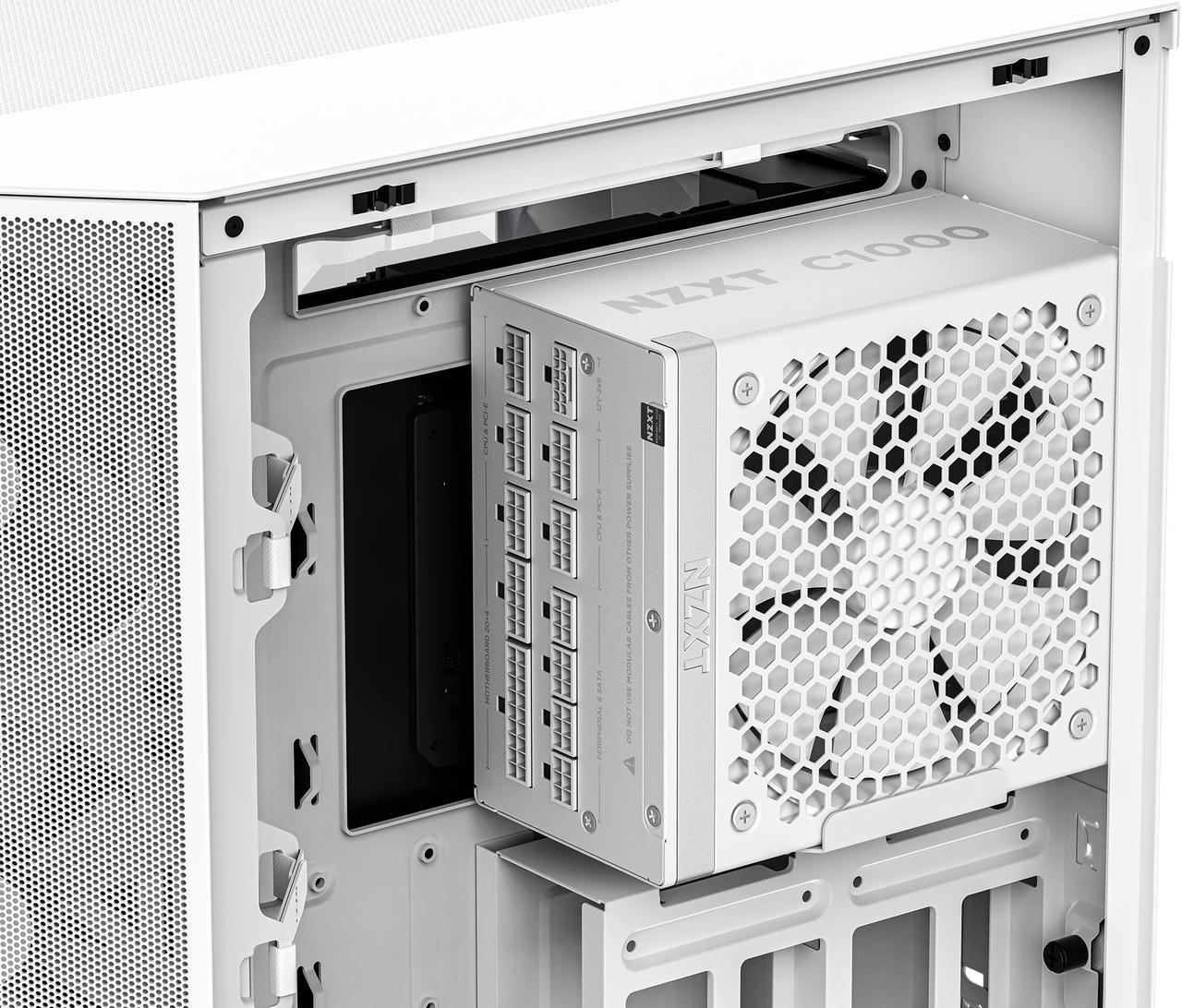

  • Compact form factor frees up valuable room for cable management and more case airflow.
  • Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.

Inside the Box

  • C1000 Gold1

  • 24-pin ATX Power Cable1

  • 4+4-pin CPU Power Cable1

  • 8-pin CPU Power Cable1

  • 6+2-pin PCIe Power Cable3

  • 16-pin (12+4) 12V-2x6 PCIe Cable1

  • SATA Cable3

  • Peripherals Cable1

  • 6-32 Screws4

  • AC Power Cord1

Tech Specs

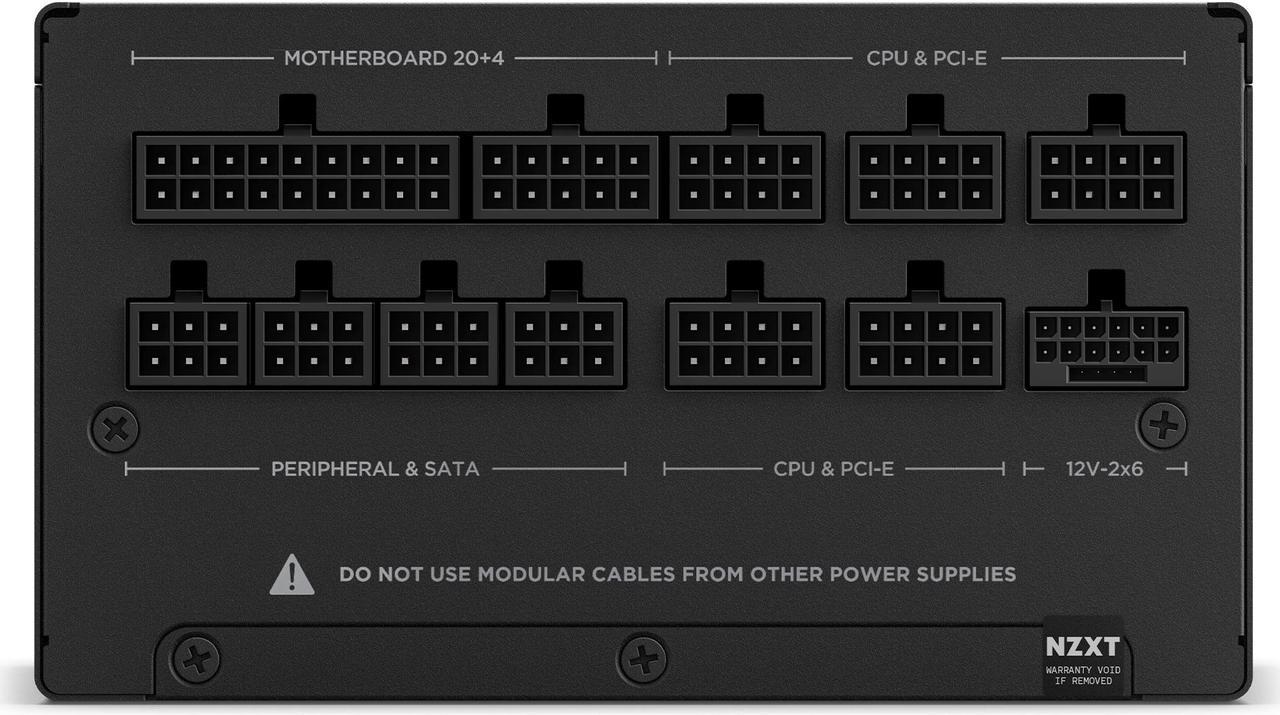

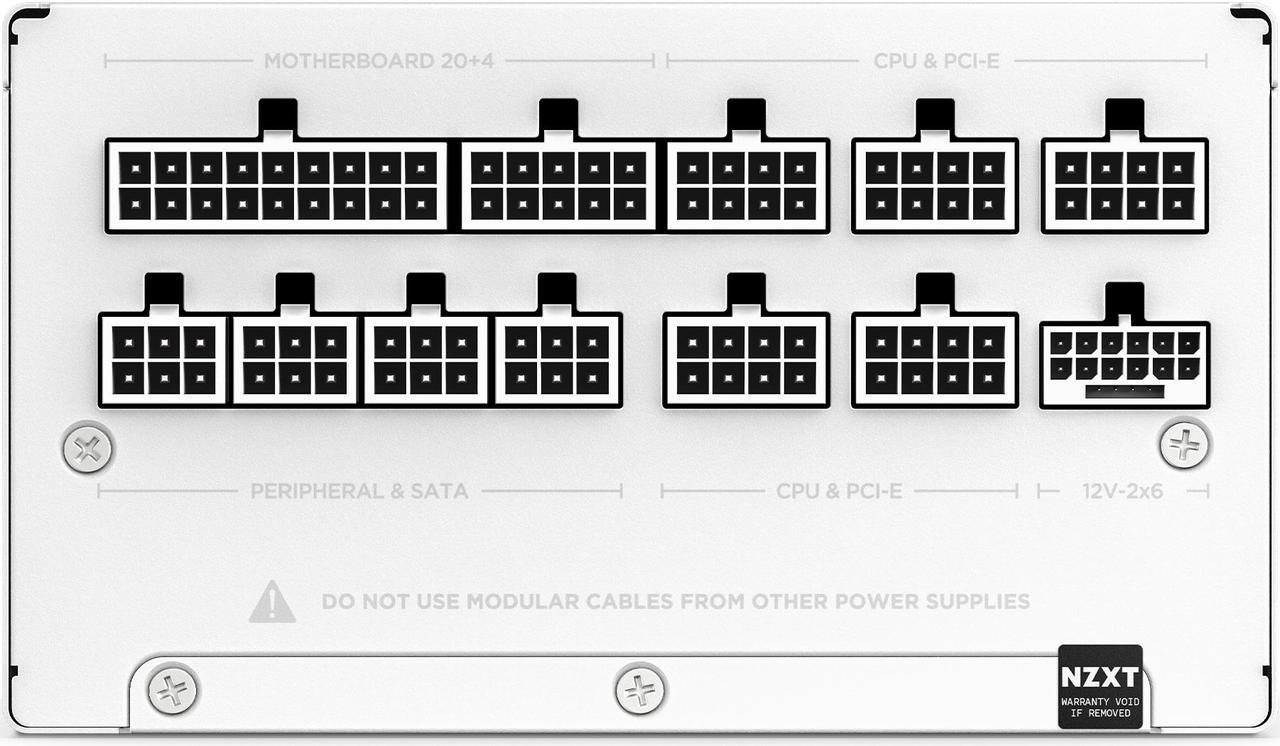

Output Connectors

  • 24-pin ATX Power Cable:1

  • 4+4-pin CPU Power Cable:1

  • 8-pin CPU Power Cable:1

  • 6+2-pin PCIe Power Cable:3

  • 16-pin (12+4) 12V-2x6 PCIe Cable:1

  • SATA Cable:12

  • Peripherals Cable:4

Cable Specs

  • 24-pin ATX Power Cable:600mm with nylon sleeving

  • 4+4-pin CPU Power Cable:700mm with nylon sleeving

  • 8-pin CPU Power Cable:700mm with nylon sleeving

  • 6+2-pin PCIe Power Cable:650mm with nylon sleeving

  • 16-pin (12+4) 12V-2x6 PCIe Cable:650mm with nylon sleeving

  • SATA Cable:500 + 150mm

  • Peripherals Cable:500 + 150mm

AC Input Rating

  • 100 - 240Vac:13A 50Hz-60Hz

  • 200 - 240Vac:6.5A 50Hz-60Hz (China & South Korea)

DC Output Rating

  • 3.3V / +5V:22A (120W)

  • 12V:83.3A (1000W)

  • 5Vsb:3A (15W)

  • Total:1000W

Energy Efficiency

  • Rating:80 Plus Gold

  • 10% loading:85.5% @115Vac

  • 20% loading:89.7% @115Vac

  • 50% loading:91.9% @115Vac

  • 100% loading:89.3% @115Vac

Electrical Features

  • PF Correction:Active @0.99

  • Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /

Fan Specs

  • Dimensions:135 x 135 x 25 mm

  • Speed:2300 ± 10% RPM

  • Airflow:93.02 CFM (Min.)

  • Noise:44.5 dBA max

  • Bearing:Fluid Dynamic Bearing (FDB)

Operation

  • MTBF:100,000 hours

  • Temperature:0 - 50 °C

Dimensions

  • Width:150 mm

  • Height:86 mm

  • Depth:160 mm

General

  • Material(s):Steel, PCB and Plastic

  • Compliance Standard:ATX12V v3.1 / EPS12V v2.92

  • Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

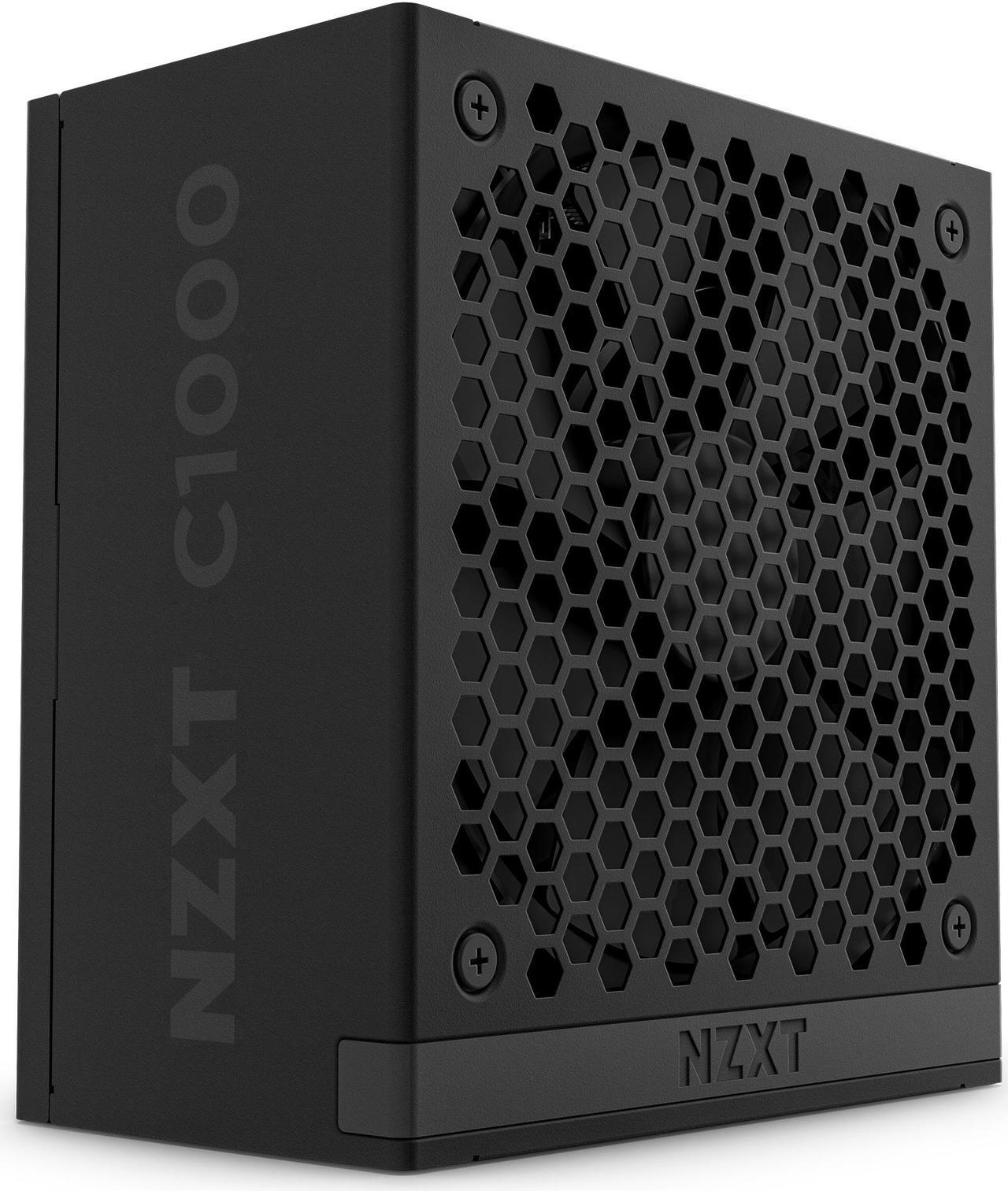

  • Model Number (Black): PA-0G2BB-US

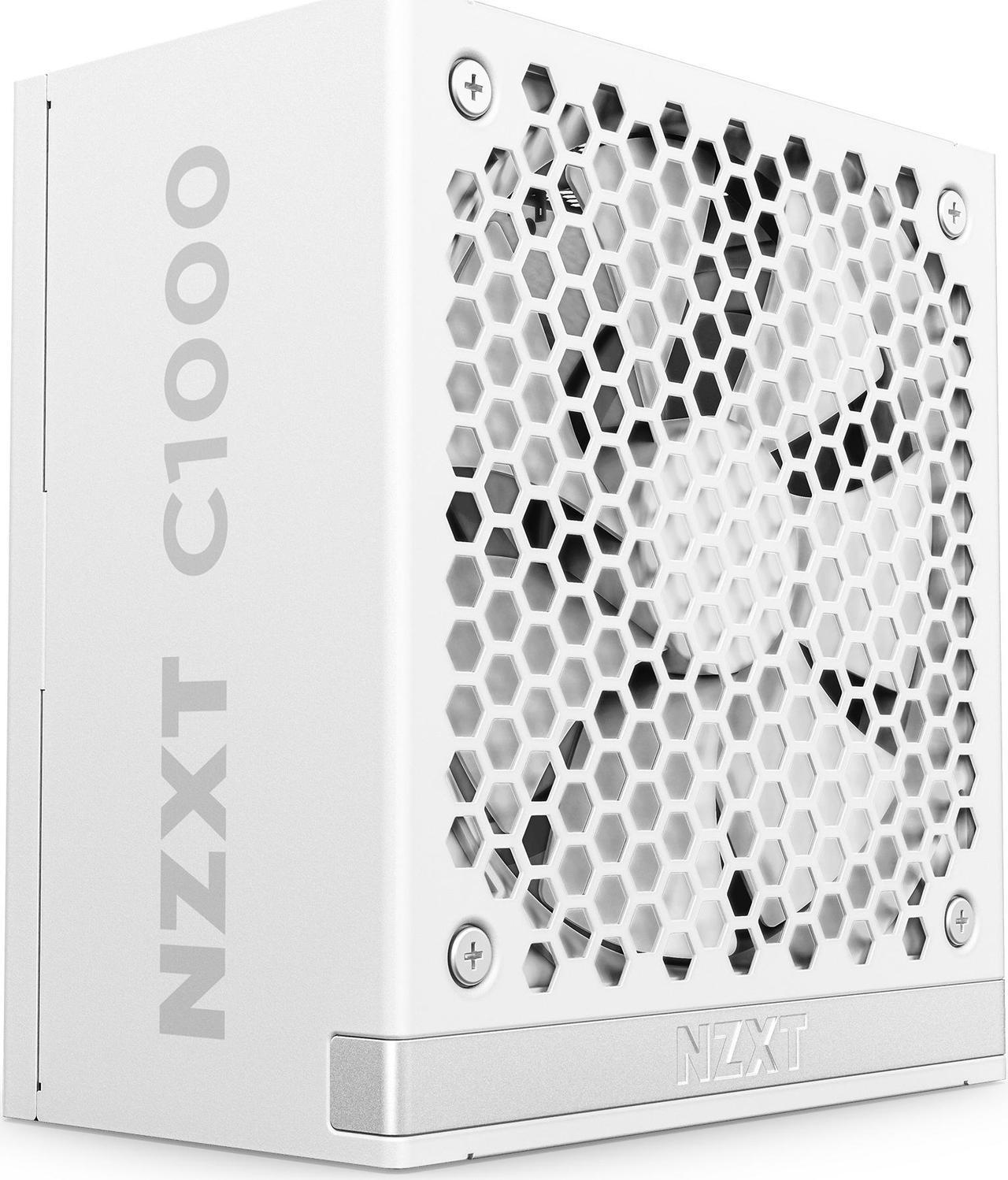

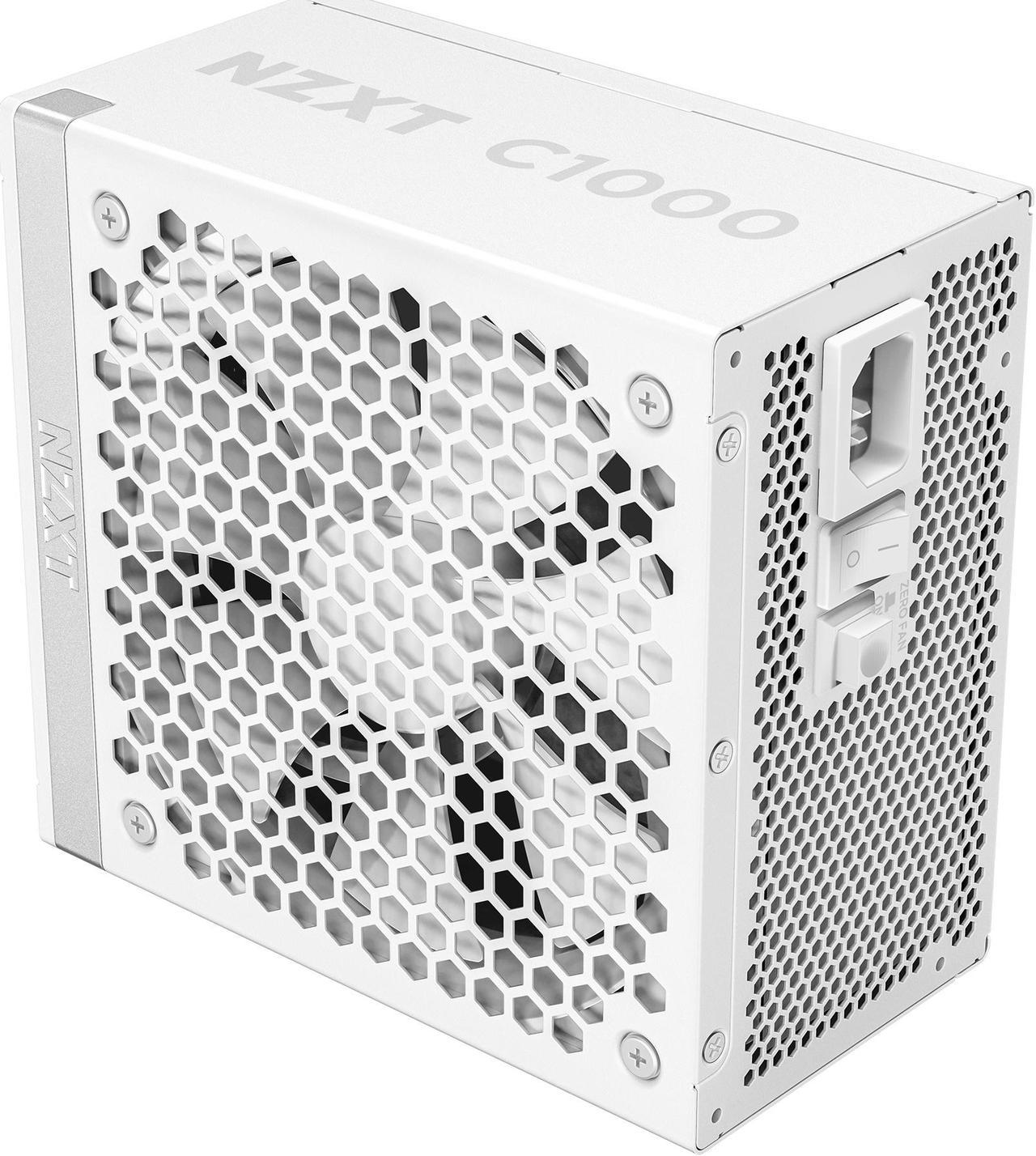

  • Model Number (White): PA-0G2BW-US

  • EAN (Black): 5056547204703 (US)

  • EAN (White): 5056547206332 (US)

  • UPC (Black): 810074844772 (US)

  • UPC (White): 810074846394 (US)
