PinkleHub | NZXT C750 Gold - 750W 80 Plus Gold | Full -Modular ATX PSU

PinkleHub | NZXT C750 Gold - 750W 80 Plus Gold | Full -Modular ATX PSU

Brand : NZXT

SKU:  PA-7G1BB-US

₱7,200.00
₱8,400.00 ₱7,200.00
Sale! Sold out
Taxes included.

Low stock: 5 left

Overview

Details

This PSU delivers 750 watts of clean, stable power which is plenty for most gaming needs while providing headroom for future upgrades and is an ideal wattage to start overclocking.

  • Modular design lets builders use only the cables they need
  • The sleeved main cables resist heat damage as well as fraying

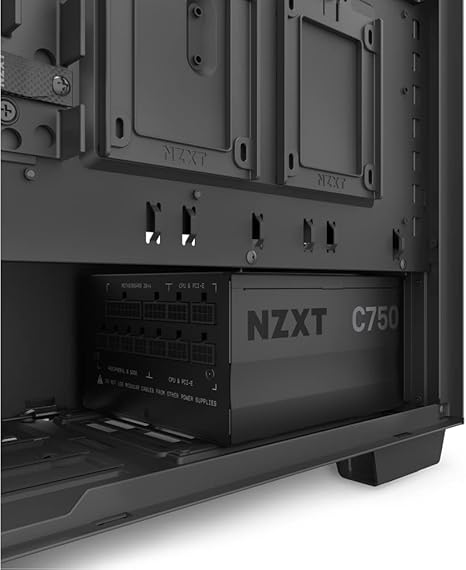

  • Fits any case conforming to the ATX standard
  • Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6800 XT
  • Zero RPM Fan mode silences the fan under low-load conditions
  • Dynamic 135mm fluid-dynamic bearing fan
  • 10-year warranty

Inside the Box

  • C750 Power Supply      1

  • 24-Pin ATX Power Cable   1

  • 4+4-Pin CPU Power Cables  2

  • 6+2-pin PCIe Power Cable   3

  • SATA Cables    2

  • Peripherals Cables   2

  • 6-32 Screws   4

  • AC Power Cord   1



Tech Specs

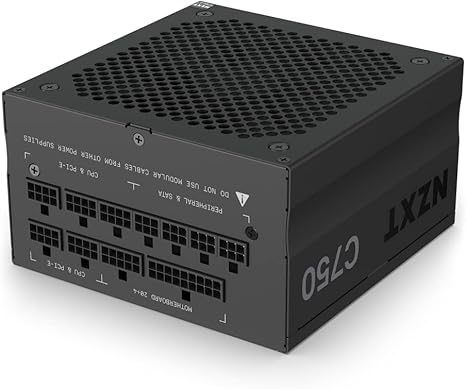

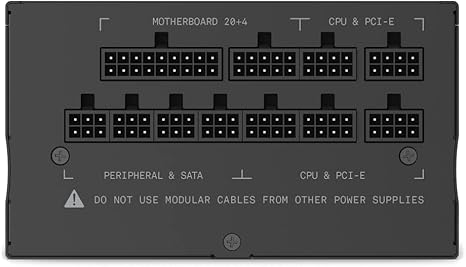

Output Connectors

  • 24-pin ATX power:1

  • 4+4-pin CPU power:2

  • 6+2-pin PCIe power:6

  • SATA power:6

  • Peripherals:6

Cable Specs

  • 24-pin ATX power:600 mm, Nylon sleeving

  • 4+4-pin CPU power:700 mm, Nylon sleeving

  • 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving

  • SATA power:500 + 150 mm

  • Peripherals:500 + 150 mm

AC Input Rating

  • 100 - 240Vac:10A-5A 50Hz-60Hz

DC Output Rating

  • +3.3V and +5V:22A (120W)

  • +12V:62.5A (750W)

  • -12V:0.3A (3.6W)

  • 5Vsb:3A (15W)

  • Total:750W

Operation

  • PF Correction:Active @0.96

  • MTBF:100,000 hours

  • Temperature:0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

Energy Efficiency

  • Rating:80 Plus Gold

  • 20% loading:89.20% @115Vac

  • 50% loading:90.80% @115Vac

  • 100% loading:87.73% @115Vac

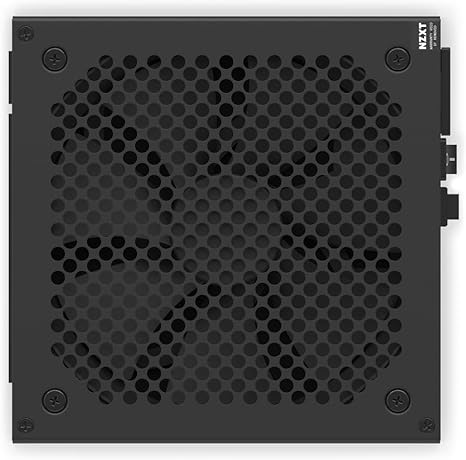

Fan Specs

  • Dimensions:135 x 135 x 25 mm

  • Speed:0-2300 ± 10% RPM

  • Airflow:93.02 CFM (Tpy.)

  • Noise:44.5 dBA max

  • Bearing:Fluid Dynamic Bearing (FDB)

General

  • Dimensions:150 x 150 x 86 mm

  • Material(s):Steel, PCB and plastic

  • Compliance Standard:ATX12V v2.52 / EPS12V v2.92

  • Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

  • Warranty:10 years

  • Model Number:PA-7G1BB

UPC

  • UPC (TW):815671017253

  • UPC (CN):815671017185

  • UPC (AR):815671017192

  • UPC (US):815671017208

  • UPC (EU):815671017215

  • UPC (UK):815671017222

  • UPC (AU):815671017239

  • UPC (JP):815671017246

  • UPC (WO):815671017277

  • UPC (IN):815671017260

EAN

  • EAN (TW):5060301697564

  • EAN (CN):5060301697496

  • EAN (AR):5060301697502

  • EAN (US):5060301697519

  • EAN (EU):5060301697526

  • EAN (UK):5060301697533

  • EAN (AU):5060301697540

  • EAN (JP):5060301697557

  • EAN (WO):5060301697588

  • EAN (IN):5060301697571

View full details
