Frequency Bands

LTE: B1/B3/B5/B7/B8/B28/B38/B40/B41

UMTS: Band 1, 5, 8

Bandwidth

LTE Band: 1.4/3/5/10/15/20 MHz, comply with 3GPP

Modulation

Downlink: QPSK/16-QAM/64-QAM, comply with 3GPP

Uplink: QPSK/16-QAM, comply with 3GPP

Antenna

2x 5dBi LTE detachable external antenna

Wi-Fi

Frequency: 2.4GHz

Protocol: 802.11b/g/n, 20/40MHz

Channel: 1 ~ 11

Antenna: Internal, 2 x 2

Data Rate

4G:

3GPP Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps

3G:

3GPP Downlink/Uplink up to 42Mbps/5.76Mbps

3GPP2 Downlink/Uplink up to 3.1Mbps/1.8Mbps

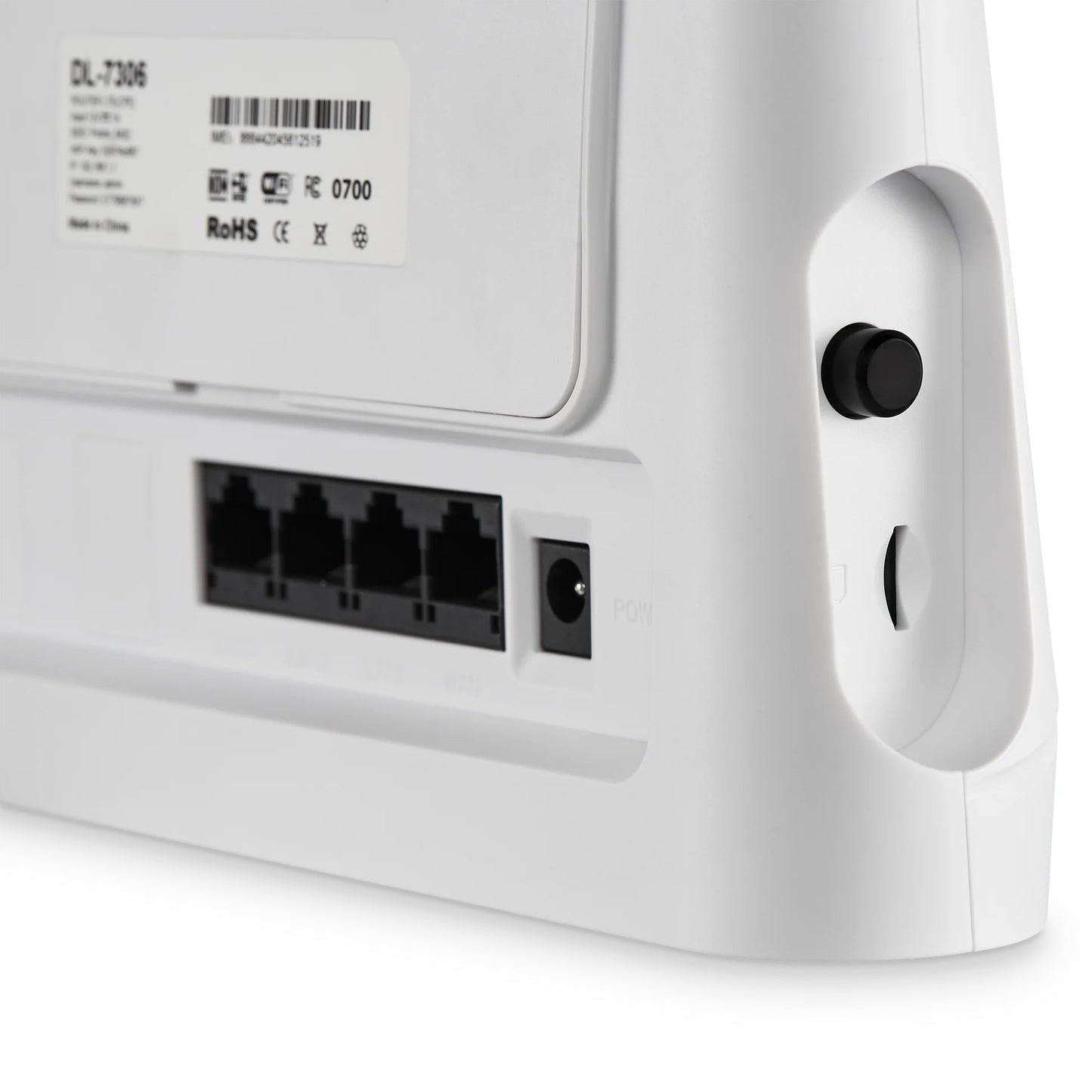

Interface

LAN/WAN: 1x WAN + 3x LAN

USIM: Nano SIM (4FF)

Power Jack: DC Input (12V/1A)

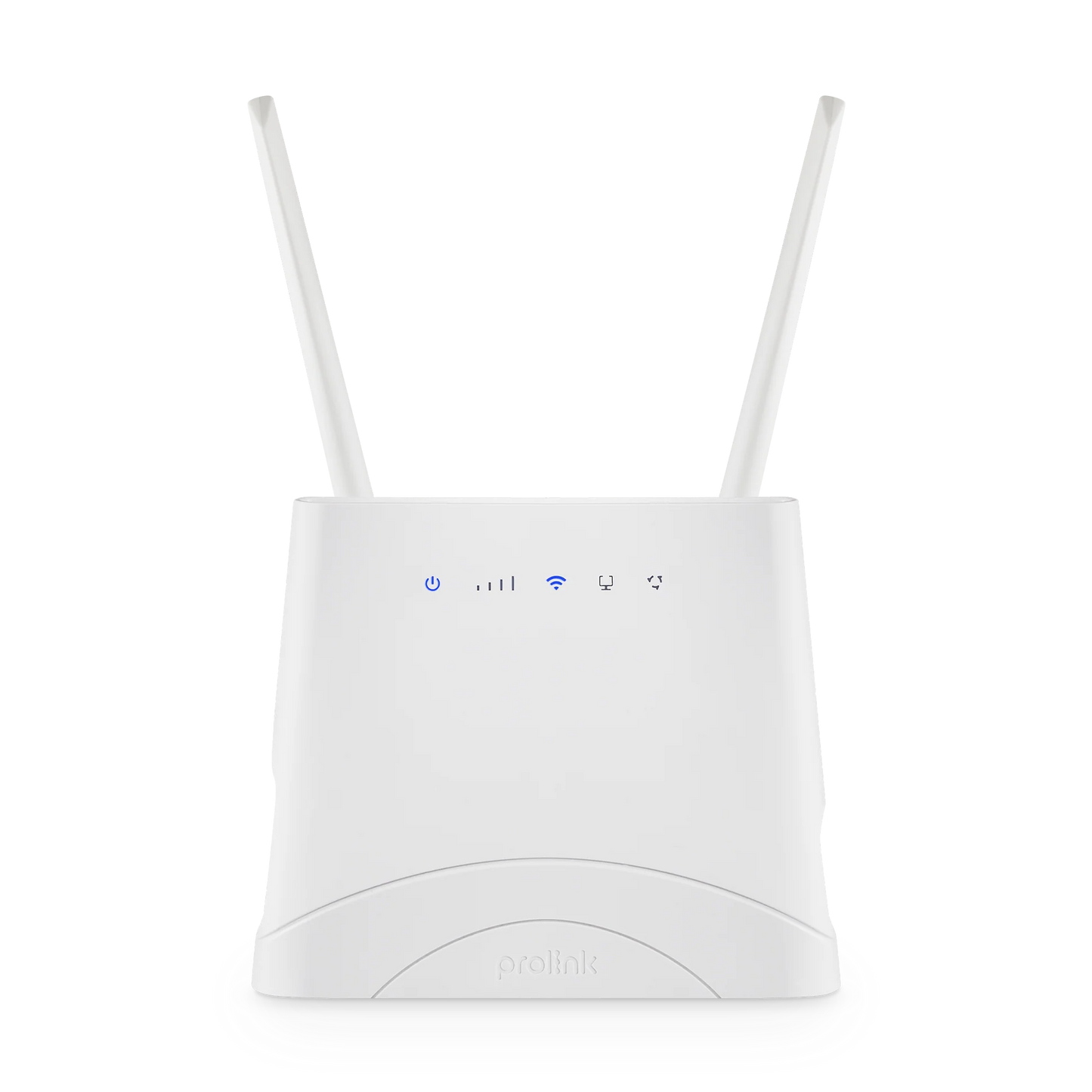

LED Indicator

Power Status: Blue/Purple/Red LED

Internet Connection Status: Blue LED

Wi-Fi Status: Blue LED

LAN/WAN Indicator: Blue LED

Signal Strength: 4 Blue LEDs

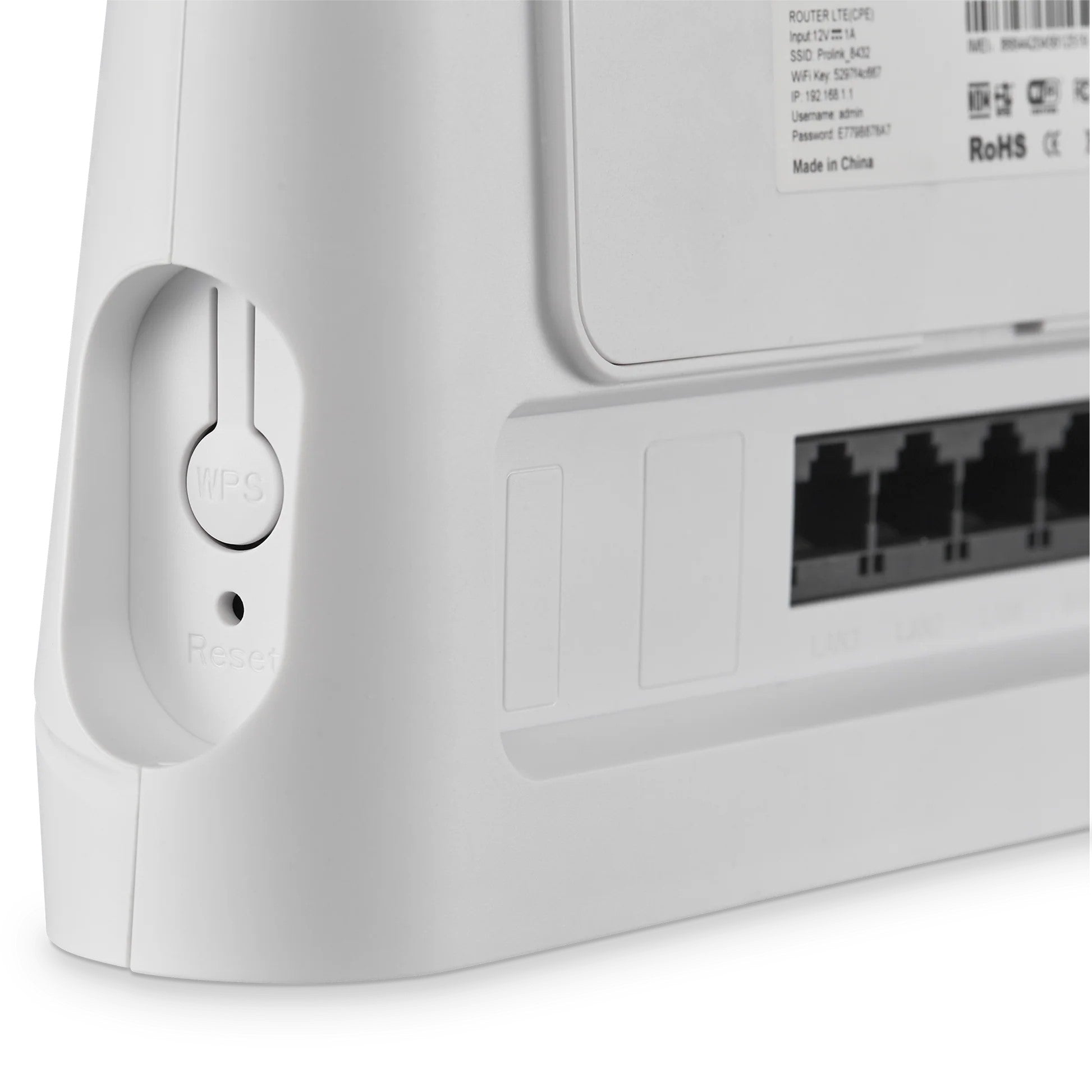

Buttons

Power: On/off

WPS: Enable /Disable WPS and Wi-Fi

Reset: Restore Factory Settings

WebUI (System)

Connection Status

Statistics

Device Management

WebUI (Mobile Service)

SMS Manager

Automatic APN matching according to USIM

Auto Data Connection

USSD Service

PIN/PUK Management

Network Mode Selection (3G/LTE/Auto)

WebUI (Router)

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

IPv4/v6

Port Forwarding, Port Mapping, UPnP, DMZ

IP/Port/Mac Filtering

DDNS (dyndns.org/ no-ip.com)

PPPoE, DHCP, Static

Power Back-up

Built-in 4000mAh Li-on Battery

Up to 8 hours battery life (Depending on connected number of devices and LTE/Wi-Fi signal)
