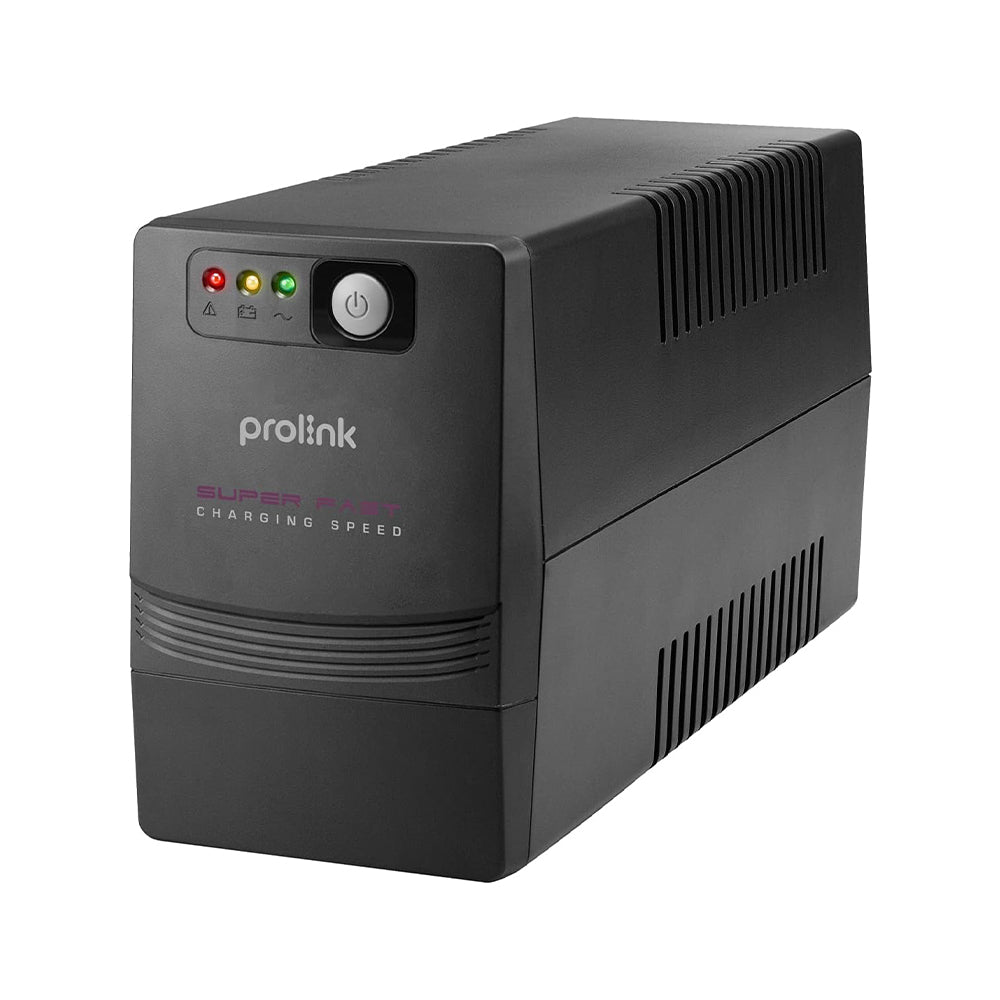

PRO1201SFC Super-Fast Charging Line Interactive UPS 1200VA with AVR

PROLiNK SFC series is a single-phase input/ single-phase output Line-Interactive UPS system with PROLiNK’s latest Super-Fast Charging technology. This cutting-edge technology is able to recharge the battery back to 90% of its capacity within 2-4 hours, and is ideal for providing stable backup power to home/ small office applications. A wide input voltage range is supported due to the integrated 3-Step AVR which features 2 boosts and 1 buck to regulate output voltage.

• Intelligent Battery Management
• Microprocessor Control
• Super Fast Charging
• True 3-Step AVR
• Generator Compatible
• Wide Input Voltage

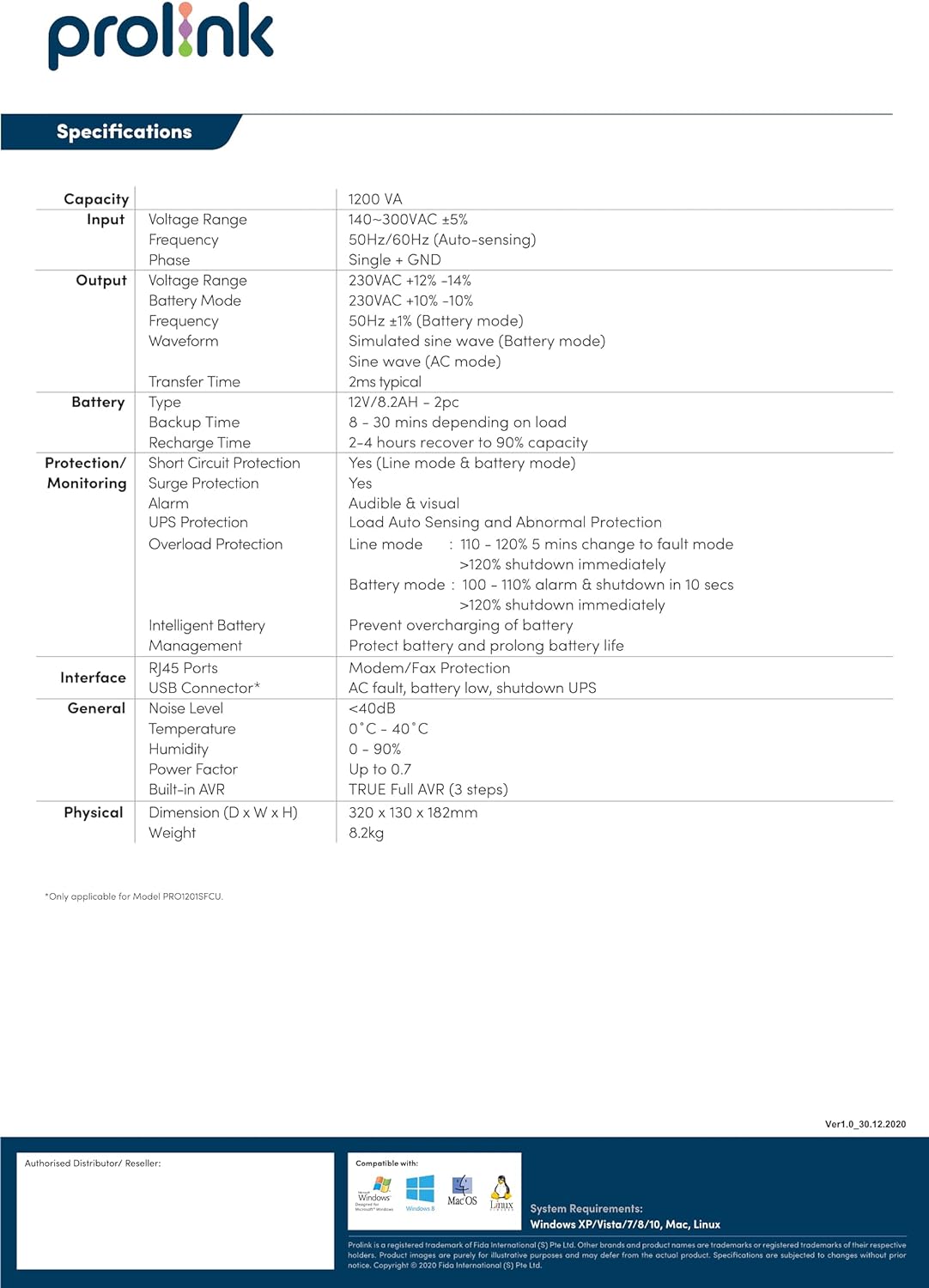

• Capacity: 1200VA
• INPUT
• Nominal Voltage: 230VAC
• Voltage Range: 140 - 300 VAC ± 5%
• Nominal Frequency: 50 or 60Hz (Auto sensing)
• OUTPUT
• Voltage Regulation: ± 10%
• Frequency: 50 or 60Hz ± 1Hz
• Transfer Time (typical): 2 - 6ms
• Waveform: Simulated Sinewave
• BATTERY
• Number of Battery: 12 V/8.2 Ah x 2
• Recharge Time (typical): 2-4 hours recover to 90% capacity
• ALARM & INDICATORS
• LED Display: AC Mode - Green Lighting Battery Mode
• Sounding: Battery Mode - Sounding every 10 seconds Low Battery
