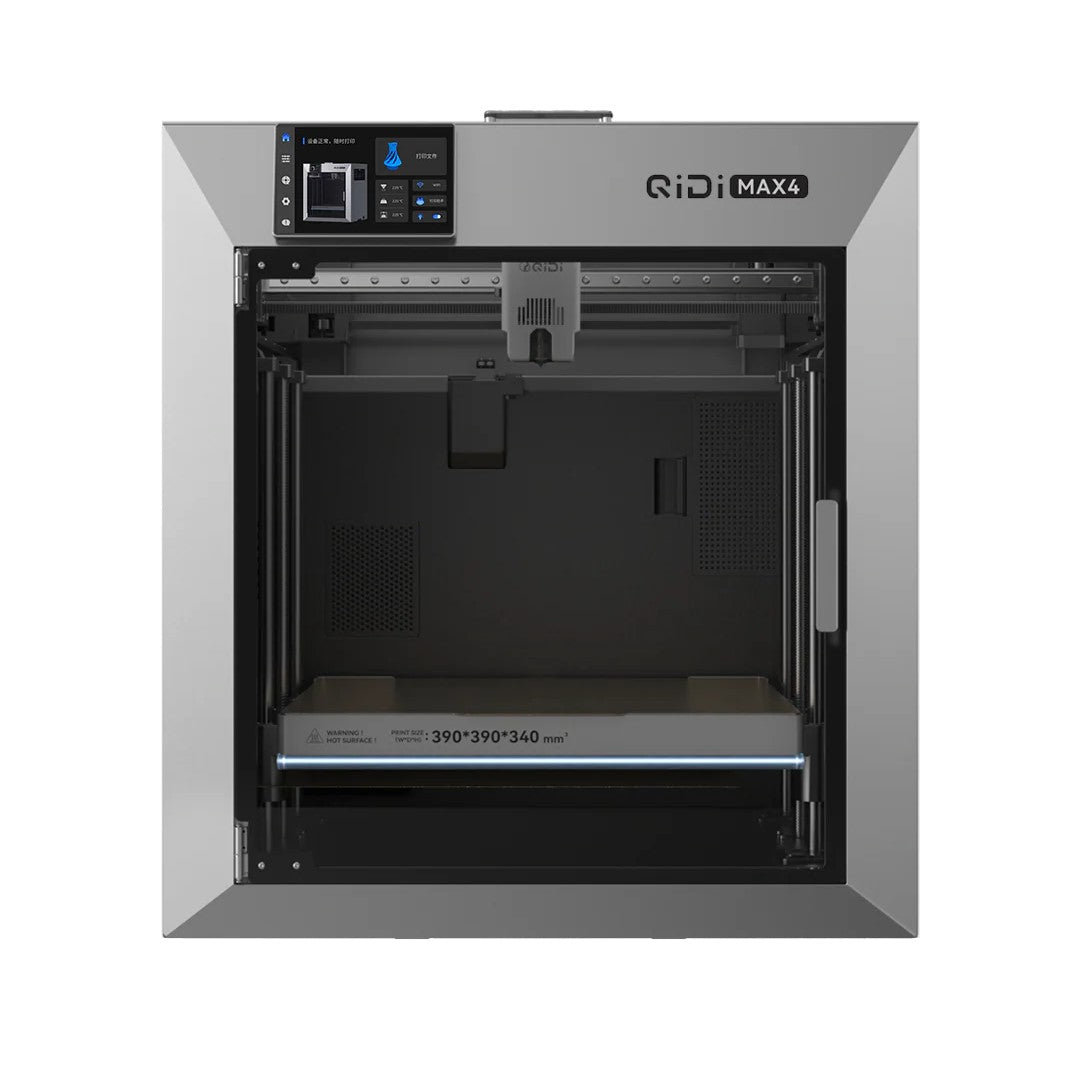

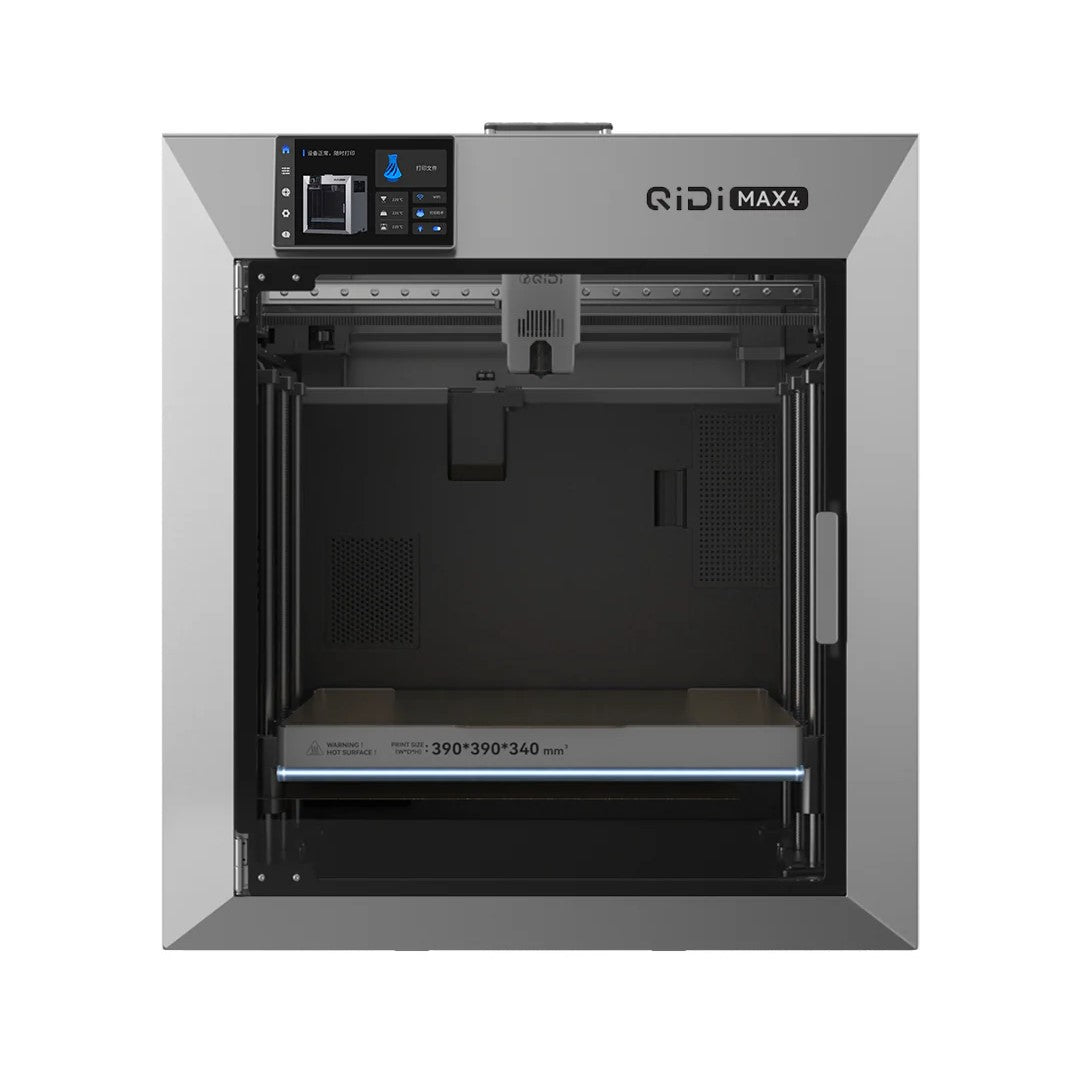

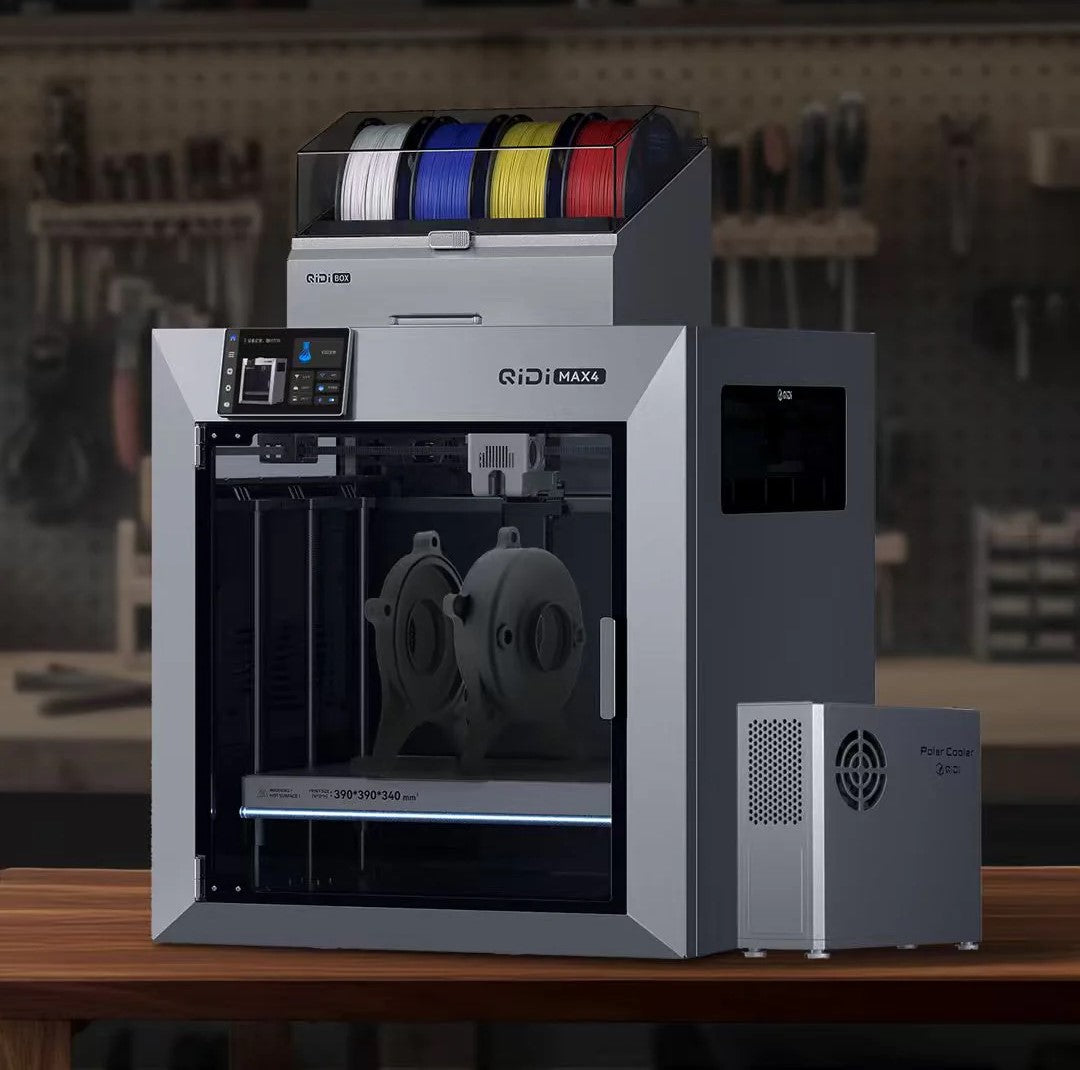

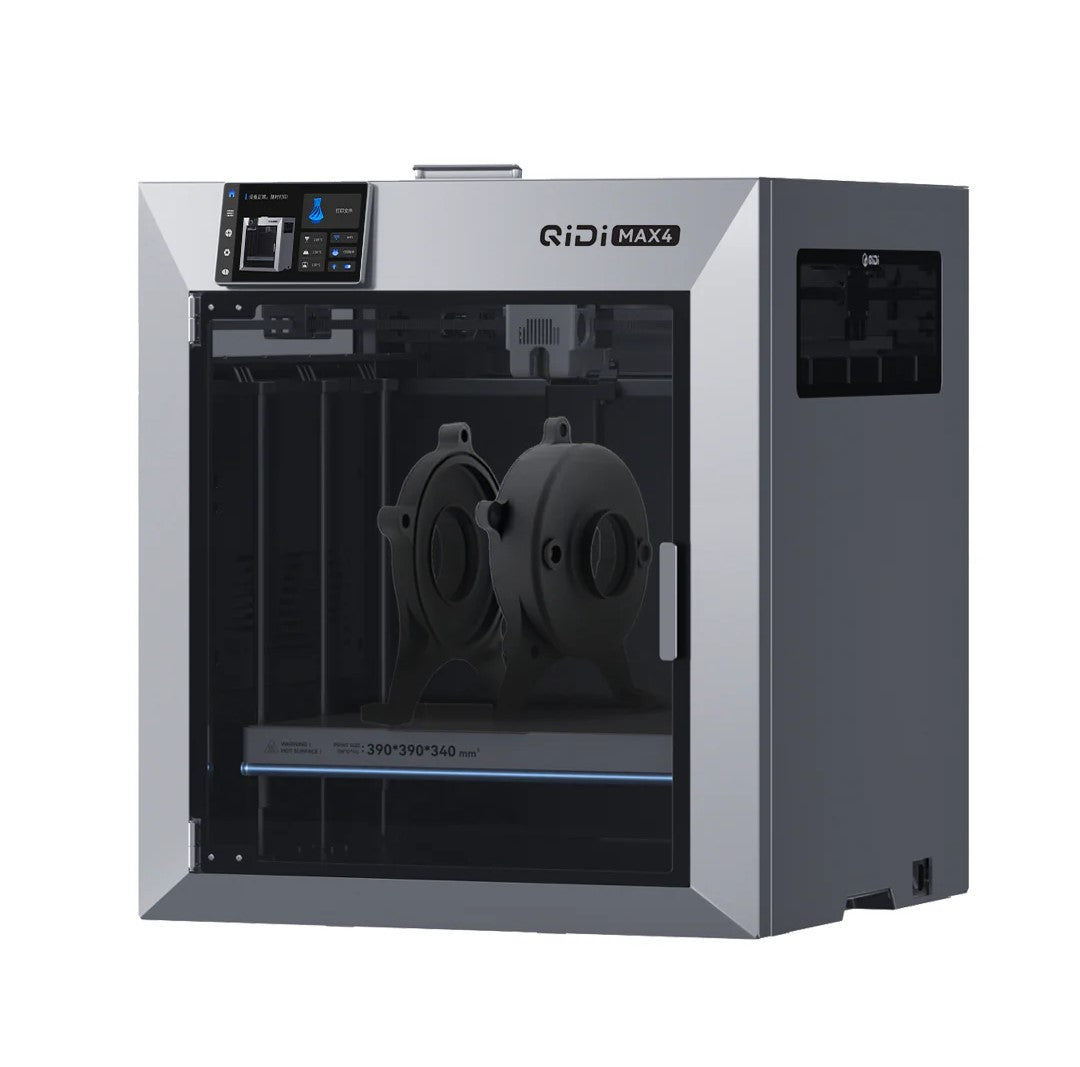

QIDI Max4 3D Printer
Brand : QIDI
SKU: SKU: Qidi-Max4
3 in stock
Regular price
₱79,375.00
Regular price
Sale price
₱79,375.00
Unit price
per
Couldn't load pickup availability
What's in the box
QIDI Max4 Technical Specifications
|
Print Size (W*D*H) 390*390*340 mm |
Printer Dimensions 558*578*612 mm |
|
Package Dimensions 700*710*750mm |
Gross WeightMax4:49.5kg Max4 Combo:56kg |
|
Net WeightMax4:40kg Max4 Combo:46.5kg |
Print Head Temperature≤ 370℃ |
|
Included Build Plate TypeDual-Sided Textured PEI Plate |
Hot Bed Temperature≤ 120℃ |
|
Max Speed of Tool Head 800mm/s |
Acceleration ≤30000mm/s² |
|
XY StructureCoreXY, 1.5GT 10mm Width Belt FOC Closed-loop Stepper Motor |
X/Y AxisX: High Hardness Linear Guide Rail Y: 12mm Linear Steel Shafts |
|
Z AxisIndependent 2mm lead screw motors ×2 12mm Linear Steel Shafts ×4 |
Printing PlatformAluminum Plate Silicone Heated Bed |
| NozzleBimetal Nozzle | Nozzle Diameter0.4mm （0.2/0.6/0.8mm Optional） |
|
Extruder Gear Direct Extruder Hardened Steel Dual Gears |
Supported Filament PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer，etc. |
| Filament Diameter1.75mm | Multi-Color Printing Compatible with QIDI Box(Multi-color) |
| Air filterYes（3-in-1 Air Filter: G3 Pre-Filter + H12 HEPA + Coconut Shell Activated Carbon） |
Chamber Temperature(PTC Heater)3rd Gen Up to 65° C Independent Chamber Heating |
|
Automatic LevelingHands-free Automatic Leveling （Loadcell Sensor Integrated into the Hotend） |
Filament DetectionRun Out Sensor(mounted above extruder) Tangle Detection(QIDI BOX required) |
| AI Camera DetectionYes | Auxiliary Part Cooling Fan4-Pin PWM Fan with RPM Feedback |
| Hot End Cooling Fan4-Pin PWM Fan with RPM Feedback | Model Cooling Fan4-Pin PWM Fan with RPM Feedback |
| Extruder CoolerYes (Polar Cooler required) | Status RGB LEDYes |
| Power Loss Recovery：Yes | Input ShapingYes |
| Voltage110V / 220–240V AC, 50/60Hz (region-specific models available) | Rated Power150W+500W(Chamber Heating)+700W(Heating Bed) |
| CameraCamera (Up to 1080P) Timelapse Supported | Storage32G EMMC and USB2.0 Flash Drive |
| Connectivity 2.4GHz/5GHz Wi-Fi, Ethernet, USB | Display Screen5 Inch 800*480 Touch Screen |
| SlicerQIDI Studio and other third-party software, such as Orca,PrusaSlicer etc. | File Formats for Slicing STL, OBJ, 3MF,STEP,STP，etc. |
