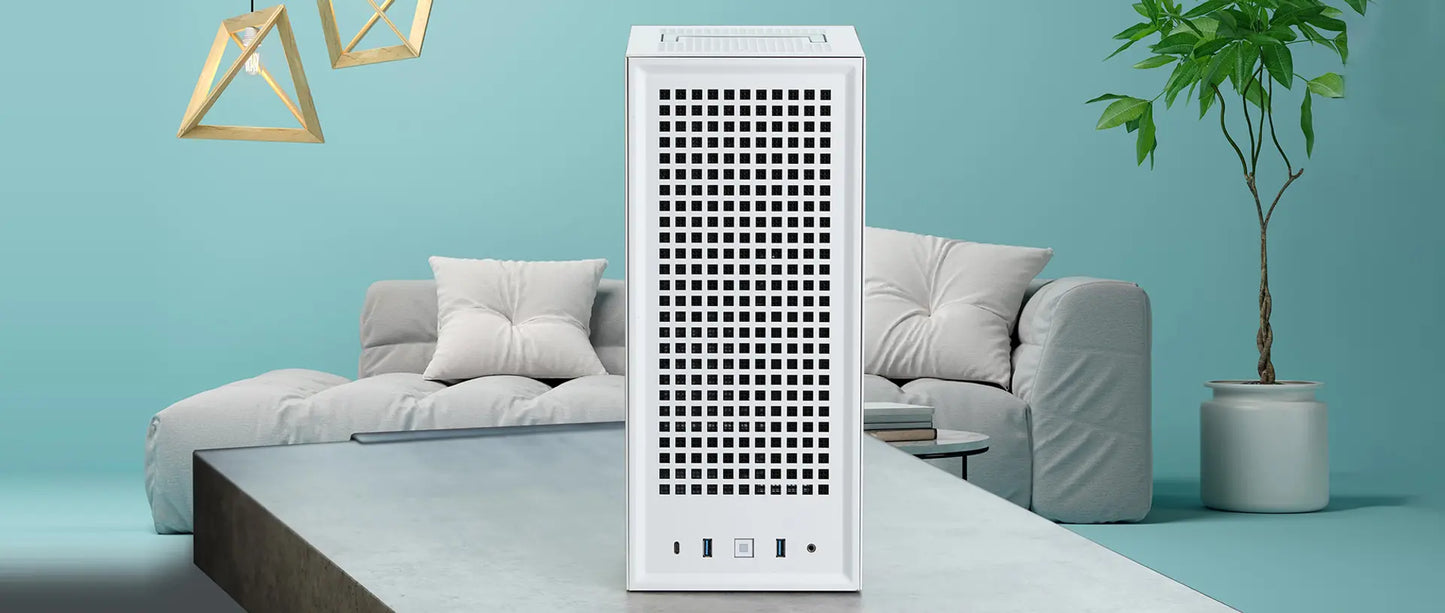

We designed the REVOLT 3 to be the ITX case you'll take anywhere, and upgrade for years. With an integrated handle and tool-free side panels, you'll love how easy it is to build in, modify, and travel with.

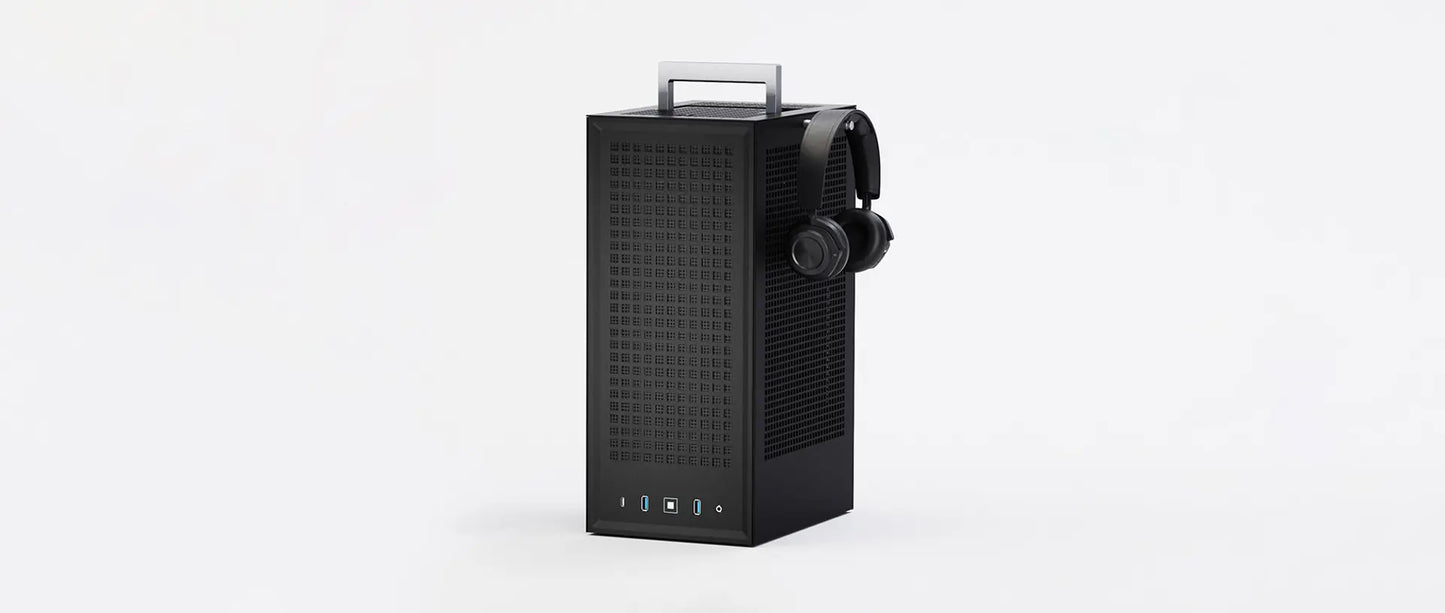

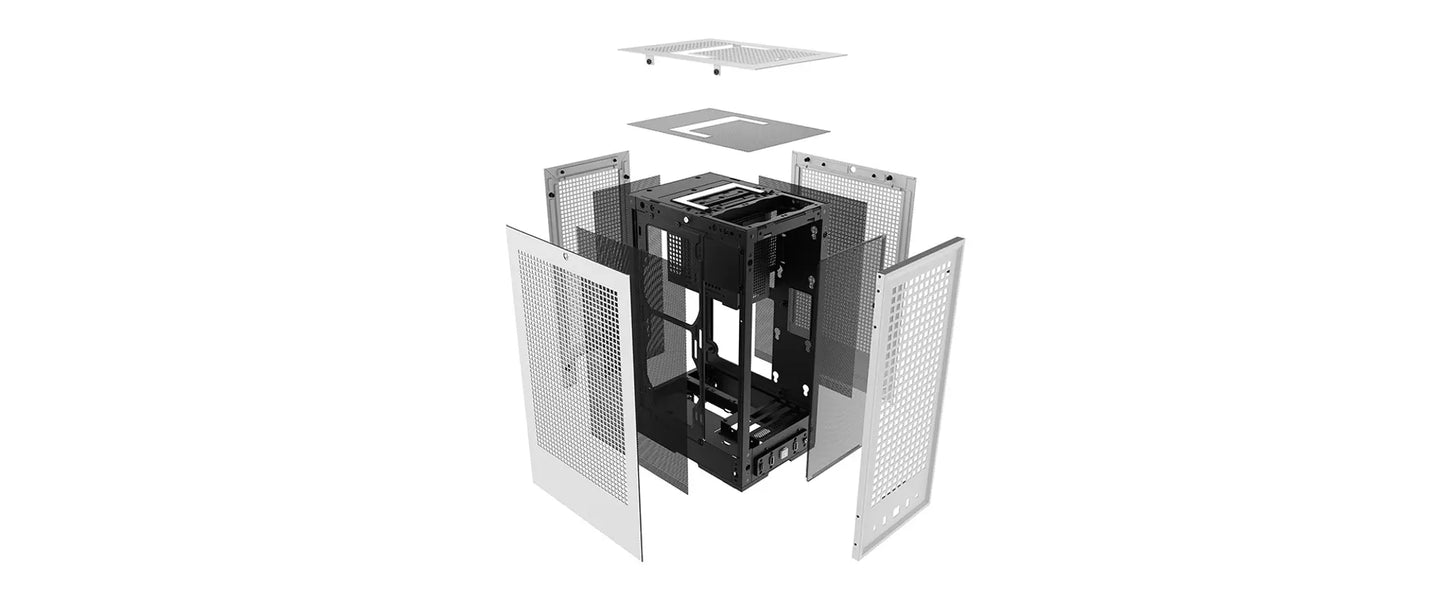

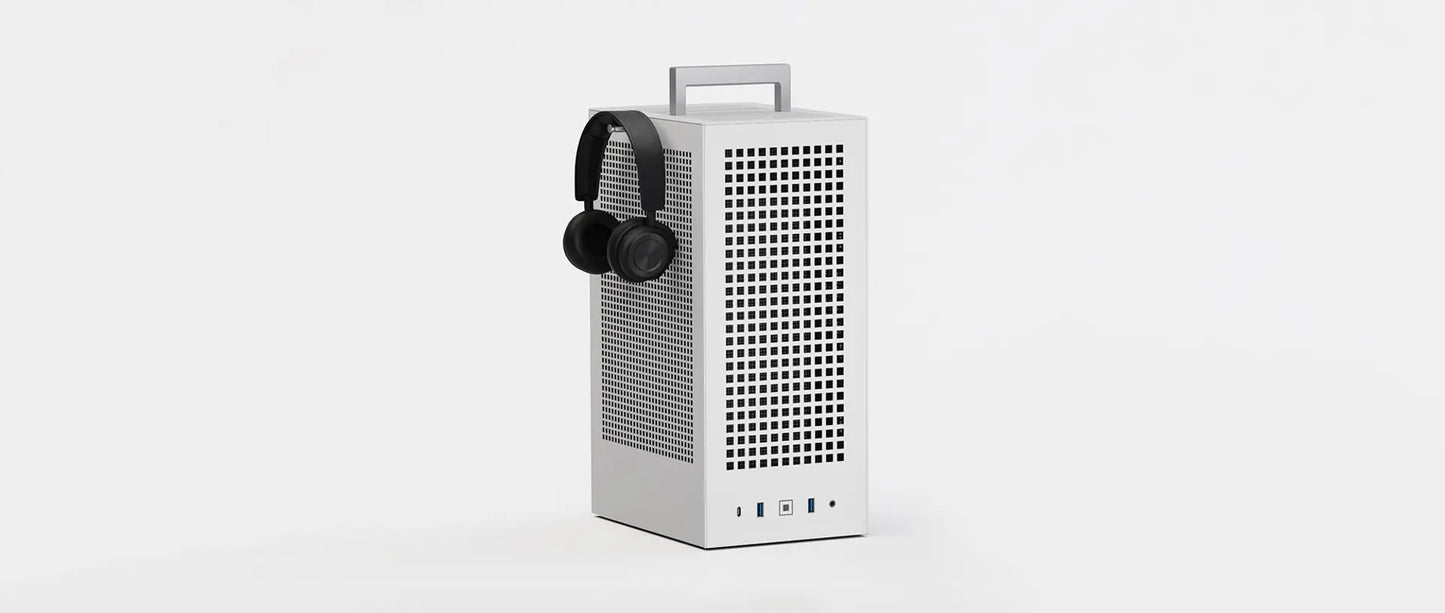

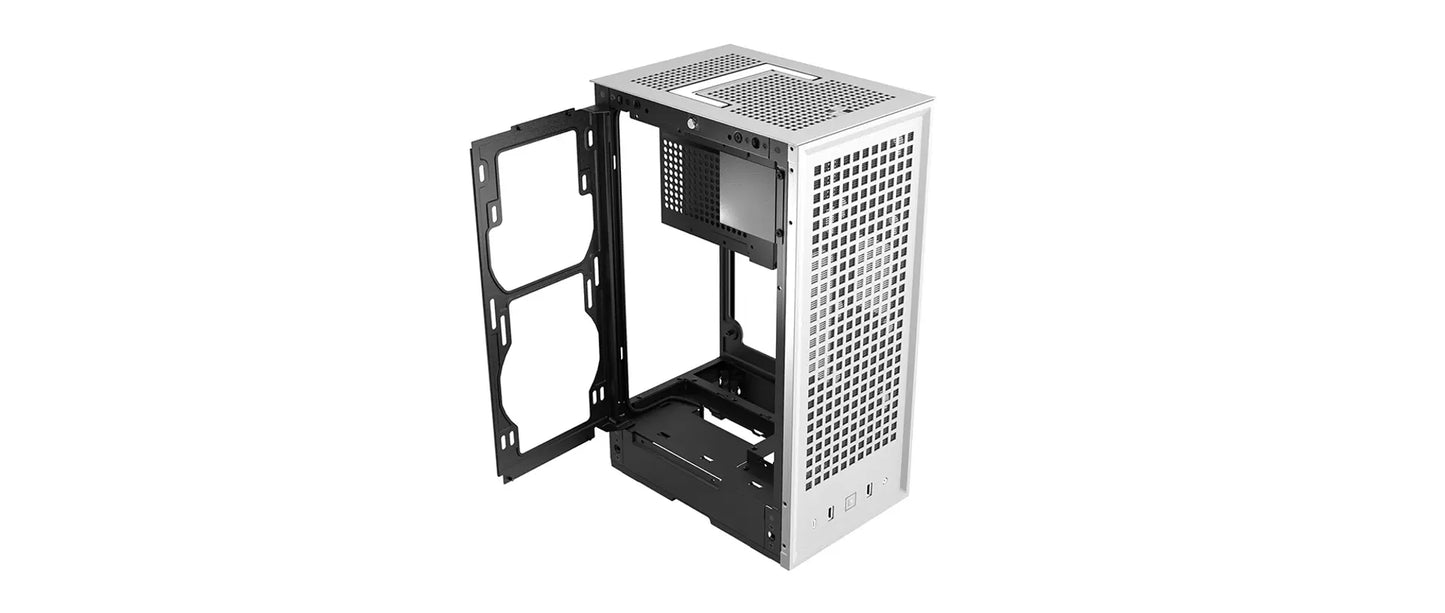

Supports most full-size graphics cards, no riser cable needed. Tool-less side panels: pop them off for effortless access to build and upgrade Integrated handle and accessory holders, for easy travel. Downward-facing motherboard I/O routes cables out the back of the case Bottom-front case I/O offers a cleaner desk setup and superior cable management. Supports 1 HDD and up to 2 x 2.5" SSDs Optional PSU with pre-measured and routed cables. Separated airflow channels for CPU and GPU cooling Get yours today, and experience play before you hit the power button.
Tech Specs Material Aluminum, Steel, ABS
Color Black, White
Dimensions 253 x 178 x 409mm (9.9" D x 7" W x 16.1" H)
Motherboard Size ITX
Graphics Card Most cards up to 335 x 140 x 58mm*
Radiator Support 120, 240, 140, 280mm up to 35mm thick
CPU Cooler Height Up to 140mm
Top Fan Support 80x15 mm (x1)
Handle Weight Limit 30lbs. (14kg)
Expansion Slots 3
Internal 3.5 Bays 1
Internal 2.5 Bays 2
Front Interfaces USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio/Mic Combo x1
Dust Filters Front (Metal Mesh), Top, Slides, Rear (Magnetic)
Case Weight 14lbs (6.3kg) - Including PSU
Power Supply SFX, SFX-L (700W 80 Plus Gold optional)
GPU Compatibility
Compatible GPU (Tested)/Stated Dimensions ASUS TUF RTX 3080 Gaming 299.9 x 126.9 x 51.6mm
ASUS TUF RTX 3070 Gaming 299.9 x 126.9 x 51.7mm
Gigabyte RTX 3090 Gaming OC 320 x 129 x 55mm
Gigabyte RTX 3070 Vision OC 286 x 115 x 51mm
MSI RTX 3090 Ventus 3X 305 x 120 x 57mm
MSI RTX 3070 Ventus 3X 305 x 121 x 52mm
MSI RTX 3080 Gaming X Trio 323 x 140 x 56mm
MSI RTX 3060ti Gaming X Trio 323 x 140 x 56mm
ASROCK Radeon RX 6900 XT Phantom Gaming D 330 x 140 x 56mm
ASROCK Radeon RX 6900 XT (Reference) 267 x 120 x 50mm
ASROCK Radeon RX 6800 XT Taichi X 330 x 140 x 56mm
EVGA Geforce RTX 3080 XC3 286 x 127 x 46mm
Incompatible GPU/Stated Dimensions
ASROCK Radeon RX 6900 XT OC Formula 332 x 137 x 61mm
Gigabyte AORUS GeForce RTX 3080 MASTER 3 319 x 140 x 70mm
Gigabyte AORUS GeForce RTX 3070 TI MASTER 324 x 142 x 70mm
Gigabyte AORUS GeForce RTX 3090 MASTER 319 x 140 x 70mm
Gigabyte AORUS GeForce RTX 3080 TI MASTER 319 x 140 x 70mm
