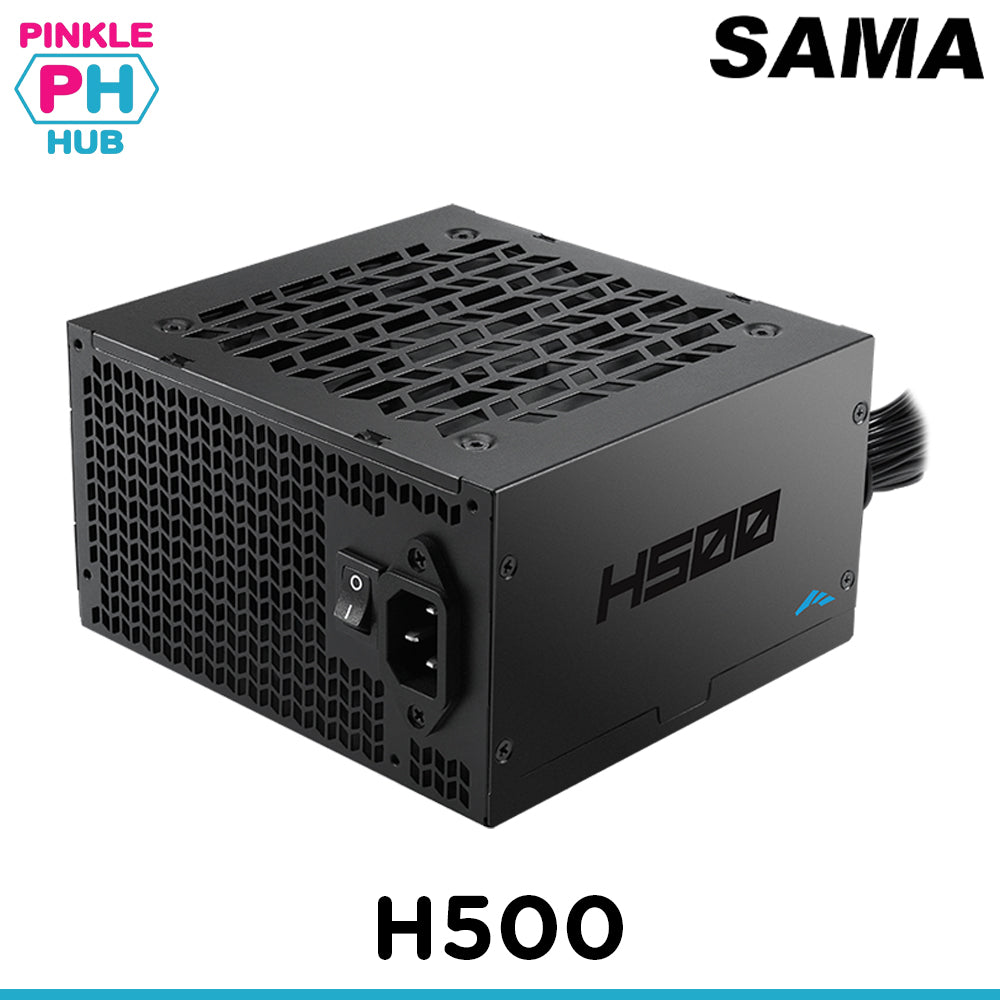

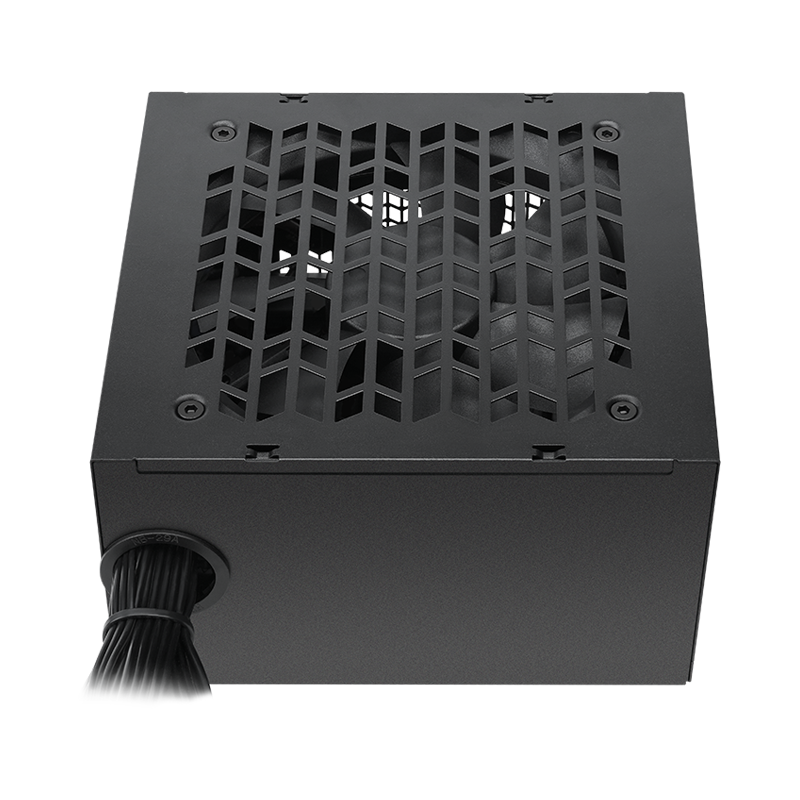

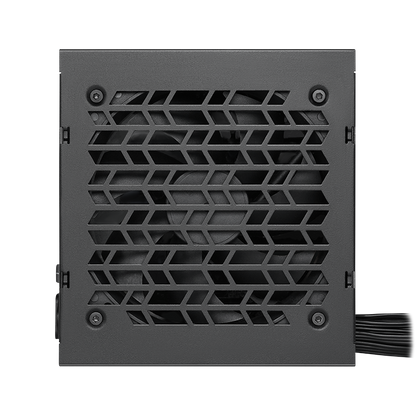

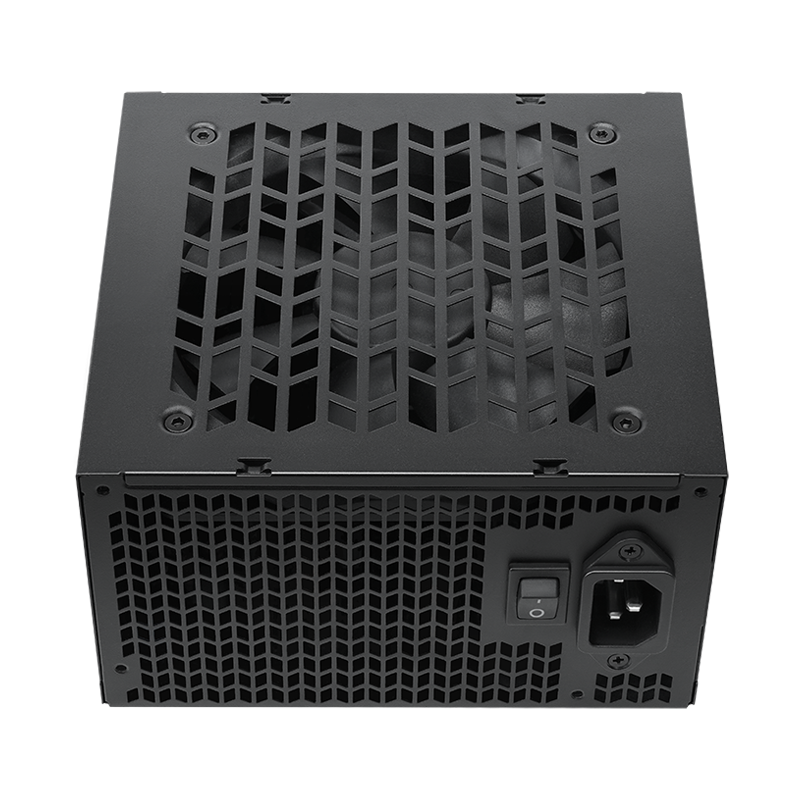

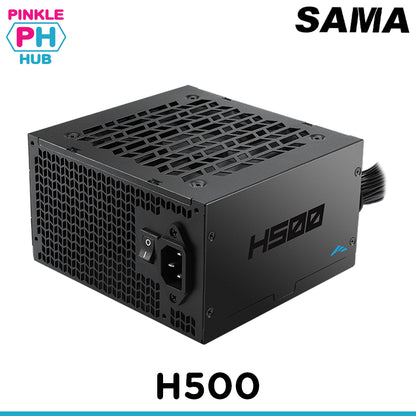

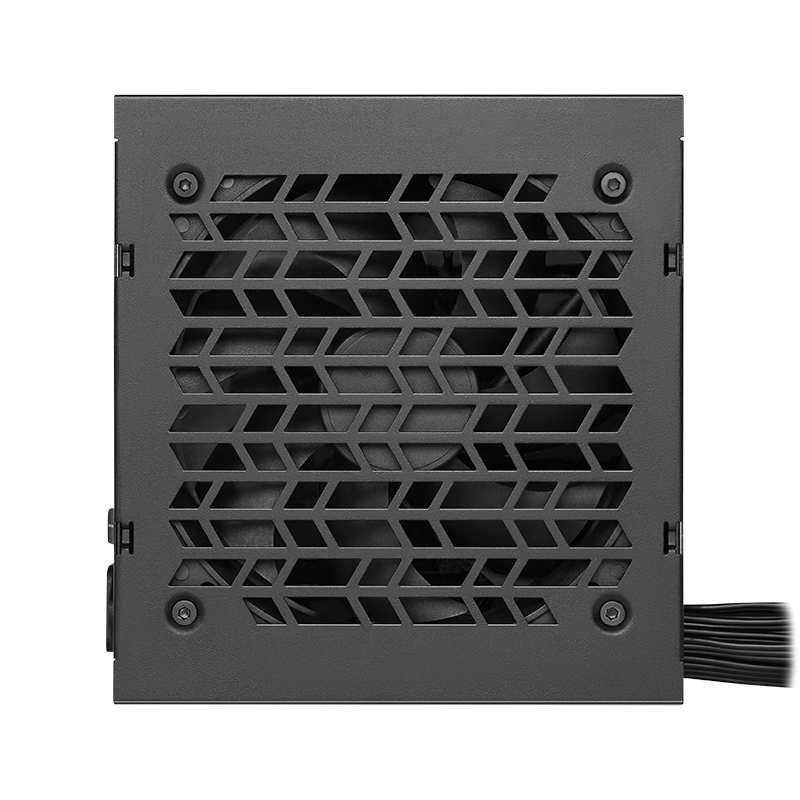

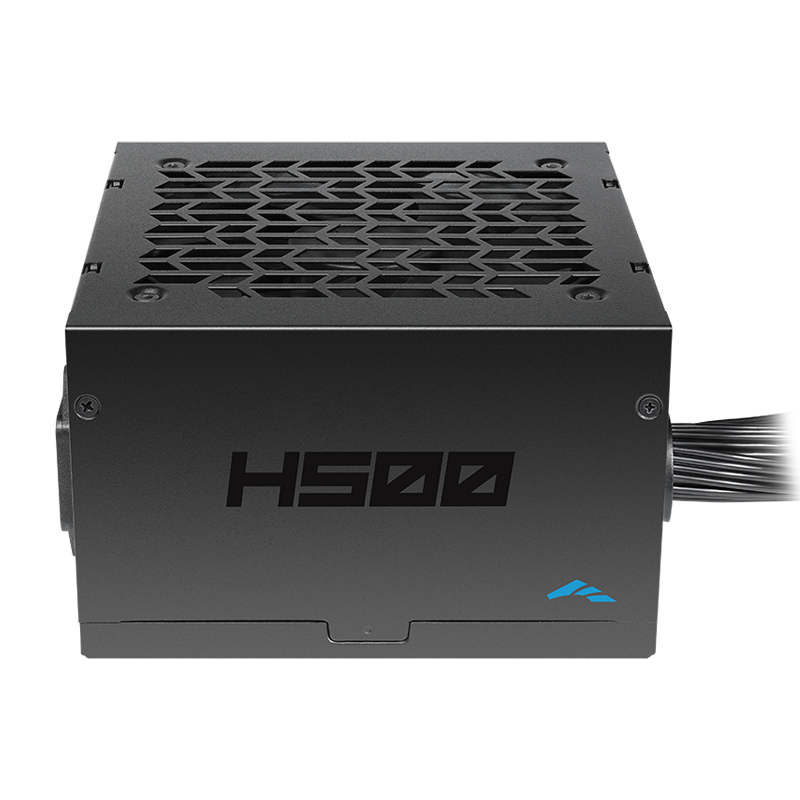

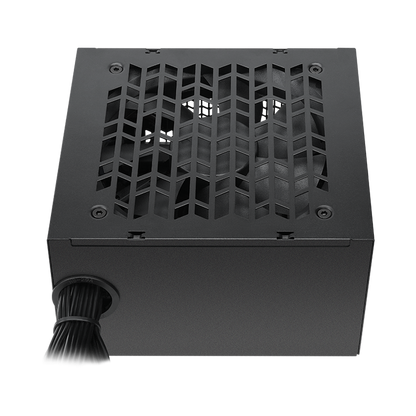

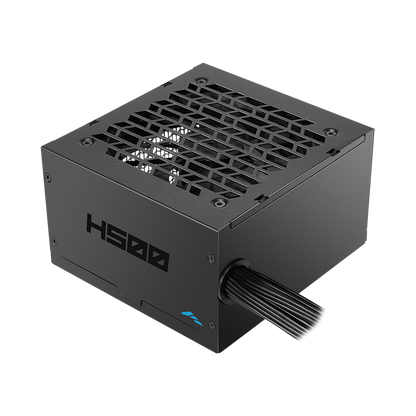

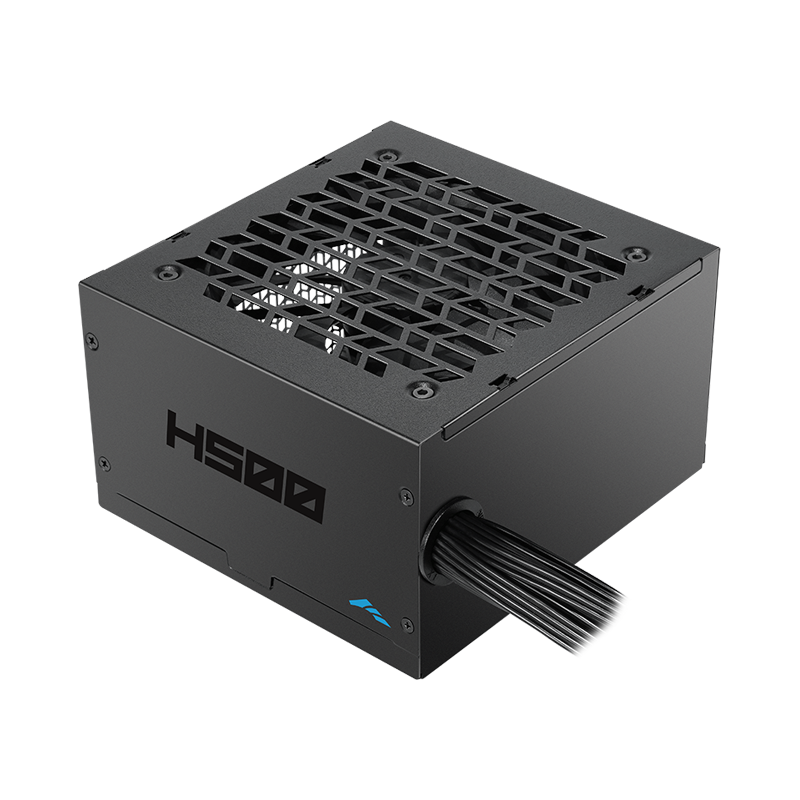

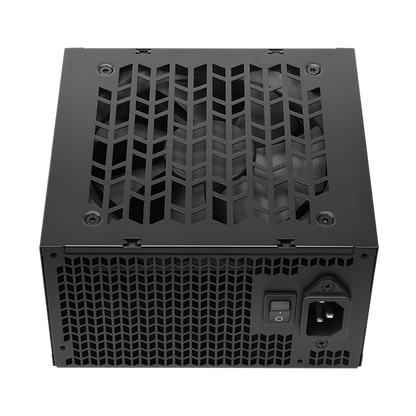

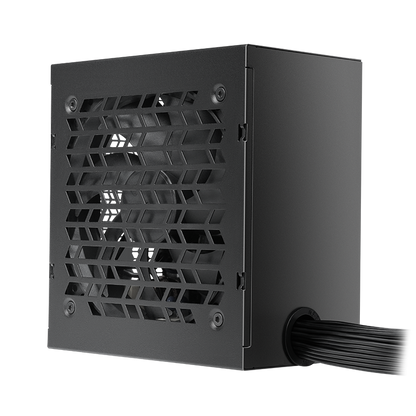

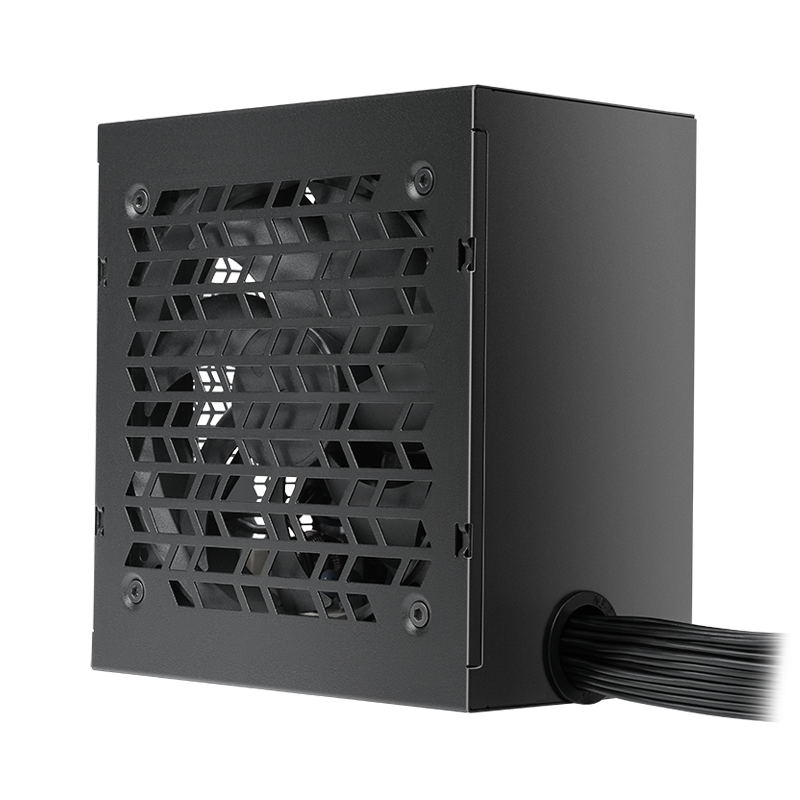

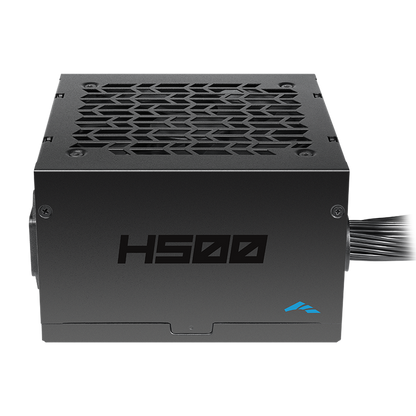

SAMA H500 500W 80+ ATX 2.5 Non-Modular Power Supply (Black)

Brand : SAMA

SKU:  H0500-BKSHW001-US

3 in stock

₱2,030.00
₱2,030.00
Sale! Sold out
Specifications
Product Name H500 H600 H700
Model Number CTX-500-SW-S BTX-600-SW-S XKE-700BTK-S
Output Power 500W 600W 700W
Net Weight (Body+Non Moaular Cable) 1.20kg 1.25kg 1.31kg
Form Factor ATX 2.52
Modularity Non-Modular
Dimensions 140 x 150 x 86mm (L×W×H)
Color Black
80PLUS Certification 80PLUS 230V EU Standard
Efficiency >85% Under Typical Load (50% Load)
AC Input 100-240Vac
Fan Size 120mm
Fan Bearing Sleeve Fan
Operating Temperature 0-30°C
Protection  OPP / SCP / OVP / UVP / NLO
Safety CE / TUV / CB / UKCA / EAC
Environmental Compliance RoHS / WEEE / ErP 2014
MTBF 100,000 Hours
Topology APFC + SR + DC-DC
Connectors 1x MB ATX 24Pin 550mm
1x CPU (4+4)Pin 600mm
1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm
1x (SATA+SATA+SATA+SATA) 450+150+150+150mm
1x (Molex+Molex+Molex+Molex) 450+150+150+150mm		 1x MB ATX 24Pin 550mm
1x CPU (4+4)Pin+(4+4)Pin 600+150mm
1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm
1x (SATA+SATA+SATA+SATA) 450+150+150+150mm
1x (Molex+Molex+Molex+Molex) 450+150+150+150mm		 1x MB ATX 24Pin 550mm
1x CPU (4+4)Pin+(4+4)Pin 600+150mm
1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm
1x (SATA+SATA+SATA+SATA) 450+150+150+150mm
1x (Molex+Molex+Molex+Molex) 450+150+150+150mm
