Description
CORE SERIES

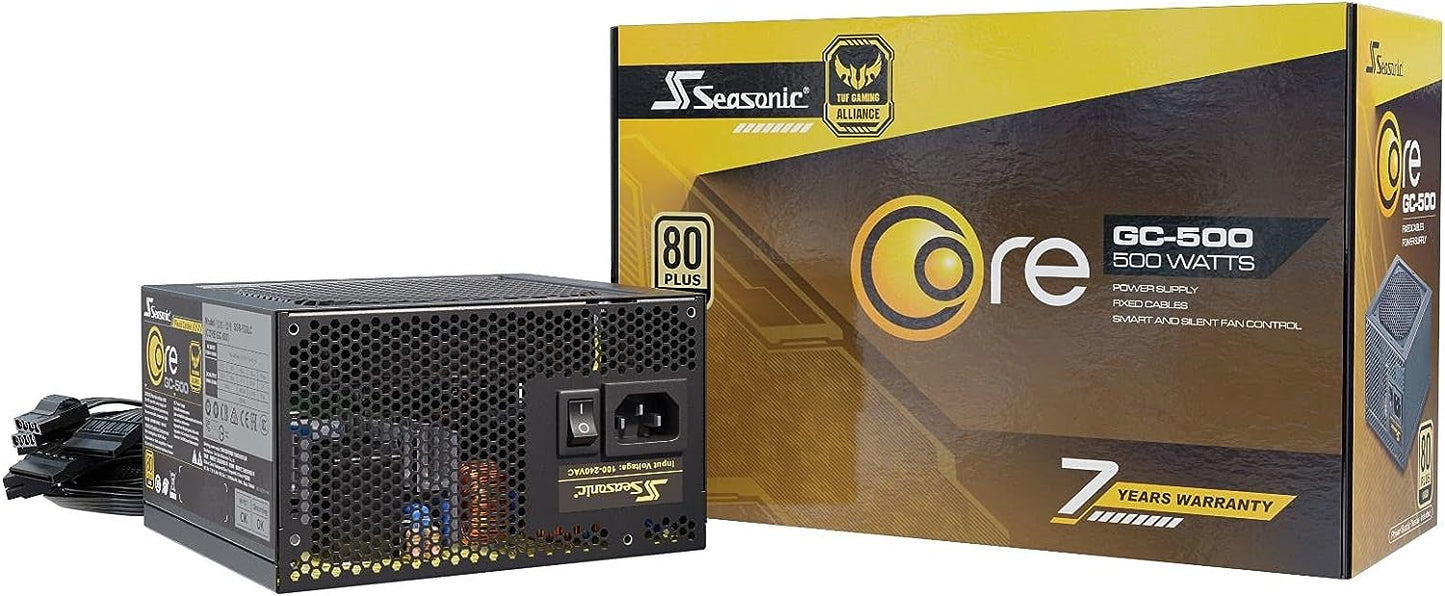

The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS® Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.
The availability of the CORE Series depends on your geographic locations. Please contact your local Seasonic representative for more information.
- ATX 12 V

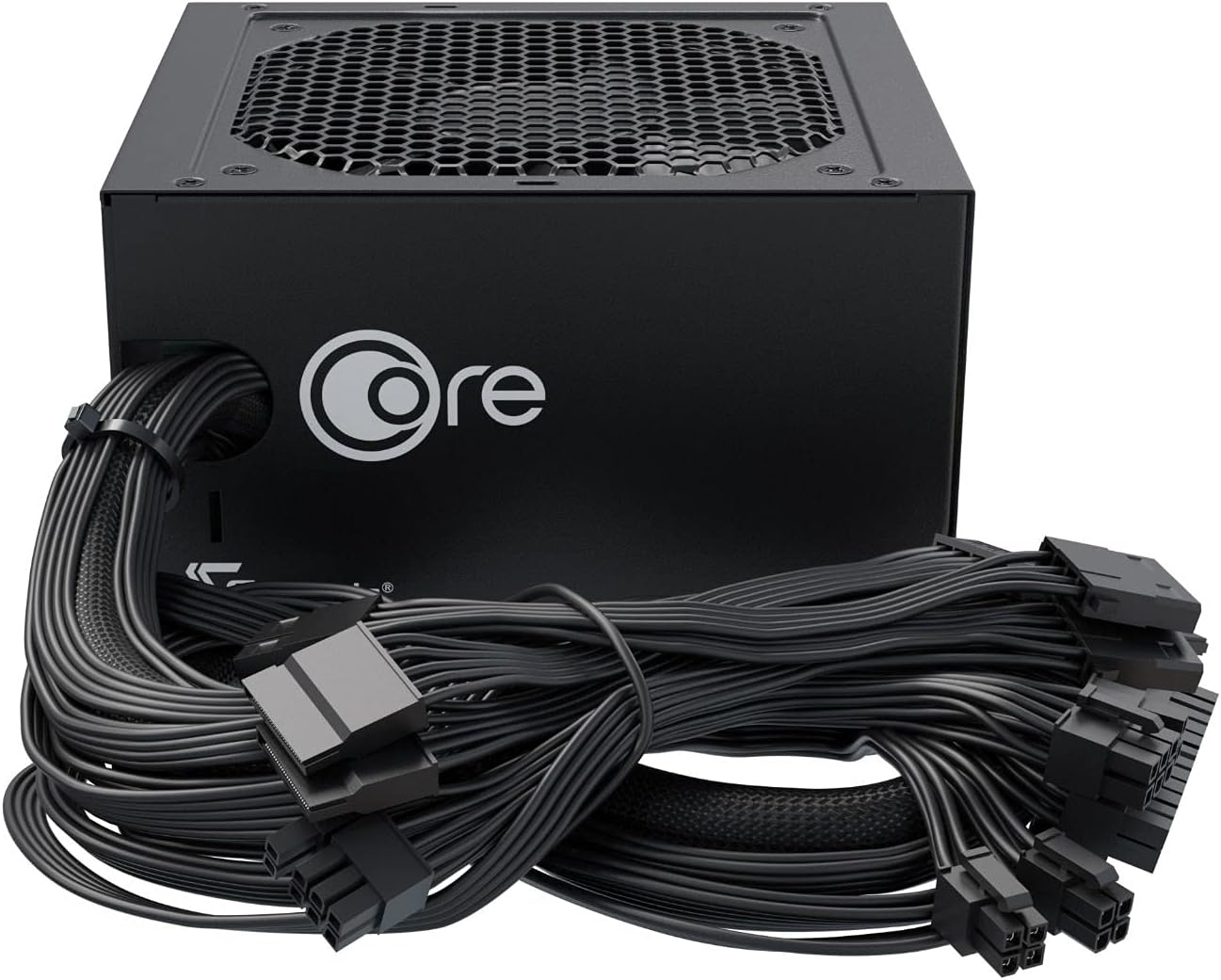

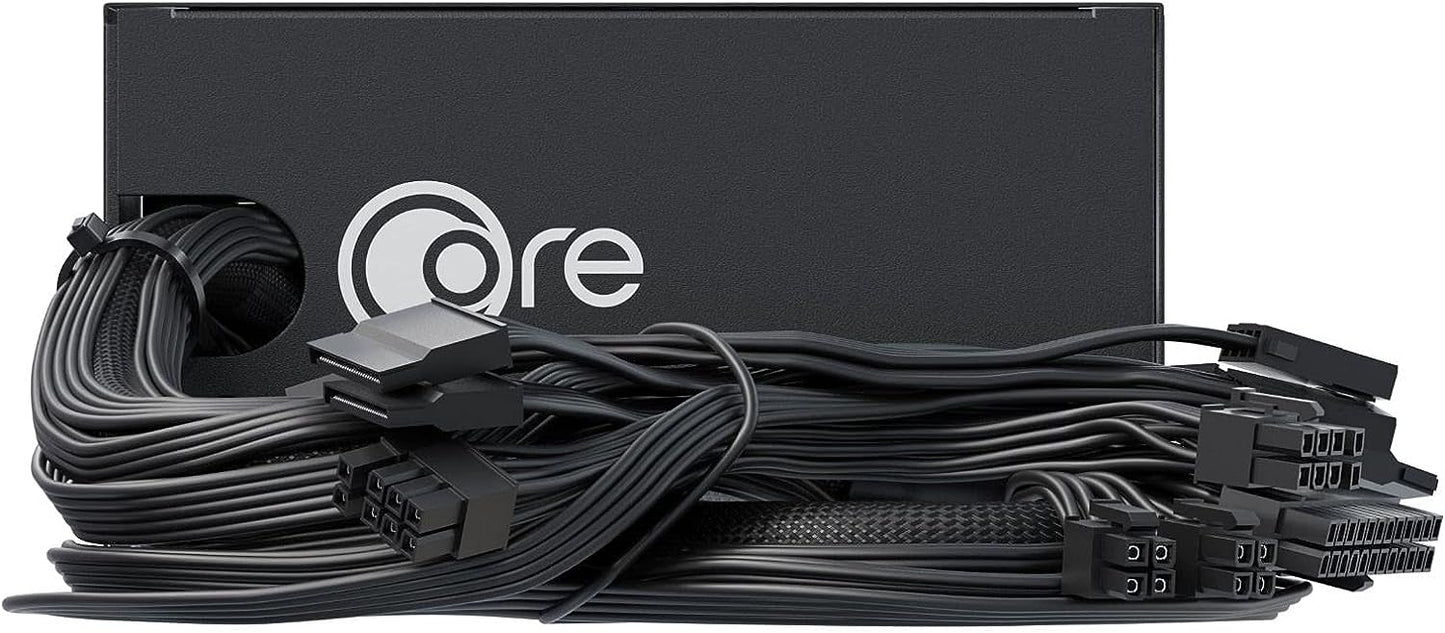

- Fixed Cables
- 80 PLUS Gold Certified
- 7 Years Warranty
- Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
Technical Specifications | ||
80PLUS® | Gold | |
Cybenetics Efficiency Level | TBA | |
Cybenetics Noise Level | TBA | |
Form Factor | Intel ATX 12 V | |
Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |

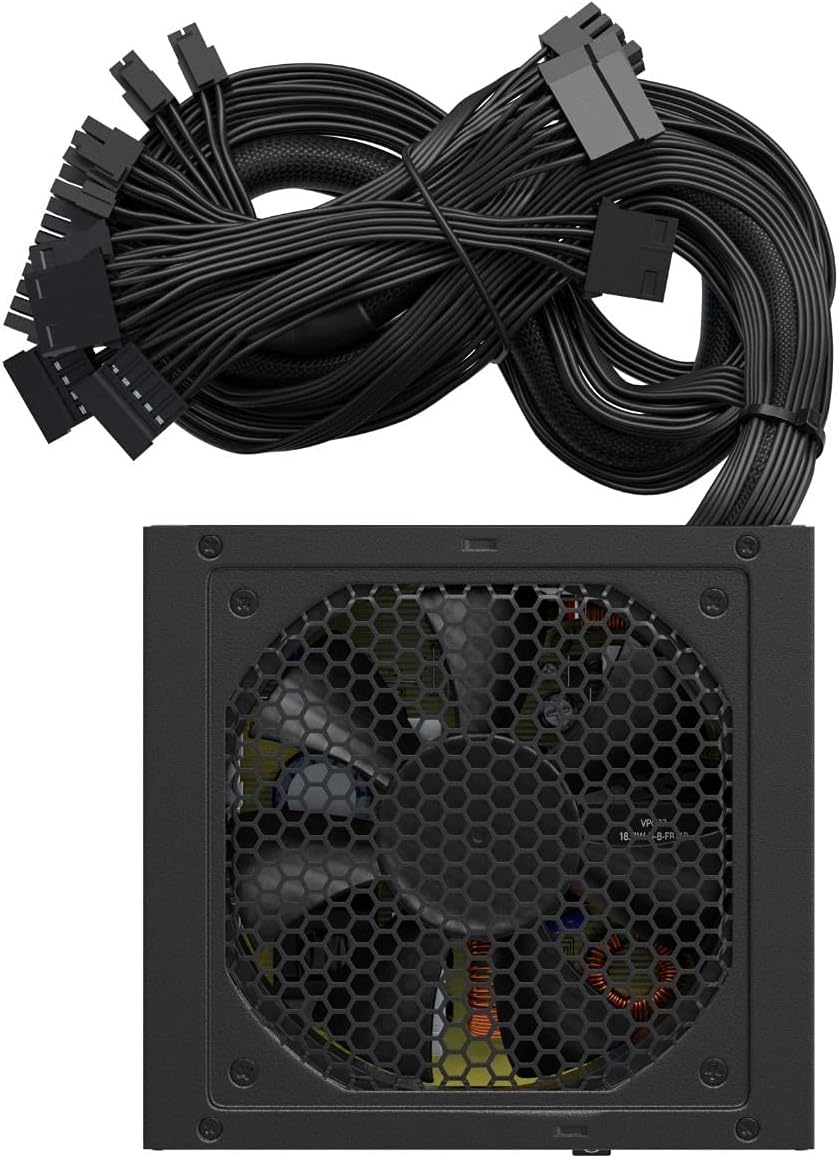

Fan Information | Fan Size | 120 mm |
Fan Control | Smart and Silent Fan Control | |
Fan Bearing | Sleeve Bearing | |
Life Expectancy | 25,000 hours at 40 °C, 15 % - 65 % RH | |
Cable Information | Modularity | Fixed cables |
Cable type | Flat black cables | |
Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
MTBF @ 25 °C, excl. fan | 100,000 hours | |
AC Input | Full Range | |
Protection | OPP, OVP, OCP, OTP, SCP, UVP | |
Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
Warranty | 7 Years |
Power Output | ||||||

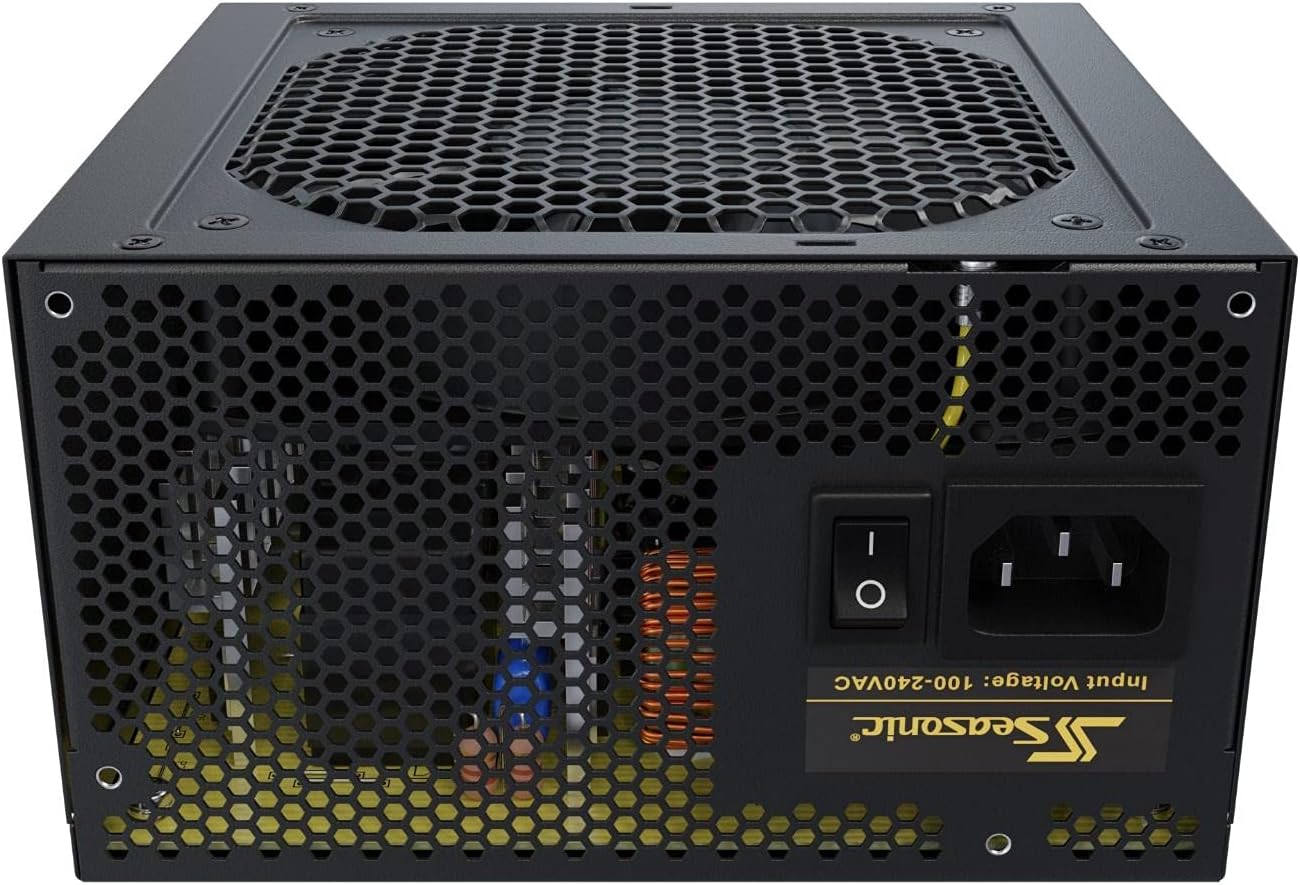

AC Input | Voltage: 100 V - 240 V | |||||
Current: 7─3.5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 20 A | 20 A | 41 A | 0.3 A | ###### | |
100 W | 492 W | 3.6 W | 15 W | |||
Total continuous power | 500 W |
