Seasonic S12III 650, 650W 80+ Bronze ATX12V & EPS12V Direct Cable Wire Output Smart & Silent Fan Control Power Supply (SSR-650GB3)

Seasonic S12III 650, 650W 80+ Bronze ATX12V & EPS12V Direct Cable Wire Output Smart & Silent Fan Control Power Supply (SSR-650GB3)

Brand : SEASONIC

SKU:  SSR-650GB3

₱3,600.00
₱4,200.00 ₱3,600.00
Sale! Sold out
Taxes included.

Out of stock

S12III SERIES

The S12III Bronze Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic S12III-Series achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the S12III Bronze series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the S12III units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

For customers in the EU, the scheduled launch of the S12III series is Q3 2019*. For more information about product availability, please contact your local Seasonic representative.

* Subject to change without prior notice.

  • ATX 12 V
  • Fixed cables
  • 80 PLUS Bronze Certified
  • 5 Years Warranty
  • Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)

80 PLUS®BRONZE

The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.

The 80 PLUS® Bronze certification guarantees greater than 82 %, 85 % and 82 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. Sea Sonic’s Bronze Series is an economical choice with great performance and high built-in value.


S2FC - SMART AND SILENT FAN CONTROL

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.




Technical Specifications
80PLUS® Bronze
Cybenetics Efficiency Level Bronze (See report)
Cybenetics Noise Level Lambda Standard+ (See report)
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control Seasonic S2FC
Fan Bearing Sleeve bearing
Life Expectancy 30,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fixed cable
Cable type Flat black cables
Electrical Features Operating Temperature 40 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick
Environmental Compliance Energy Star, RoHS, WEEE, REACH
Warranty 5 Years



Power Output
AC Input Voltage: 110 V - 240 V
Current: 10 A - 5 A
Frequency: 50 Hz - 60 Hz

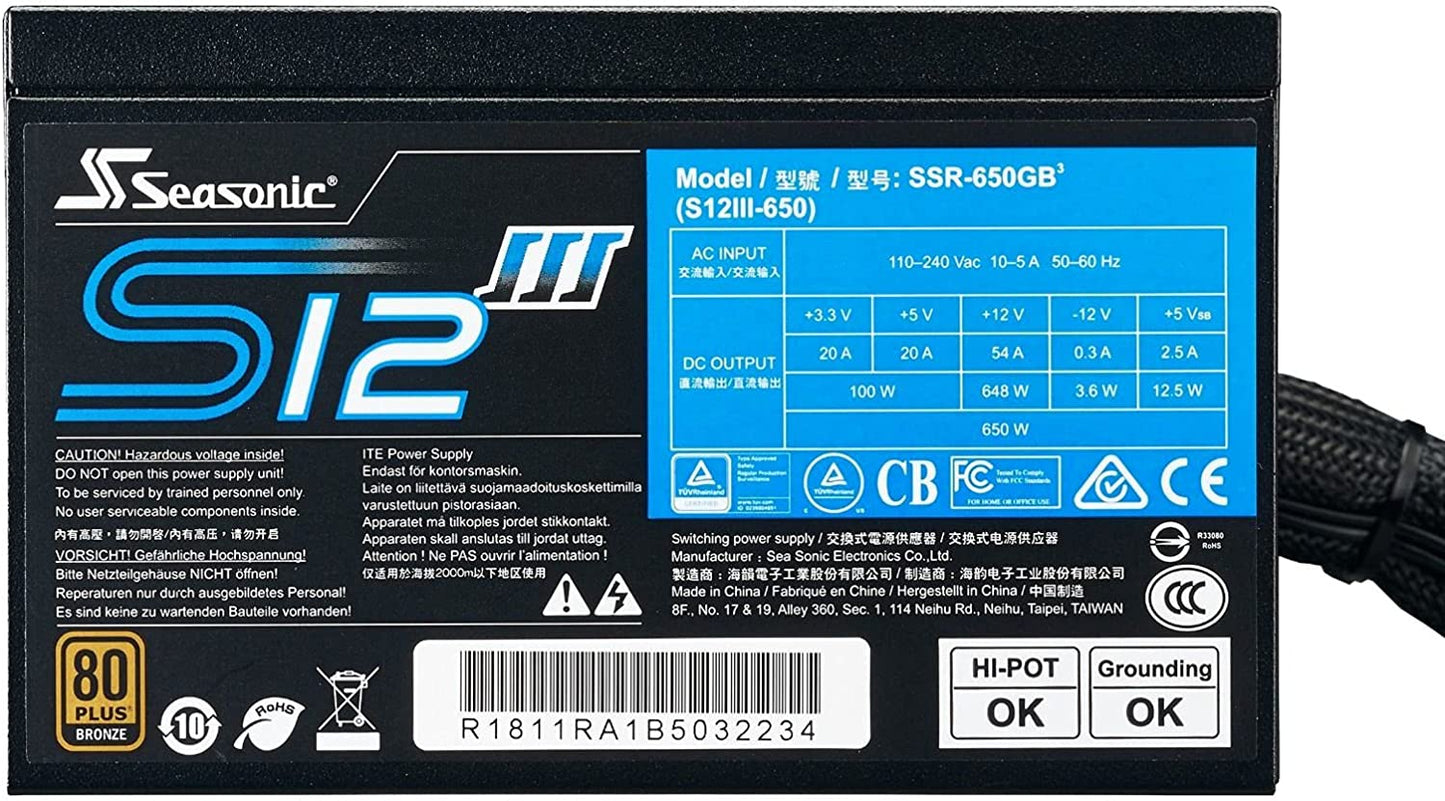

DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 54 A 0.3 A 2.5 A
100 W 648 W 3.6 W 12.5 W
Total continuous power 650 W



Connector Connector Count Cable Length
Main Power (24/20 pins) 1 1 x 550 mm - attached
CPU (8/4 pins) 1 1 x 600 mm - 8/4 pins attached
PCIe (8/6 pins) 4 2 x 550 + 150 mm - 8/6 pins attached
SATA 6 2 x 450 + 120 + 120 mm - attached
Peripheral 3 1 x 450 + 120 + 120 mm - attached
Floppy 1 1 x 120 mm - end connector of the peripheral cable
