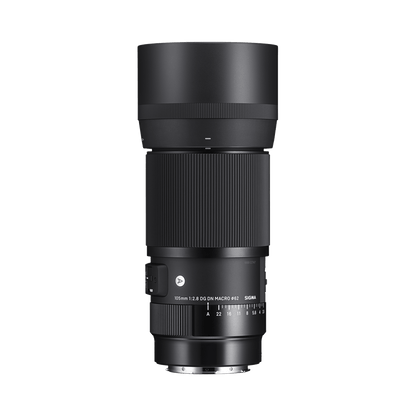

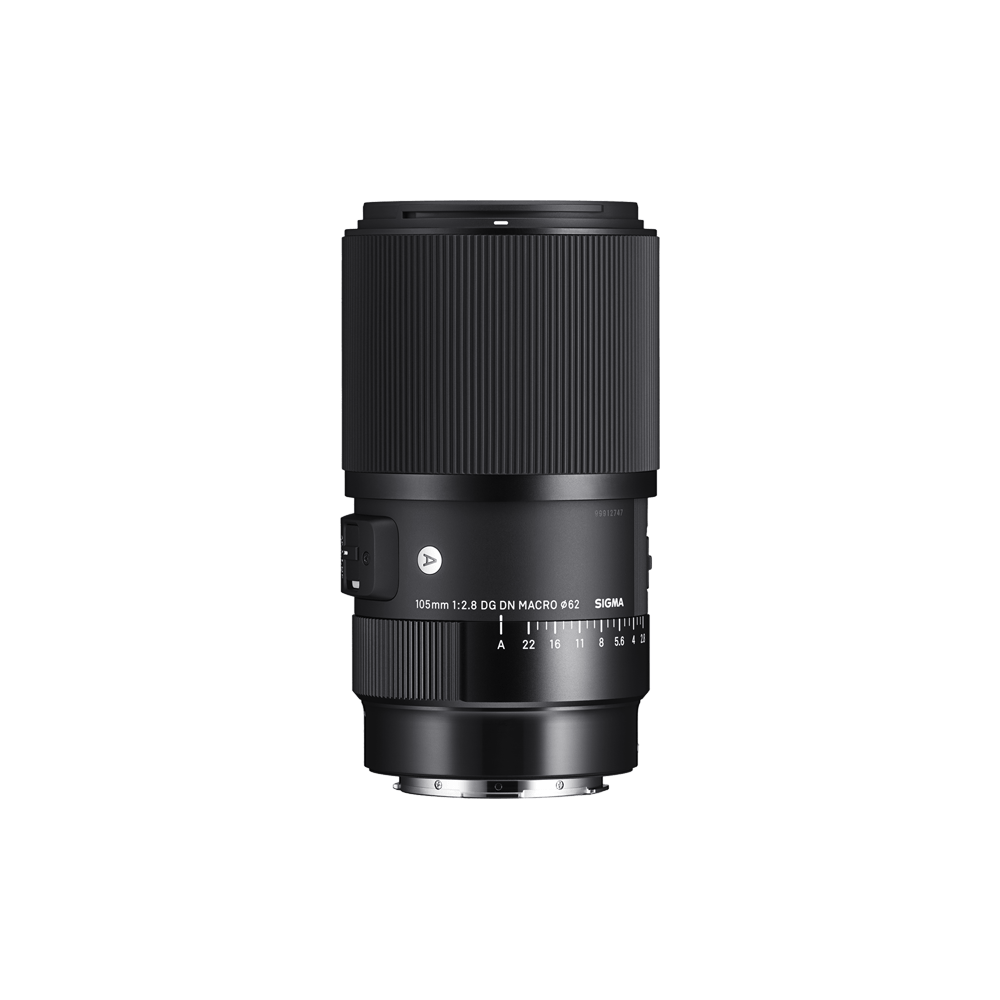

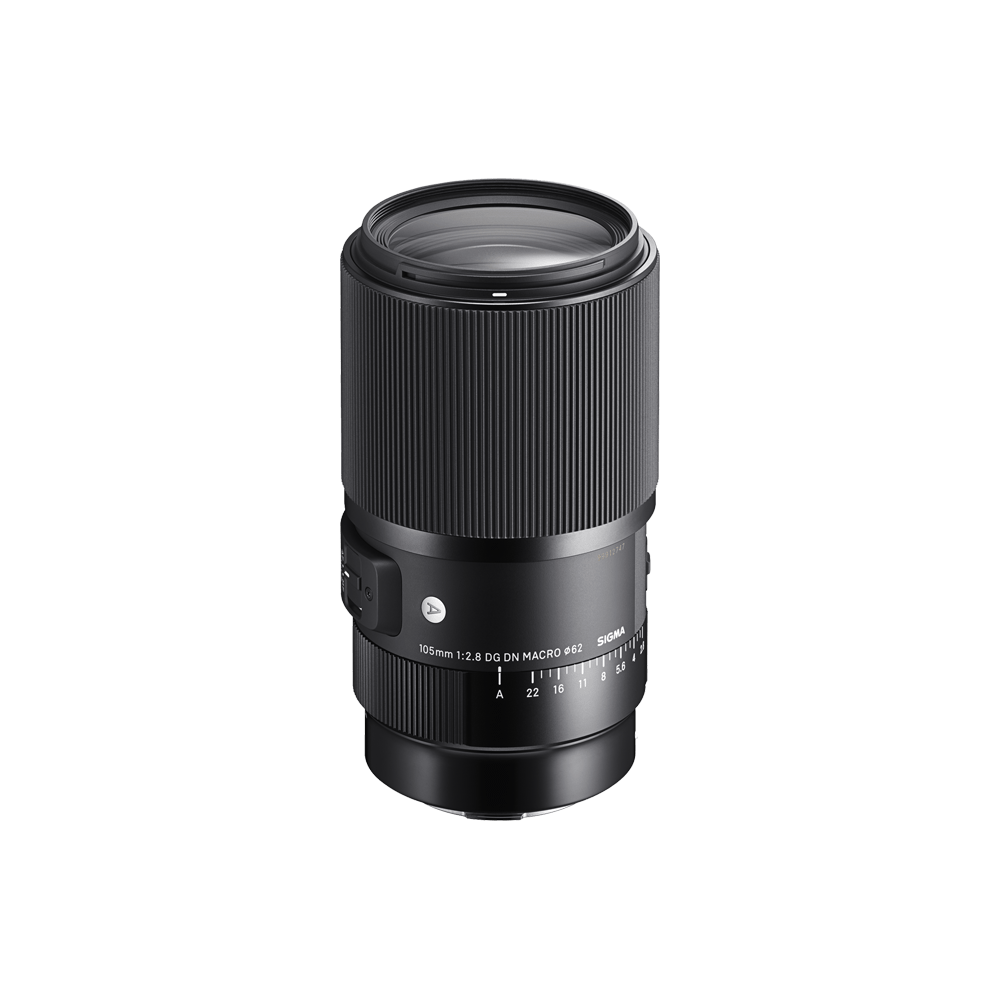

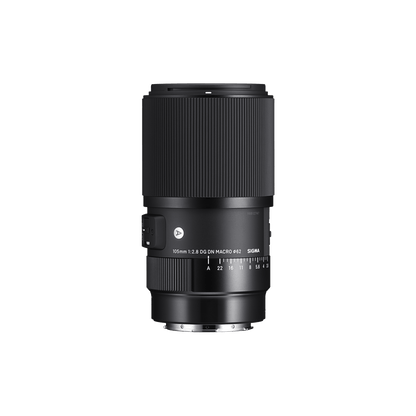

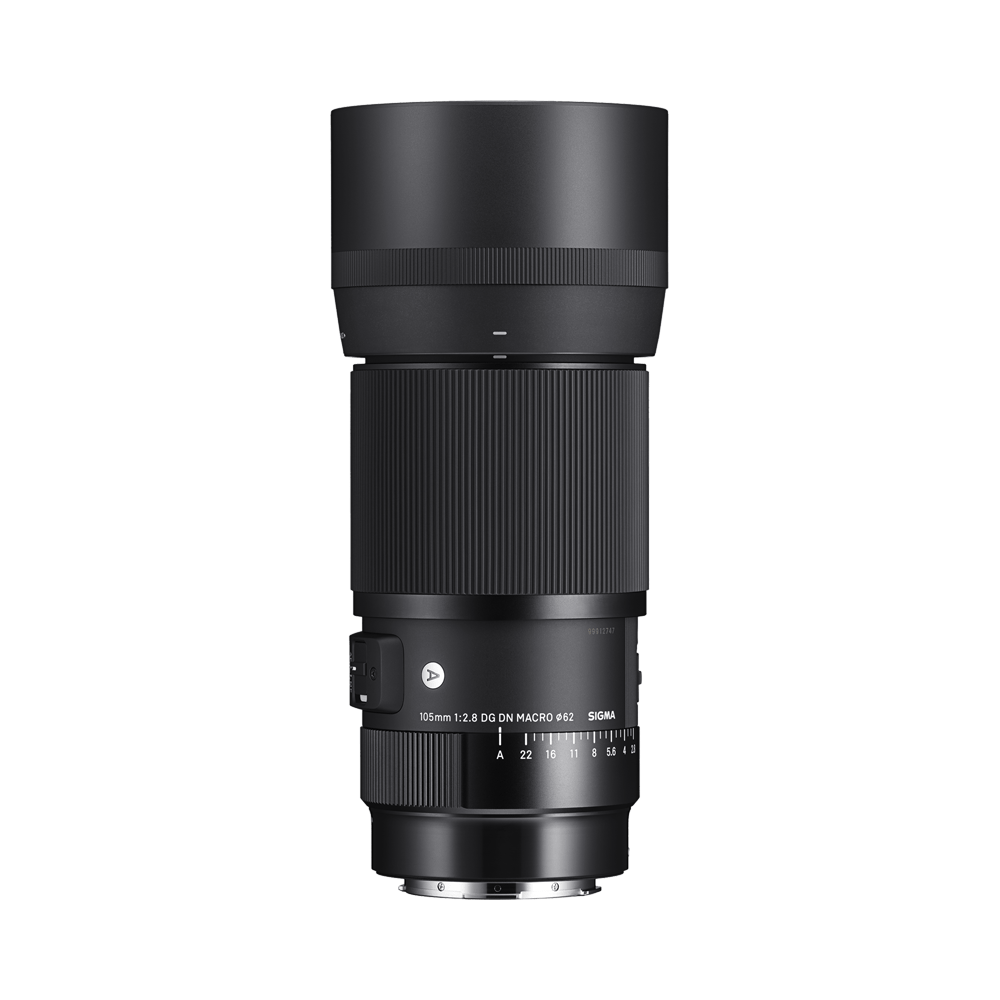

SIGMA 105/2.8 DG DN MACRO Art for SONY E-MOUNT

FEATURES

• Everything required in a mid-telephoto macro lens has been achieved at highest levels

  The latest optical design of the 105mm F2.8 DG DN MACRO | Art ensures exceptional sharpness at all shooting distances from extreme close-up, which is crucial in macro shooting, all the way up to infinity. In addition, its aberration correction places a particular focus on longitudinal chromatic aberration which cannot be handled by the in-camera aberration correction. The superior optical design produces clear images with both delicate rendering and free of color bleeding.

  Bokeh was one of the focuses in the 105mm F2.8 DG DN MACRO | Art design, which figures largely in mid-telephoto shooting. The ample volume of peripheral light helps create beautiful bokeh circles, while natural bokeh effect in the background, as well as foreground, gives more flexibility to photographic expressions.

  Furthermore, when equipped with the TC-1411 (1.4x) or TC-2011 (2.0x), Sigma’s latest models of teleconverters designed exclusively for the use with L-Mount lenses, it allows photographers to shoot macro at even higher macro magnifications while keeping the working distance.

  The 105mm F2.8 DG DN MACRO | Art has achieved everything that is required of a mid-telephoto macro lens at the highest levels.

  Performance data

• Sigma Art line class optical and AF performance

  The Sigma Art line lenses prioritize optical performance above all else in their design. This applies to the 105mm F2.8 DG DN MACRO | Art, which produces outstanding rendering performance from the center of the frame all the way up to the edges. It excellently handles comatic aberration, which often happens at the edges. On the other hand, its abilities to minimize ghosting and flare, which have been validated through rigorous testing from the early stages of its development, ensures that it performs well in backlit conditions.
  On top of optimization for the latest functionalities, such as face/eye detection AF, which is something mirrorless camera systems do well, it incorporates a powerful Hyper-Sonic Motor (HSM) in its focus motor system to achieve high-precision, quiet AF operation.
  All of these elements are brought to life using advanced production technology at the Aizu Factory, Sigma’s only production site, giving the 105mm F2.8 DG DN MACRO | Art the highest levels of performance worthy of the Sigma Art line.



  SLD glass

• A full range of functionalities and an excellent build quality

  On its body, the 105mm F2.8 DG DN MACRO | Art features a 1 Focus Mode Switch,
  2 Focus limiter setting which comes in handy during macro shooting, and the 3 AFL button*1 to which users may assign select functions. The 4 Aperture ring, which is designed to help users work intuitively, has an 5 Aperture ring click switch to turn ON or OFF the clicking sound that isn’t required by some users when shooting macro. It also comes with a 6 Aperture ring lock switch*2 for a ring lock system. Its enhanced functions allow users to customize their shooting operations in accordance with their shooting styles.
  The lens also has a 7 dust and splash resistant structure* with a water- and oil-repellent coating, which is built to handle all manner of shooting conditions. The rings and switches, meanwhile, have a build quality that is superb in terms of durability, as well as how they work and how they feel.
  With levels of user-friendliness, adaptability to the environment, and smoothness of operation that are designed for professional uses, the 105mm F2.8 DG DN MACRO | Art pushes the boundaries for photographers and gives them wider creative possibilities.

  *1 Limited to compatible cameras. Also, the functions depend on the camera.
  *2 When turned ON at the position A, the iris ring is locked at A. When turned ON at a position other than A, it is locked within the range between the maximum to minimum apertures and will not engage at the position A.
  *Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.





  SPECIFICATION

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount

• Sensor Format

  Full-frame [DG]

• Lens Construction

  17 elements in 12 groups

• Angle of View

  23.3°

• Number of Diaphragm Blades

  9 (Rounded diaphragm)

• Minimum Aperture

  F22

• Minimum Focusing Distance

  29.5cm / 11.6in.

• Maximum Magnification Ratio

  1:1

• Filter Size

  φ62mm

• Dimensions (Diameter × Length)

  L-Mount：φ74mm × 133.6mm / φ2.9in. × 5.3in.

  Sony E-mount：φ74mm × 135.6mm / φ2.9in. × 5.3in.

  *The length of a lens is measured from the filter surface to its mount.

• Weight

  L-Mount：715g / 25.2oz.

  Sony E-mount：710g / 25.0oz.

• Edition Number

  A020

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・Case
  ・LENS HOOD LH653-01
  ・FRONT CAP LCF-62mm III
  ・REAR CAP LCR II

• Mount / Product Barcode

  L-Mount：00-85126-26069-9

  Sony E-mount：00-85126-26065-1

• Camera Compatibility

  LINK

• * L-Mount is a registered trademark of Leica Camera AG.
  * This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * Although dust and splash resistant structure allows the lens to be used in light rain, it is not the same as being waterproof.
