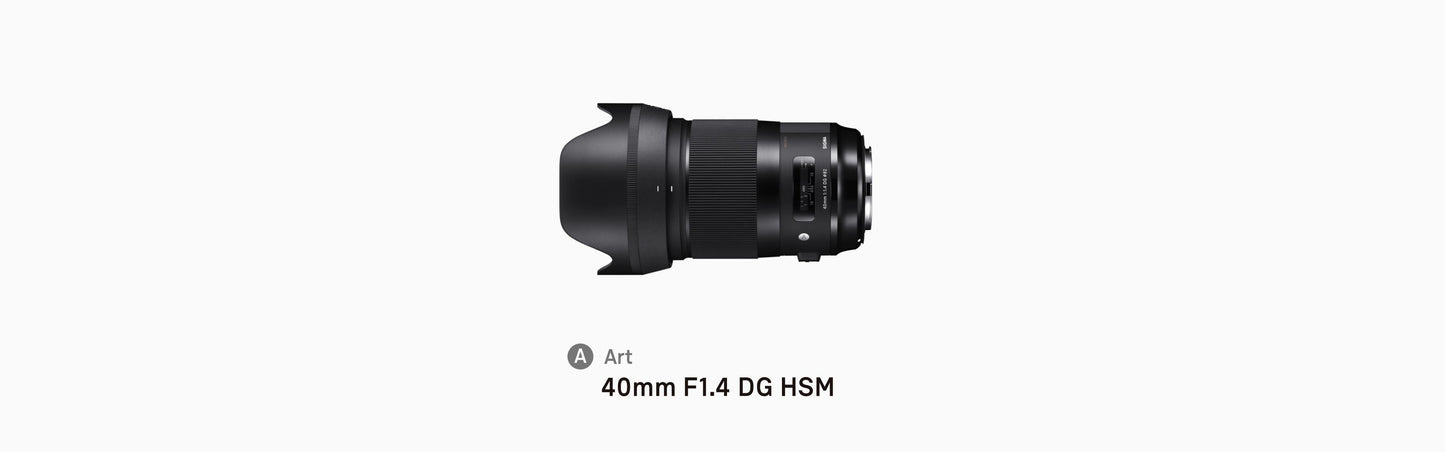

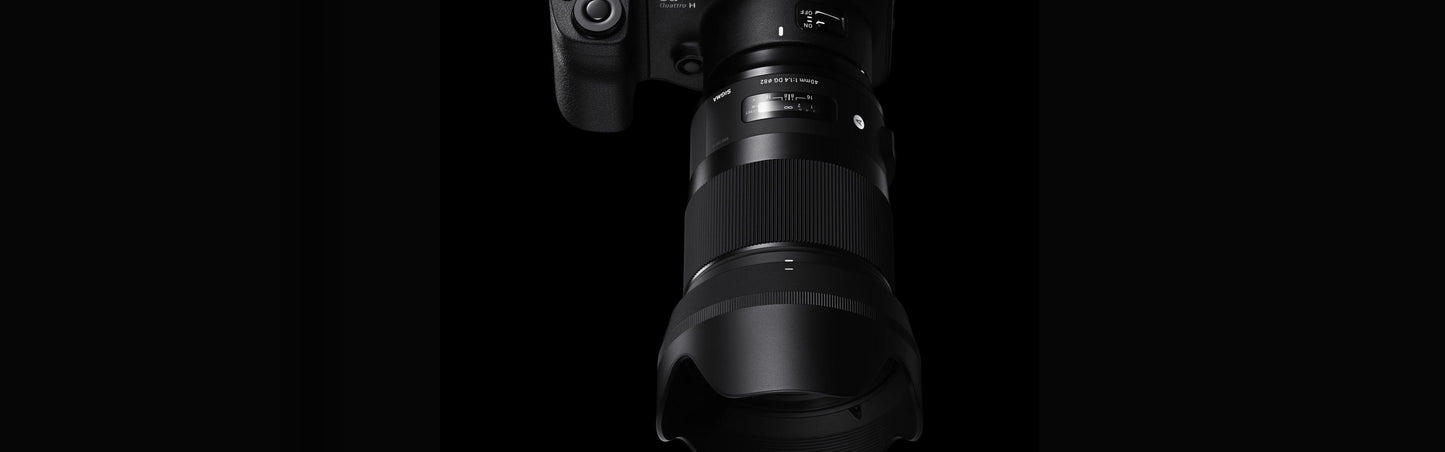

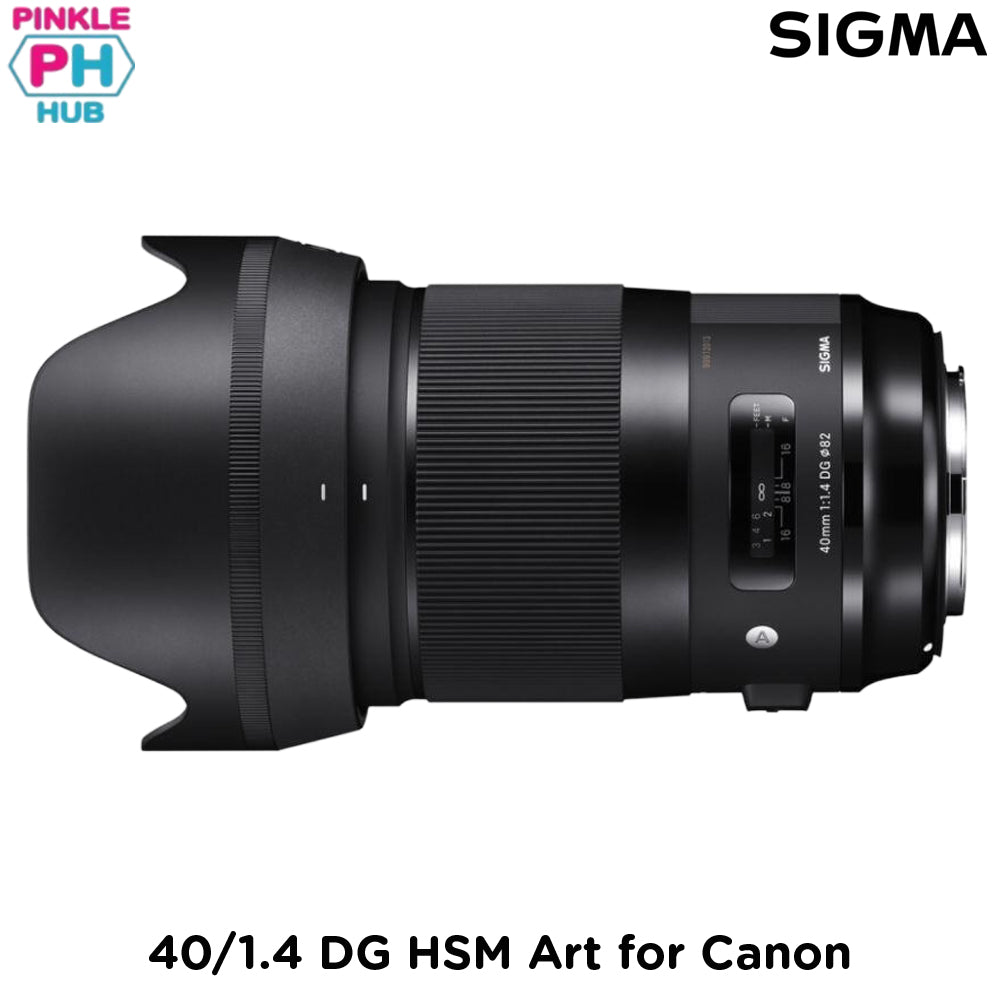

SIGMA 40/1.4 DG HSM Art for Canon
SIGMA 40/1.4 DG HSM Art for Canon
Brand : SIGMA
SKU: SKU: 85126332549
13 in stock
Couldn't load pickup availability
Overview
Features
Optical performance
that meets the requirements
of high-end cine lenses
This lens effectively arranges three FLD (“F” Low Dispersion) glass elements and three SLD (Special Low Dispersion) glass elements to correct axial chromatic aberration and magnification chromatic aberration to the limit. A sharp image is formed on the focal plane with the maximum aperture and contrast with the soft bokeh in the out of focus area highlights the solidity of a subject. With a distortion of 1% or below and a sagittal coma flare corrected to the limit, it demonstrates a consistent optical characteristic over the entire sensor. This is the ultimate large-diameter standard lens that has both 8K-compatible resolution and beautiful bokeh.
Designed to meet all shooting conditions
The water- and oil-repellent coating on the front lens element, together with the dust and splash resistant structure*, ensures excellent performance even in the most challenging shooting conditions. The high-speed AF, thanks to the HSM (Hyper Sonic Motor) with an updated algorithm, captures instantaneous photography movement.
water- and oil-repellent coating
The front lens element incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
Without Coating
With Coating

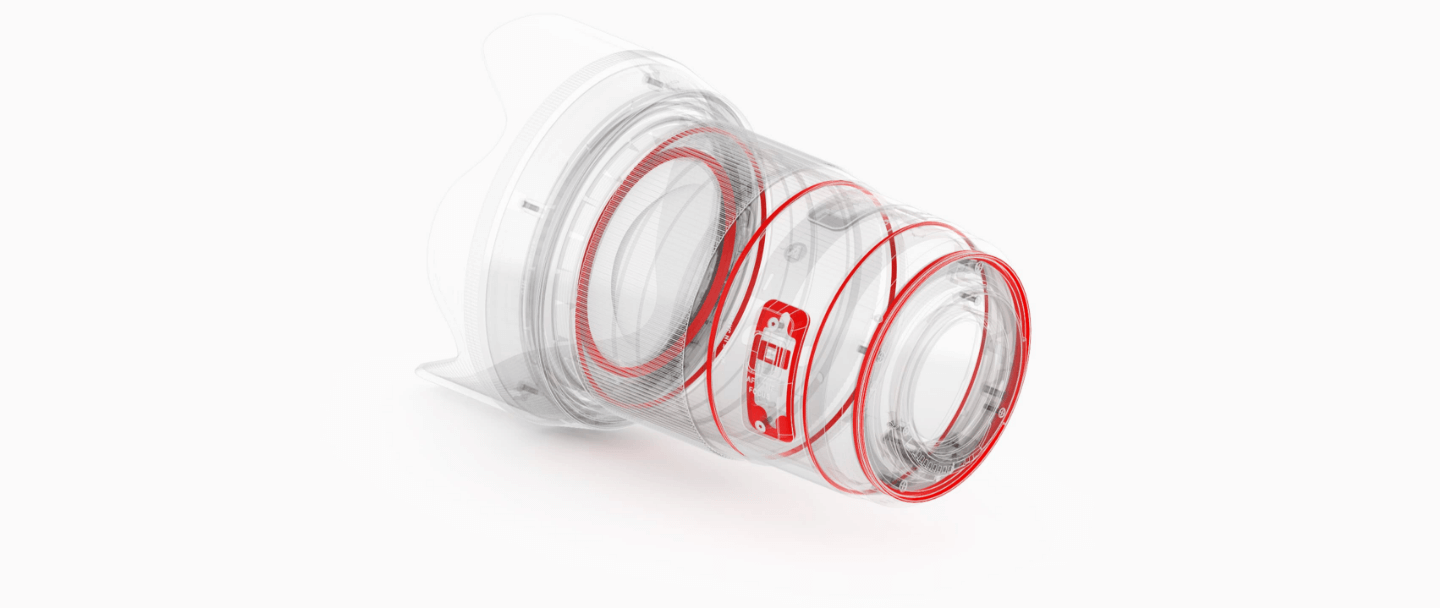

Dust and Splash Resistant Structure*
This lens features a highly effective dust and splash resistant structure* with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection, allowing photographers to work in all types of weather.
* Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

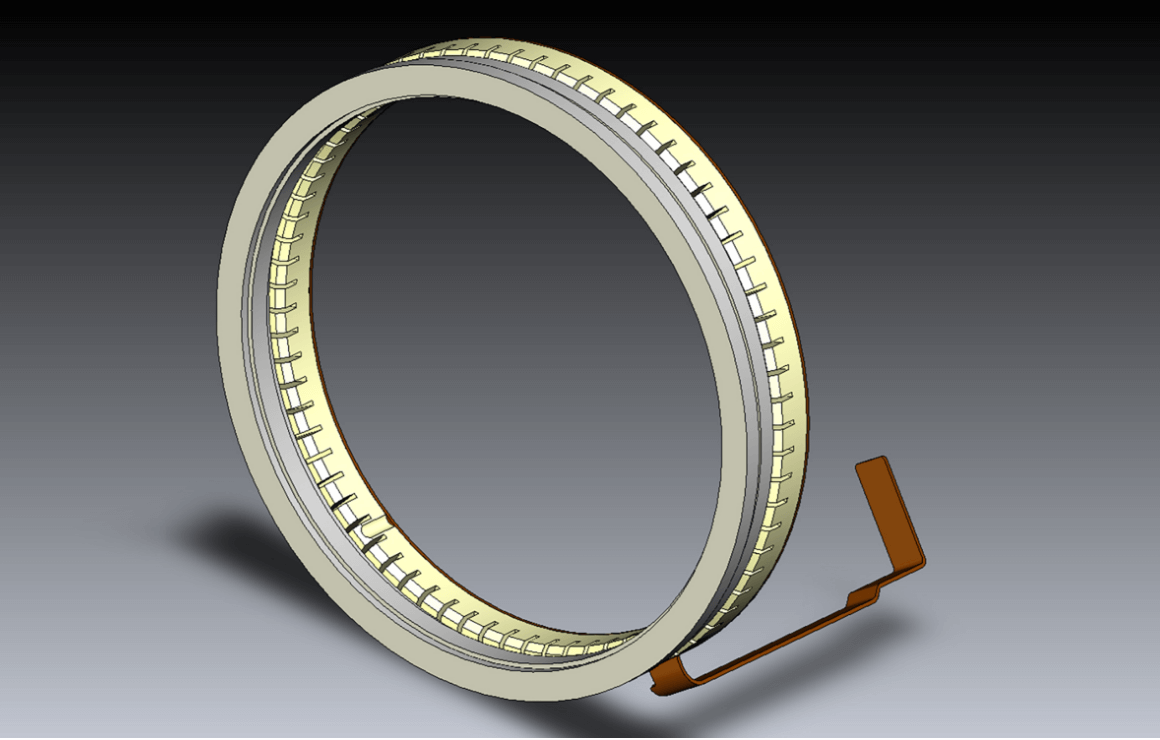

High-speed AF
The high-speed AF, thanks to the HSM (Hyper Sonic Motor) with an updated algorithm, captures instantaneous photography movement.
Hood with lock
Features a hood with lock to prevent dropping the hood.
SIGMA CINE LENS
Inheriting the high standard and
superior optical performance of SIGMA’s Art lenses
The optical design of SIGMA’s Art line is adopted and extended to “SIGMA CINE LENS” to achieve professional equipment for video production, which have been used in various filming situations. Thanks to its superior optical performance, the lenses can accommodate 50 million pixels and above in full-frame still cameras and meet the high-resolution requirements of leading edge 8K video technology. As high-end cine lenses, SIGMA offers 10 prime lenses, ranging from 14mm to 135mm, compatible with 35mm full-frame models, under FF High Speed Prime Line. SIGMA also provides one zoom lens in the FF Zoom Line, and two zoom lenses compatible with super 35 in the High Speed Zoom Line.
Compatible with Canon Lens Aberration Correction
The Canon mount version of this lens is compatible with the Canon Lens Aberration Correction function.* Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
* Function not available on all Canon cameras. Available corrections may vary depending on the Canon camera model.
Canon camera compatibility
Designed to minimize flare and ghosting
From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. SIGMA’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.

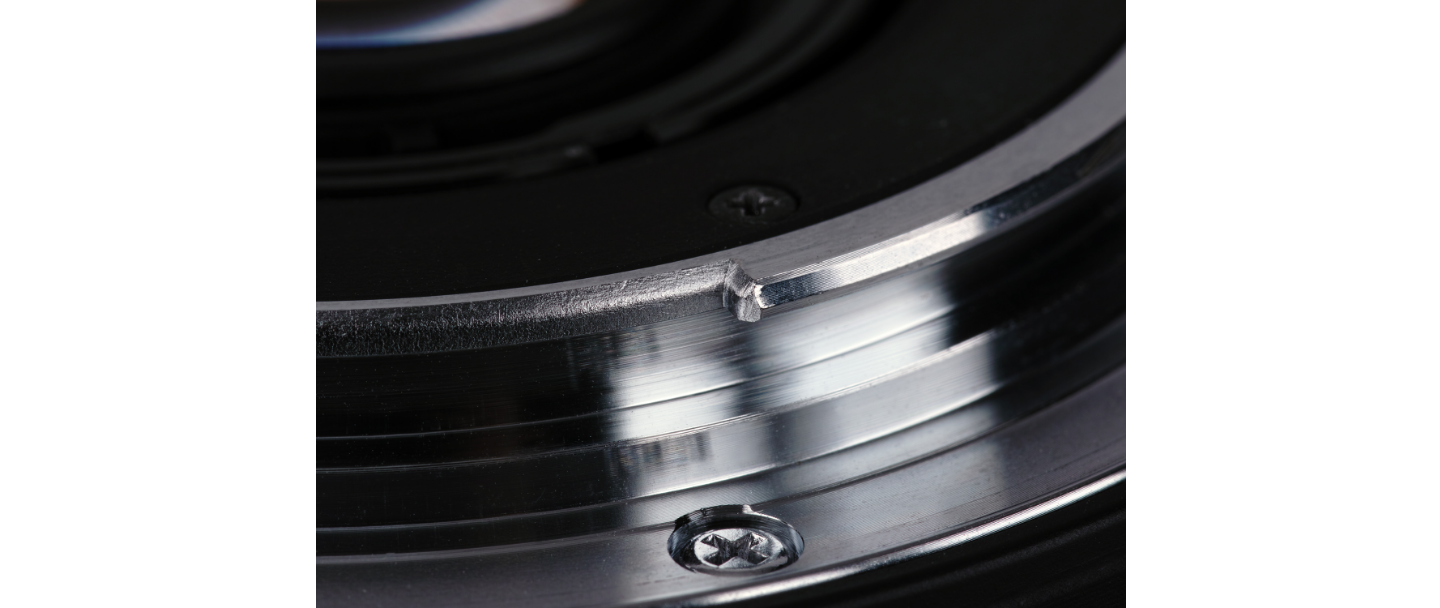

High-precision, rugged brass bayonet mount
The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.
Nikon electromagnetic diaphragm mechanism included
The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism that allows it to receive the appropriate signals from the camera body. This feature ensures precision diaphragm control and stable Auto Exposure (AE) performance during continuous shooting.
Rounded diaphragm
The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.
Compatible with full-frame
Sony E-mount cameras
The version of this lens compatible with Sony E-mount mirrorless cameras contains the same optical system as for SLRs. SIGMA MOUNT CONVERTER MC-11 is not required, as the lens performs the same functions as the converter, including in-camera image stabilization and in-camera lens aberration correction. In addition, the lens is compatible with Sony’s Continuous AF, which is not addressed by MOUNT CONVERTER MC-11.
- This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony
Specifications
- Lens Construction
-
16 elements in 12 groups
- Angle of View
-
56.8°
- Number of Diaphragm Blades
-
9 (Rounded diaphragm)
- Minimum Aperture
-
F16
- Minimum Focusing Distance
-
40cm / 15.7in.
- Maximum Magnification Ratio
-
1:6.5
- Filter Size
-
φ82mm
- Dimensions (Diameter × Length)
-
SIGMA SA-mount：φ87.8mm × 131mm / φ3.5in. × 5.2in.
Sony E-mount：φ87.8mm × 157mm / φ3.5in. × 6.2in.
L-Mount：φ87.8mm × 155mm / φ3.4in. × 6.1in.
*The length of a lens is measured from the filter surface to its mount.
- Weight
-
SIGMA SA-mount：1,200g / 42.3oz.
Sony E-mount：1,260g / 44.4oz.
L-Mount：1,295g / 45.6oz.
- Edition Number
-
A018
About Edition Number
- Supplied Accessories
-
・Case
・LENS HOOD LH878-01
・FRONT CAP LCf-82mm III
・REAR CAP LCR II
- Mount / Product Barcode
-
SIGMA SA-mount：00-85126-33256-3 (discontinued)
Nikon F mount：00-85126-33255-6 (discontinued)
Canon EF mount：00-85126-33254-9 (discontinued)
Sony E-mount：00-85126-33265-5 (discontinued)
L-Mount：00-85126-33269-3 (discontinued)
