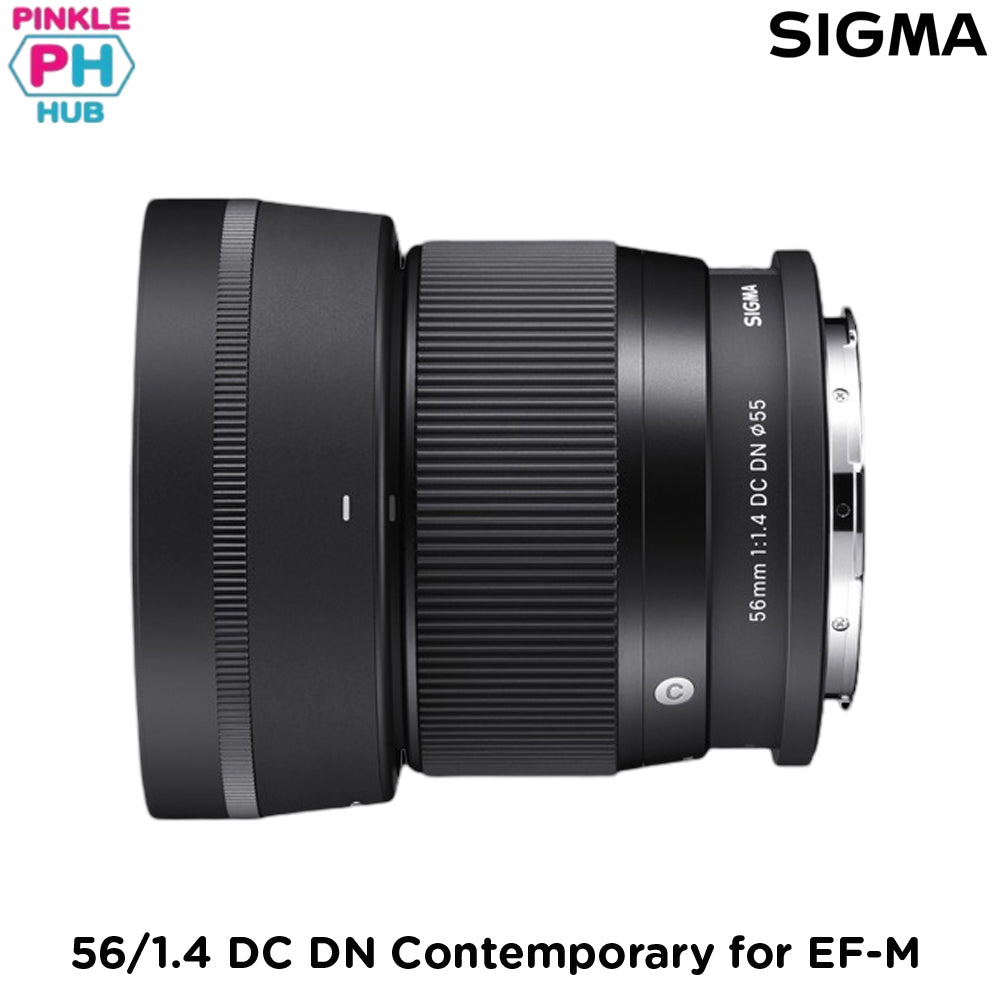

SIGMA 56/1.4 DC DN Contemporary for EF-M

FEATURES

• A member of the high-performance Contemporary line, featuring Sigma’s latest technologies

  Smooth AF ideal for video shooting

  The combination of optical design for video AF and use of the stepping motor enables smooth and quiet autofocus. This lens is also compatible with the Sony E-mount Fast Hybrid AF, achieving precise AF tracking. By using the face recognition or eye AF functions of cameras, focus will continuously be on the face or the eye even if the subject moves during the shoot.

• High-precision, rugged brass bayonet mount

  The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.



• Mount with Dust and Splash Resistant Structure

  The mount features a special sealing* to make the lens an excellent choice in a wide variety of conditions.

  * Except for Canon EF-M mount



• Impressively compact construction with image quality rivaling Sigma's Art line.

  To achieve such a compact construction, lens design is considered based on the capabilities of the camera body function to correct* peripheral light amount and distortion. Moreover, axial color aberration, which is difficult to eliminate by image processing, is efficiently corrected by incorporating an SLD glass element. A compactness and lightweight construction combined with superb image quality is achieved.

  * Limited to what the camera supports.

  EOS-M series cameras incompatible with aberration correction
  Cameras incompatible with distortion correction
  EOS M5, EOS M6, EOS M100, EOS M10, EOS M3, EOS M2, EOS M



• Designed to minimize flare and ghosting

  From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions. The included lens hood can be attached to block out extraneous light, which can have a negative effect on rendering performance.



• The only three F1.4 AF lens system for APS-C Sony E-mount mirrorless cameras

  The lens benefits from an open aperture of F1.4 to achieve sufficient amount of bokeh and admirable brightness even with APS-C size cameras which tend to have smaller bokeh effects compared to 35mm full size systems. Its compact and lightweight body is perfect for daily use, capable of capturing various scenes ranging from portraits to snapshots, as well as night view.

• Rounded diaphragm

  The 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.



• Sigma DC DN SERIES

  Over the years, Sigma has built an extensive lineup of bright prime lenses ranging from wide-angle to telephoto. Now, for mirrorless cameras, Sigma is developing a range of interchangeable lenses that feature a lightweight, compact package for convenient daily shooting while delivering superior performance and covering the key focal lengths.

  Developed to feature a lightweight, compact package for everyday use, Sigma DN lenses for mirrorless cameras deliver superior performance covering the key focal lengths. The new lens builds on the success of the 30mm F1.4 DC DN | Contemporary, which Sigma released in 2016 as the first in a new series of prime lenses for mirrorless cameras. The 16mm F1.4 DC DN | Contemporary also combines F1.4 brightness with top-level optical performance.

  The first in this Sigma series of prime lenses for mirrorless cameras was the standard prime 30mm F1.4 DC DN | Contemporary, then the wide-angle prime 16mm F1.4 DC DN | Contemporary, and now followed by the telephoto 56mm F1.4 DC DN | Contemporary, Sigma has made a new and complete system for mirrorless camera users.



  Contemporary
  16mm F1.4 DC DN



  Contemporary
  30mm F1.4 DC DN



  Contemporary
  56mm F1.4 DC DN

SPECIFICATIONS

• Camera Type

  Mirrorless

• Corresponding Mount

  L-Mount, Sony E-mount, FUJIFILM X Mount, Micro Four Thirds mount, Canon EF-M mount, Nikon Z mount, Canon RF Mount

• Sensor Format

  APS-C [DC]

• Lens Construction

  10 elements in 6 groups

• Angle of View

  L-Mount：28.5°

  Sony E-mount：28.5°

  FUJIFILM X Mount：28.5°

  Micro Four Thirds mount：21.9°

  Nikon Z mount：28.5°

  Canon EF-M mount：26.9°

  Canon RF Mount：26.9°

• Number of Diaphragm Blades

  9(Rounded diaphragm)

• Minimum Aperture

  F16

• Minimum Focusing Distance

  50cm / 19.7in.

• Maximum Magnification Ratio

  1:7.4

• Filter Size

  φ55mm

• Dimensions (Diameter × Length)

  L-Mount：φ66.5mm × 57.5mm / φ2.6in. × 2.3in.

  Sony E-mount：φ66.5mm × 59.5mm / φ2.6in. × 2.3in.

  FUJIFILM X Mount：φ66.5mm × 59.8mm / φ2.6in. × 2.4in.

  Micro Four Thirds mount：φ66.5mm × 58.1mm / φ2.6in. × 2.3in.

  Nikon Z mount：φ70.0mm × 61.5mm / φ2.8in. × 2.4in.

  Canon EF-M mount：φ66.5mm × 59.5mm / φ2.6in. × 2.3in.

  Canon RF Mount：φ69.0mm × 57.5mm / φ2.7in. × 2.3in.

• Weight

  L-Mount：285g / 10.1oz.

  Sony E-mount：280g /9.9oz.

  FUJIFILM X Mount：280g / 9.9oz.

  Micro Four Thirds mount：256g /9.0oz.

  Nikon Z mount：295g /10.4oz.

  Canon EF-M mount：280g / 9.9oz.

  Canon RF Mount：290g / 10.2oz.

• Edition Number

  C018

  The three-digit code on the surface of the lens is to indicate the year the lens was first released.
  (Since it is different from the year of manufacture, the release year and edition number may not match depending on the mount.)

• Supplied Accessories

  ・LENS HOOD LH582-01
  ・FRONT CAP LCF-55mm III
  ・REAR CAP LCR II

• Mount / Product Barcode

  L-Mount：00-85126-35169-4

  Sony E-mount：00-85126-35165-6

  FUJIFILM X Mount：00-85126-35175-5

  Micro Four Thirds mount：00-85126-35163-2

  Nikon Z mount：00-85126-35173-1

  Canon EF-M mount：00-85126-35171-7

  Canon RF Mount：00-85126-35172-4

• Camera Compatibility

  LINK

• * L-Mount is a registered trademark of Leica Camera AG.
  * Sony E-mount is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.
  * Nikon Z mount is developed, manufactured and sold under the license agreement with Nikon Corporation.
  * Canon RF Mount is developed, manufactured and sold under license from Canon Inc.
  * Canon EF-M mount does not feature mount with dust and splash resistant structure.
