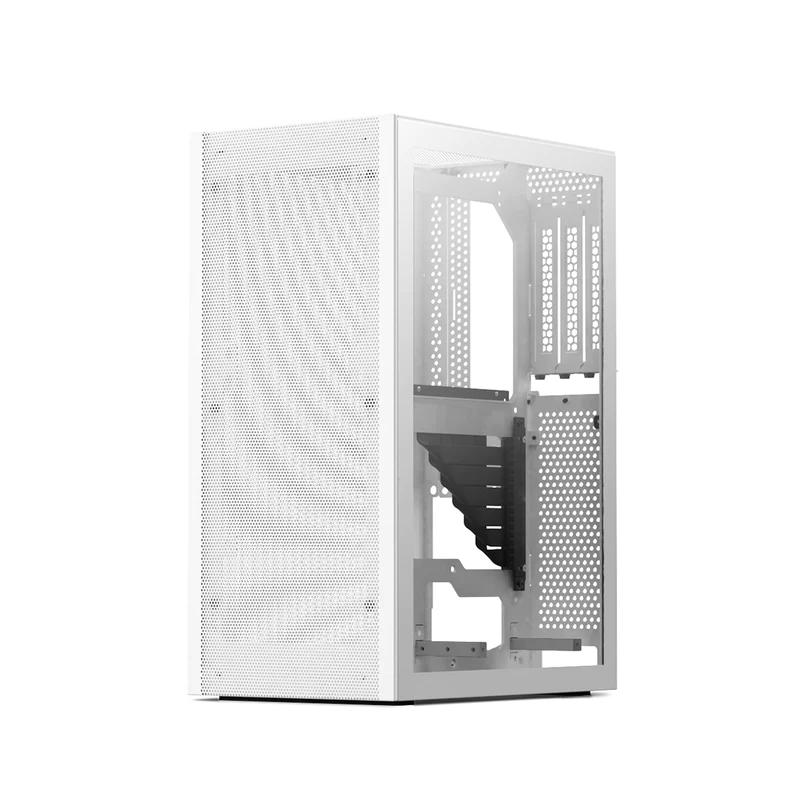

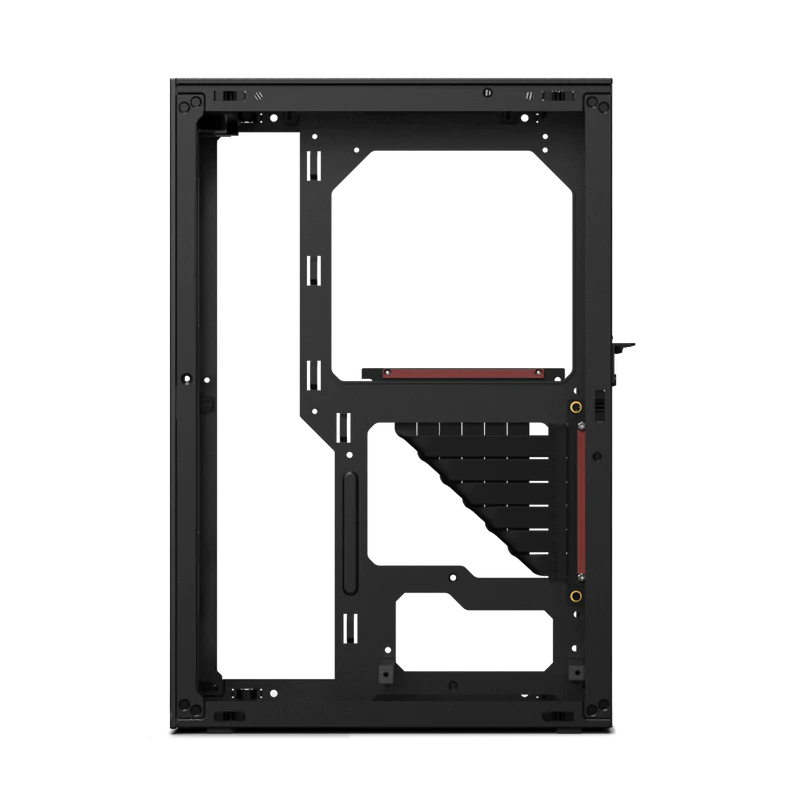

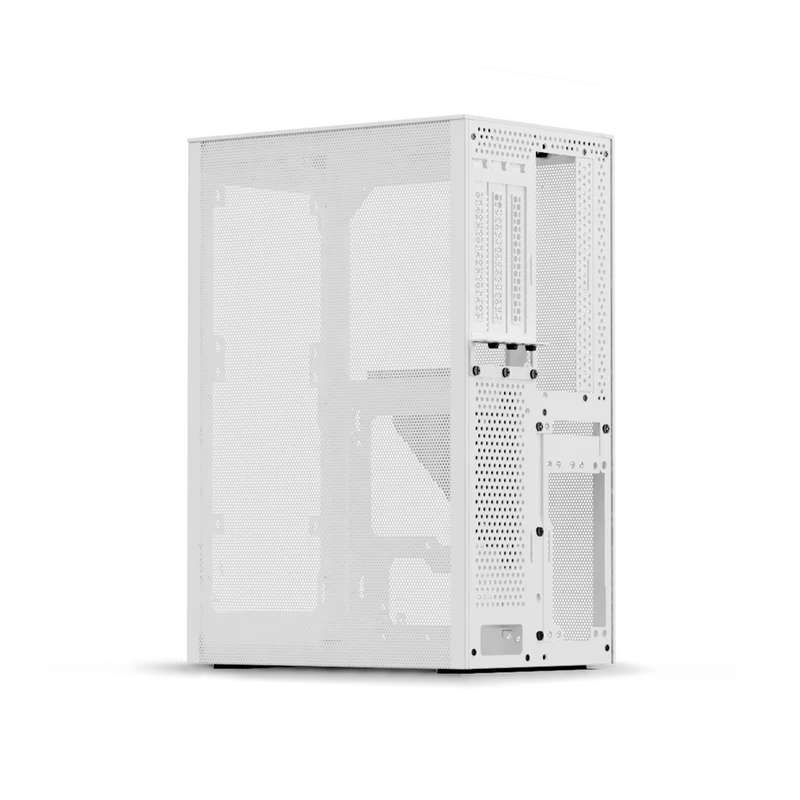

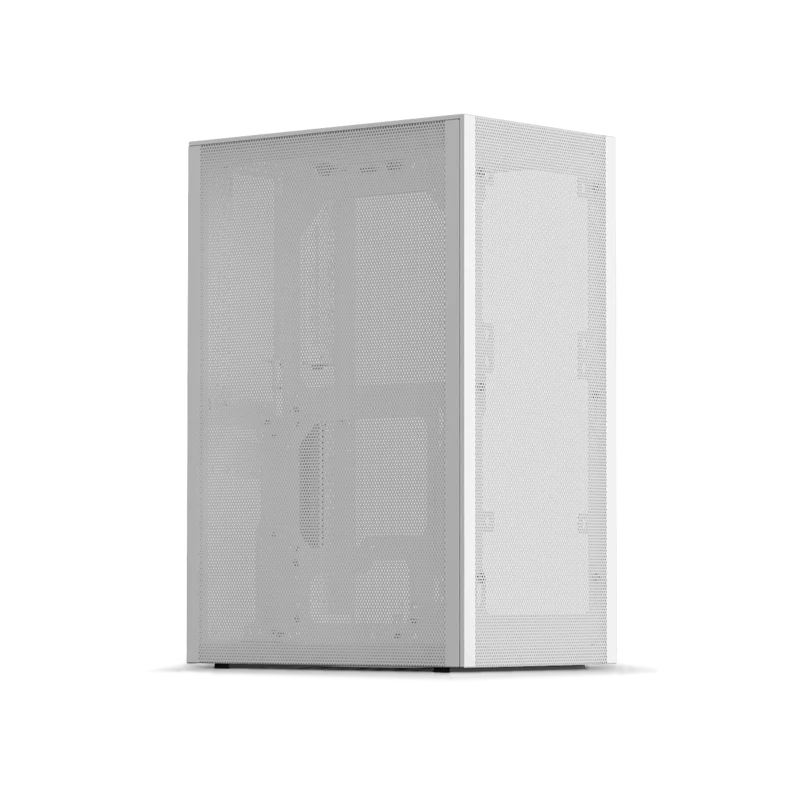

SSUPD Meshlicious Mini ITX Case

SSUPD Meshlicious Mini ITX Case

Brand : SSUPD

Regular price ₱7,200.00
Sale price ₱7,200.00
Regular price ₱7,920.00 -9%
Sale! Sold out
Color

SSUPD Meshlicious Mini ITX Case

Meshlicious is a combination of MESH and Delicious. There’s so much mesh that your mouth will water. Breathable, mesh panels lets you savor the airflow and minty temps.

  • Fine mesh panels and well ventilated
  • 14.67 liters in size
  • Highly compatible with high-end components.

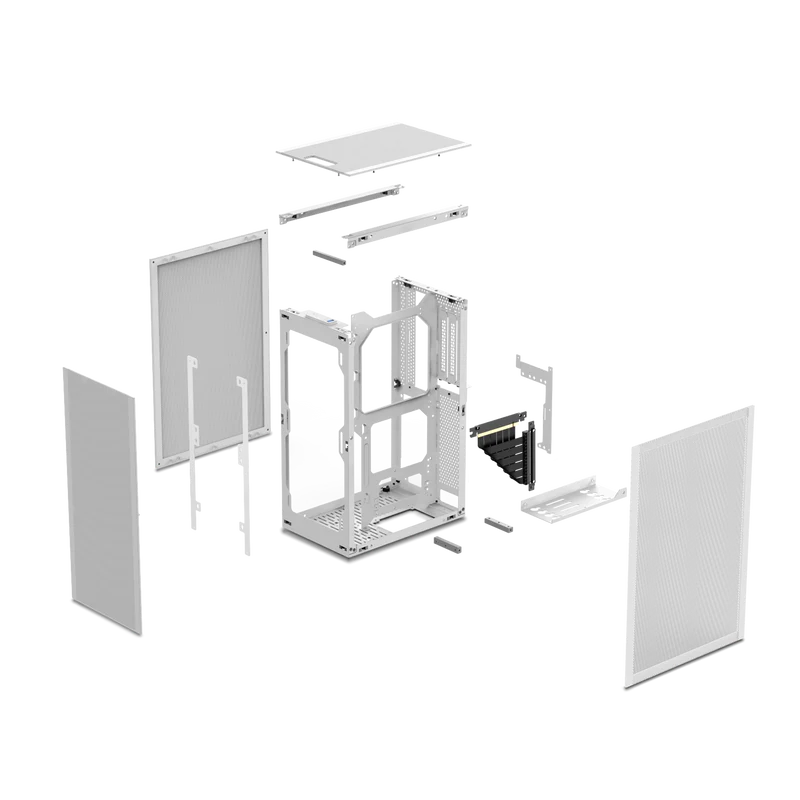

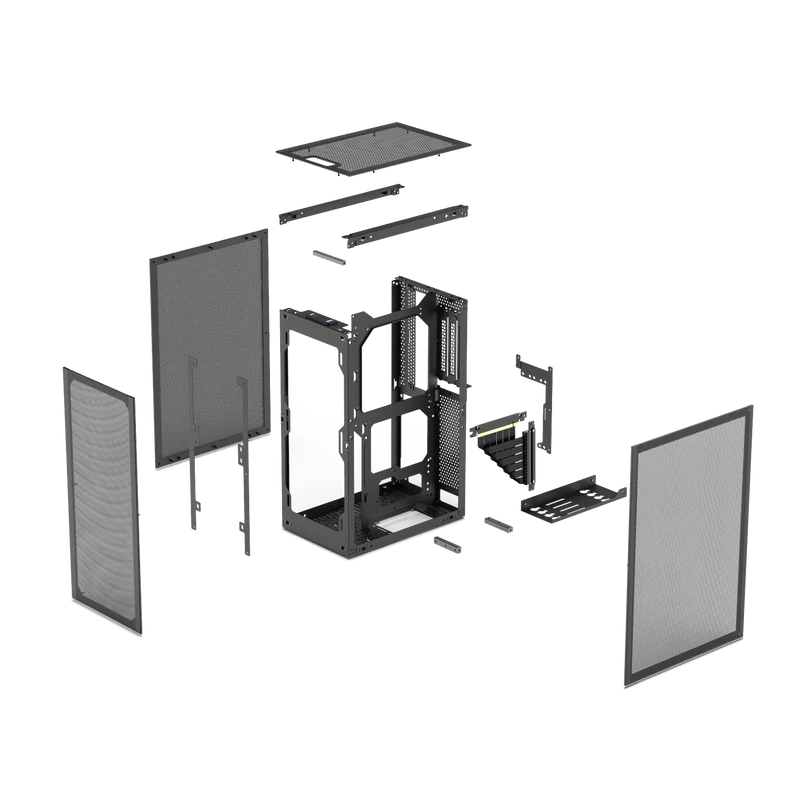

  • Tool-less external panels and easy to assemble

Specifications

Expansion slots
Full Length GPU : Up to 4 slot; Small Form Factor GPU : 3 slot

Front fan
2x 120 mm or 2x 140 mm

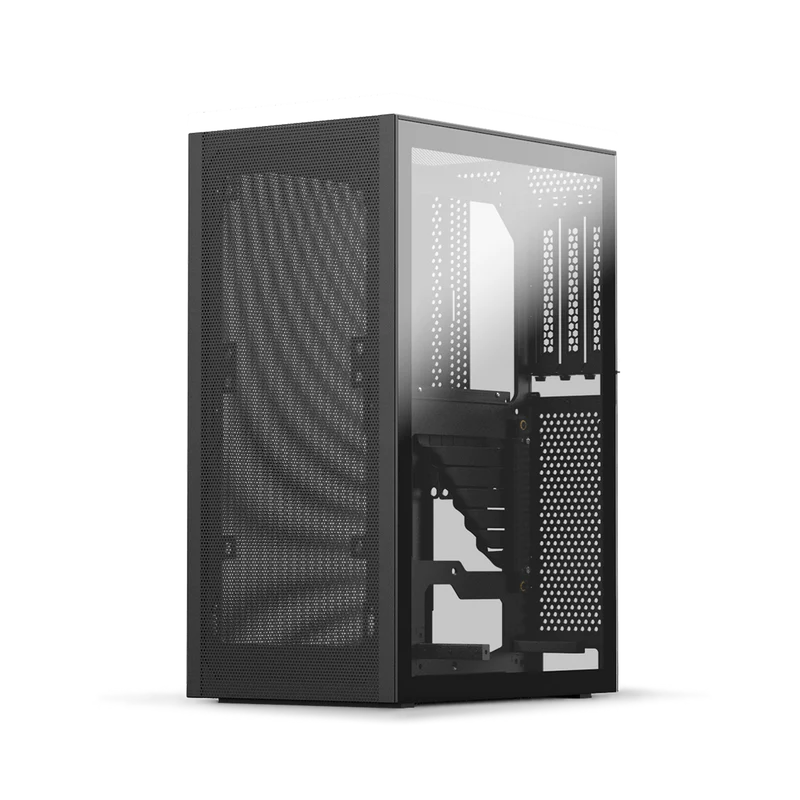

Tempered glass version side panel
One tempered glass panel (3mm thick) and one mesh panel (1mm thick)

3.5” drive support
Up to 2 x 3.5” HDD (with Small Form Factor GPU)

Front ports
1x USB 3.0; 1x Type-C 3.1 Gen 2; Power LED

Tool-less push-to-lock
Both side, Top side, and Front side Panels

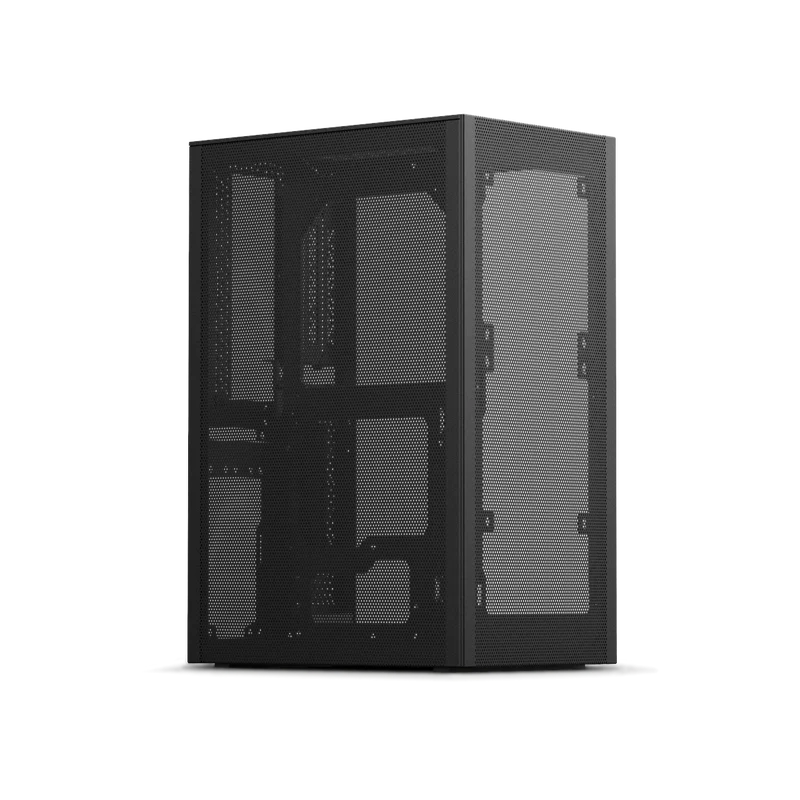

Full mesh version side panel
Two mesh panels (1mm thick)

2.5” drive support
2 x 2.5” SSD (with full length GPU & ATX PSU) / 3 x 2.5” SSD (with full length GPU & SFX PSU) / 7 x 2.5” SSD (with SFF GPU & SFX PSU)

Compatibility


Motherboard compatibility

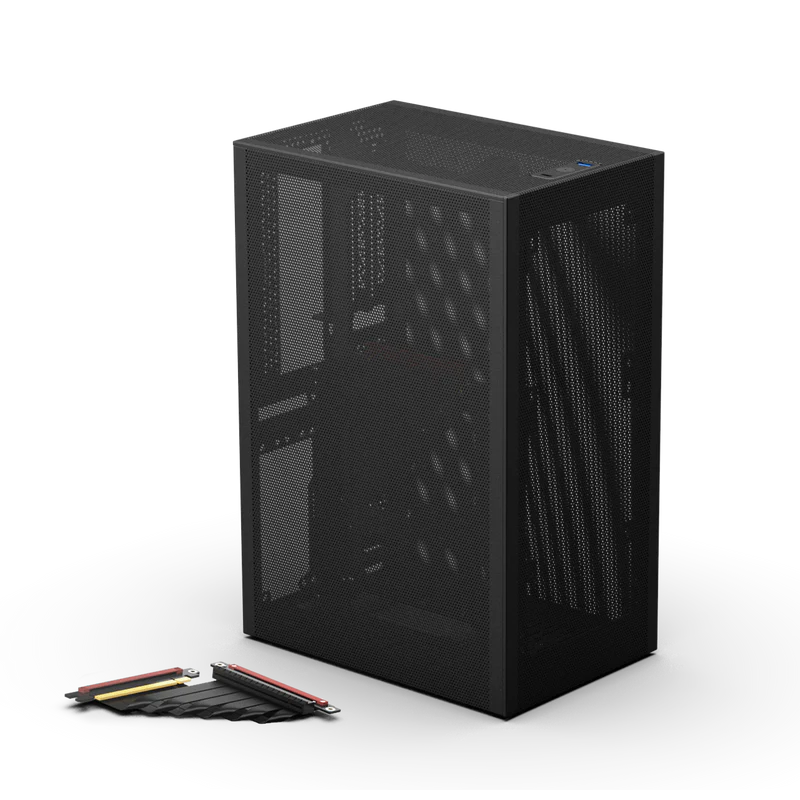

Mini ITX / Mini-DTX (need additional 20cm PCIe riser cable)

Front radiator
120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans, dependent on GPU position / type)

GPU max length
Full length GPU: 4 slots mode up to 336mm length(GPU Baffle not included), 346mm length(GPU Baffle included )/ 3 slots mode up to 332mm length(GPU Baffle not included), 342mm length(GPU Baffle included) and 155 mm tall; small form factor GPU: Up to 211 mm length (without radiator)

Power supply type
ATX, SFX-L, SFX

PSU max length
170mm ATX PSU (with front fan only) / up to 160mm ATX PSU (with upward tubing AIO) / 140mm ATX PSU (with downward tubing AIO)

CPU cooler max height
3 slots GPU mode: Up to 73mm Height / 4 slots GPU mode: 53mm Height

Dimensions


Case dimensions (L x W x H)
245 mm x 166.4 mm x 360 mm
Net weigh
Tempered glass version – 3.7 kg. Full mesh version – 3.6 kg.
Package dimensions (L x W x H)
415 mm x 220 mm x 310 mm
Volume
14.67 liters
View full details
