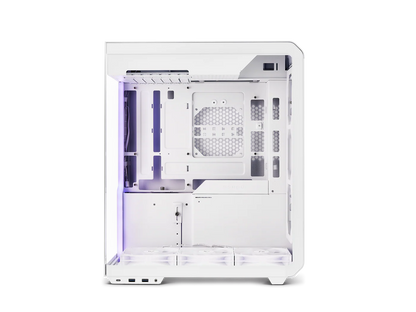

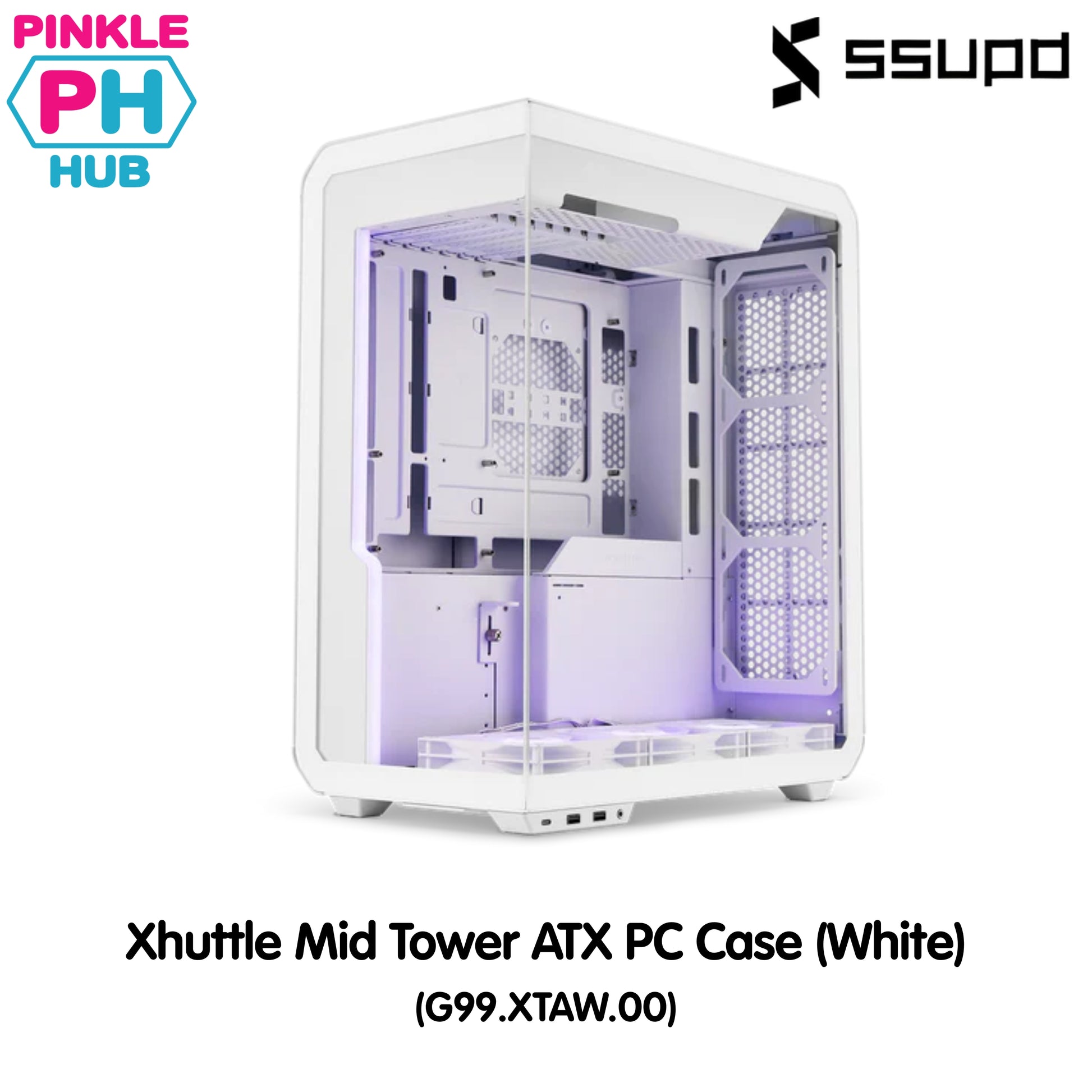

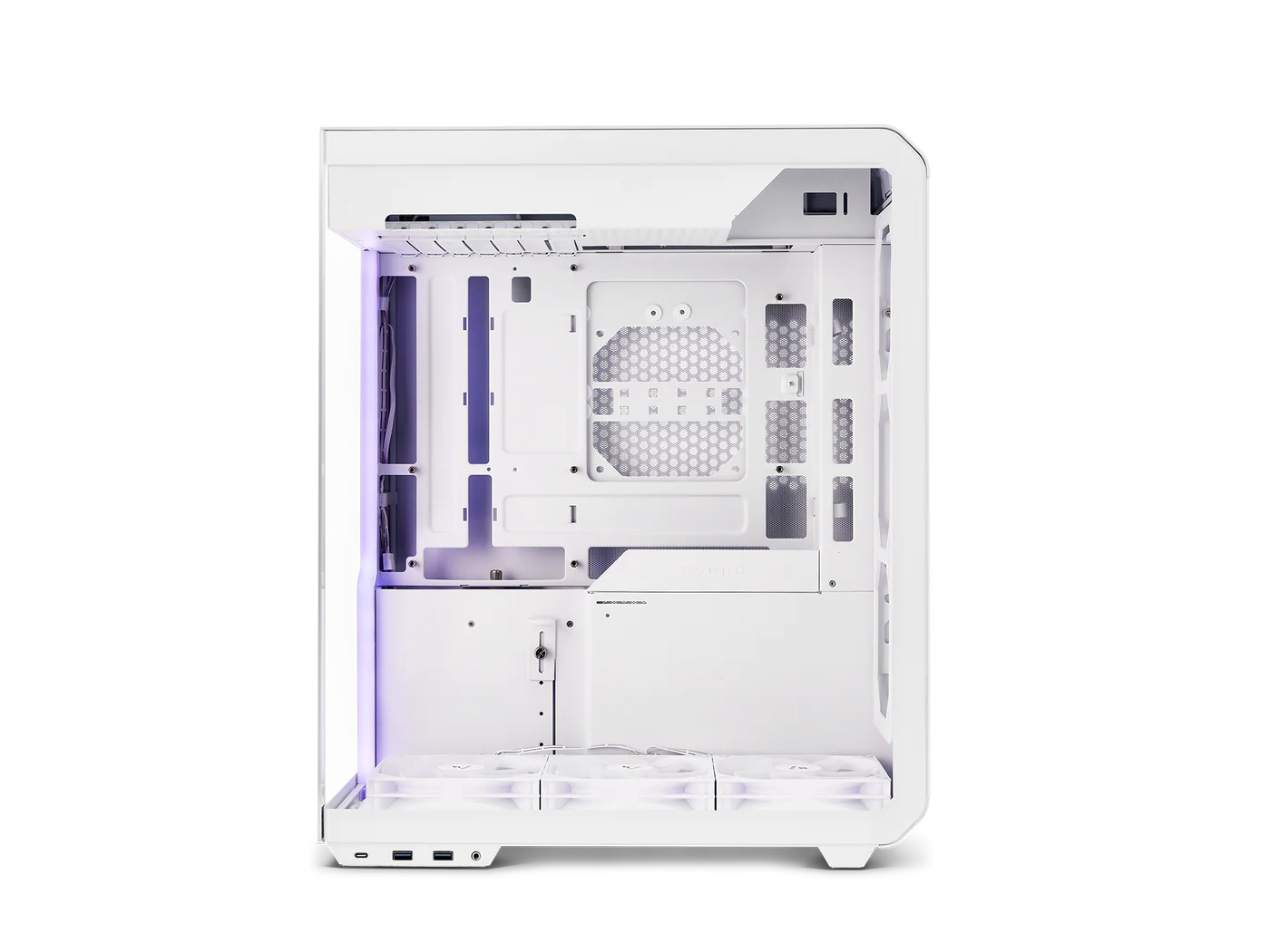

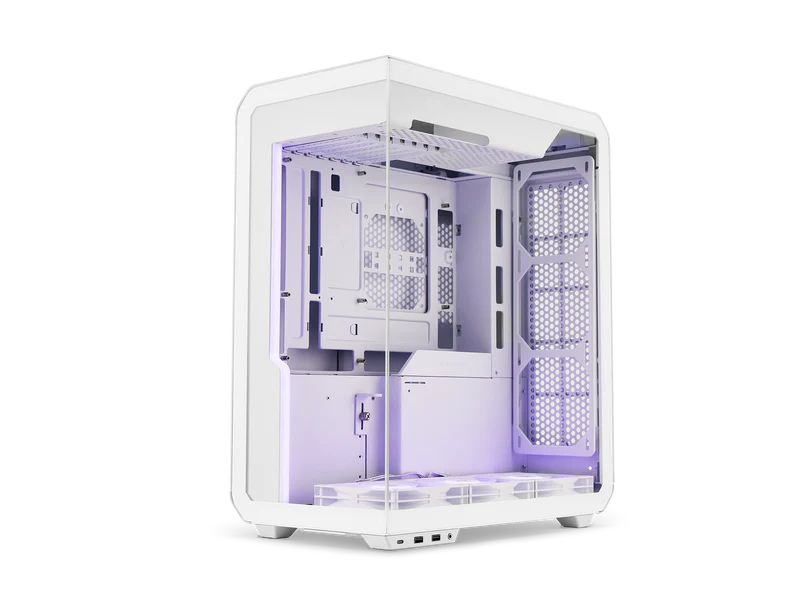

SSUPD Xhuttle Mid Tower ATX PC Case (White)
SSUPD Xhuttle Mid Tower ATX PC Case (White)
Brand : SSUPD
SKU: SKU: G99.XTAW.00
3 in stock
Couldn't load pickup availability
FEATURES:
- Futuristic Design: Dual tempered glass with a left-side panoramic view
- Vertical GPU Display: Upright mount for a striking GPU showcase
- Optimized Vertical Airflow: Directs airflow efficiently for enhanced cooling
- Dual-Chamber Layout: Hides cables neatly for a clean, organized build
- All-in-One Setup: Includes 3 pre-installed 120mm ARGB fans, a built-in RGB strip and ARGB controller
- Flexible Orientation: Vertical or horizontal setup to match your style
- Broad Compatibility: Supports ATX and hidden-connector motherboards, GPUs up to 370mm, PSUs up to 190mm, and CPU coolers up to 170mm
- Advanced Cooling: Holds up to 10 x 120mm fans and dual 360mm radiators
- Versatile Storage: Supports up to 2 x 3.5" HDD or 2 x 2.5" SSD
FUTURISTIC OUTSIDE, CUSTOMIZABLE INSIDE
immerse in a panoramic, futuristic display with dual tempered glass panels and an integrated RGB strip
VERTICAL GPU DISPLAY
showcase your GPU with a reinforced vertical mount for a striking build,
supporting GPUs up to 370mm in length
Vertical airflow centralizes heat dissipation, improving thermal efficiency and
cooling critical components
choose between vertical and horizontal orientations to perfectly suit your setup
COMPACT DUAL CHAMBER
maximizes space and minimizes footprint with a hidden cable chamber for a clean, organized build
BACK-CONNECT MOTHERBOARD
fully supports standard ATX，back-connect motherboards for a clean, streamlined build
EFFECTIVE COOLING
supports up to 170mm CPU Cooler in height
FLEXIBLE POWER OPTIONS
supports up to 190mm PSU in length
HIGH COOLING CAPACITY
supports up to 10 x 120mm fans and 2 x 360mm radiators
VERSATILE STORAGE OPTIONS
supports up to 2 x 3.5” HDD or 2 x 2.5” SSD
Specifications
Expansion slot
7
2.5" drive mounts
2
3.5" drive mounts
2
Tool-less push-to-lock
Left/Right side, top and front panels
Front I/O ports
2 x USB 3.0 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x 3.5mm audio & mic combo
Top I/O ports
1 x power button, 4 x LED control bottom
Fan support
Bottom: 3 x 120mm, Rear: 3 x 120mm, Side: 1 x 120mm, Top: 3 x 120mm with 2nd Slot GPU
Dust filters
Bottom, Rear, Side
Panels
2 x tempered glass, 1 x steel, 1 x plastic
Compatibility
Motherboard compatibility
ATX / Micro-ATX / Mini-ITX
Power supply type
ATX / SFX (ATX adapter bracket required)
Power supply max length
190mm
CPU cooler max height
170mm
GPU max length
370mm length and 160mm width
Radiator support
Bottom: 1 x 120/240/360mm, Rear: 1 x 120/240/360mm
General
Case dimensions
417 x 237 x 508 mm / 16.42 x 9.33 x 20 inch
Package dimensions
565 x 309 x 495 mm / 22.24 x 12.17 x 19.49 inch
Case material
SGCC powder coated steel, plastic, PVC filter, tempered glass
Net weight
10.67 Kg / 23.52 lb
Gross weight
12.85 Kg / 28.33 lb
Volume
50.21 liters / 48.72 liters w/o feet
Package contents
Case, accessory box, user manual
