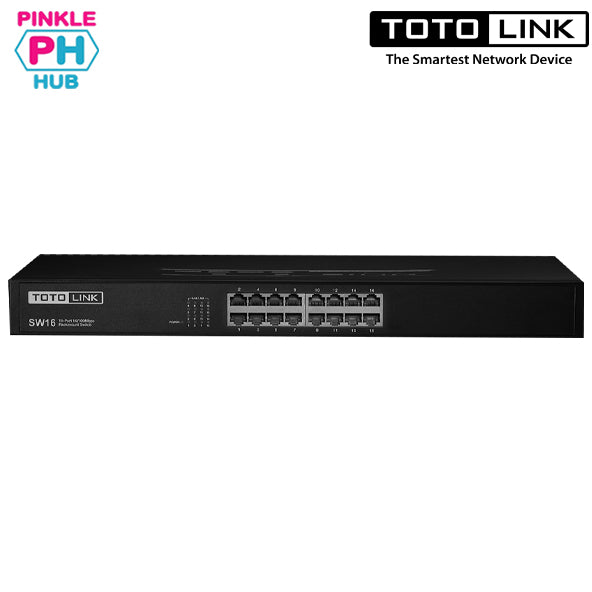

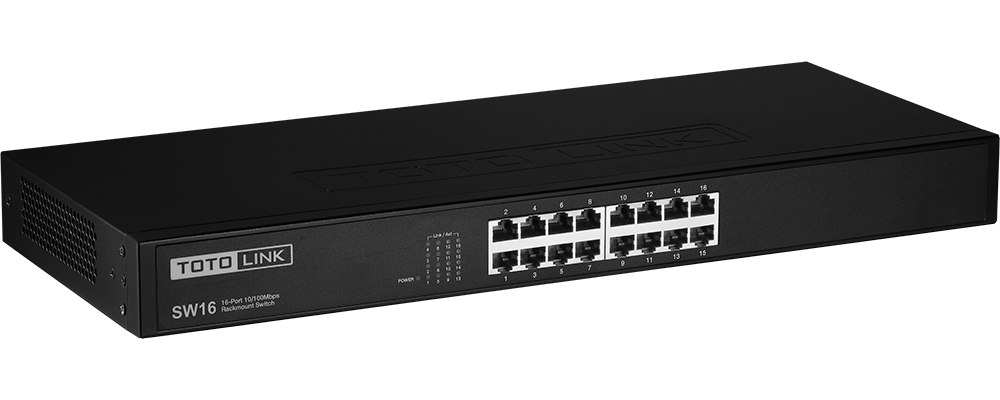

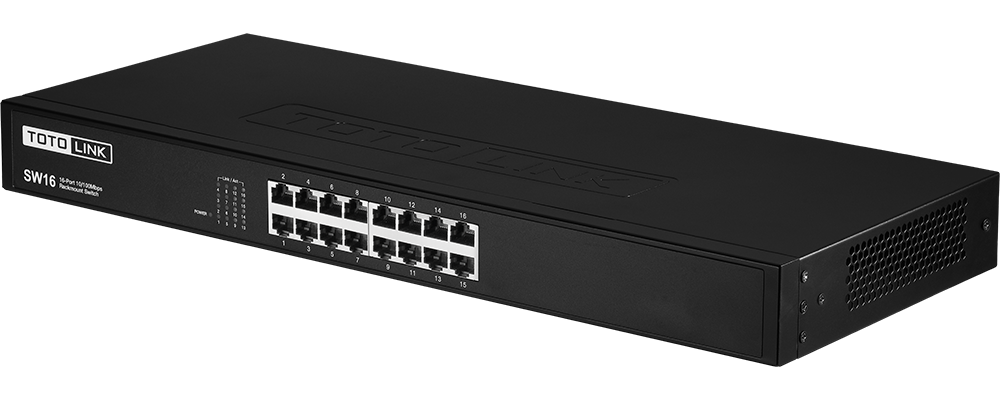

TotoLink SW16 16 Port 10/100Mbps Unmanaged Switch
TotoLink SW16 16 Port 10/100Mbps Unmanaged Switch
Brand : TotoLink
SKU: SKU: SW16
Low stock: 1 left
Couldn't load pickup availability
SW16
SW16 is a Fast Ethernet Switch that designed for general home or small office use.
It provides 16 10/100Mbps ports and all ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play.
Moreover, it can also be simply plugged into a server, a hub or a switch using straight cable or crossover cable.
Features
16 10/100Mbps auto-negotiated RJ45 ports.
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
8K entry MAC address table and automatic address learning.
Auto-MDI/MDIX eliminates the need for crossover cables.
Store-and-Forward switching scheme.
Performs non-blocking full wired speed.
Plug and Play.
Standard 19-inch rackmount steel case.
|
General |
|
|
Standards |
- IEEE 802.3, - IEEE 802.3u, - IEEE 802.3x |
|
Interface |
- 16*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
|
Power Supply |
- AC 100V~240V, 50/60Hz |
|
LED |
- 1*Power, 16*LANs |
|
Dimensions(L x W x H) |
- 440 x 180 x 44mm |
|
MAC Address Learning |
- Auto-learning, auto-aging |
|
MAC Address Table |
- 8K |
|
Backup Bandwidth |
- 3.2Gbps |
|
Transfer Method |
- Store-and-Forward |
|
Network Media |
- 10BASE-T: UTP Cat 3 or above cable - 100BASE-TX: UTP Cat 5, 5e or above cable |
|
Others |
|||||
|
Package Contents |
- SW16 Rackmount Switch * 1 - Power Cable *1 - Rackmount Kit * 1 - Quick Installation Guide * 1 |
||||
|
Environment |
- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
||||
