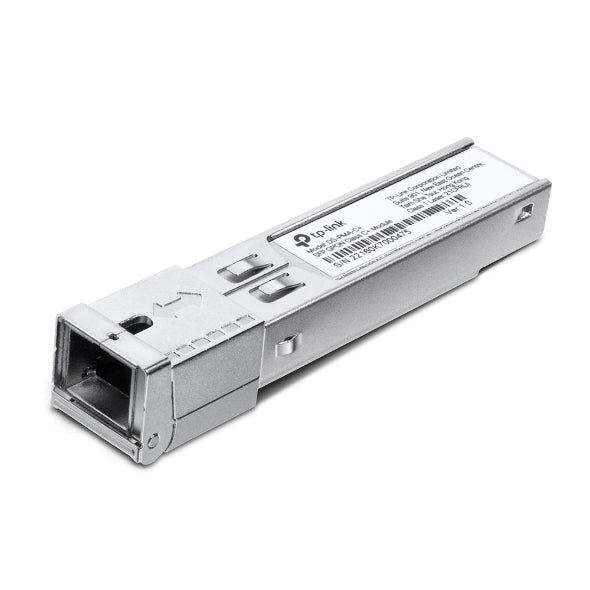

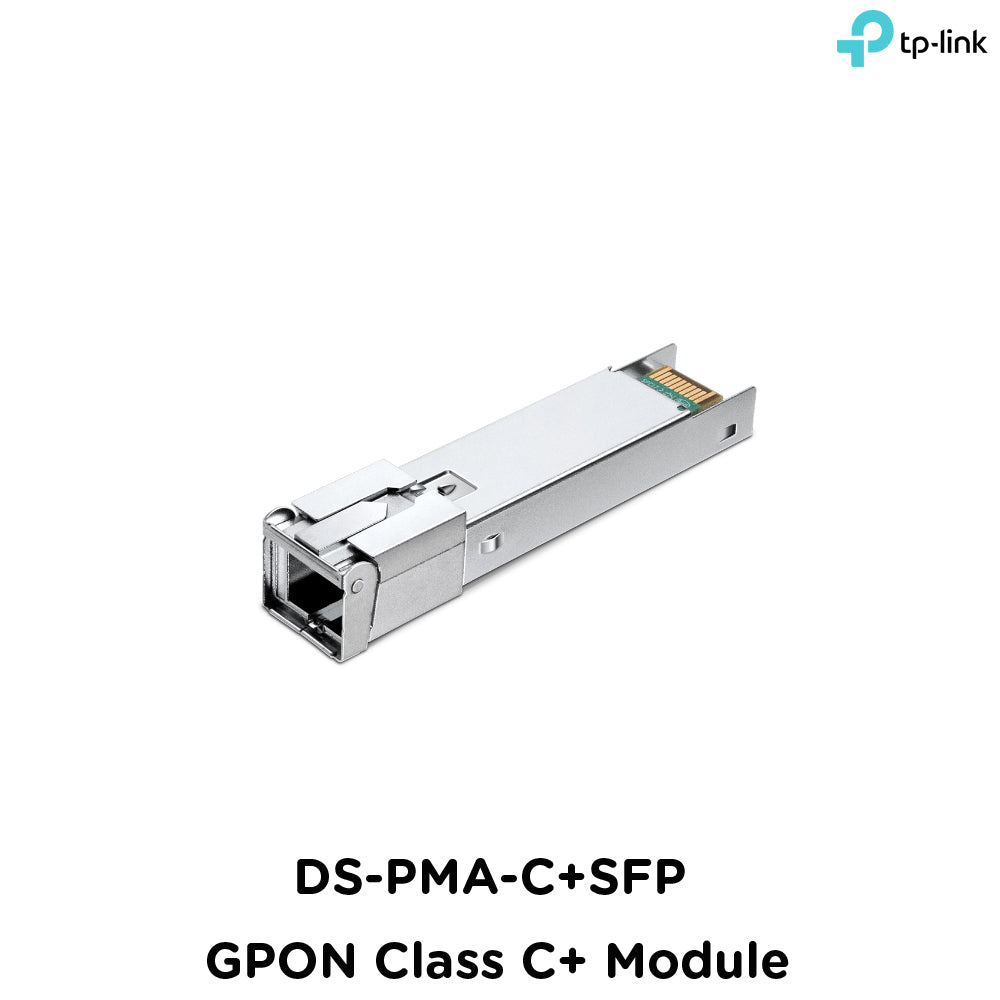

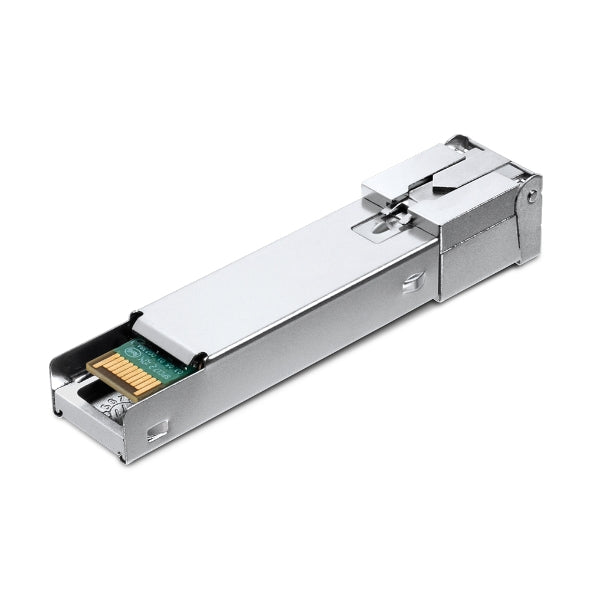

Tp-Link DS-PMA-C+ SFP I GPON Class C+ Module
Tp-Link DS-PMA-C+ SFP I GPON Class C+ Module
Brand : TP-LINK
SKU: SKU: DS-PMA-C+
No reviews
Low stock: 2 left
Regular price
₱2,990.00
Regular price
₱3,199.00
Sale price
₱2,990.00
Unit price
/
per
Couldn't load pickup availability
DS-PMA-C+
SFP GPON Class C+ Module
- Single-fiber SFP GPON Class C+ Module
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with TP-Link GPON OLT, such as DS-P7001-16, DS-P7001-08, and DS-P7001-04
| GPON SFP Module | |
|---|---|
| Wavelength | • Tx: 1490nm • Rx: 1310nm |
| Connector | • Device: GPON SFP • Fiber: SC/UPC |
| Fiber Type | Single Fiber (9/125um) |
| Data Rate | • Tx: 2488.32Mbps • Rx: 1244.16Mbps |
| Power Level | Class C+ (Tx Optical Power +3~+7dBm，Rx Sensitivity <-30 dBm，Rx Saturation Optical Power>-12dBm) |
| Extinction Ratio | >8.2dB |
| Rx Optical Power Tolerance | >5dBm |
| Transmission Distance | Max. 20 km |
| Hot Swap | Yes |
| Nominal Voltage | 3.3 V (< ± 5％) |
| Diagnostic Function | Monitors parameters such as voltage, transceiver power, and temperature |
| Electrical Level | • Data Interface: LVPECL • Control Interface：LVTTL |
| Package | 2× 10 SFF |
