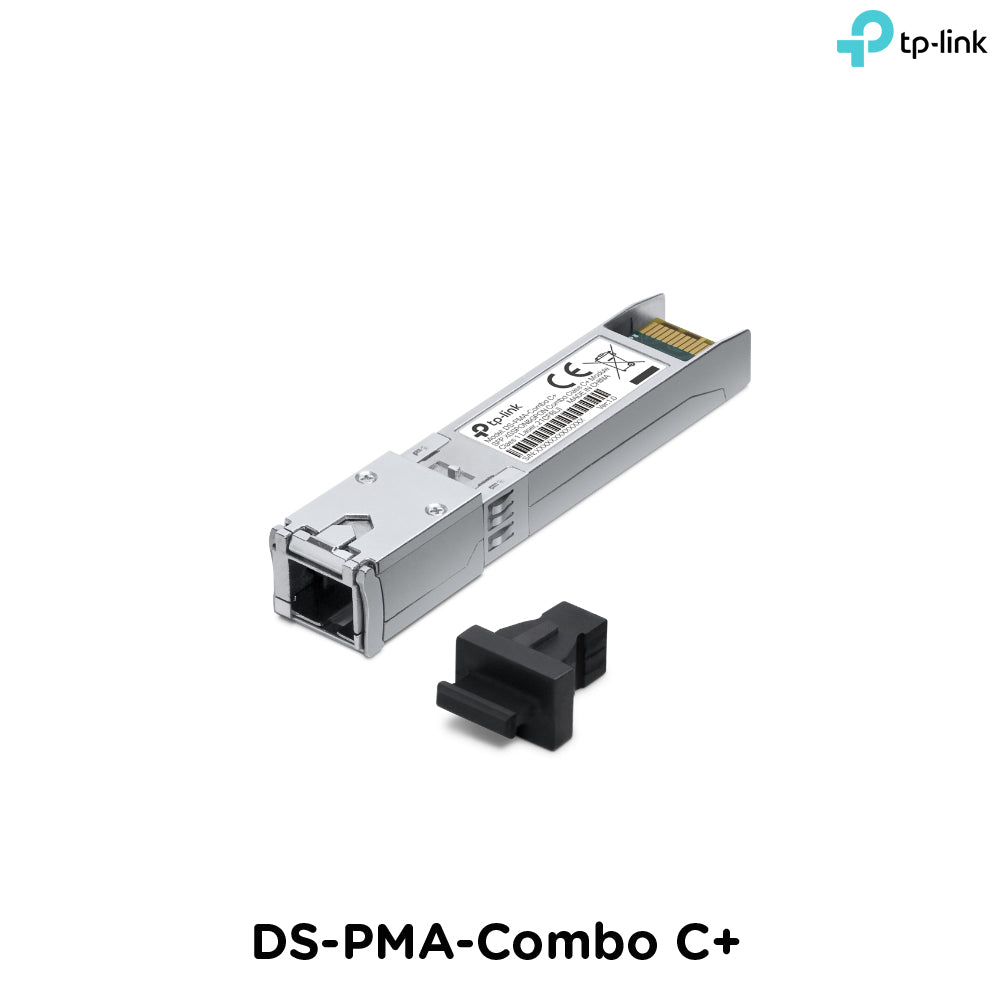

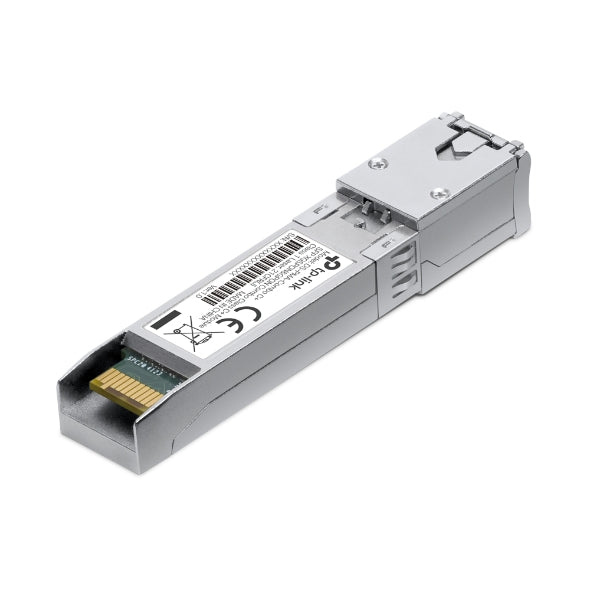

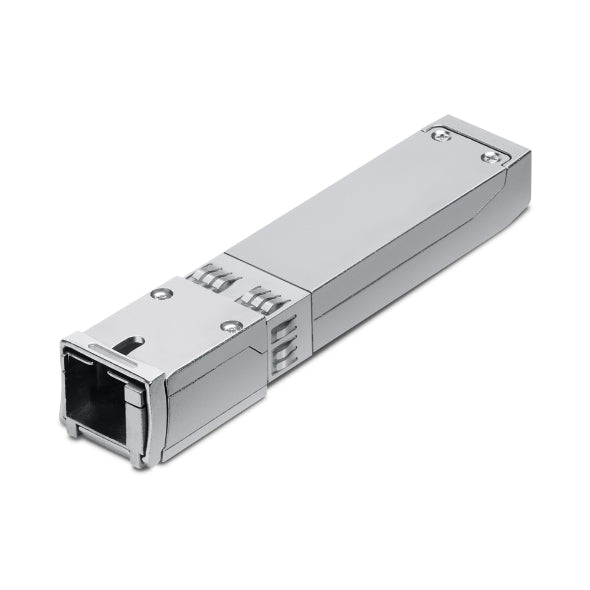

Tp-Link DS-PMA-Combo C+ I SFP XGS-PON & GPON Combo Class C+ Module
Tp-Link DS-PMA-Combo C+ I SFP XGS-PON & GPON Combo Class C+ Module
Brand : TP-LINK
SKU: SKU: DS-PMA-Combo-C+
No reviews
Low stock: 2 left
Regular price
₱18,990.00
Regular price
₱18,990.00
Sale price
₱18,990.00
Unit price
/
per
Couldn't load pickup availability
DS-PMA-Combo C+
NewSFP XGS-PON & GPON Combo Class C+ Module
- Enables multi-gig fiber internet connections up to symmetrical 10 Gbps transmission.*
- Supports XGS-PON/XG-PON and GPON for flexible deployment and internet access.
- Supports hot swapping for quick and easy installation and application.
- Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring.
| Combo PON SFP+ Module | |
|---|---|
| Wavelength | XGS-PON: Tx: 1577 nm Rx: 1270 nm XG-PON: Tx: 1577 nm Rx: 1270 nm GPON: Tx: 1490 nm Rx: 1310 nm |
| Connector | Device: XGS-PON/XG-PON/GPON SFP+ Fiber: SC/UPC |
| Fiber Type | Single Fiber (9/125um) |
| Data Rate | XGS-PON: Downstream Data Rate: 9.953 Gbps Upstream Data Rate:9.953 Gbps XG-PON: Downstream Data Rate: 9.953 Gbps Upstream Data Rate:2.488 Gbps GPON: Downstream Data Rate: 2.488 Gbps Upstream Data Rate:1.244 Gbps* |
| Power Level | XGS-PON: Tx Optical Power: +3~+8 dBm Rx Sensitivity ≤-29 dBm Rx Saturation Optical Power >-8 dBm XG-PON: Tx Optical Power: +3~+8 dBm Rx Sensitivity ≤-30.5 dBm Rx Saturation Optical Power >-10 dBm GPON: Tx Optical Power: +3~+7 dBm Rx Sensitivity ≤-32 dBm Rx Saturation Optical Power >-12 dBm |
| Extinction Ratio | >8.2dB |
| Rx Optical Power Tolerance | >5dBm |
| Transmission Distance | Max. 20 km |
| Hot Swap | Yes |
| Nominal Voltage | 3.3 V (< ± 5％) |
| Diagnostic Function | Monitors parameters such as voltage, transceiver power, and temperature |
| Electrical Level | XGS-PON/XG-PON: Data Interface: CML GPON: Data Interface: LVPECL Control Interface: LVTTL |
| Package | SFP Module DS-PMA-Combo C+ Quick Installation Guide |
