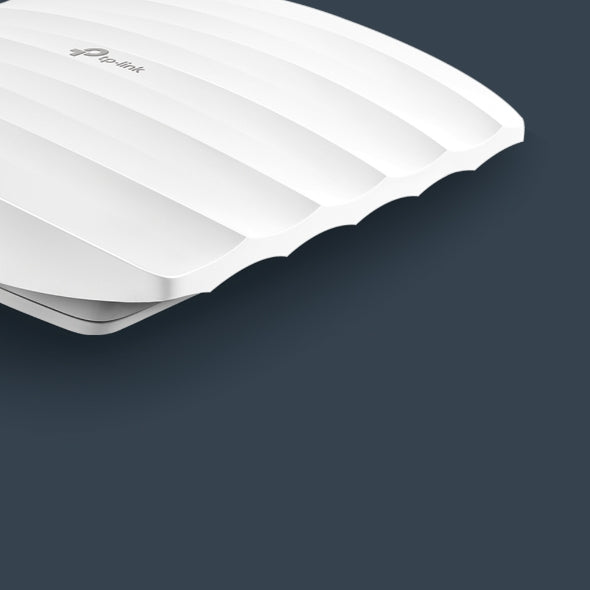

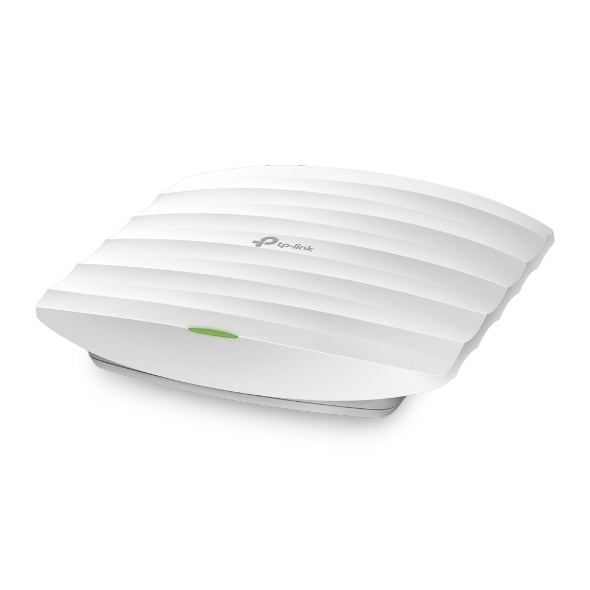

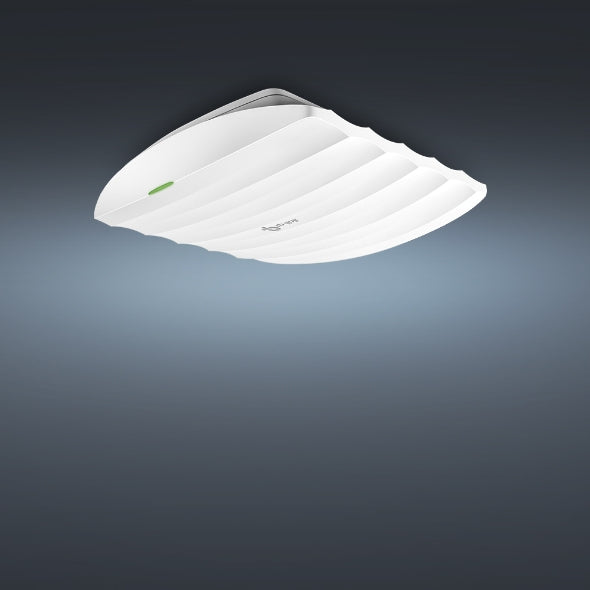

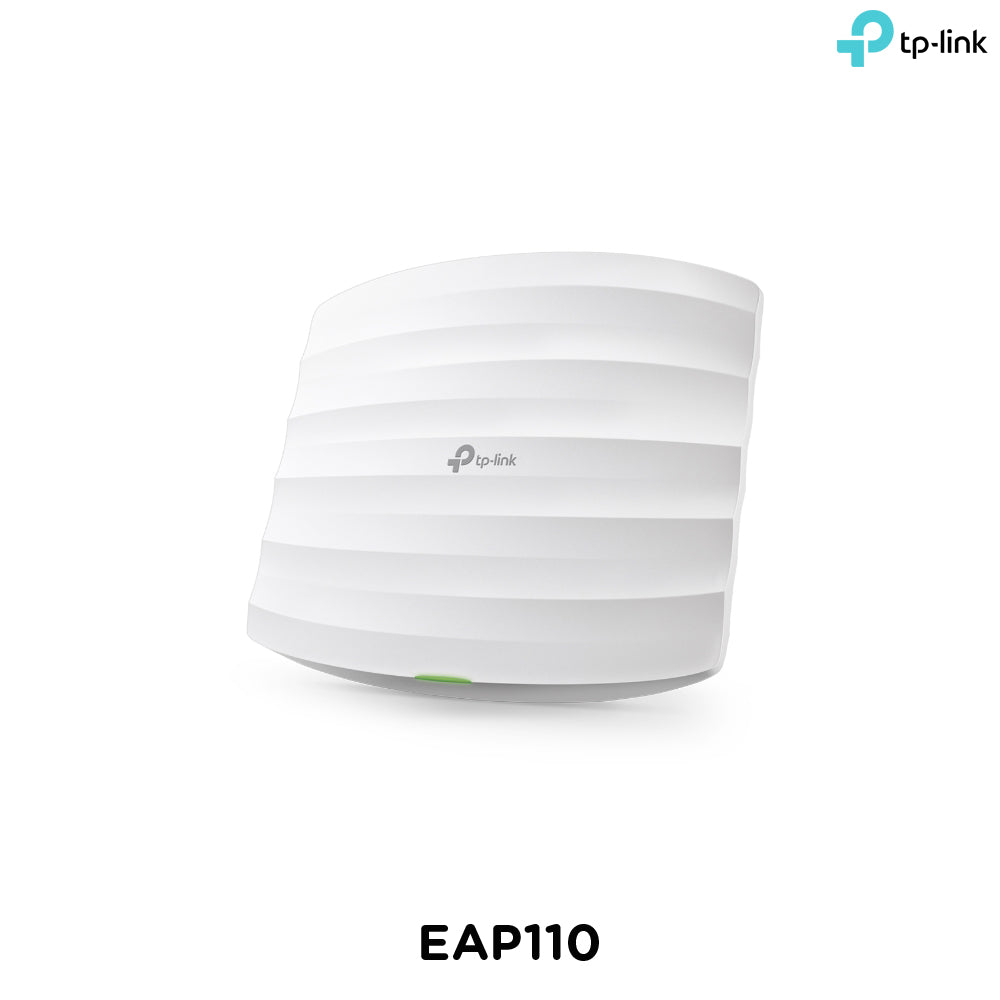

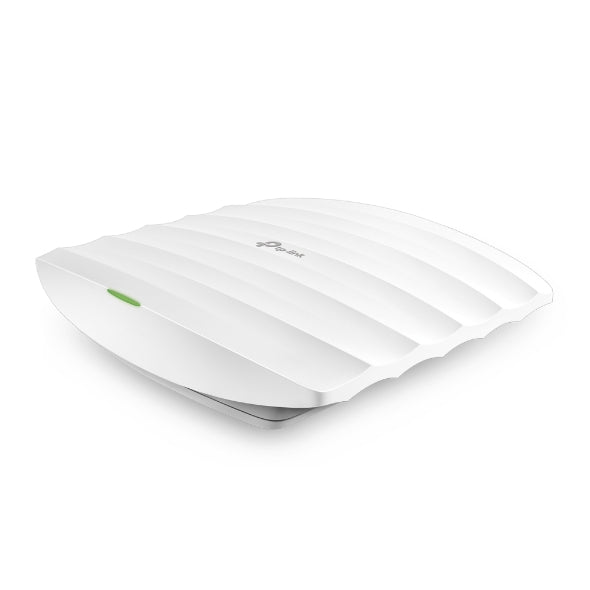

Tp-Link EAP110 I 300Mbps Wireless N Ceiling Mount Access Point
Tp-Link EAP110 I 300Mbps Wireless N Ceiling Mount Access Point
Brand : TP-LINK
SKU: SKU: EAP110
Regular price
₱1,520.00
Regular price
₱1,690.00
Sale price
₱1,520.00
Unit price
/
per
Taxes included.
Low stock: 2 left
Couldn't load pickup availability
No reviews
EAP110
Hot Buys300Mbps Wireless N Ceiling Mount Access Point
- Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
- PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
- Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.*
- Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
- Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
HARDWARE FEATURES | |
---|---|

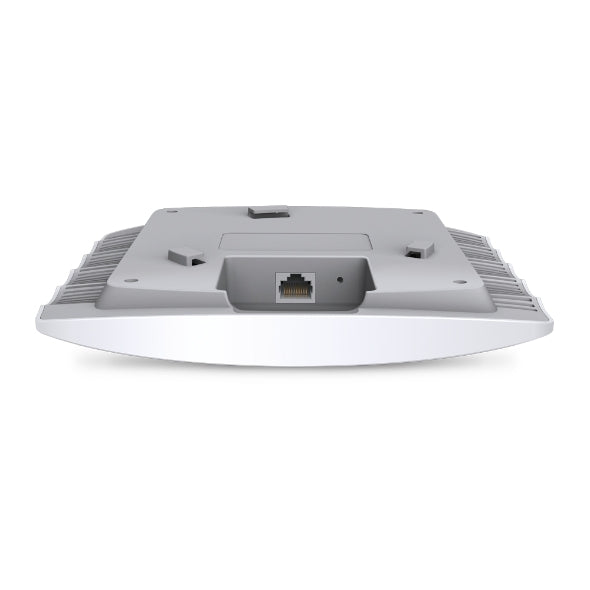

Interface | Fast Ethernet (RJ-45) Port *1(Support Passive PoE) |
Button | Reset |
Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
Power Consumption | 2.8 W |
Dimensions ( W x D x H ) | 7.5×6.8×1.2 in (189.4×172.3×29.5mm) |
Antenna Type | Internal 2× 4 dBi Omni |
Mounting | Ceiling /Wall Mounting (Kits included) |
WIRELESS FEATURES | |
---|---|
Coverage | 60㎡(650ft²)§ |
Wireless Client Capacity | 100+** |
Concurrent Clients | 100+** |
Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4-2.4835GHz |
Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
Wireless Functions | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
Transmission Power | CE: <20dBm FCC: <26dBm |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1,v2c |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
