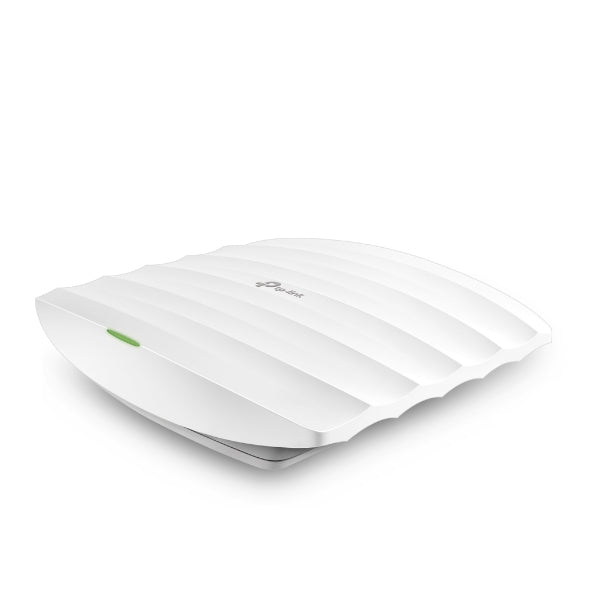

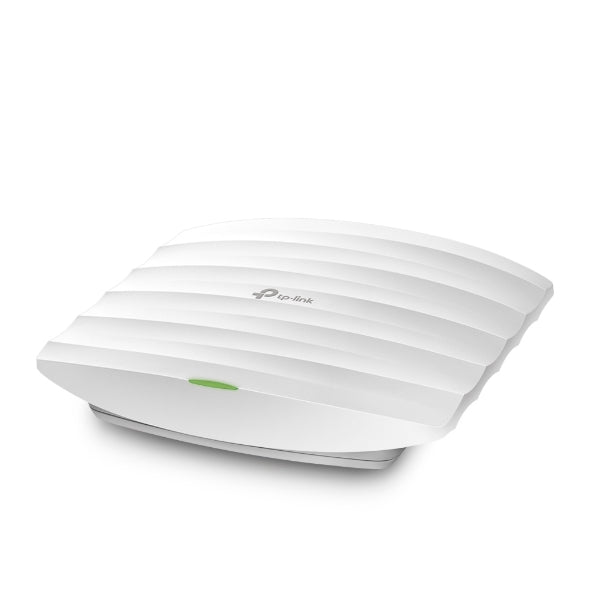

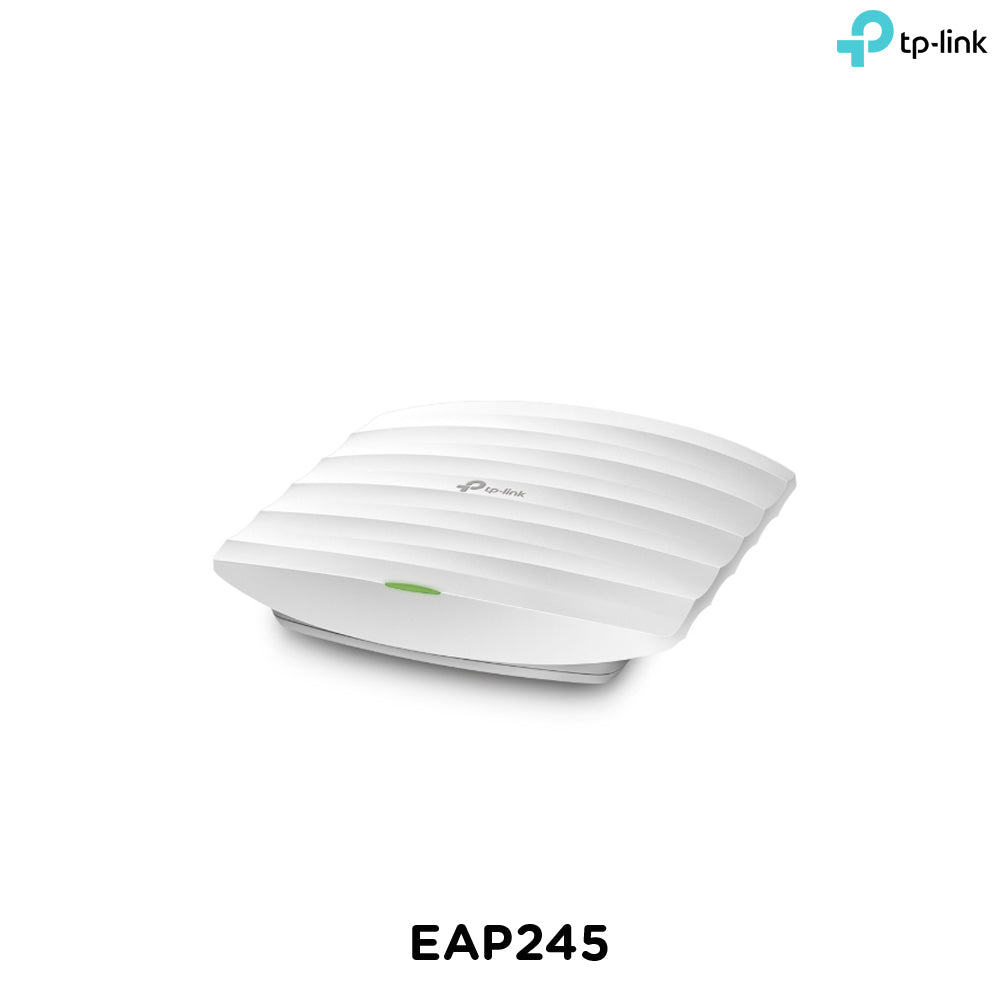

Tp-Link EAP245 I AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point
Tp-Link EAP245 I AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point
Brand : TP-LINK
SKU: SKU: EAP245
No reviews
Low stock: 2 left
Regular price
₱5,490.00
Regular price
₱5,990.00
Sale price
₱5,490.00
Unit price
/
per
Couldn't load pickup availability
EAP245
AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
| HARDWARE FEATURES | |
|---|---|

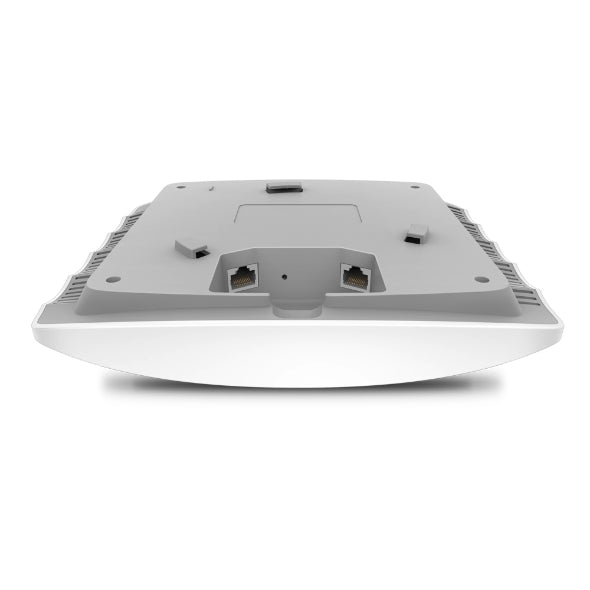

| Interface | 2 × Gigabit Ethernet (RJ-45) Ports |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE or 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 12.3 W |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in. (206 × 182 × 37 mm) |
| Antenna Type | Internal Omni 2.4GHz: 3 × 4dBi 5GHz: 3 × 4dBi |
| Mounting | Ceiling or Wall Mount (Mounting kit included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz:Up to 1300Mbps 2.4GHz:Up to 450Mbps |
| Wireless Functions | Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO (Wave 2) Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | FCC: ≤25dBm(2.4GHz) ≤27dBm(5GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes omada.tplinkcloud.com |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |

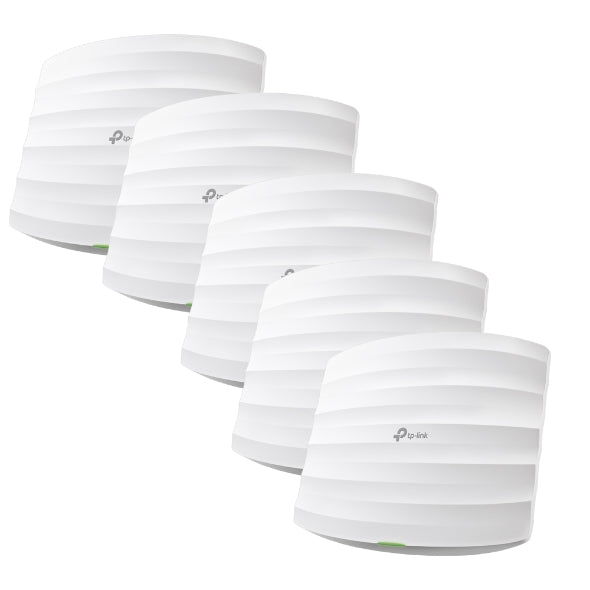

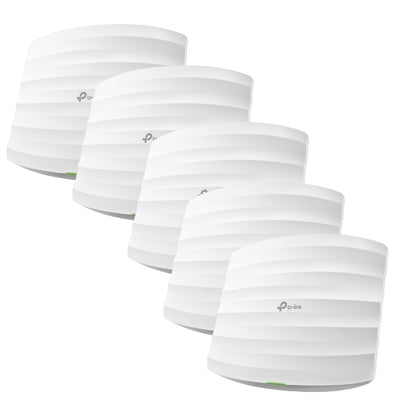

| Package Contents | • 5 EAP245 Access Points • 5 Mounting Kits • 1 Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
