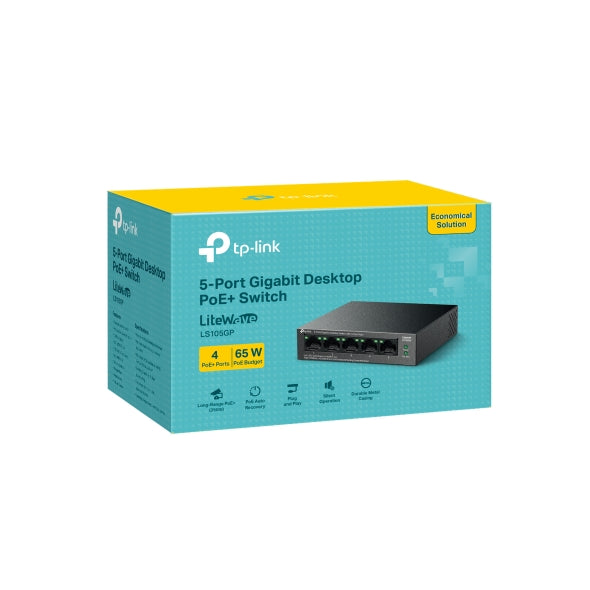

Tp-Link LS105GP I 5-Port Gigabit Desktop Switch with 4-Port PoE+
Tp-Link LS105GP I 5-Port Gigabit Desktop Switch with 4-Port PoE+
SKU: SKU: LS105GP
Regular price
₱1,690.00
Regular price
₱1,790.00
Sale price
₱1,690.00
Unit price
/
per
Low stock: 2 left
No reviews
LS105GP
New5-Port Gigabit Desktop Switch with 4-Port PoE+
- Full Gigabit Ports: Five gigabit augo-negotiation ports provide up to 10 Gbps switching capacity.
- 65 W PoE Budget: Four gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
HARDWARE FEATURES | |
---|---|
Interface | • 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Installation | • Desktop • Wall Mounting |
Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4, up to 30 W PoE output per port • Power Supply: 65 W |
Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
Max Power Consumption | • 4 W (220/50 Hz. no PD connected) • 74.46 W (220/50 Hz. with 65 W PD connected) |
Max Heat Dissipation | • 13.6 BTU/h (no PD connected) • 253.16 BTU/h (with 65 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 10 Gbps |
Packet Forwarding Rate | 7.44 Mpps |
MAC Address Table | 2K |
Jumbo Frame | 16 KB |
SOFTWARE FEATURES | |
---|---|
Advanced Features | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-4) • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology |
Transfer Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | • LS105GP • Power Adapter • Installation Guide |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
