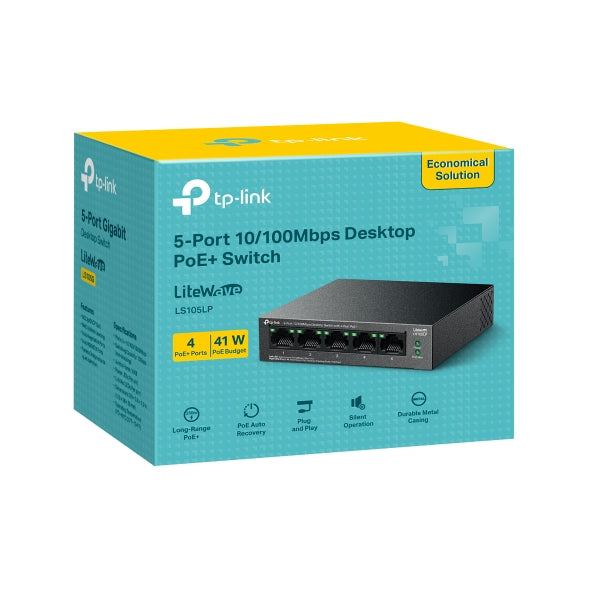

Tp-Link LS105LP I 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

Tp-Link LS105LP I 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

Brand : TP-LINK

SKU:  LS105LP

₱1,390.00
₱1,490.00 ₱1,390.00
Sale! Sold out
Taxes included.

Low stock: 2 left

LS105LP

 New

5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

  • 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
  • 41 W total PoE budget*
  • Up to 250m data and power transmitting range under Extend Mode**
  • Automatically reboots your dropped or unresponsive PoE-powered devices.
  • Simply plug and play for instant connectivity with no configuration required.
  • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
  • Desktop / Wall-mounting
HARDWARE FEATURES
Interface • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Installation • Desktop
• Wall Mounting
Power Supply External Power Adapter (Output: 53.5VDC / 0.81A)
PoE Ports (RJ45) • Standard: 802.3 af compliant
• PoE Ports: Ports 1–4, up to 15.4 W PoE output per port
• Power Supply: 41 W
LED Indicator • Power
• Link/Act
• PoE Status
• PoE MAX
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption • 2.40 W (220 V/50 Hz no PD connected)
• 46.45 W (220 V/50 Hz with 41 W PD connected)
Max Heat Dissipation • 8.15 BTU/h (220 V/50 Hz no PD connected)
• 157.93 BTU/h (220 V/50 Hz with 41 W PD connected)
PERFORMANCE
Switching Capacity 1 Gbps
Packet Forwarding Rate 0.744 Mpps
MAC Address Table 2K
Jumbo Frame 2 KB
SOFTWARE FEATURES
Advanced Features • Extend Mode: Ports 1–4
• PoE Auto Recovery: Ports 1-4
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents • LS105LP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
